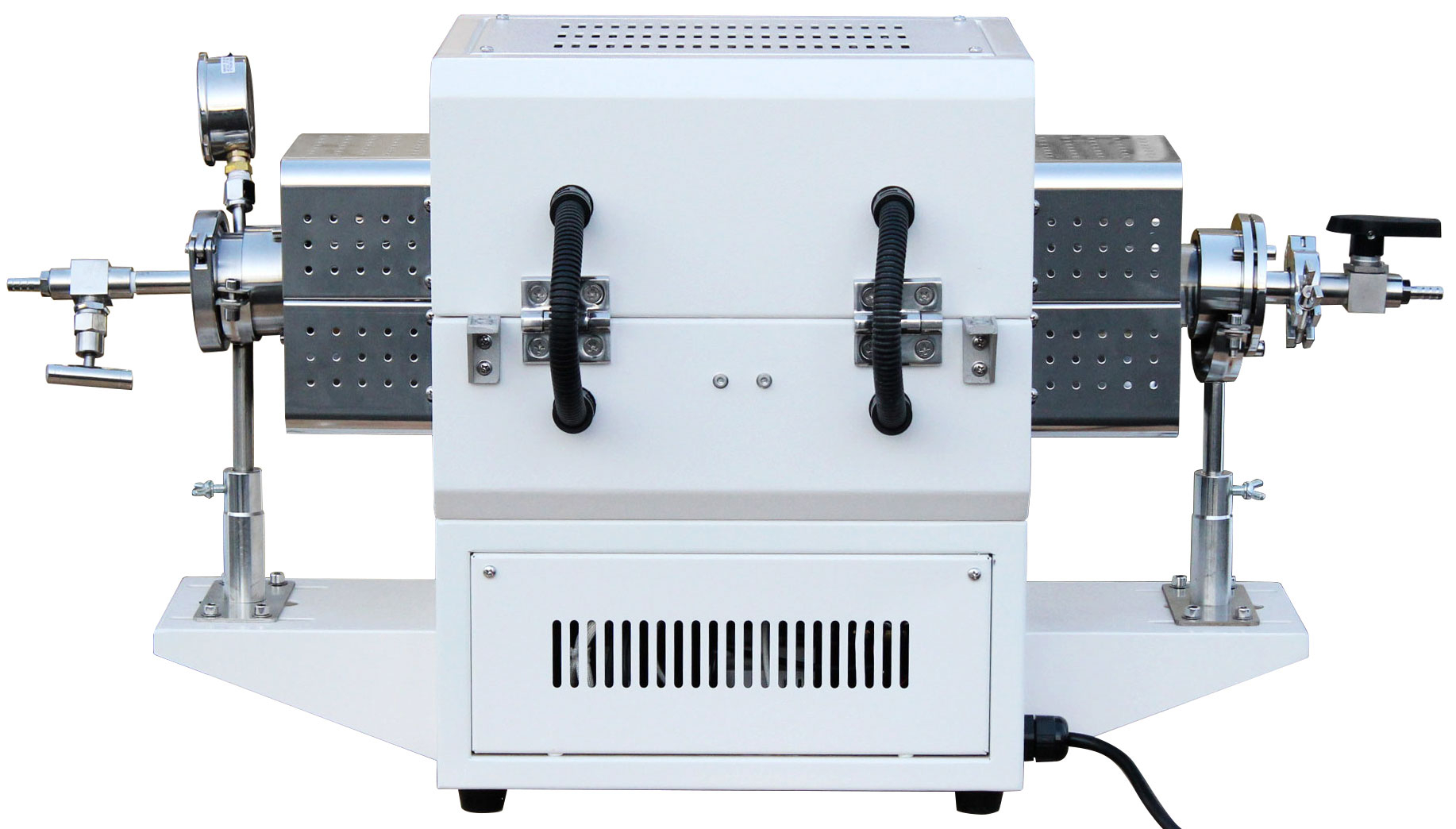

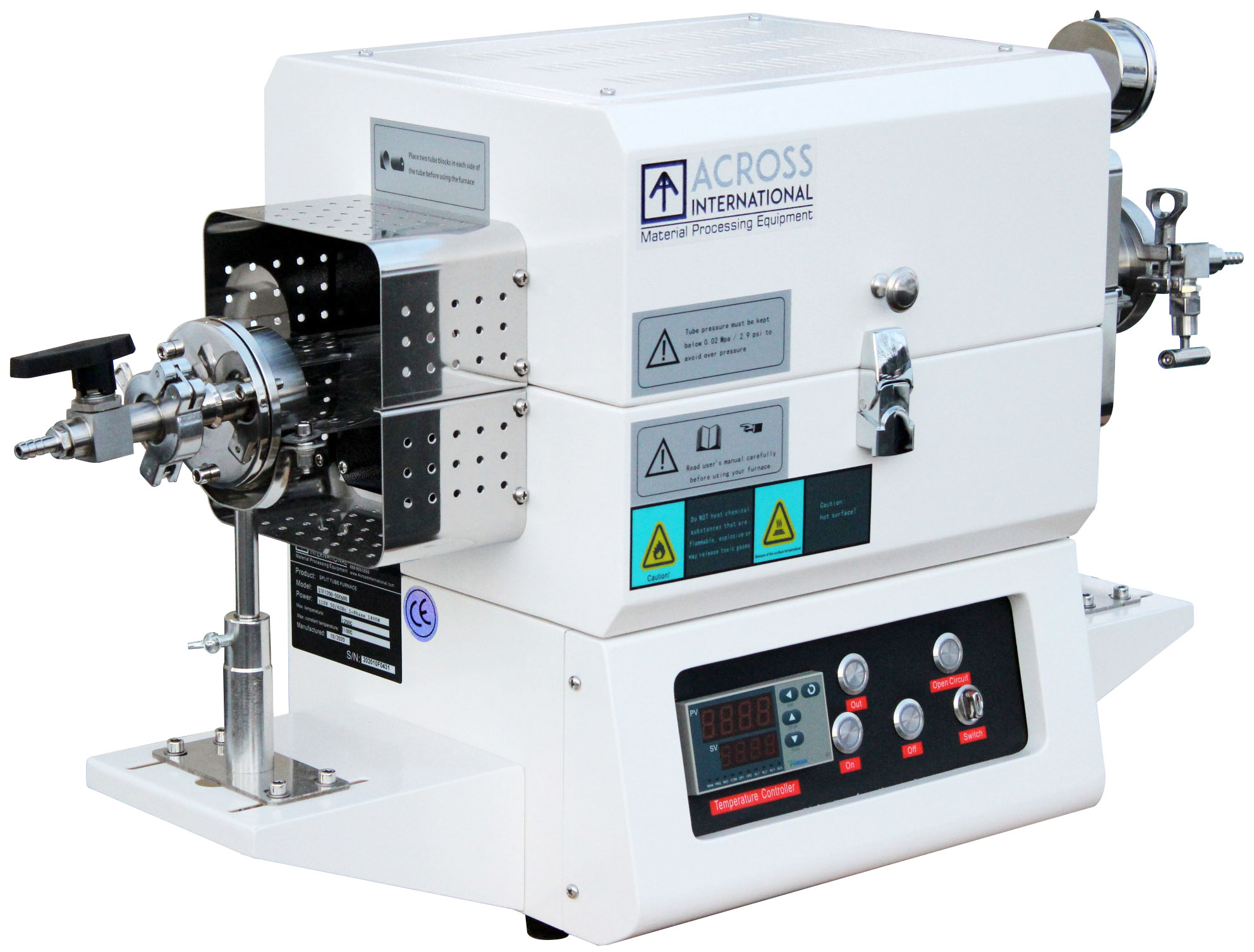

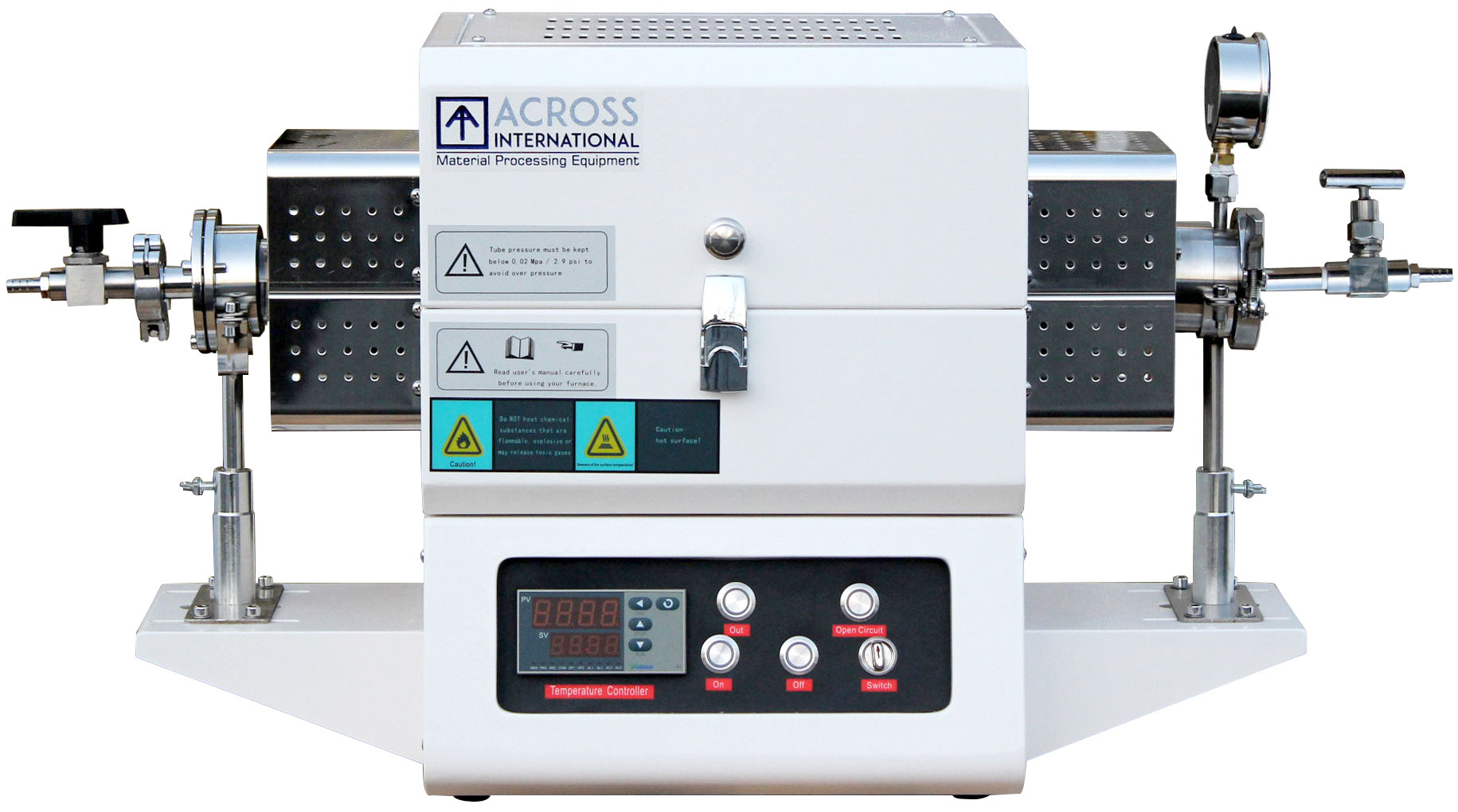

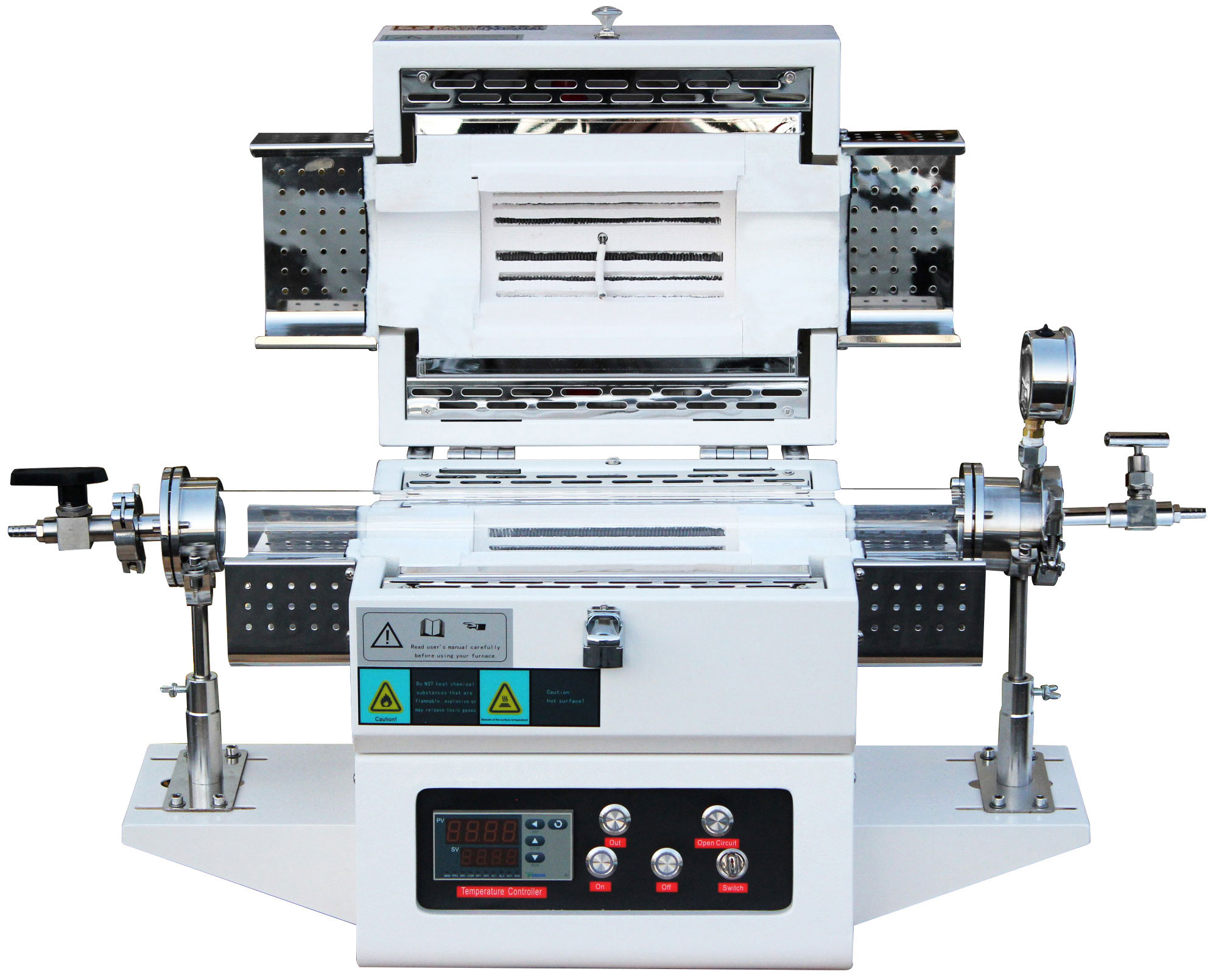

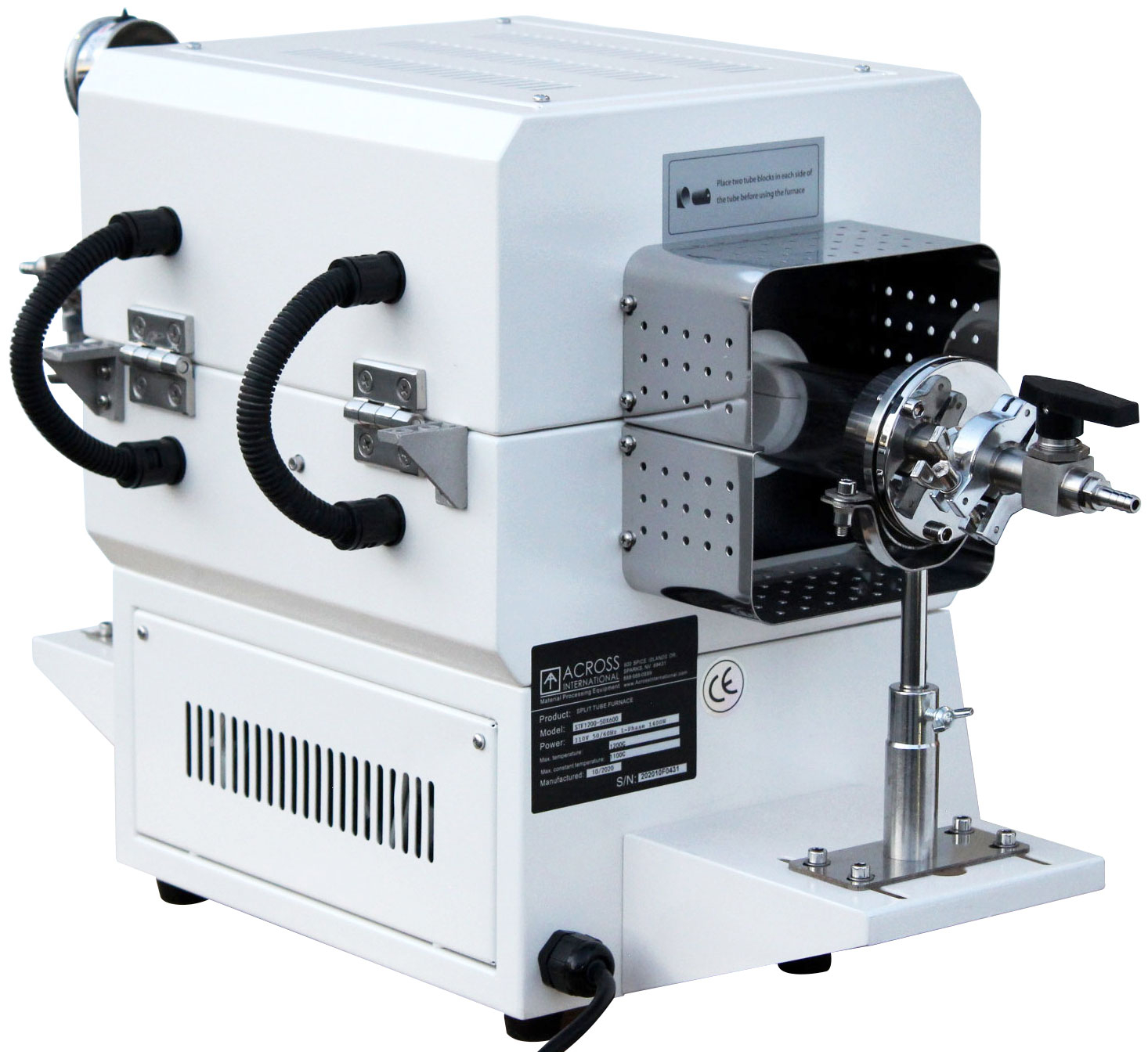

1200C 1-Zone 50mm OD Top-Open Tube Furnace with Quartz Tube


SKU: 4200419 Category: Tag:


 Electrical requirements
 115V, 50/60Hz, 1~phase, 1,400 watts

 50mm OD x 600mm L, Quartz

 Maximum working temperature
 1200°C  (2 hours maximum continuous run time)

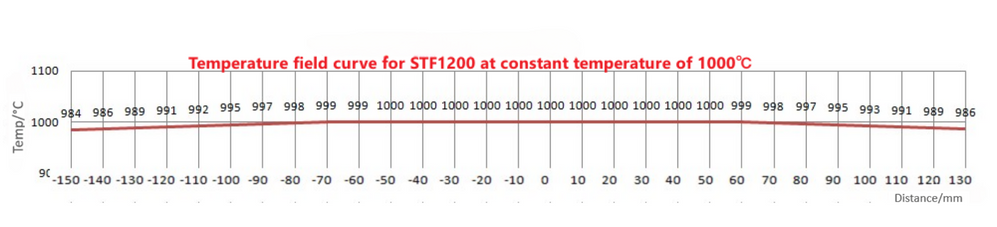

 Constant working temperature

 Minimum working temperature

 Constant working temperature under vacuum

 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure
 0.02 MPa / 150 torr / 3 psi

 Heating element type
 Resistance coil wire

 Thermo couple type

 Refractory lining
 Mitsubishi (Japan) 1500 grade fiber alumina

 Temperature controller
 Single PID, 30 segments

 Maximum heating rate

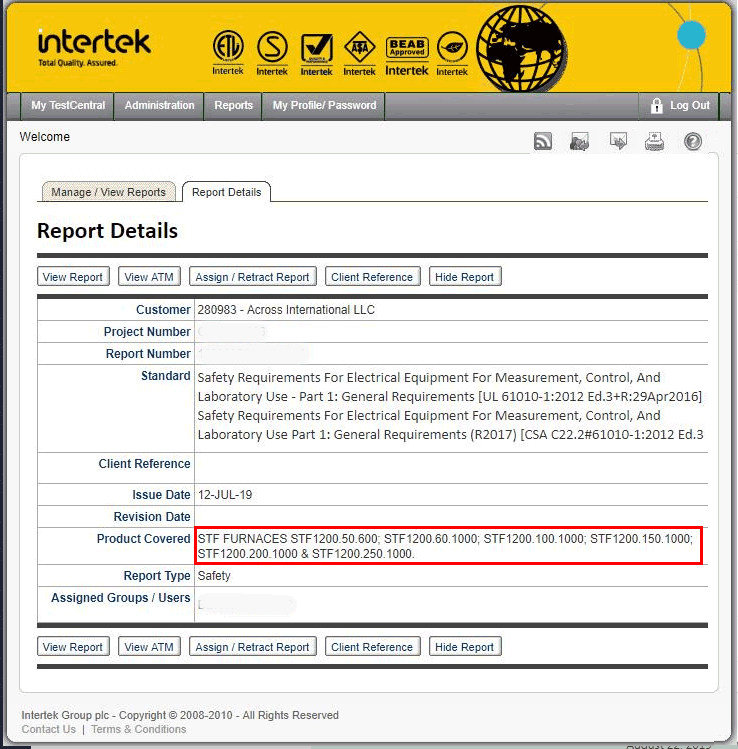

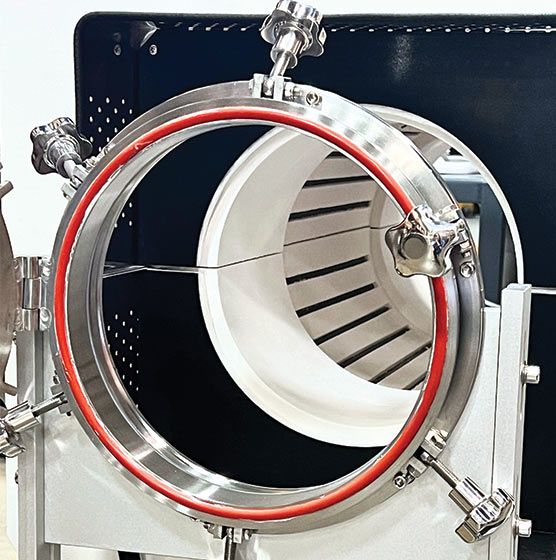

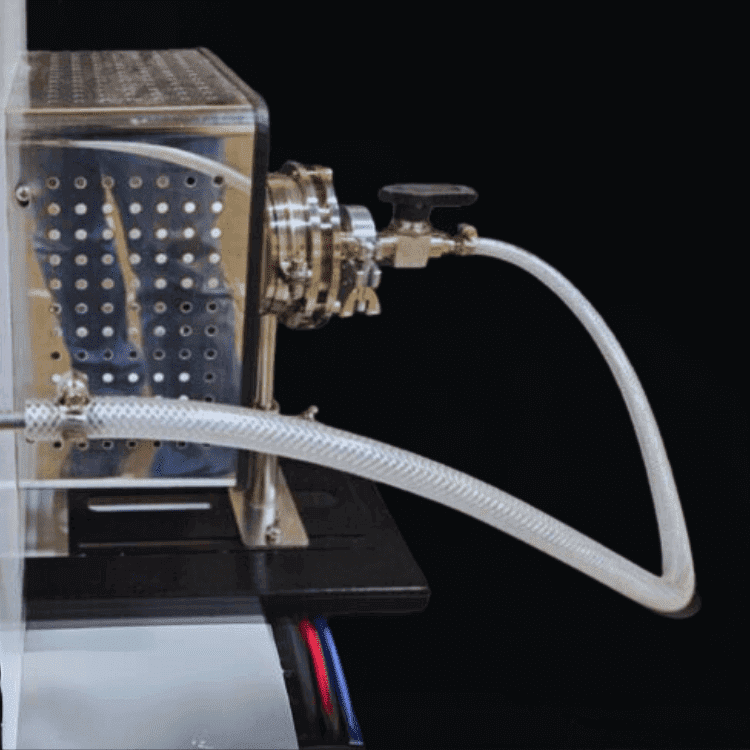

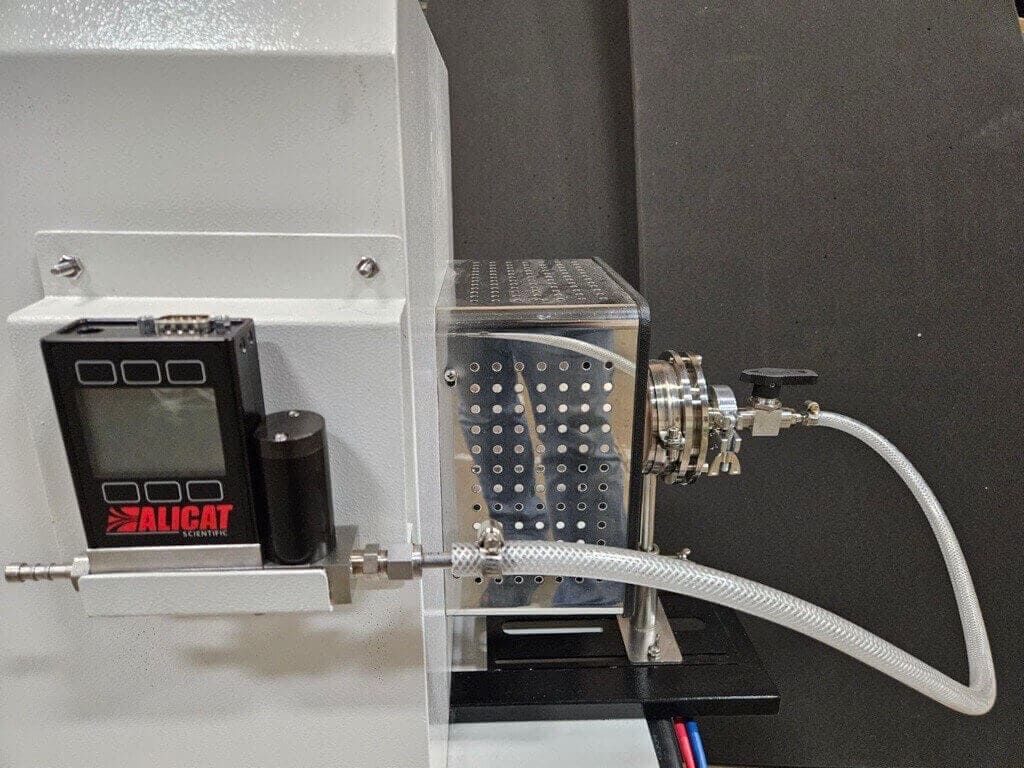

 < 30°C / min  Heating zone length  8"  Constant temperature zone length    3"  Temperature controller precision   /- 1°C  Vacuum sealing flange kit  Stainless steel vacuum sealing flanges with one vacuum gauge,two valves and four thermal ceramic blocks.        Gas inlet/outlet  1/4" hose barb with 1/4" BSPP (British standard parallel pipe)  Unit dimensions  21 x 32 x 26" (WxDxH) without tube  Unit weight  130 Lb  Compliance  ETL tested to UL and CSA standards (optional), CE  Download  Product brochure
