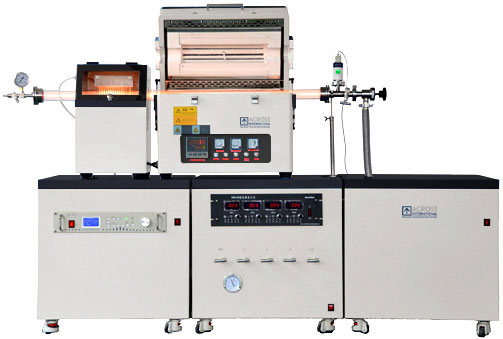

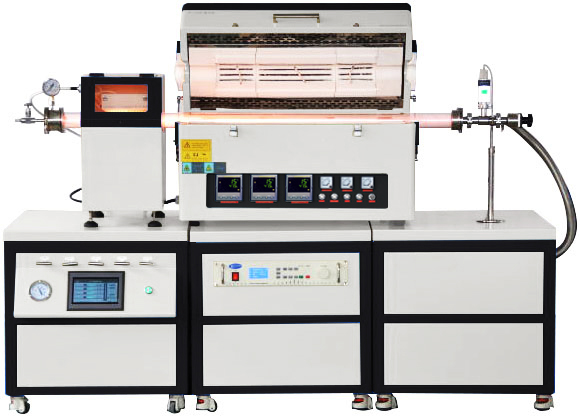

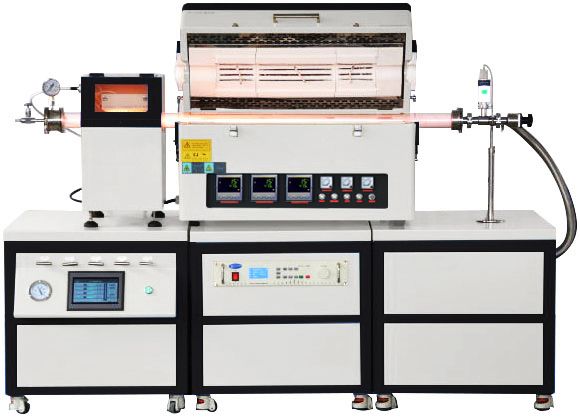

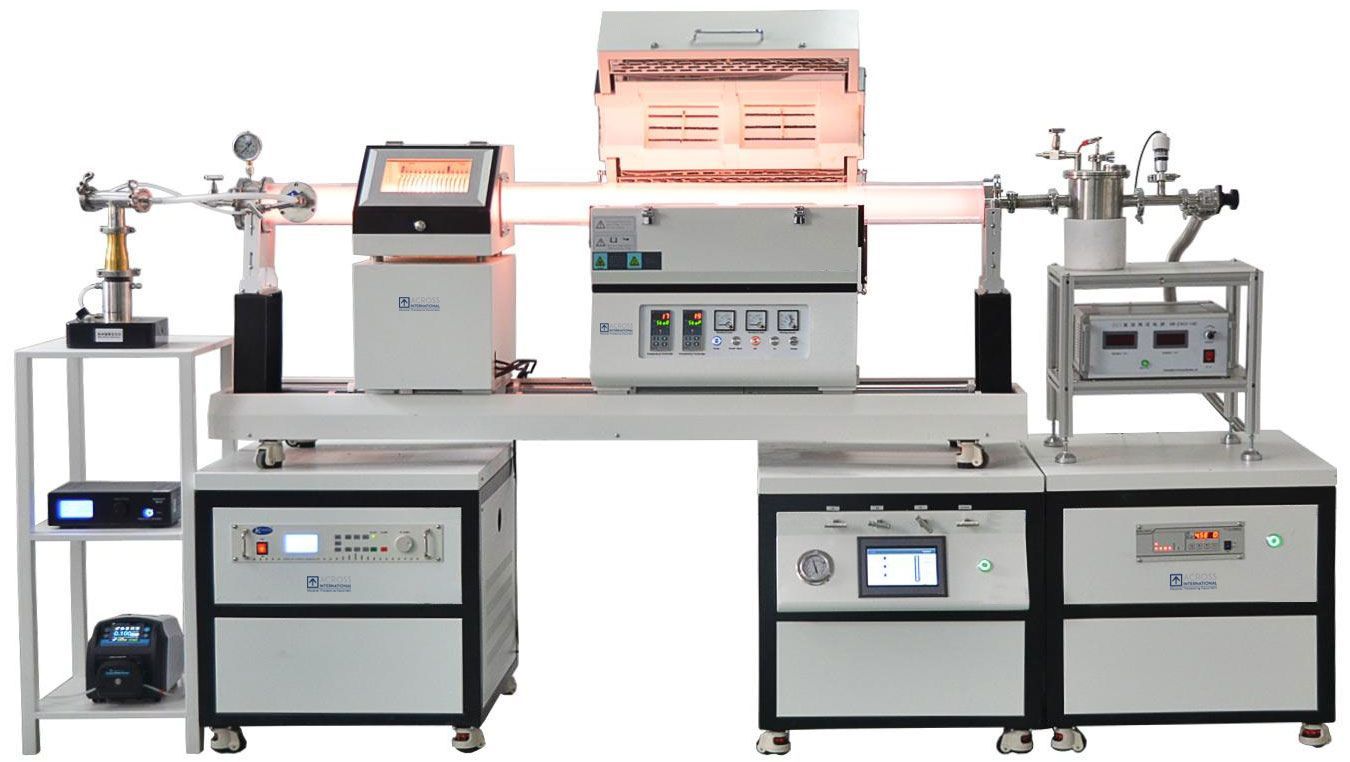

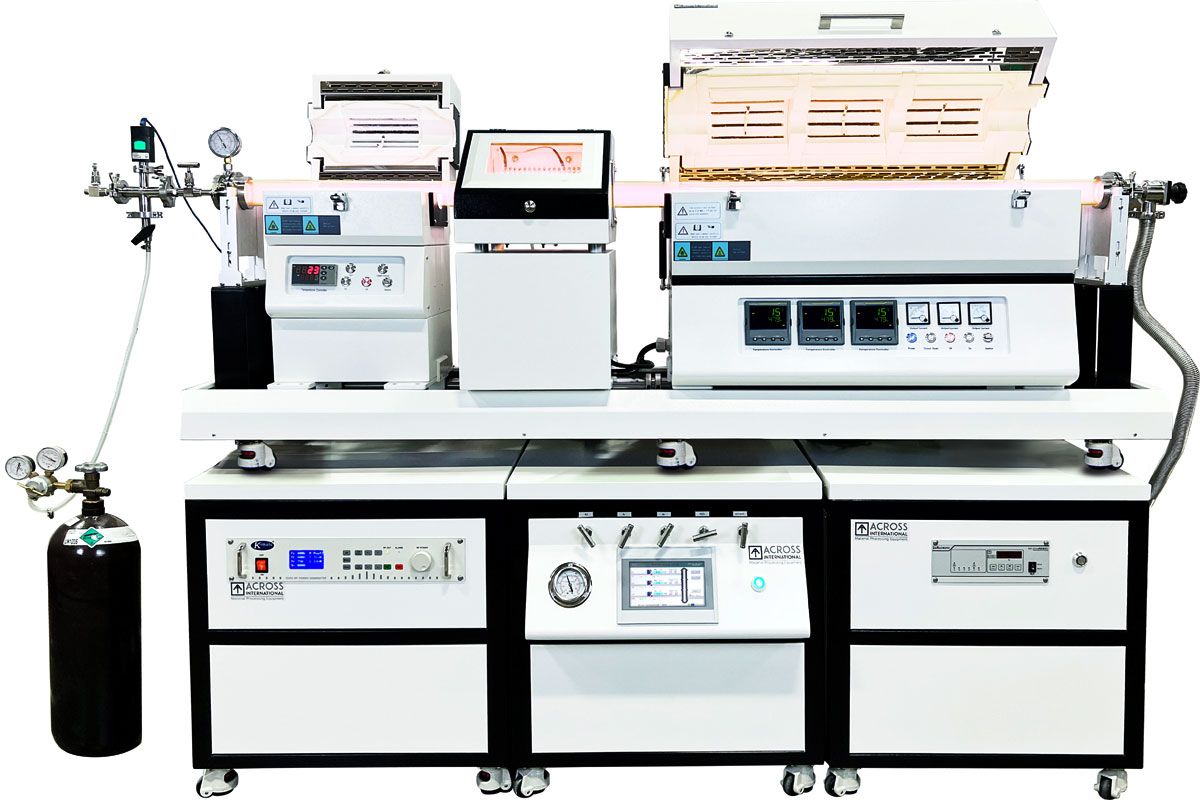

1200°C PE/CVD Furnace w/ RF Generator, Gas Mix & Pumping System

4,990.00$

SKU: 4200436 Category: Tag:

Description

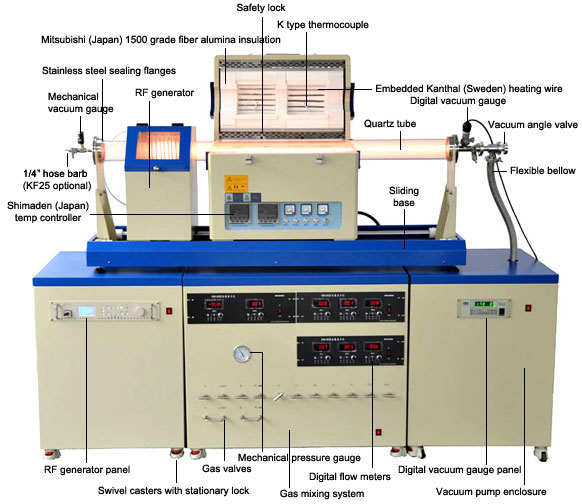

 Tube material
 Quartz

 Heating element
 Kanthal® (Sweden) A1 2.0 resistance coil wire

 Max. vs constant working temperatures
 1200°C max. and 1100°C constant

 Thermo couple type
 K

 Refractory lining
 Mitsubishi® (Japan) 1500 grade fiber alumina

 Temperature controller
 Shimaden® (Japan) fp93 with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments)

 Maximum heating rate

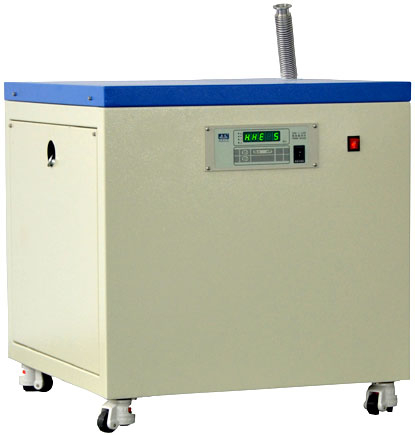

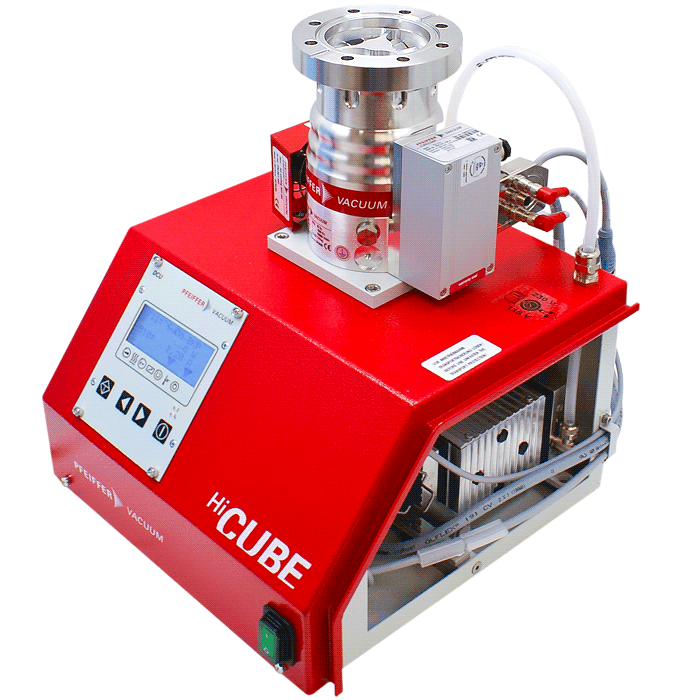

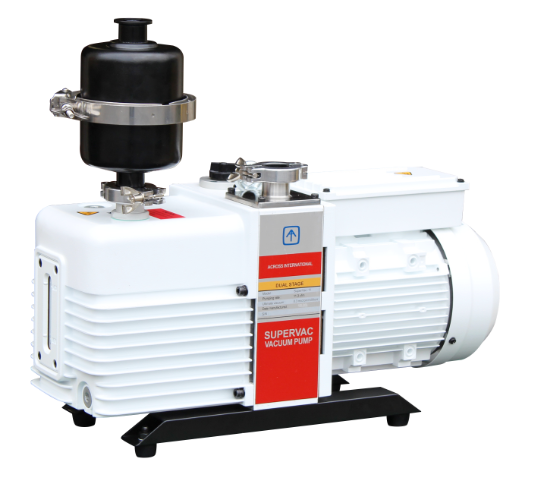

 < 30°C / min  Temperature controller precision   /- 1°C ( /- 1.8°F)  Vacuum sealing flange kit  Stainless steel vacuum sealing flanges with one vacuum gauge,two valves and four thermal ceramic blocks.        Electrical requirements  208-240VAC, 50/60 Hz, single phase  Single-zone 1200°C max furnace detail specs  Click here for more info  Dual-zone 1200°C max furnace detail specs  Click here for more info  Three-zone 1200°C max furnace detail specs  Click here for more info  Gas mixing system detail specs  Click here for more info  Vacuum pump detail specs  Click here for more info  Download  Product brochure
