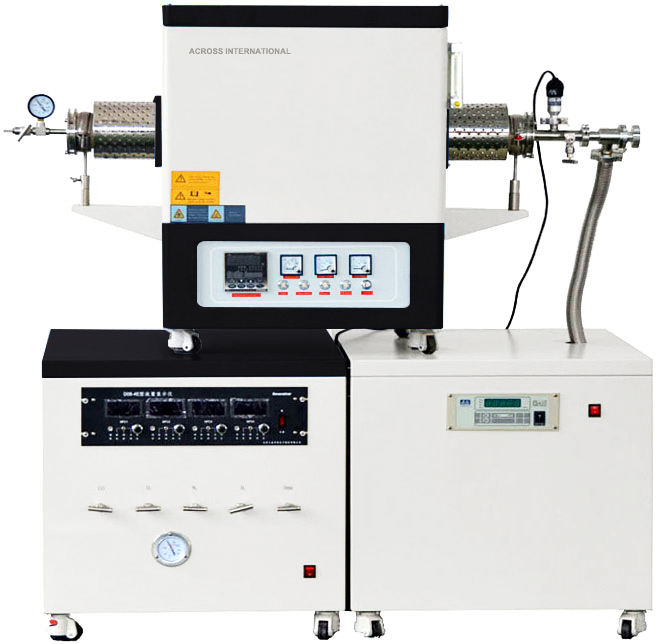

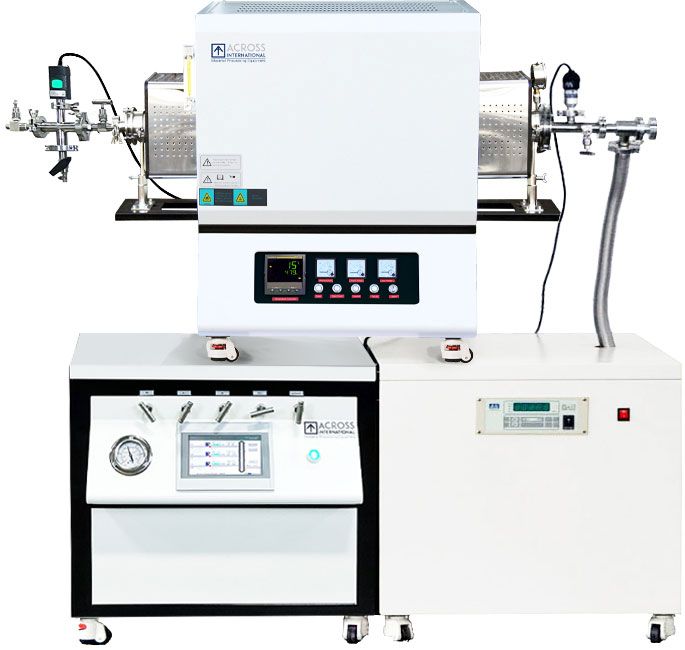

1400°C CVD Tube Furnace with Gas Mixing & Pumping System

5,990.00$

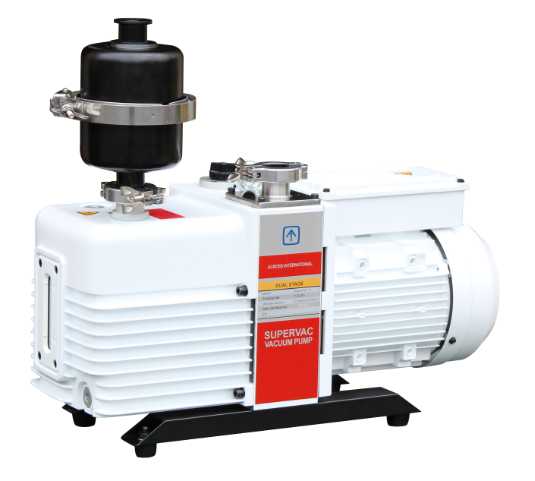

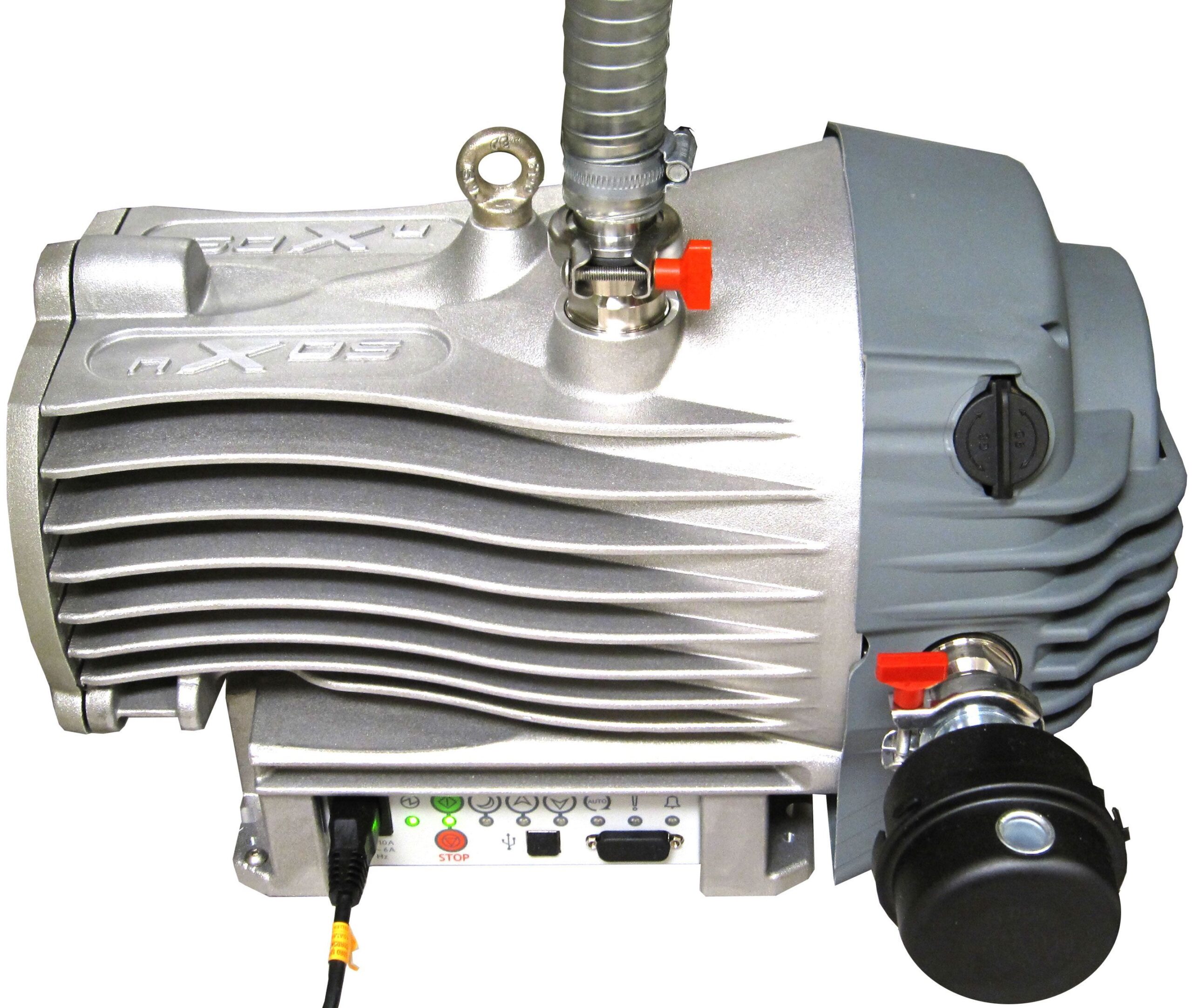

VACUUM PUMP MOBILE CART ONLY AVAILABLE IF YOU PURCHASE A PUMP AND A DIGITAL VACUUM CONTROLLER.

SKU: 4200437 Category: Tag:

Description

 Tube Material
 High purity (99%) Al2O3 alumina

 Min/max./Constant Working Temperature
 Ambient / 1400°C (2552°F) / 1300°C (2372°F)

 Refractory Lining
 Mitsubishi(Japan) high quality 1600 grade fiber alumina

 Heating Element
 Silicon carbide (SiC)

 Thermocouple Type
 S

 Temperature Controller
 Shimadenfp93 (Japan) with 4 patterns and  40 segments (i.e. 4 x 10 segments or 2 x 20 segments).

 Max Heating Rate
 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)

 Temperature Controller Precision
  /- 1°C ( /- 1.8°F)

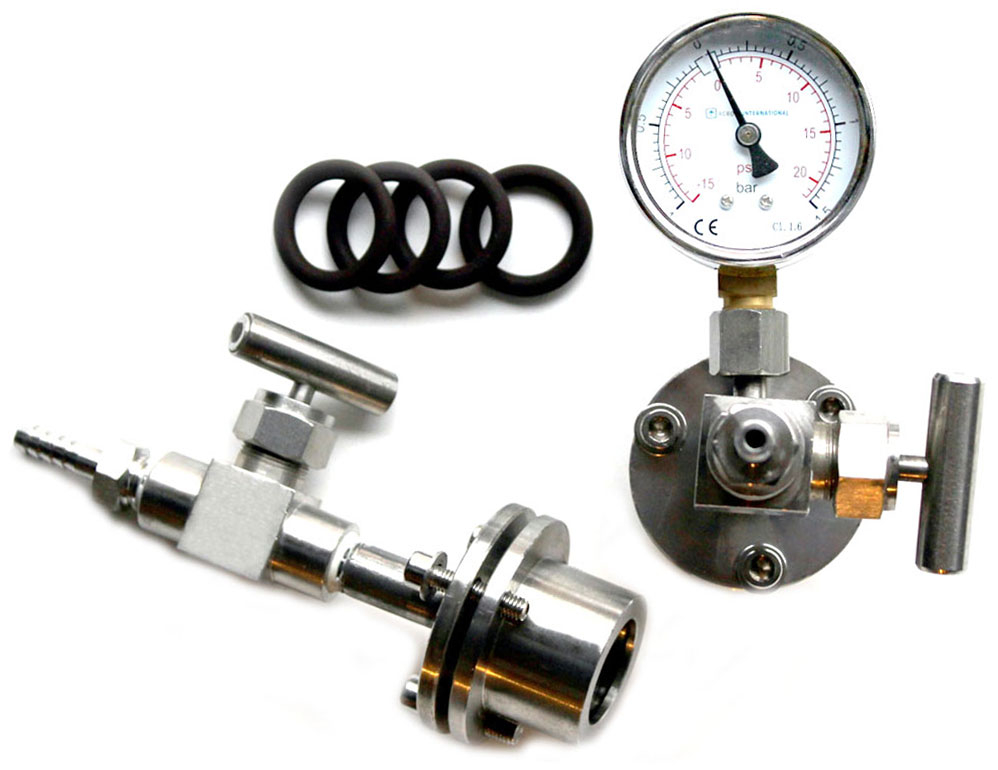

 Vacuum Sealing Flange Kit
 Stainless steel vacuum sealing flanges with one mechanical  vacuum gauge, two valves and four thermal ceramic blocks.

 Electrical requirements
 208-240VAC, 50/60 Hz, single phase

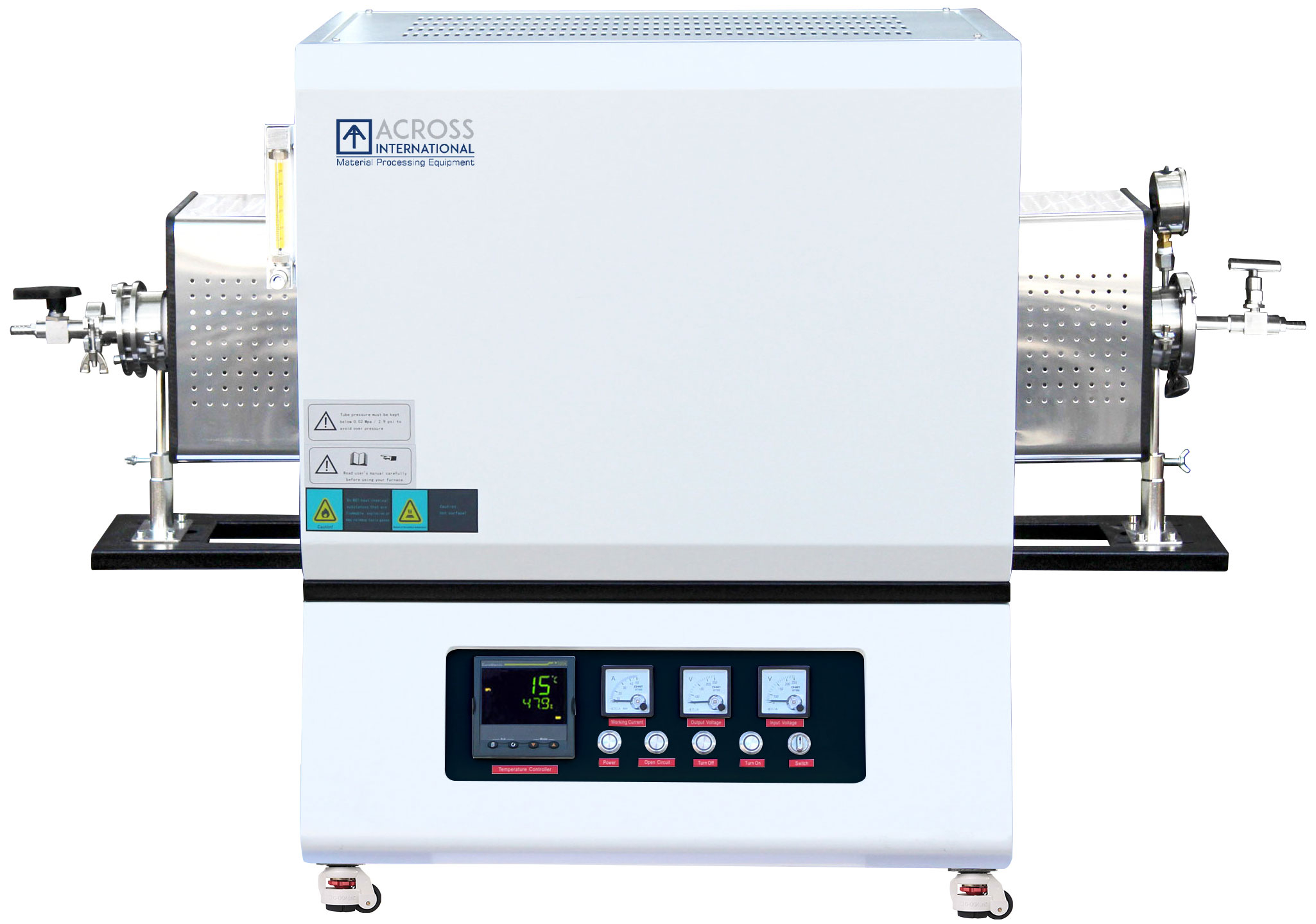

 Single-zone 1400°C max furnace detail specs
