1700°C Max Controlled Atmosphere Muffle Furnace w/ PC Interface

14,990.00$

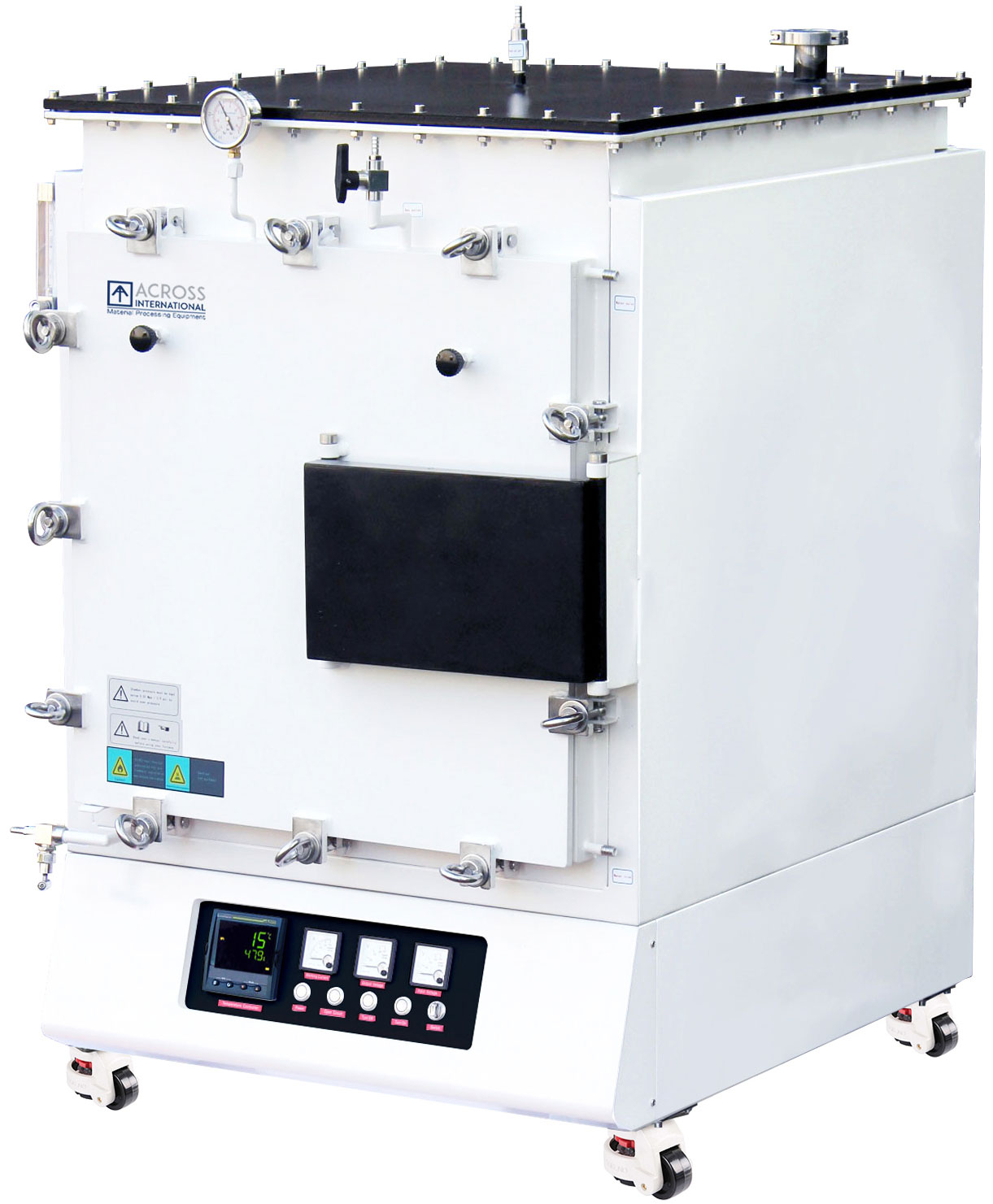

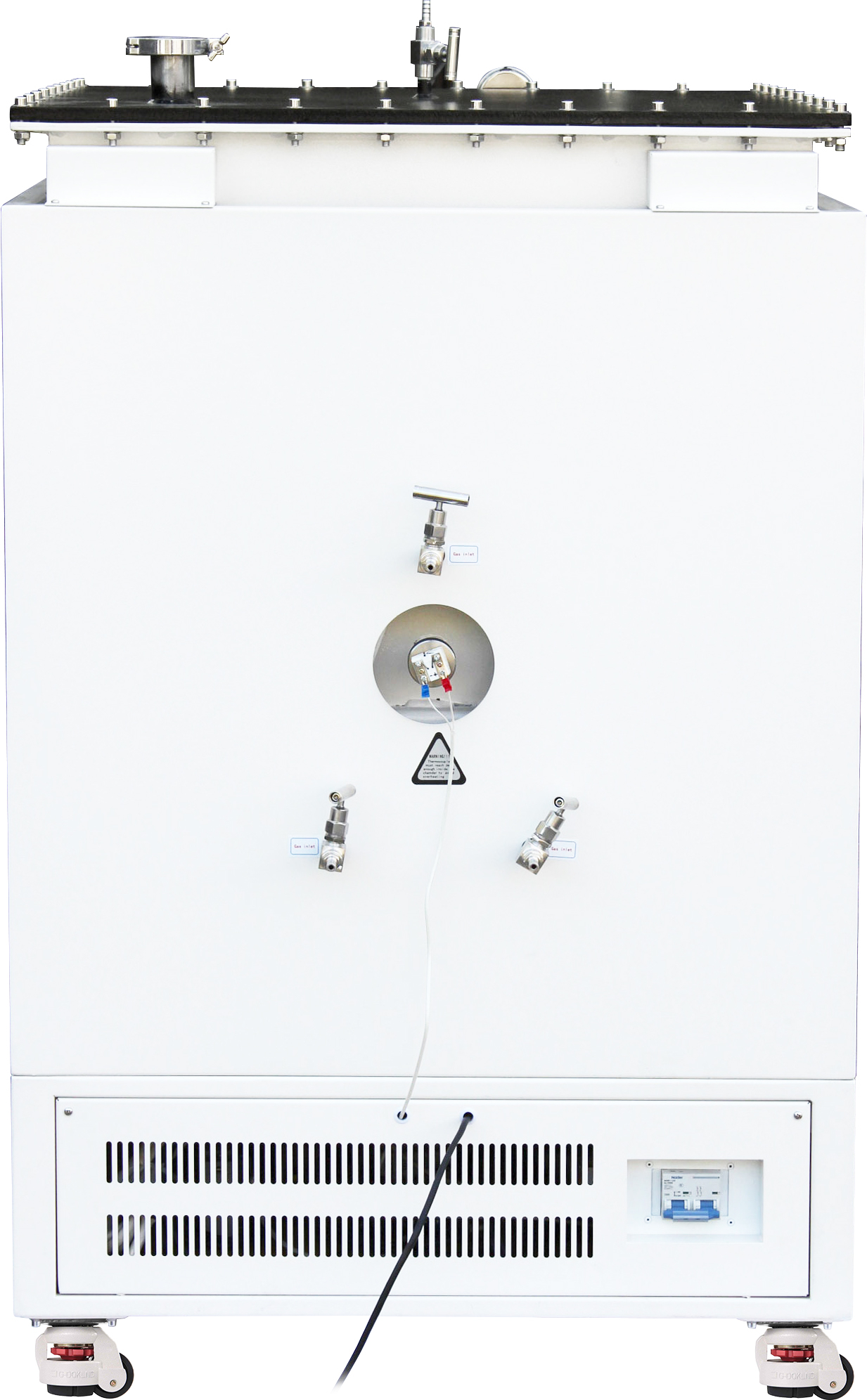

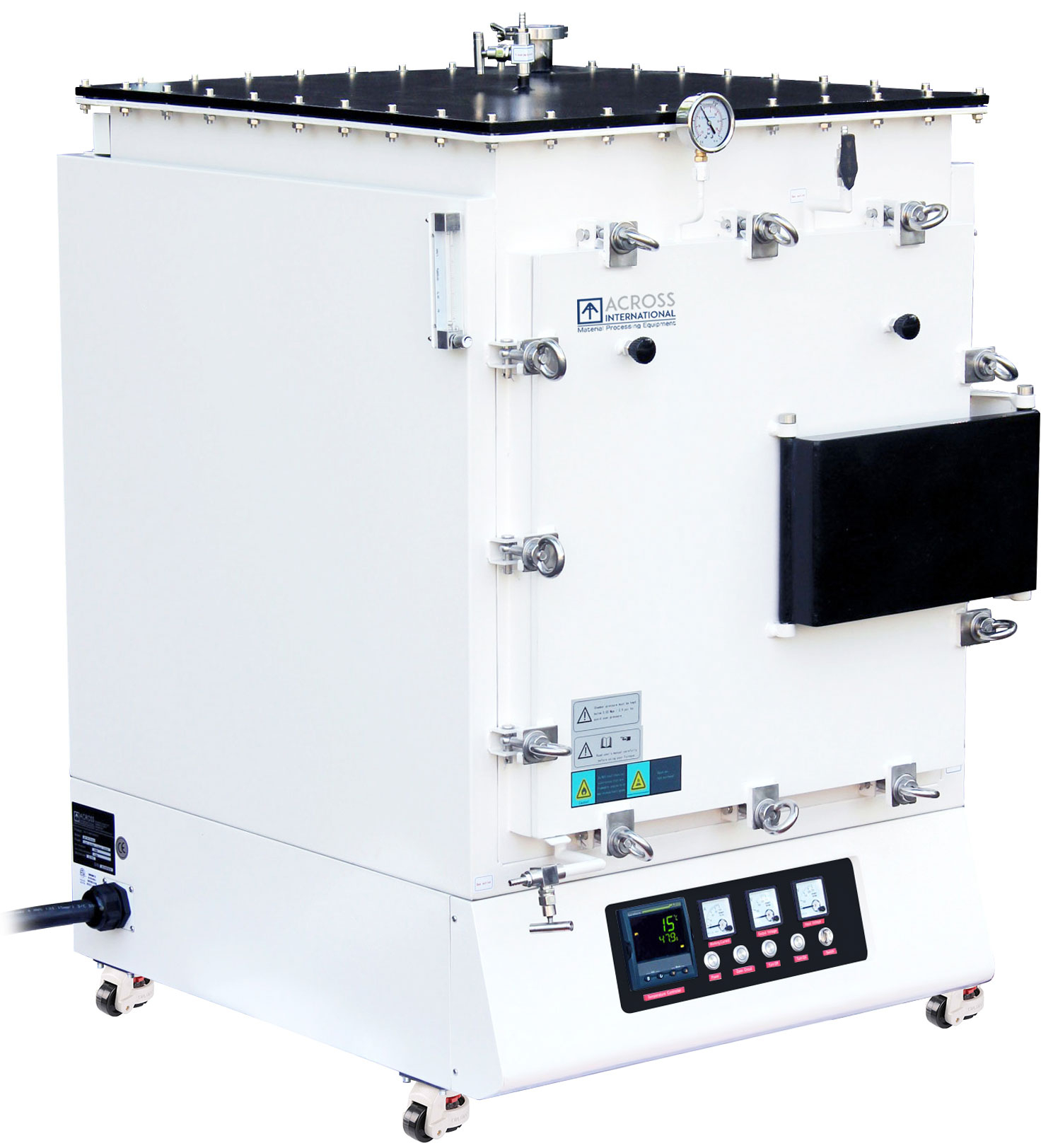

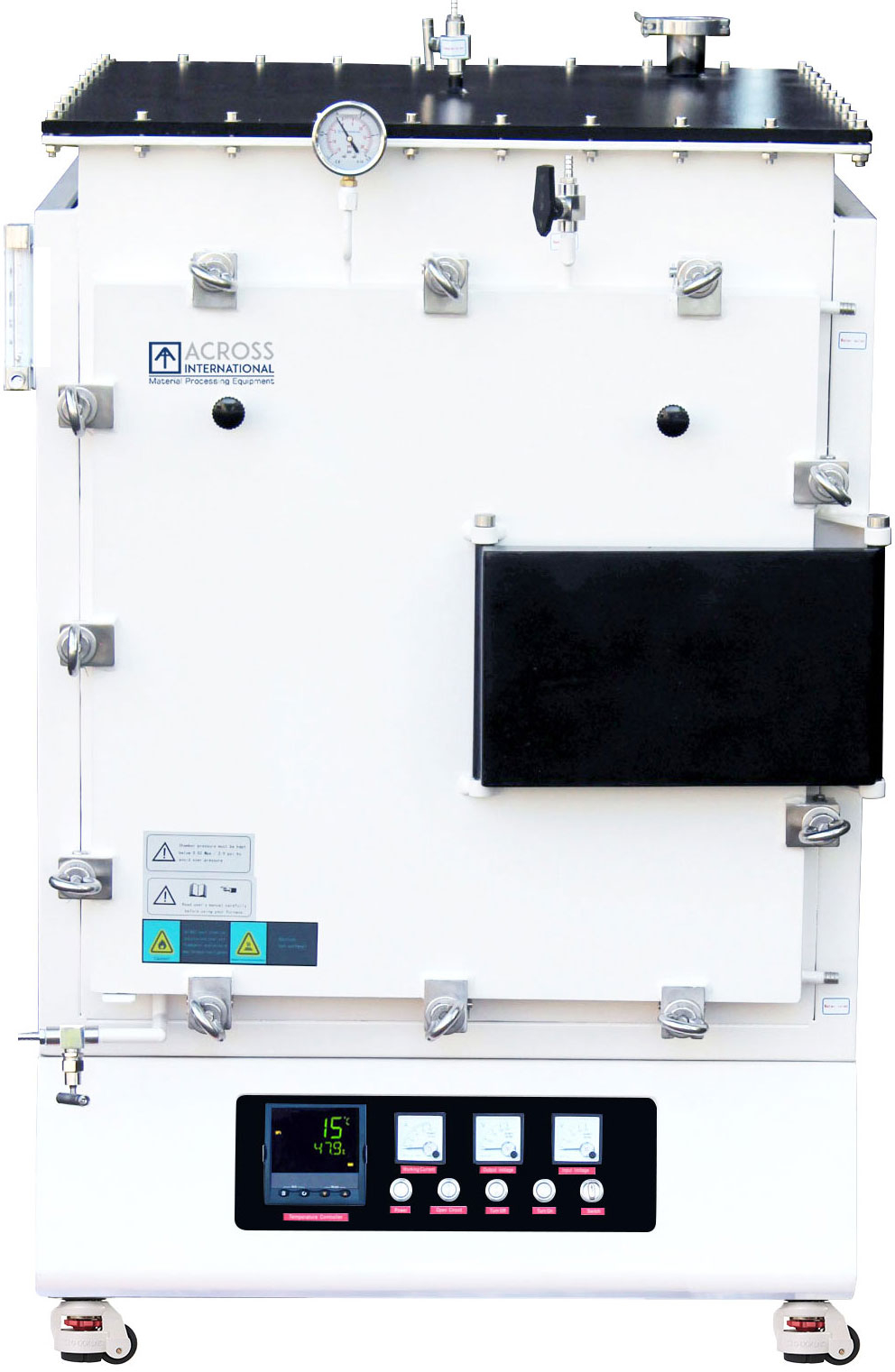

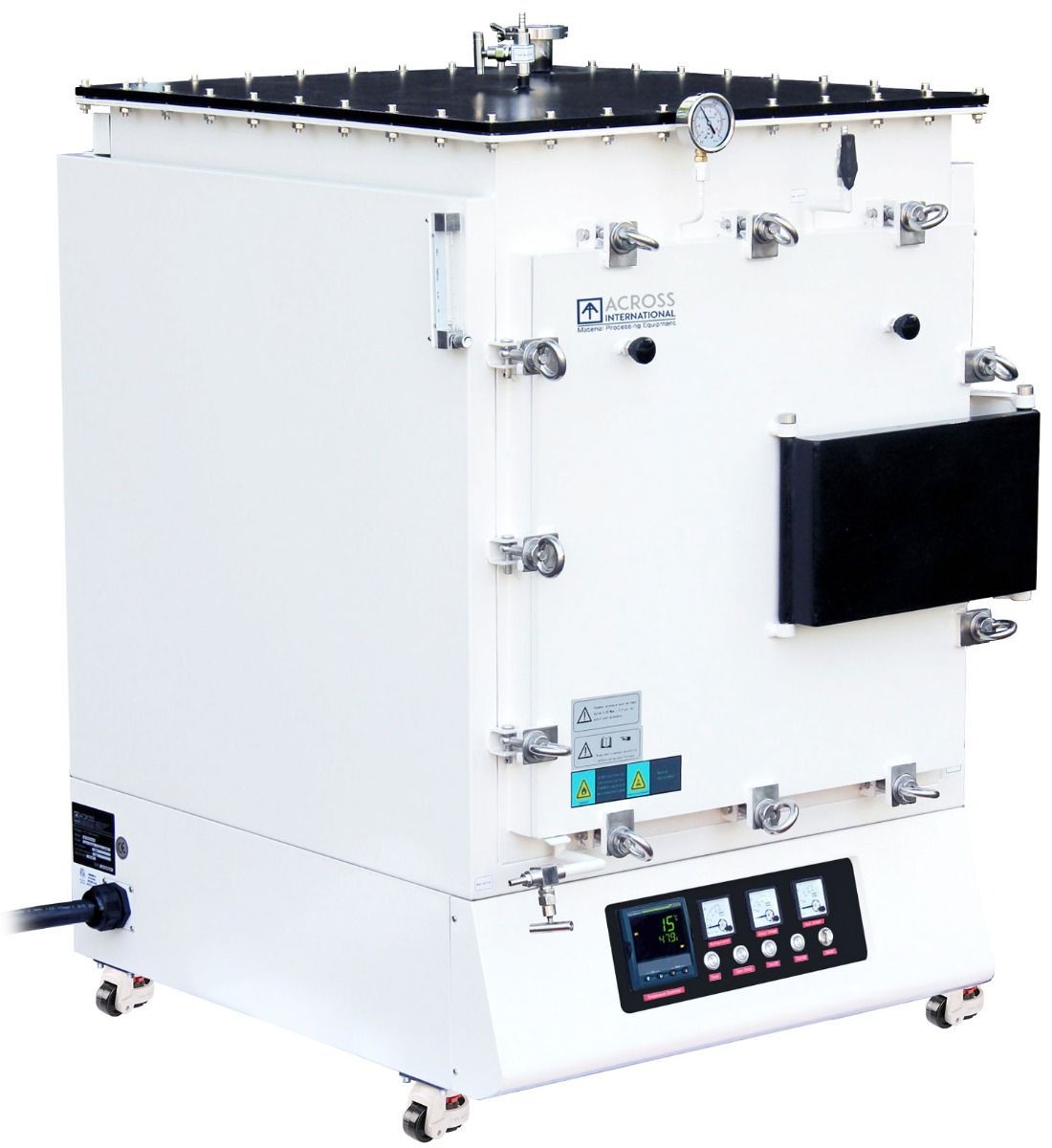

GCF1700 series controlled atmosphere furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and MoSi2 heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant.

SKU: 4200430 Category: Tag:

Description

 Electrical requirements
 208-240V, 50/60Hz, single phase

 Heating element type
 Molybdenum silicide (MoSi2, diameter 7mm)

 Temperature control

 Controller: Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments). Maximum heating rate: 15°C per minute Minimum temperature: 300°C (recommend at least 800°C for longer heating element life) Maximum/constant temperatures: 1700°C/1600°C (Depends on gas environment)

 Furnace cavity
 Mitsubishi (Japan) high quality grade 1800 morgan polycrystalline alumina fiber

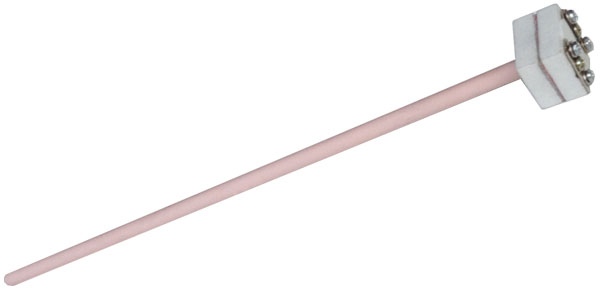

 Thermocouple type
 B

 Inlet/outlet
 1/4″ hose barb with 1/4″ BSPT (British Standard Pipe Thread)

 Positive pressure
 Not to exceed 0.02 MPa / 150 torr / 3 psi

 Compliance

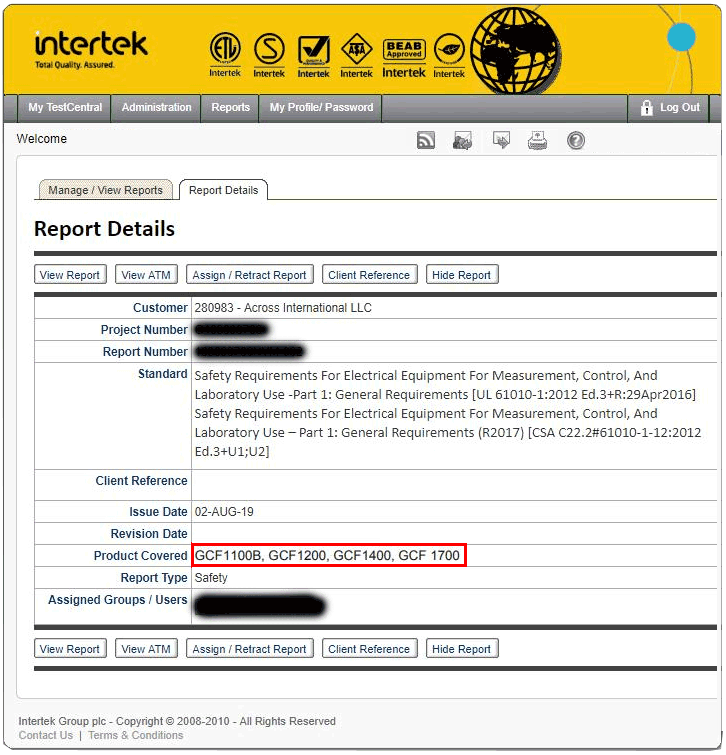

 ETL tested to UL and CSA standards (optional), CE Product brochure
