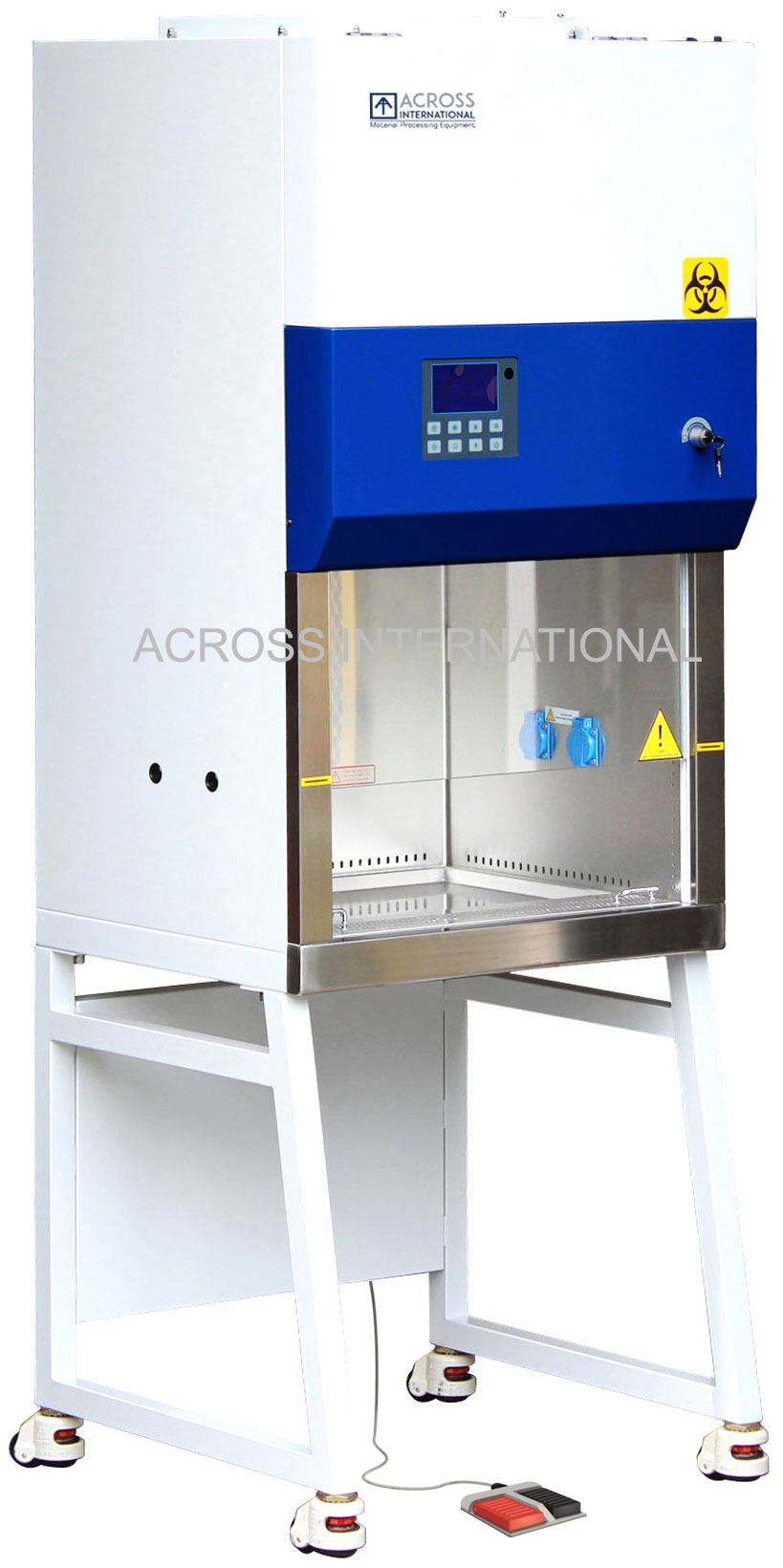

Description
Model
BC-2F
Electrical requirements
110V 60Hz 1-Phase 200 watts

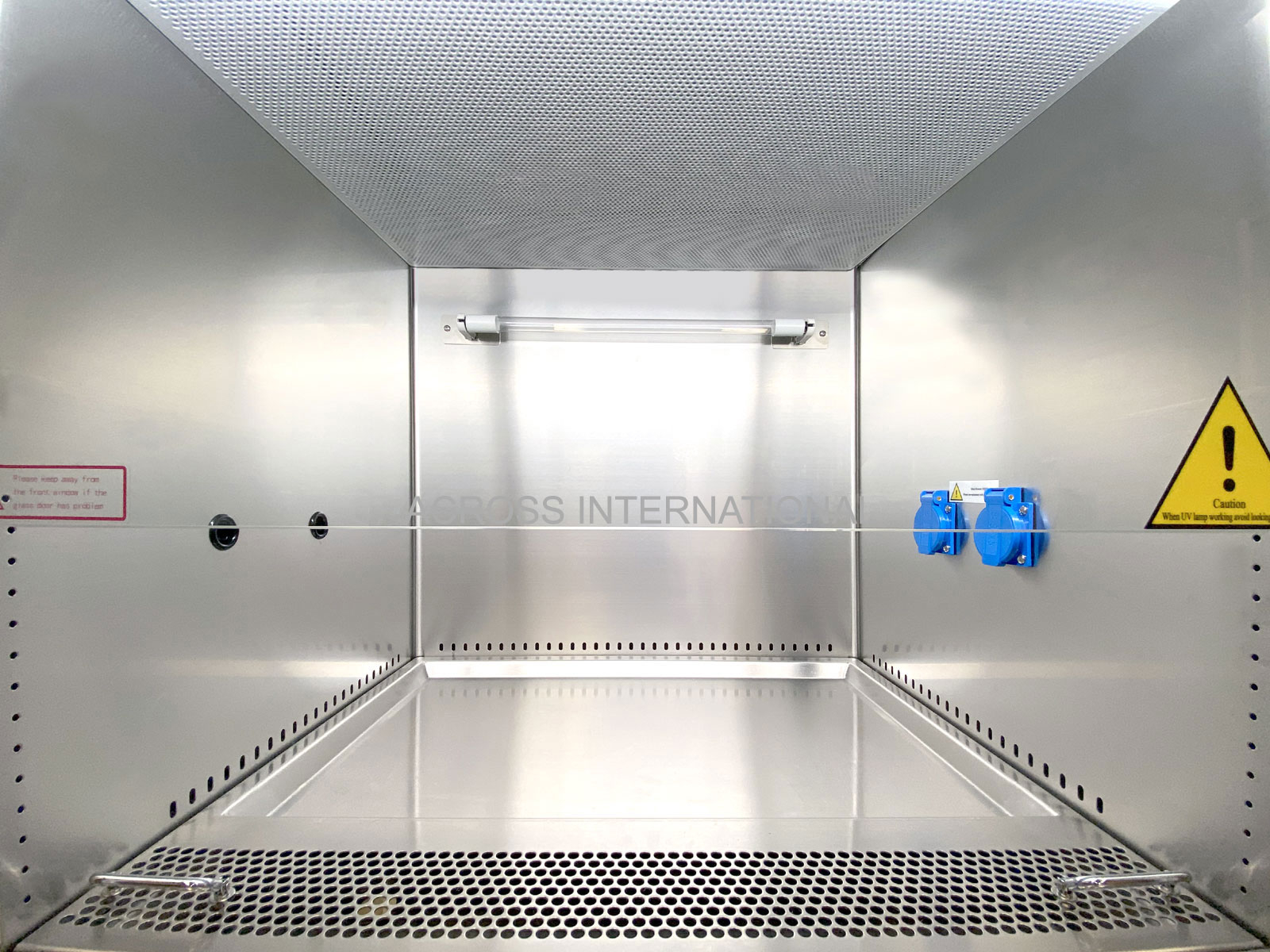

Chamber

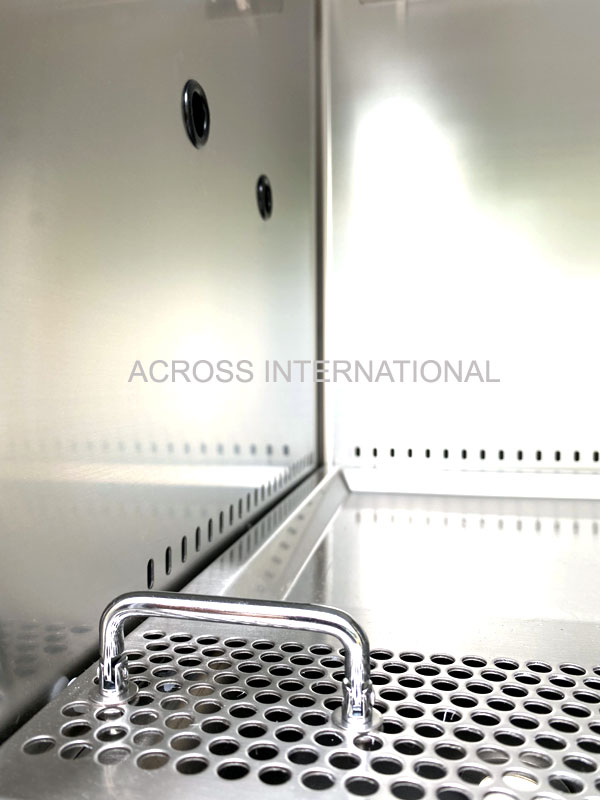

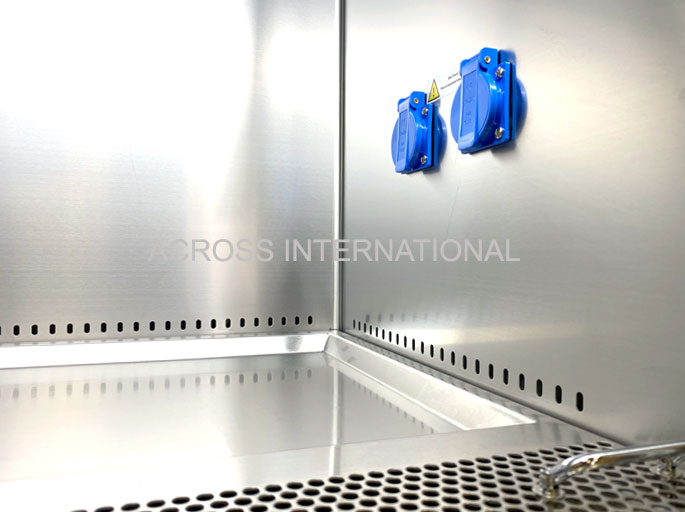

Dimensions: 23.5 x 19.5 x 21.25″ (WxDxH) Material: 304 stainless steel Power outlet with cover: two, < 300 watts Maximum load: 50 Lbs Chamber working surface height with stand: 29.5"
Lights
LED lights: 8W x 2, > 1000 Lux UV lights: 15W (Germicidal UV lamp, emission 253.7 nanometers). * UV lights available only when the front glass panel is fully closed. * Recommended replacement interval: 600 hours

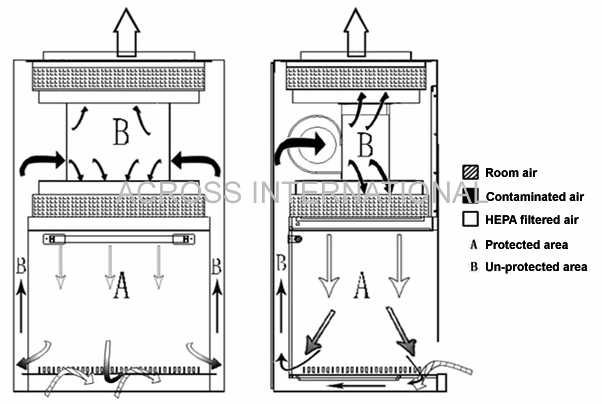

Air flow

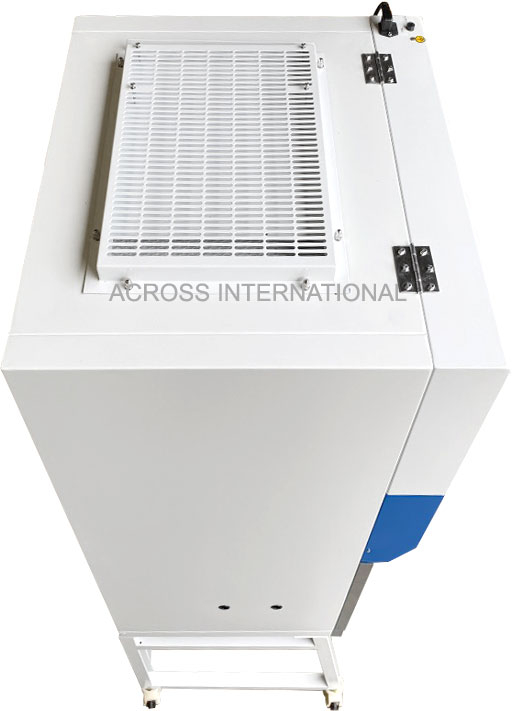

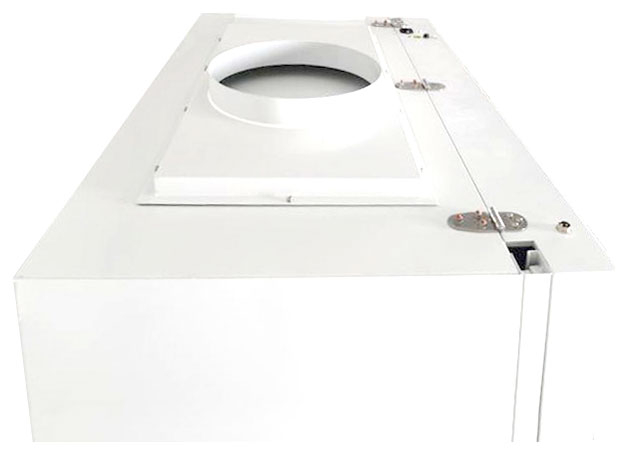

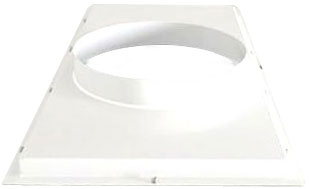

Volume Inflow: 345 CFM (Cubic Feet per Minute) Downflow: 500 CFM Exhaust: 345 CFM Speed Inflow: 100-110 FPM (Feet per Minute) Downflow: 60-70 FPM * 70% recirculated internally, 30% discharged from top vent * Air circulation available only when front glass panel is open
Top clearance
12″ (recommended)
HEPA (High-Efficiency Particulate Air) filter

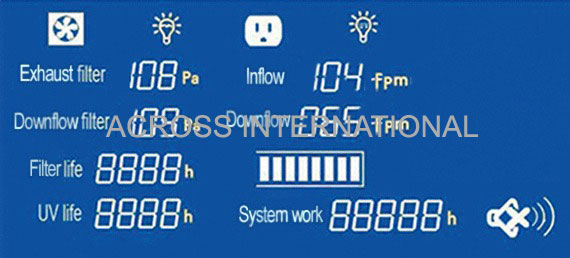

Two, with 99.995% efficiency at 0.3 μm diameter Filter hour indicator and life bar on controller * Recommended replacement interval: 4,000 hours
Front safety panel
Material: tempered safety glass (thickness > 5mm), dual-layer, laminated, UV blocking Recommended opening height: 8″ Maximum opening height: 15″
Material
Chamber: 304 stainless steel Main body: powder coated steel
Controller

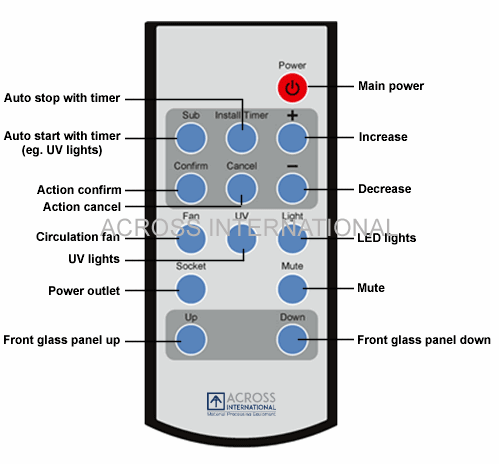

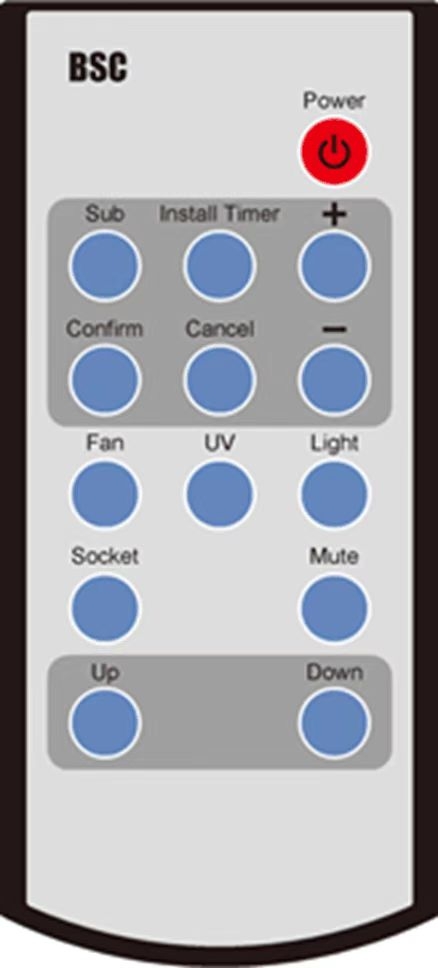

LCD screen with soft touch buttons and remote control
Noise
< 58 dB(A)

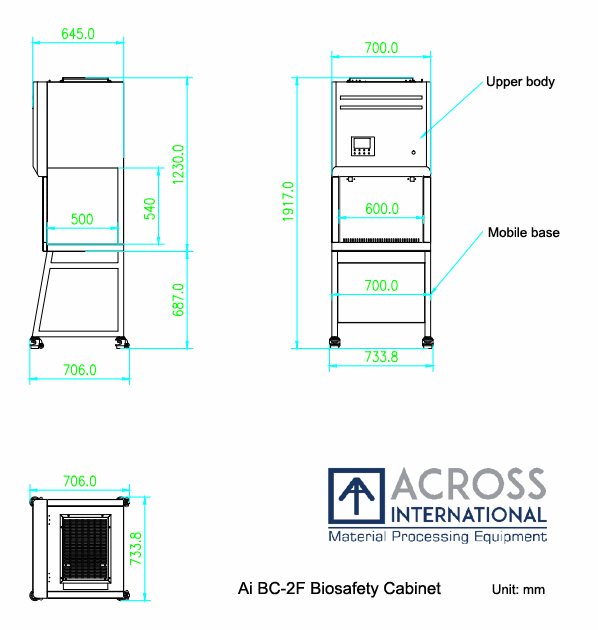

Weight & dimensions
220 Lbs (unit), 280 Lbs (shipping) With stand: 27.5 x 25.25 x 75.5" (WxDxH) Without stand: 27.5 x 25.25 x 48.5" (WxDxH) Shipping: 34 x 31.5 x 57" (WxDxH)
Safety
Abnormal airflow alarm Filter replacement alarm Front glass panel unsafe height
Warranty
One year
