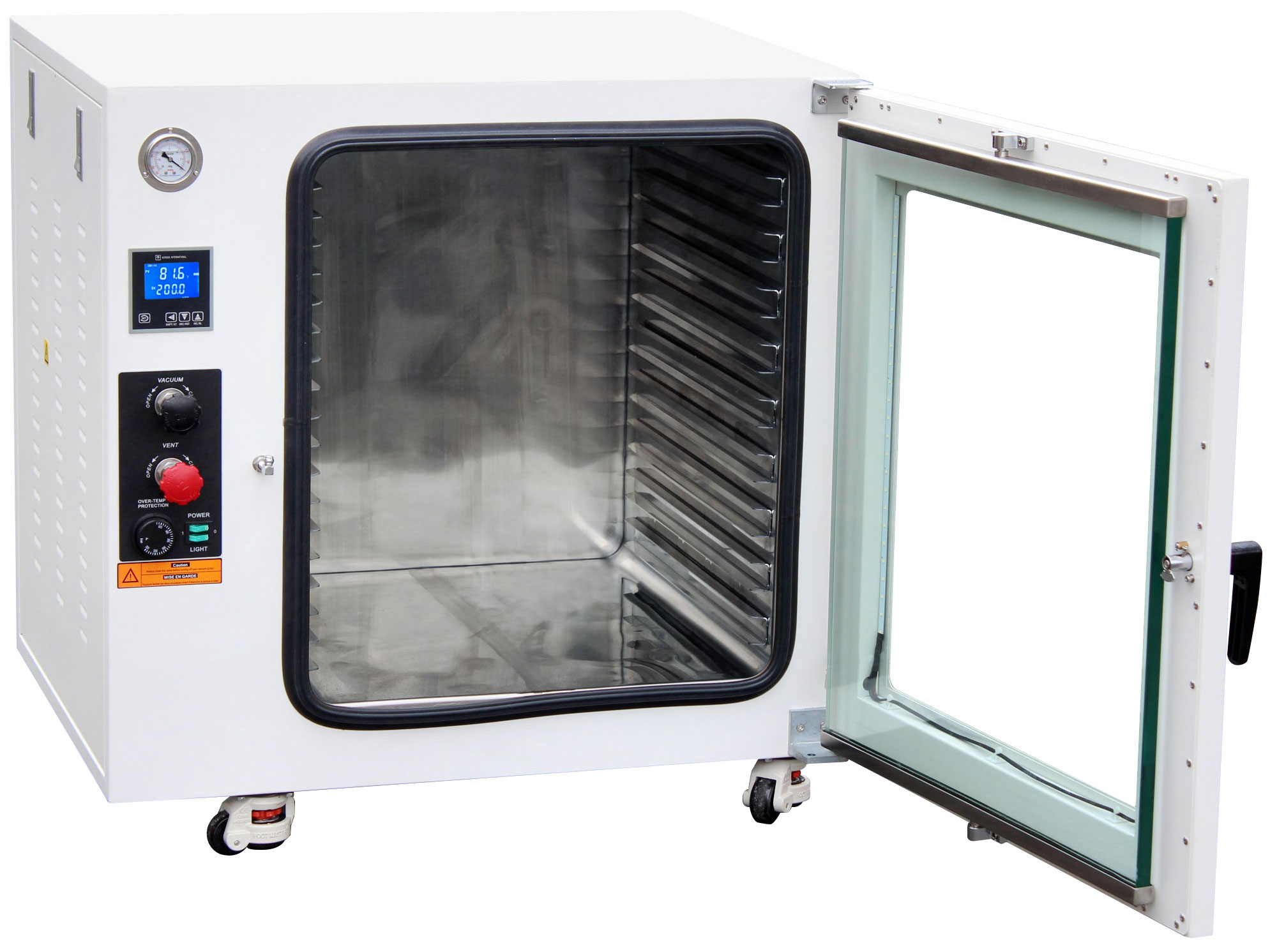

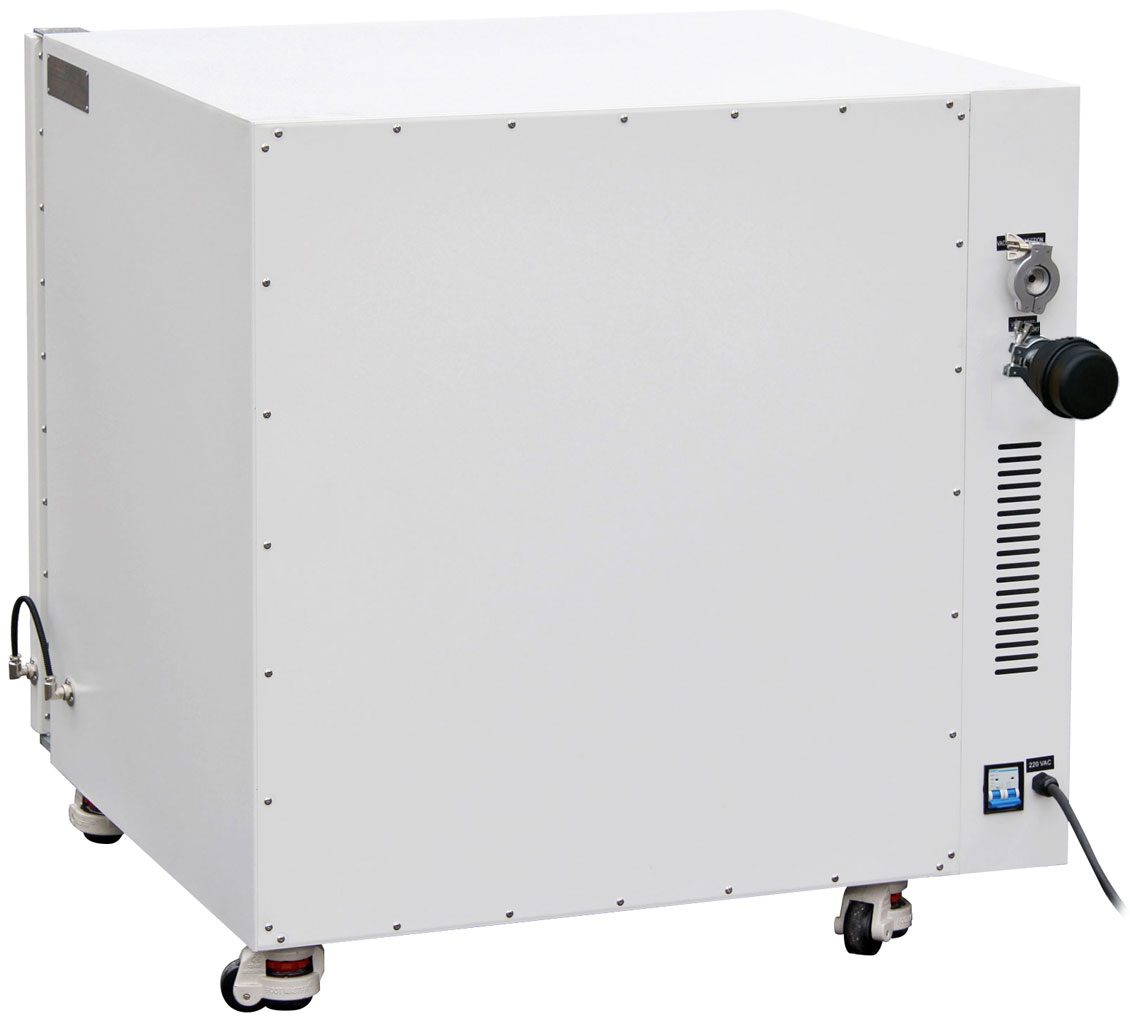

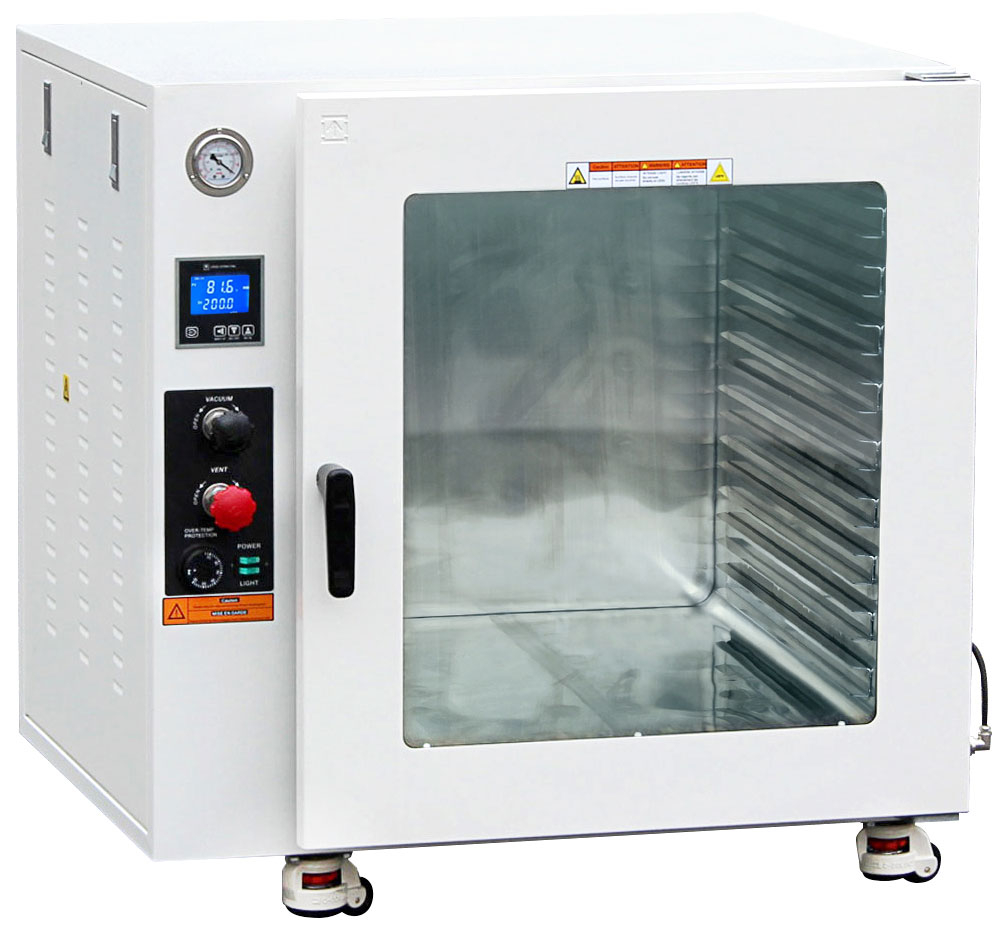

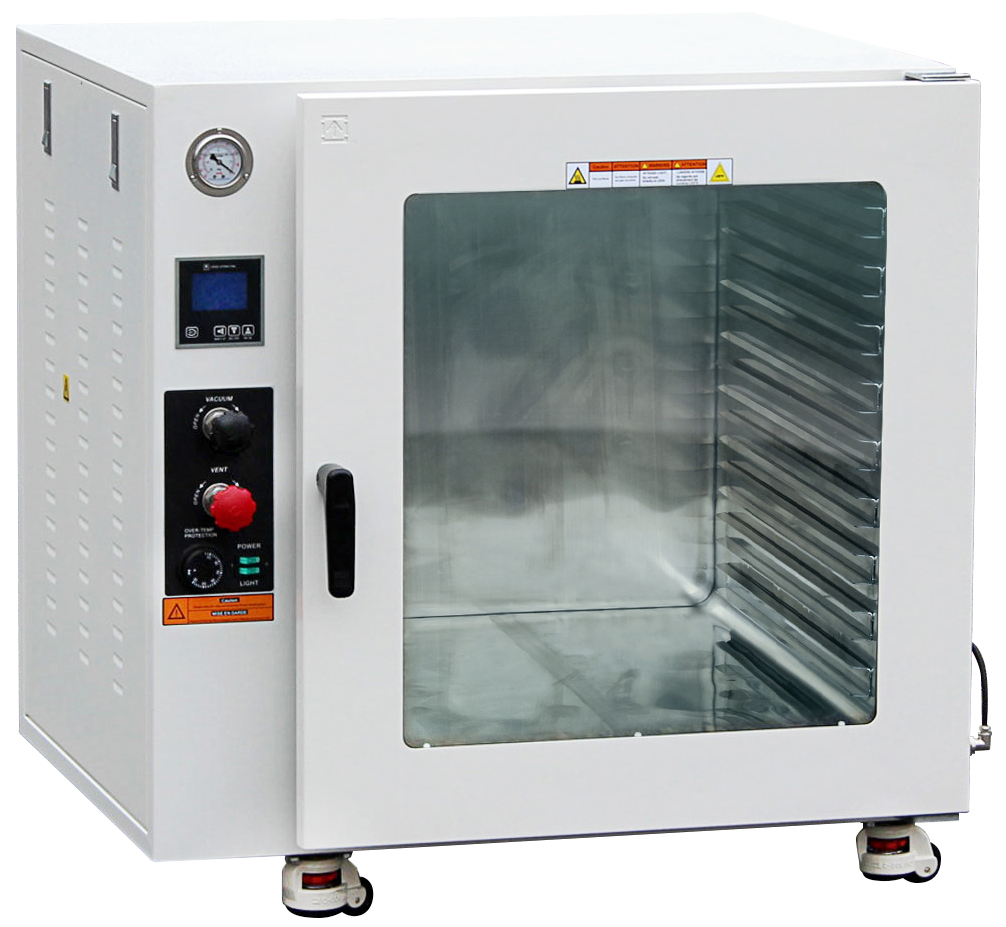

250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V

7,990.00$

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 9 shelves. This unit only comes in 220V 50/60Hz.

SKU: 4200643 Category: Tag:

Description

 Electrical requirements
 220V /-10% 50/60Hz 1-PH 21A, 4,600 watts

 Chamber
 Size: 22 x 23.5 x 25″ Material: Stainless steel Capacity: 7.5 cubic feet

 Heater
 5-sided heating (left 900W, right 900W, top 900W, bottom 900W, back 250W x 4)

 Temperature control
 Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (480°F) Display units: Fahrenheit or Celsius Uniformity: /- 7% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 45 minutes Warm-up time to 480°F: 2 hours 15 minutes

 Vacuum
 Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately

 Weight
 Unit: 450 Lbs, shipping: 680 Lbs

 Dimensions (WxDxH)
 Unit: 37 x 35.5 x 38″ Shipping: 42 x 40 x 43″

 Shelves

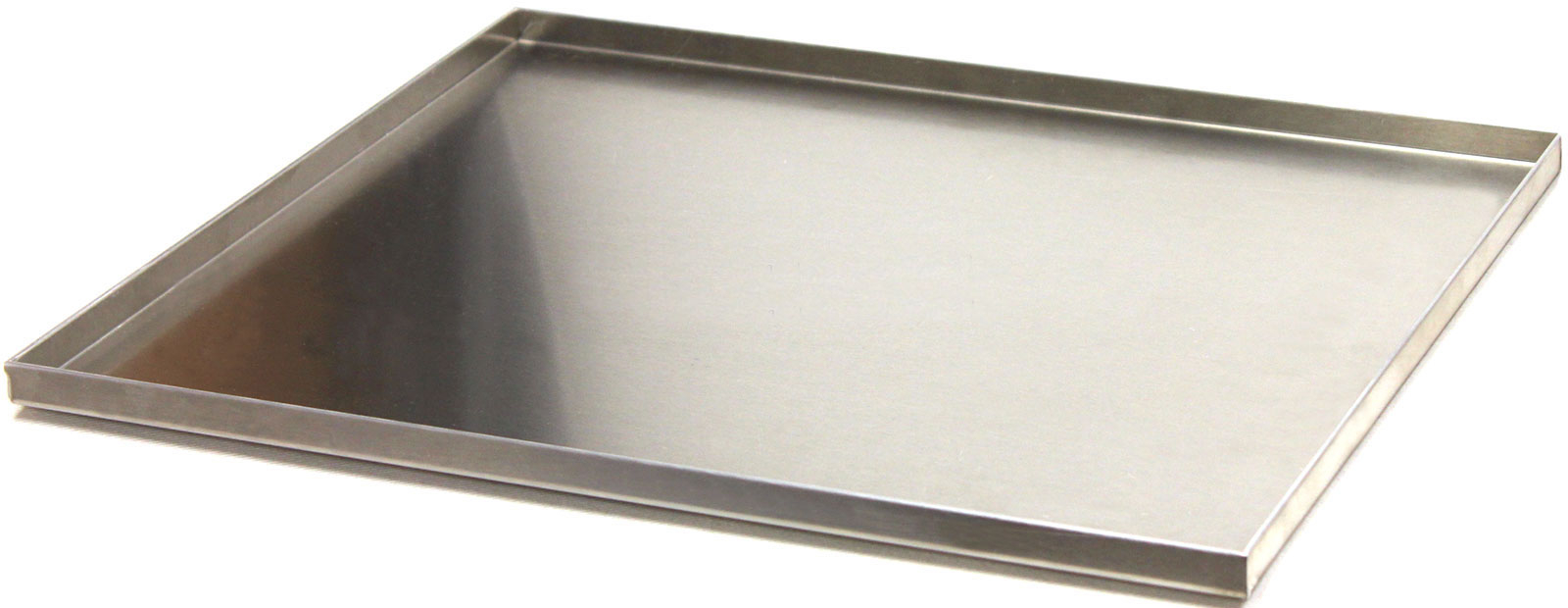

 Shelf size: 21.75 x 23 x 0.5″ (WxDxH) Material: aluminum Style: pan-shape Capacity: 18 shelves max. Comes standard with oven purchase: 9 shelves Total area with 18 shelves: 61.8 sq ft or 8901 sq inch Distance between the most adjacent shelves: 1.25 inches

 Door gasket material
 Silicone or Viton

 Observation window
 1/2″ tempered safety glass

 Safety
 Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial

 In-door lights
 White LED (pre-installed)

 Compliance

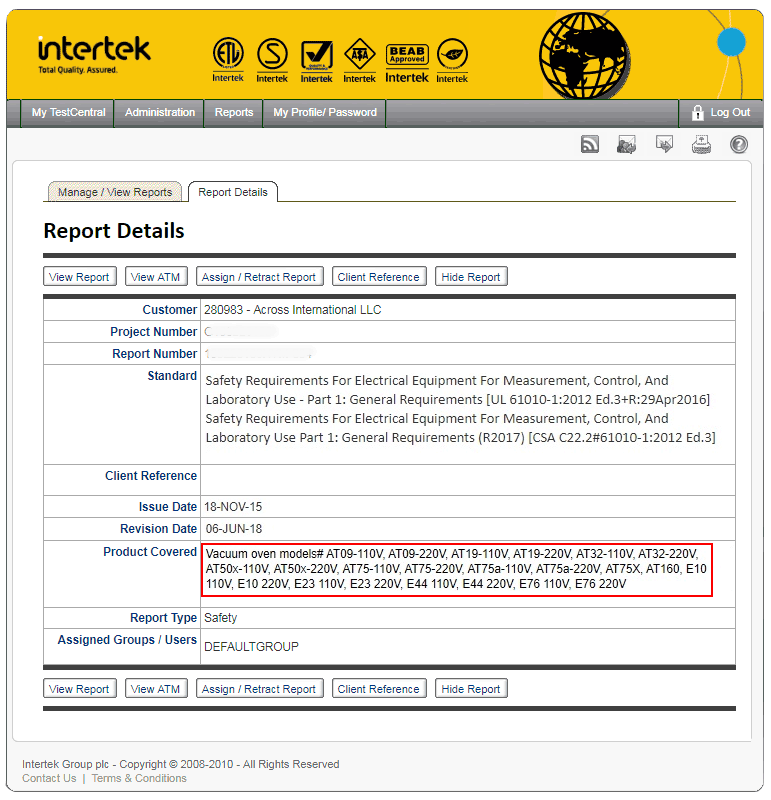

 ETL tested to UL and CSA standards

 Warranty
 2 years
