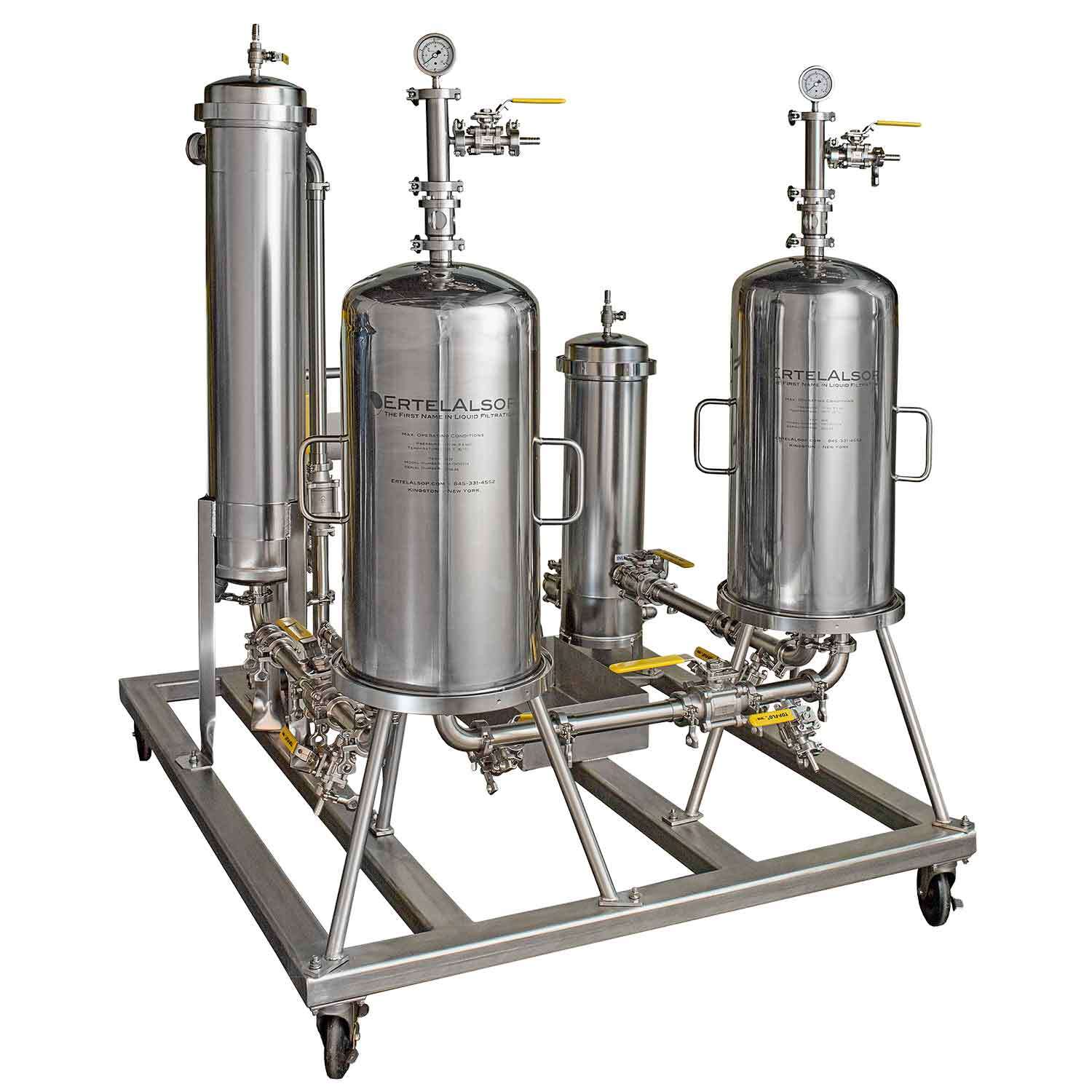

4 Stage Lenticular Filter Skid

21,684.00$

This optimized 4-stage filtration skid is designed for filtering ethanol solution from biomass extraction.
The lenticular filter includes four different types of filters in one filtration assembly skid to handle all types of filtering needs. It can be used for pre-filtration, particulate and haze removal, fat and wax removal, decolorization, and fine particulate removal.

SKU: 4201840 Category:

Description

Specifications:
12PY1
12PY2
12PY3
12PY4

Material of Construction:
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel

Gasket Material:
EPDM
EPDm
EPDM
EPDM

Standard Height:
38.6”
49.5”
60.7”
71.6”

Standard Width – Base:
19.1”
19.1”
19.1”
19.1”

Standard Width – Dome:
12.75”
12.75”
12.75”
12.75”

Weight – Empty:
75 lbs
93 lbs
114 lbs
132 lbs

Volume – Empty:
1809 in3
3185 in3
4569 in3
5946 in3

Volume w/ Pak Cartridge:
1222 in3
2025 in3
2837 in3
3641 in3

Media Diameter:
12”
12”
12”
12”

Number of Cells Per Pak:
16
16
16
16

Filter Area:
18.5 ft2
37 ft2
55.5 ft2
64 ft2

Average Flow Rate:
1 gpm
1 gpm
1 gpm
1 gpm

Stainless steel frame with casters and handles
1.5″ stainless steel piping and connections
Air driven pump to control flow between 0-15 GPM
Housings – (2)12″ lenticular, (1) bag, and (1) cartridge
0-60 PSI stainless steel pressure gauges
V-Band clamp closures
Sight glass for monitoring color/clarity
Housing vents and inlet/outlet drains
16″ lenticular housings
Stainless steel jacket for liquid heating or cooling
Explosion proof electric motor (C1D1)
ASME code
Swing bolt closures
Recirculation valves
Positive displacement gear pump for 20-50 GPM
Pre-filtration
Dewaxing
Clarification
Decolorization
Fine particulate removal
Efficient processing all in one assembly
All filters plumbed together for neat and easy operation
No hoses to trip over
Easy to clean and disassemble
