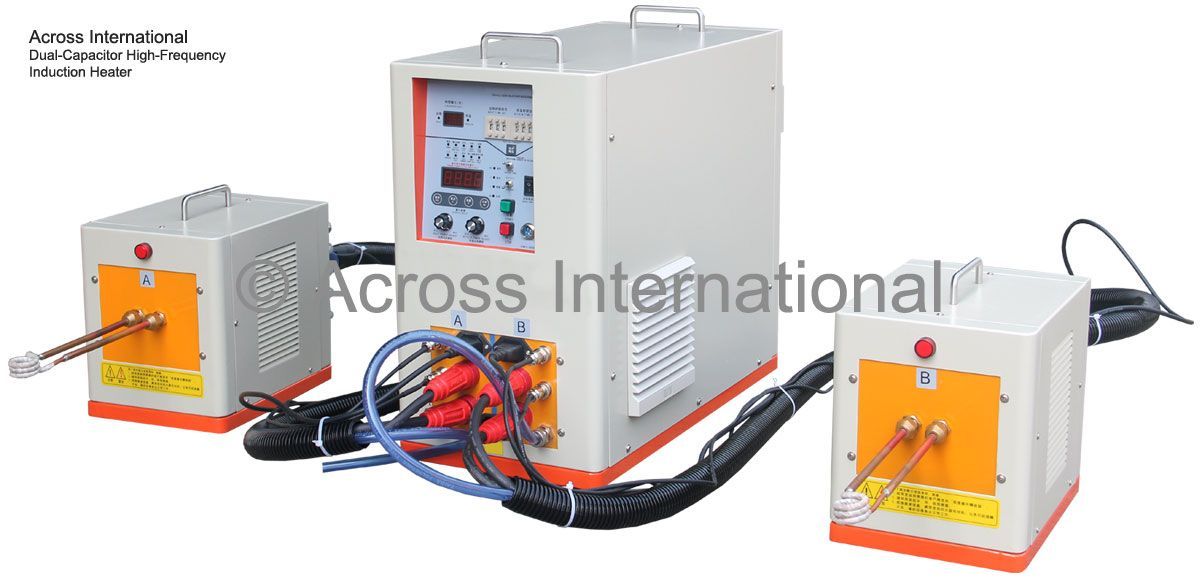

60KW Hi-Frequency Split Induction Heater 30-150KHz


Note: This model only available in 460-480 volt three-phase.

SKU: 4200486 Category: Tag:


 Max. input current
 75A (113A 3-phase circuit breaker required)

 460 VAC, 50/60Hz, three-phase

 Output frequency
 30-150 KHz

 Input power
 60 KW

 Duty cycle

 100%, 24 hours a day

 Heating timer
 1-99.9 seconds

 Dwelling timer
 1-99.9 seconds

 Air cooling
 Rear fan

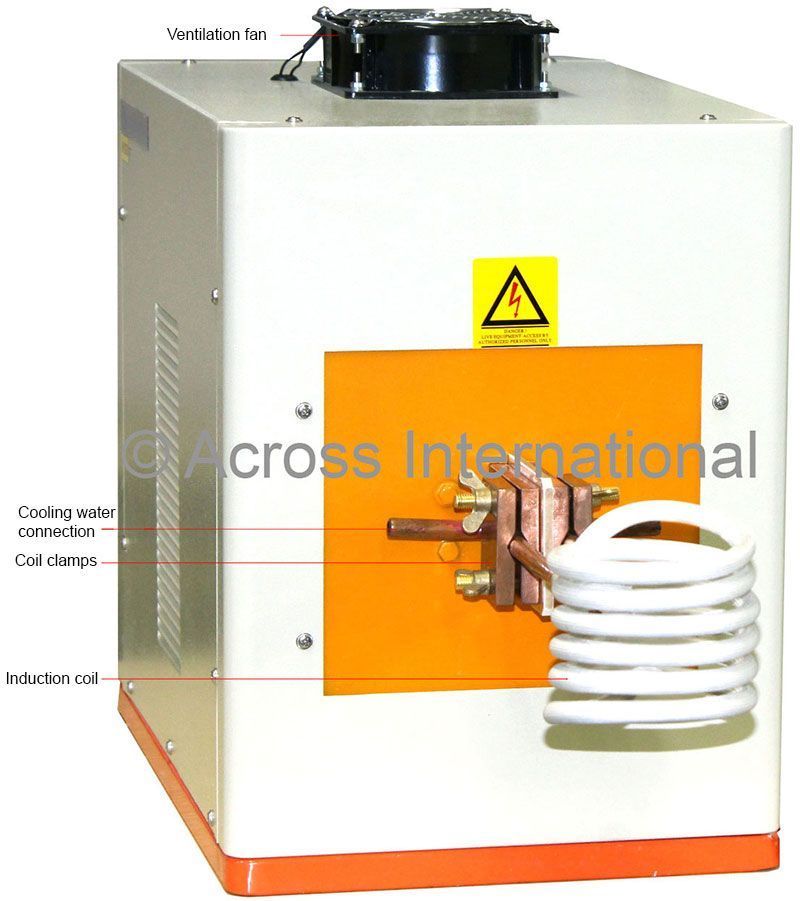

 Induction coil
 See detail specs below, we will make coils  according to your requirements

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water flow
 > 1.4 gallons (5 liters) per minute

 340 Lbs.

 Power supply: 27..5 x 15.7 x 30.7″ Coil unit: 17.7 x 11.8 x 15.7″

 Remote foot switch
 7 feet
