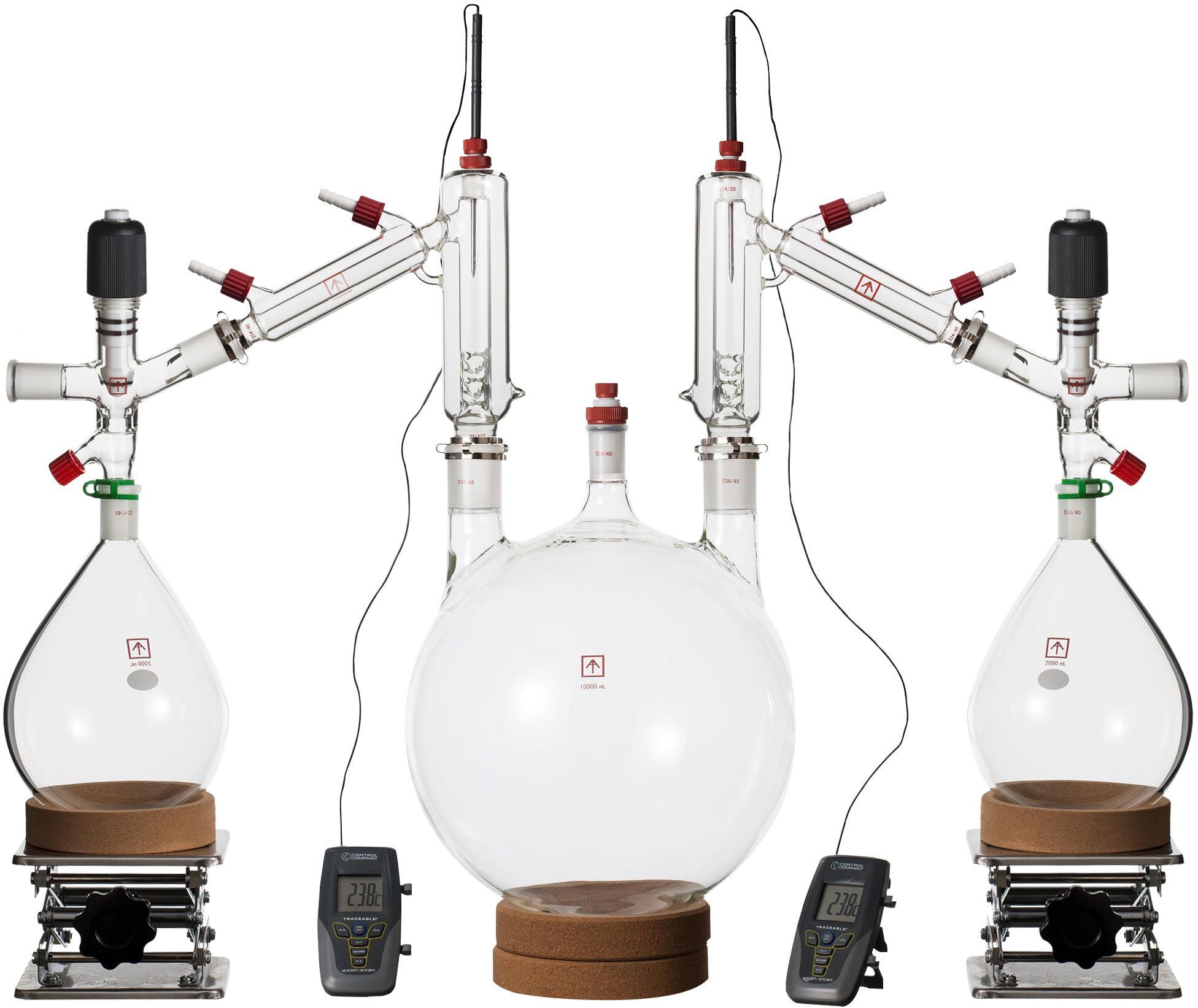

Ai 10 Liter Short Path Distillation Kit with Valved Adapters

$5,000.48

Ai Clear10 short path distillation kit features

  • Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets
  • Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8″ hose barb
  • Glass material: high borosilicate glass 3.3
  • Optional T1 or T40 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it

Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

Description

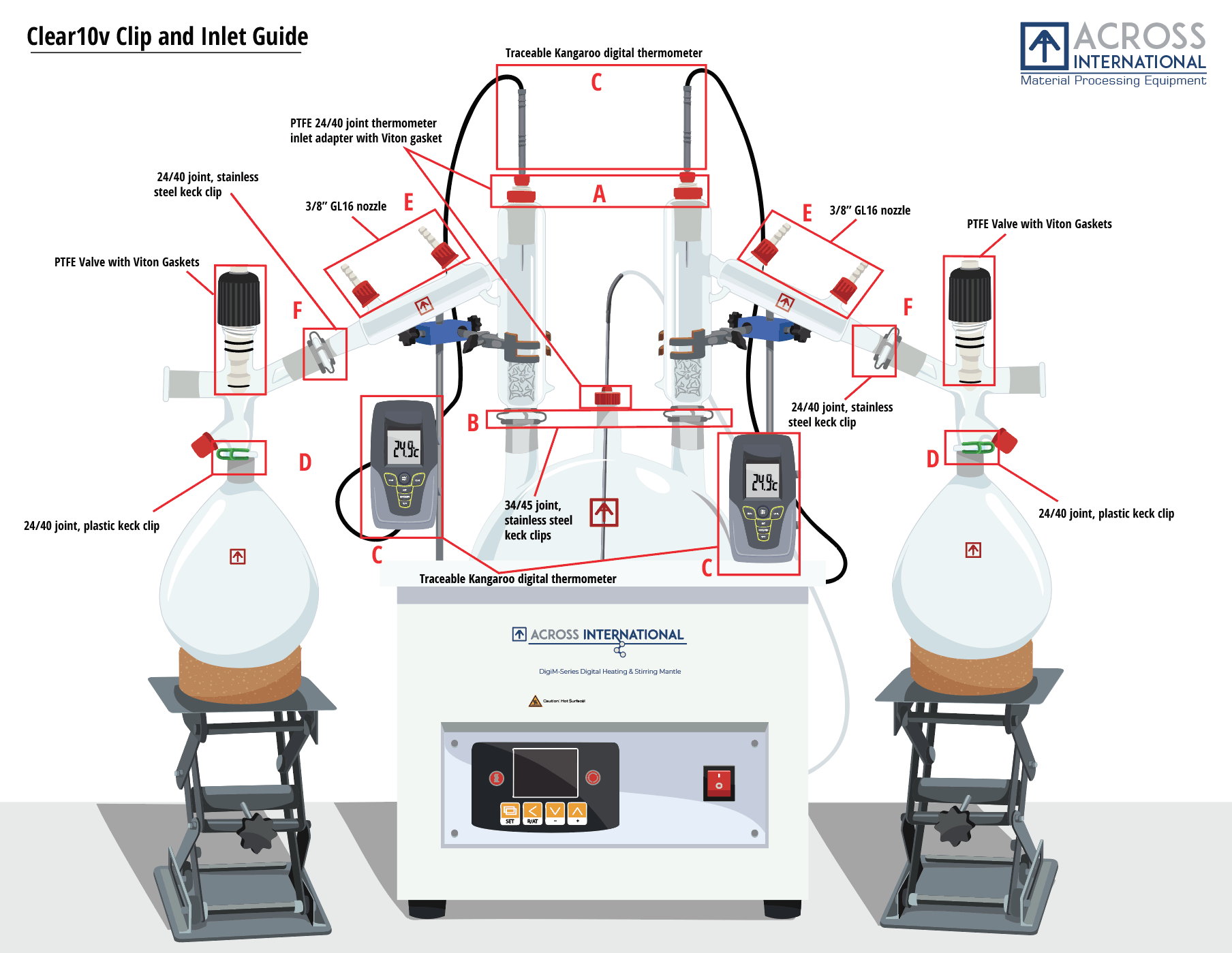

Clear10v Standard Package

 Part description  Quantity
Part image

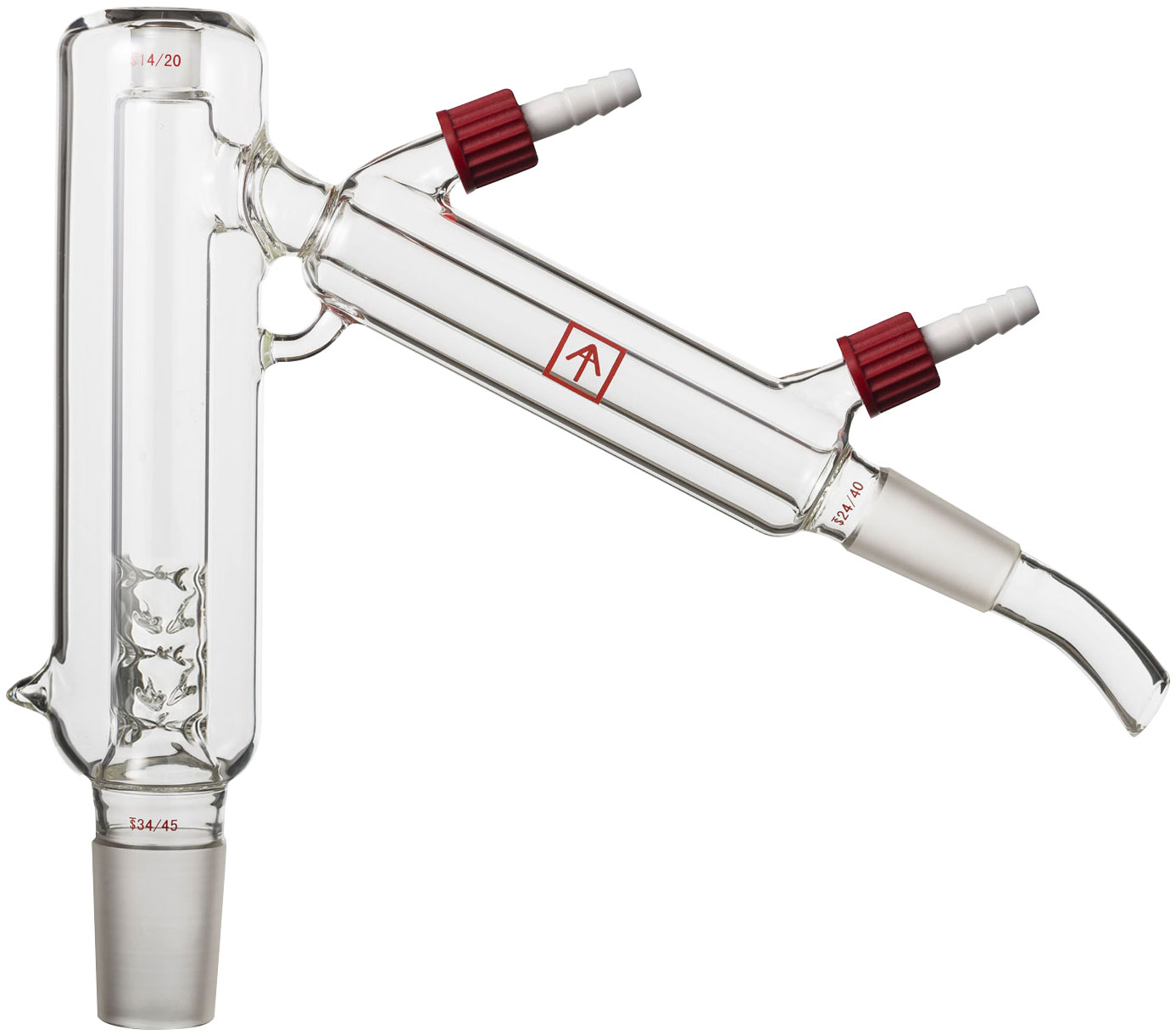

 Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 2 pcs

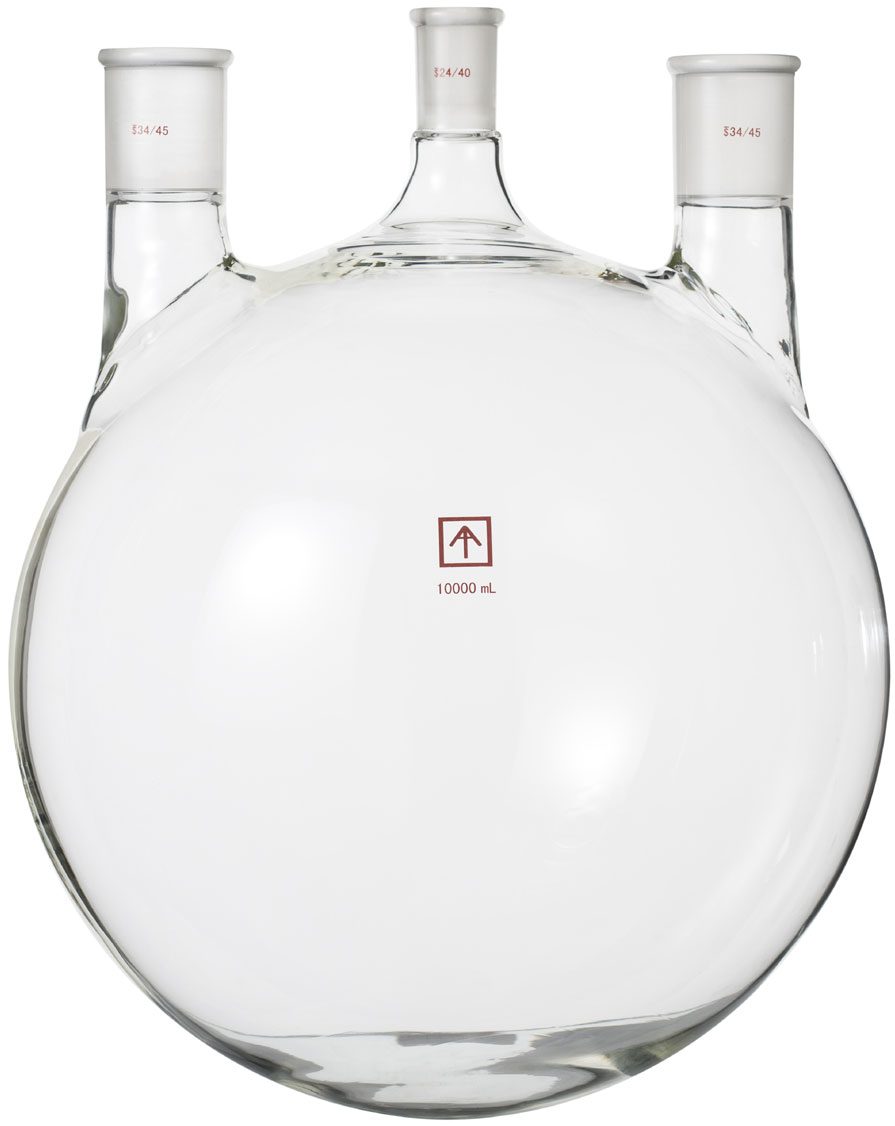

 Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks 1 pc

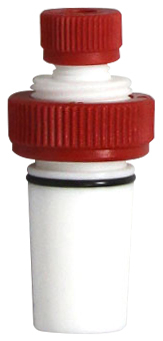

 PTFE 24/40 joint thermometer inlet adapters with Viton gaskets 3 pcs

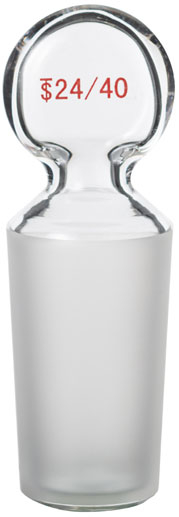

 Ai 24/40 joint, pennyhead glass stopper 2 pcs

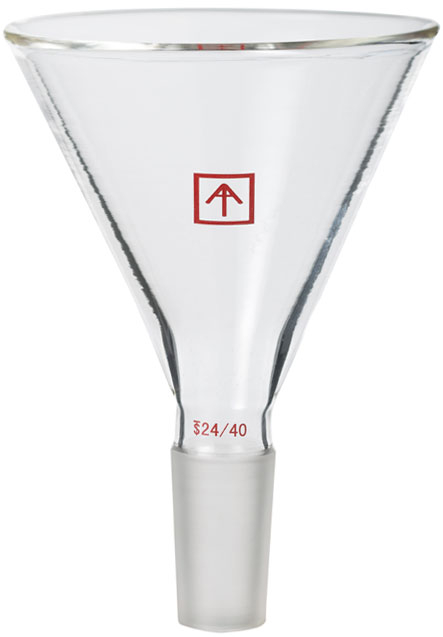

 Ai 24/40 joint, round-top glass feeding funnel 1 pc

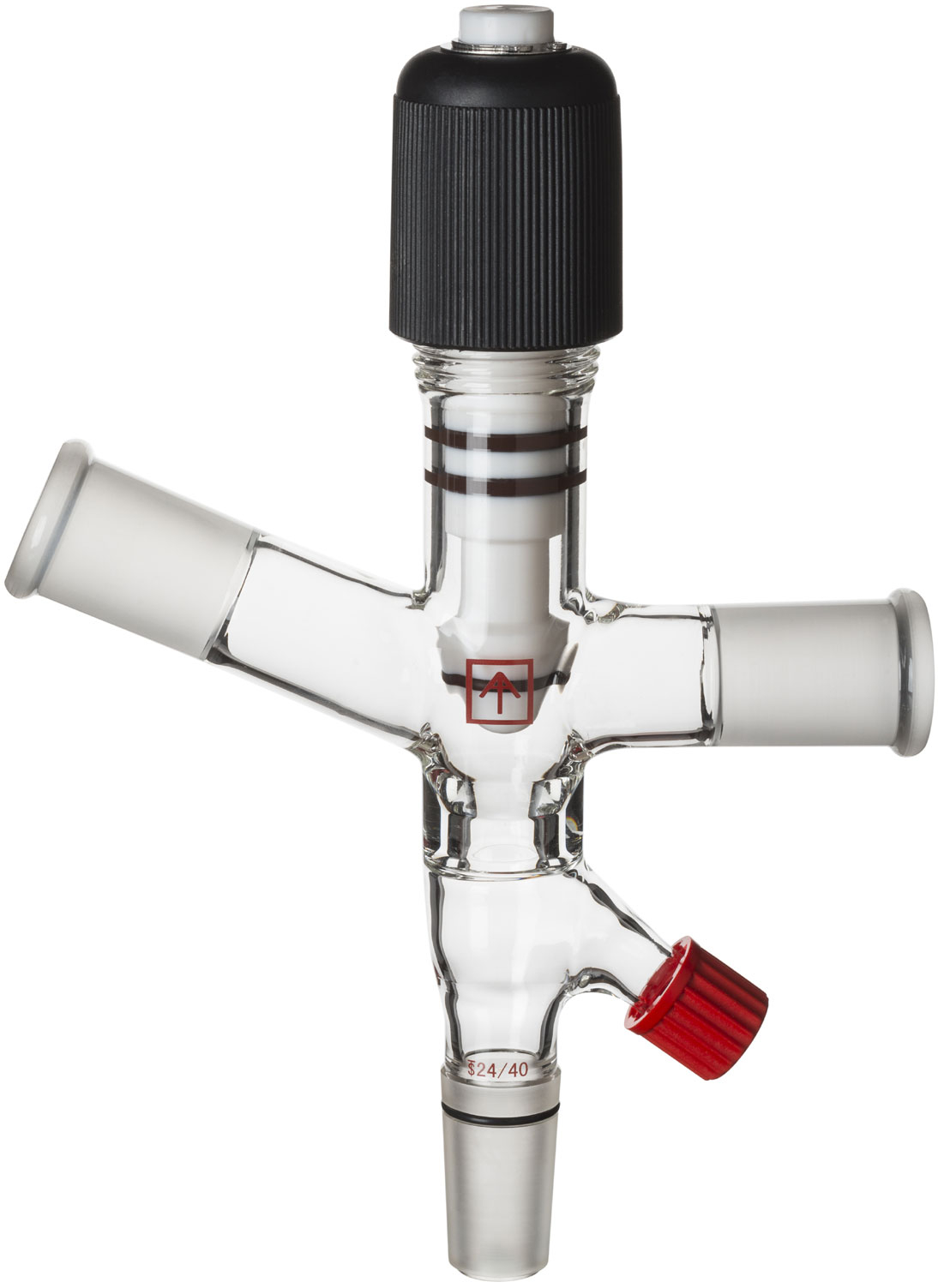

 Ai valved adapter with two 24/40 ports and one GL16 port 2 pcs
 Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask 2 pcs

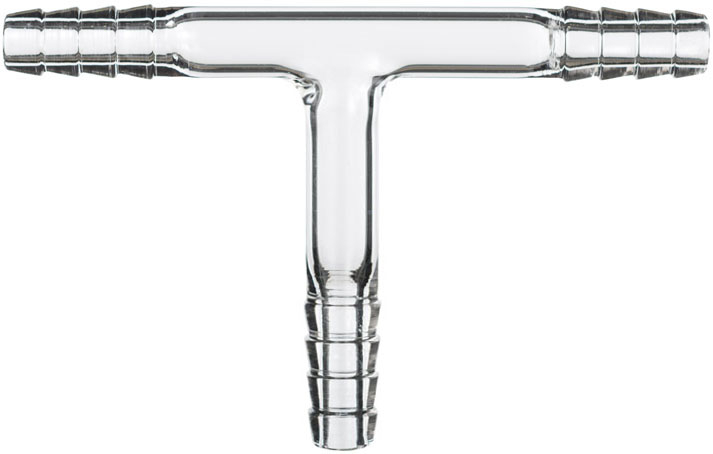

 Ai glass 3/8″ hose barb tee adapter 3 pcs

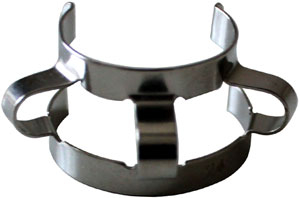

 34/45 joint, stainless steel keck clip 2 pcs
 24/40 joint, stainless steel keck clip 2 pcs
 24/40 joint, plastic keck clip 2 pcs
 Cork ring stand for 1L or 2L pear-shaped flasks 2 pcs

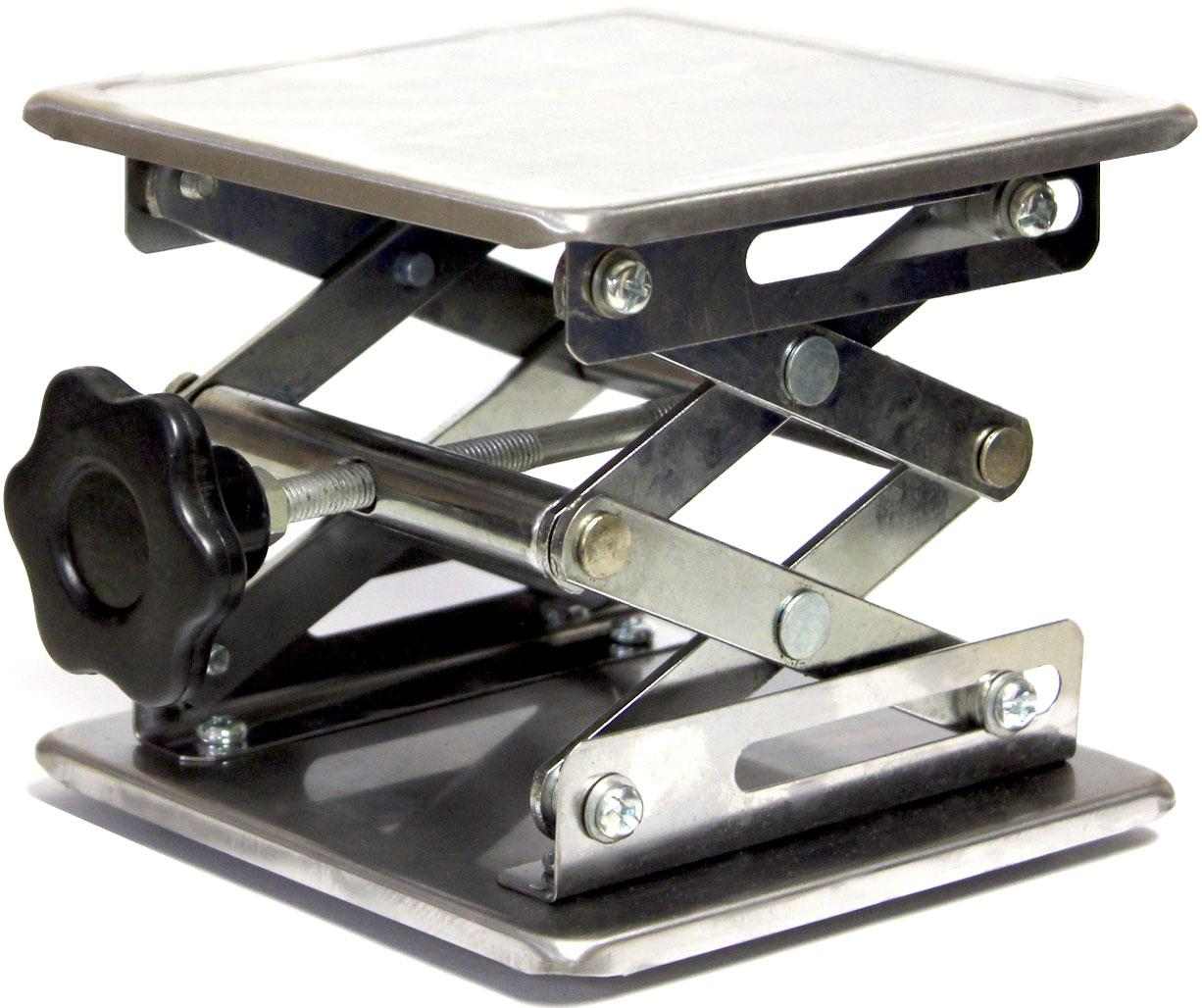

 6 x 6″ stainless steel lab jack (min. height 3″, max height 9.5″) 2 pcs

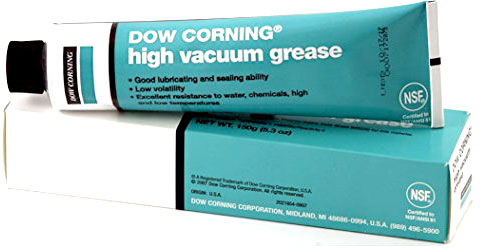

 Dow Corning high vacuum grease 5.3 oz 1 pc

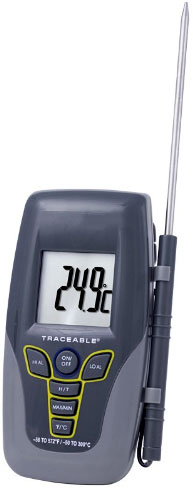

 Traceable Kangaroo digital thermometer 2 pcs

Additional information

Weight 100 lbs
Dimensions 48 × 48 × 36 in
