Description
Model
H100-15sst
Temperature range
Ambient to 100°C (No load)
Electrical requirements
220V 60Hz 1-Phase 2,600 watts
Heating capacity
2,500 watts
Recirculating pump
Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters

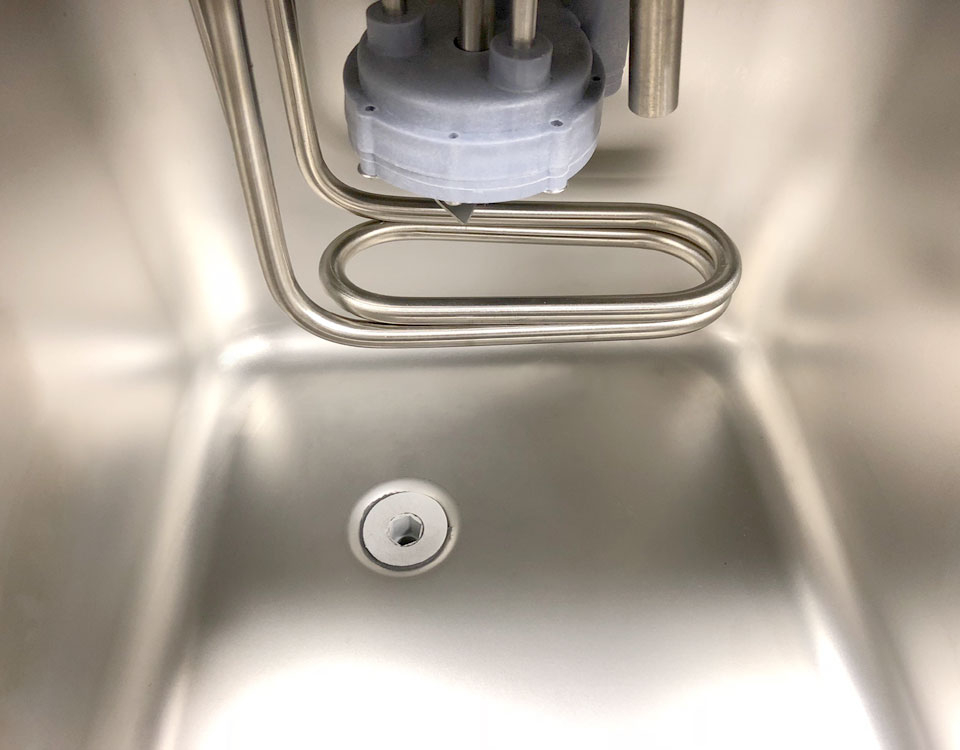

Reservoir
Dimensions: 9.5 x 12 x 7.5″ (WxDxH) Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Thermo fluid connection: 3/8″ hose barb x 2 Thermo fluid drain port: 3/8″ hose barb with on/off valve

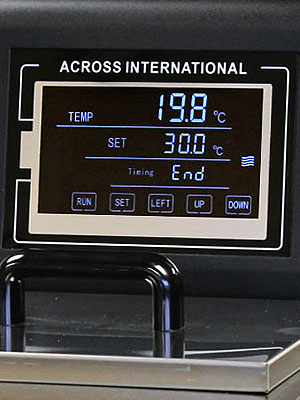

Temperature controller
Type: Digital microprocessor PID controlled Display: 7″ touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: /- 2°C Temperature range: Ambient to 100°C
Working environment
-15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters
No
Unit/shipping dimensions
12.5 x 17 x 19.25" / 17 x 20 x 22" (WxDxH)
Unit/shipping weight
30 Lbs / 36 Lbs
Safety
Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection
Warranty
One year

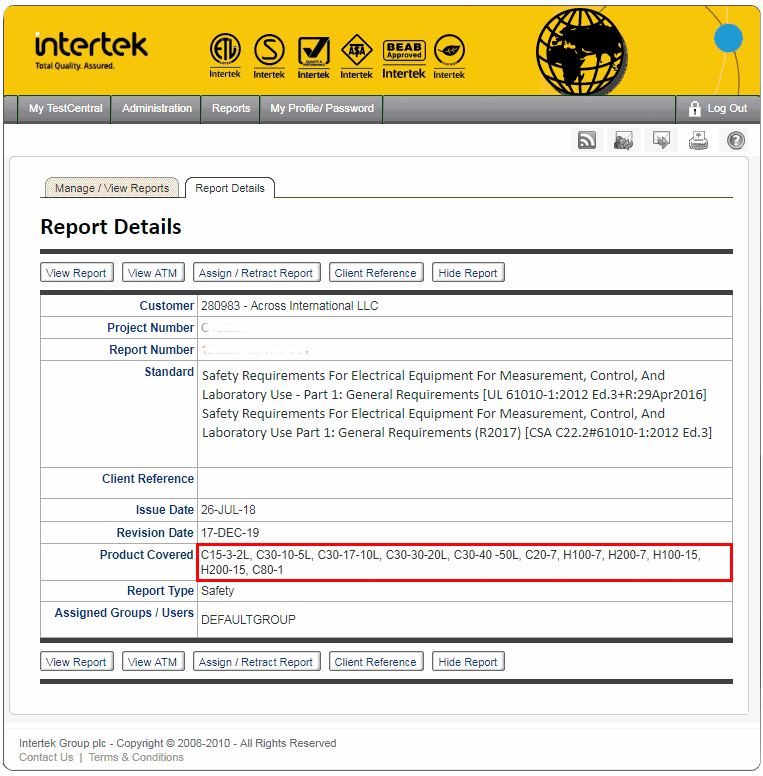

Compliance
UL 61010-1 :2012 Ed.3 R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
