Ai 10°C to 25°C 33L/Min 17L Capacity Recirculating Chiller

$4,052.86

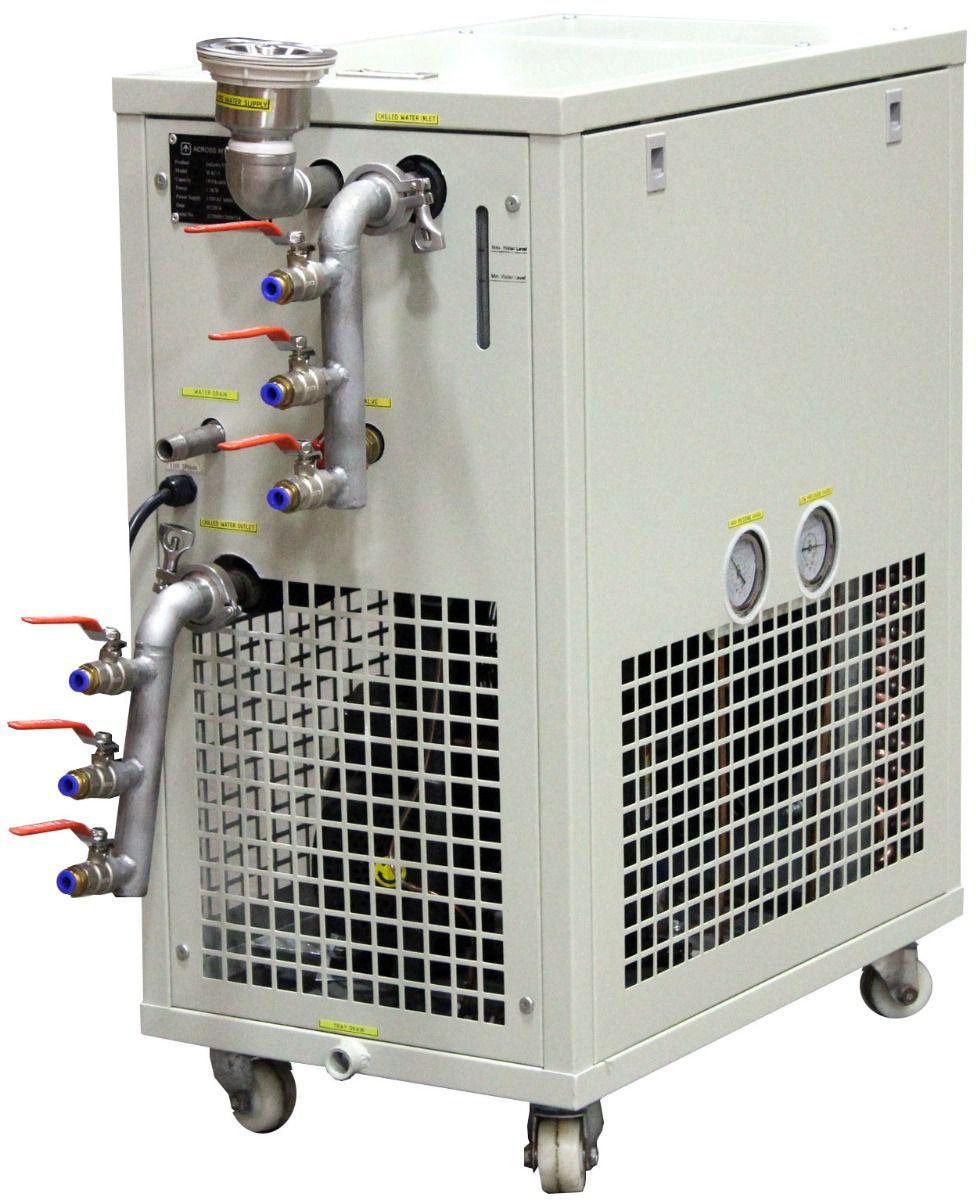

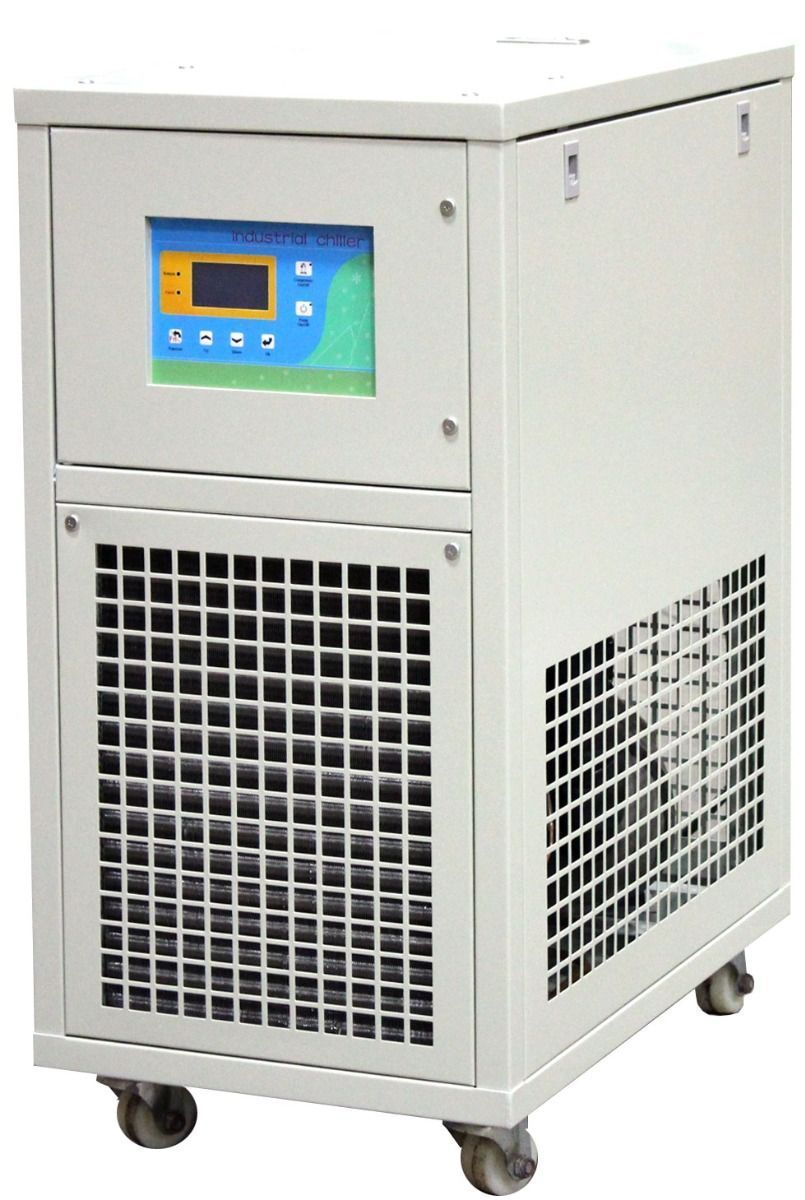

Ai WAC-1 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank and water pump for durability and rust-free operation. two sets of water manifolds included for immediate use.

SKU: 4200013 Category: Tag:

Description

 Model
 WAC-1

 Input power
 110 VAC 60 Hz single-phase (1PH) 1460 watts

 Nominal cooling capacity
 1935 kcal/h

 Nominal cooling capacity is according to:        Inlet chilled fluid temperature: 12°C        Outlet chilled fluid temperature: 7°C        Inlet cooling air temperature: 30°C        Outlet cooling air temperature: 35°C

 Compressor
 Make: Panasonic, UL Listed Power: 110VAC 60Hz 1-PH, LRA42, thermally protected Refrigerant: R410A (800g) Number of compressor installed: one

 Water pump

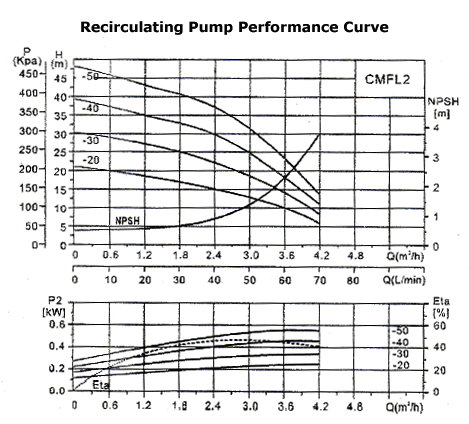

 Make: LX (CMFL2-20-A-W-G-BABE) Power: 110VAC 60Hz 1-PH 370 watts 3.7A 3450 rpm IP55 Flow rate: 528 gallons per hour Max pressure: 10 bar. H(max); 20.5m, H(n): 16m

 Reservoir volume
 4.5 gallons

 Cooling fan
 Make: Kunli (YWF A2S-300S-5DIIIA05) Power: 110VAC 60Hz 1-PH 155 watts 1.35A 2700rpm 16uF/500V IP44 Flow rate: 70,000 cu ft per hour Number of fan installed: one

 Temperature accuracy
  /- 2 °C

 Recommended coolant
 Distilled water

 Water inlet & outlet on chiller

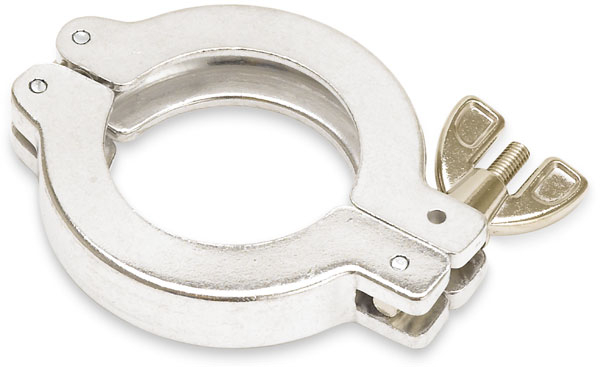

 KF40 flange

 Manifold
 Inlet: KF40, outlet: 8mm quick connect with ball valve

 Unit/shipping weight
 200 Lb / 260 Lb

 Unit/shipping dimensions
 29 x 17 x 35″ / 36 x 21 x 42″ (DxWxH)

 Safety
 Over current and compressor thermal protection

 Working environment
 Temperature range of chilled fluid: 5°C – 35°C Temperature difference of chilled fluid between inlet and outlet: 3°C – 8°C. It is better to use the chiller while  the ambient  temperature at or below 35°C

 Compatiable Ai induction heaters
 High frequency 4kW, 6.6kW Mid frequency 15kW, 25kW Low frequency 15kW

 CE compliant
 Yes
