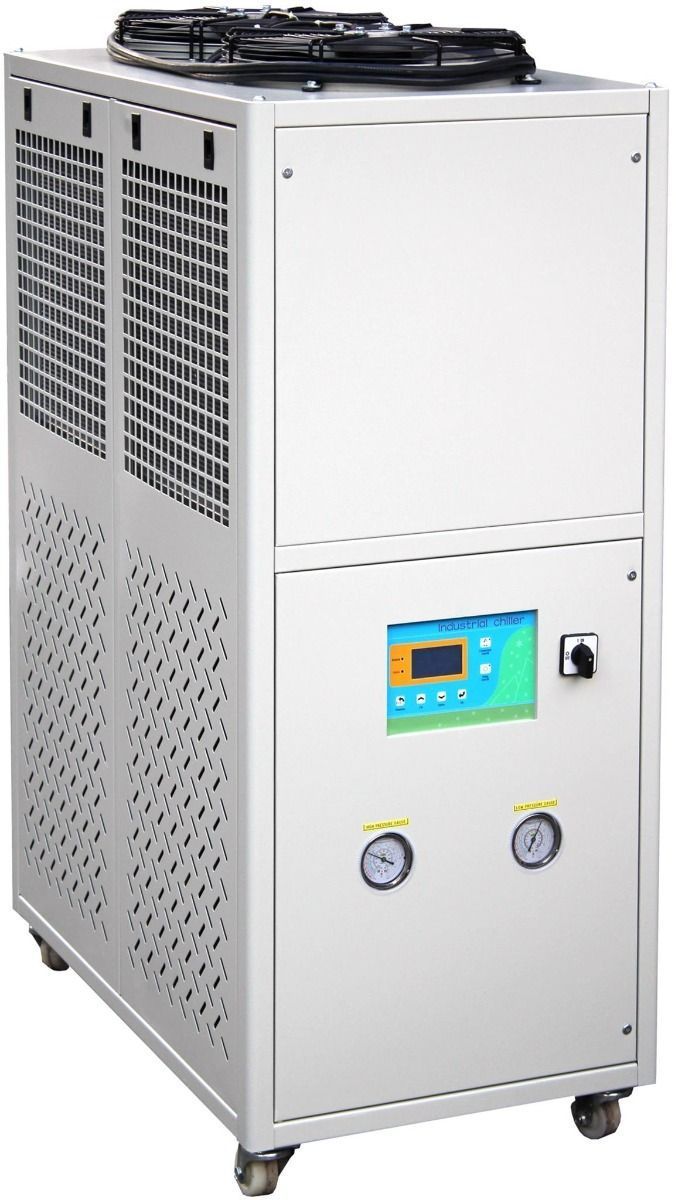

Ai 10°C to 25°C 33L/Min 35L Capacity Recirculating Chiller

5,986.09$

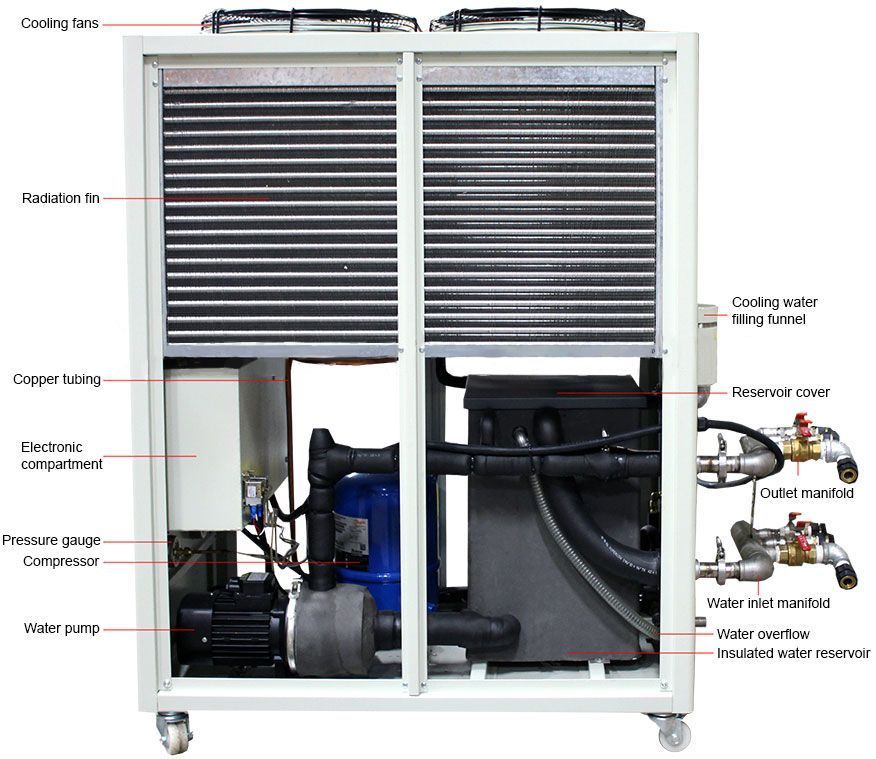

Digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.

Categories: ,

Description

Specifications

 Model  WAC-4

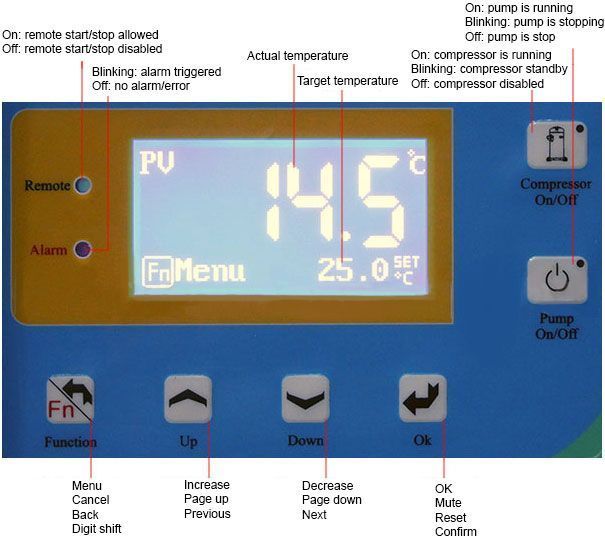

 Controller  Digital micro-chip controlled with LCD screen and fluid level display
 Input power  480VAC 60Hz three-phase (3PH) 3.75kW
 Nominal cooling capacity  10366 kcal per hour
 Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12°C
Outlet chilled fluid temperature: 7°C
Inlet cooling air temperature: 30°C
Outlet cooling air temperature: 35°C
 Compressor
 Make: Danfoss (UL Listed)
Power: 460V 3-60Hz 8A 3750 watts, LR 25A, thermally protected
Refrigerant: R407C (2,400g)
PS: 22.6 bar, TS max: 50°C, TS min: -35°C
Number of compressors installed: one
 Water pump  Make: LX (CMF2-50T-A-W-G-BABE)
Power: 480V 60Hz 3-PH 550 watts 2.5/Y1.4A 3450 rpm IP55
Max liquid temperature: 70°C
Pumping speed: 33L per minute
Max pressure: 10 bar. H(max): 64m, H(n): 51m
 Reservoir capacity  35L
 Recommended coolant  Distilled water
 Cooling fan  Make: Weiguang (YWF4D-350S-102/34-G)
Power: 480V 60Hz 80/150 watts 0.27A 1640 rpm
Number of fans installed: two
Flow rate: 142,000 cu ft per hour
 Temperature accuracy  +/- 2 °C
 Water inlet & outlet on chiller

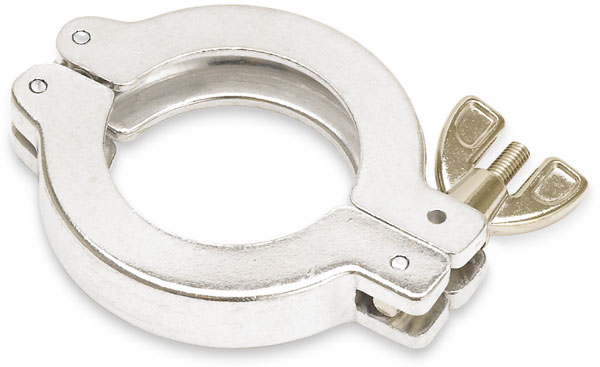

 KF40 flange

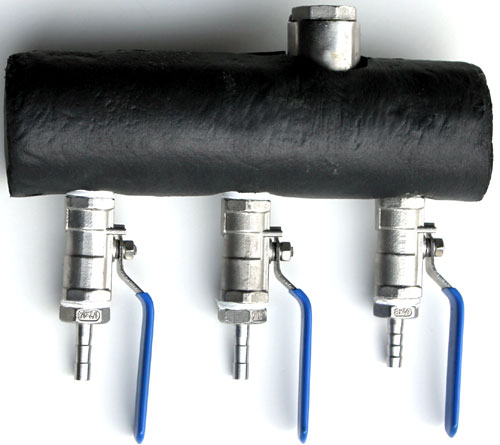

 Water manifold  Inlet: KF40 flange, outlet: 8mm quick connect with ball valve
 Unit/shipping weight  375 Lb / 485 Lb
 Unit/shipping dimensions  41 x 22 x 54″ / 50 x 25 x 61″ (DxWxH)
 Safety  Over current, compressor delay start, water pump
over load, built-in fuse, over-voltage and under-
voltage, abnormal operations, phase protection and
 Working environment  Temperature range of chilled fluid: 5°C – 35°C. Temperature
difference of chilled fluid between inlet and outlet: 3°C – 8°C.
It is better to use the chiller while the ambient temperature is
at or below 35°C
 Recommended to use with
these induction heaters
(result may vary on
different applications)
 High frequency 10kW, 20kW, 30kW
Mid frequency 25kW, 35kW
Low frequency 25kW, 35kW
 CE compliant  Yes

Additional information

Weight 485 lbs
Dimensions 50 × 25 × 61 in
