Description
Features
- UL 61010-1 and CSA C22.2 certified (optional)
- No dry ice or liquid nitrogen needed
- 360 degree rotating chilling fluid connectors
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Cost saving as the water consumption is completely eliminated
- Eco-friendly R404A refrigerant
- Insulated tubing included
- Recommended for 2L rotary evaporators
Attention! Do NOT use Ai Chill-50 heat transfer fluid with this unit.
Specifications

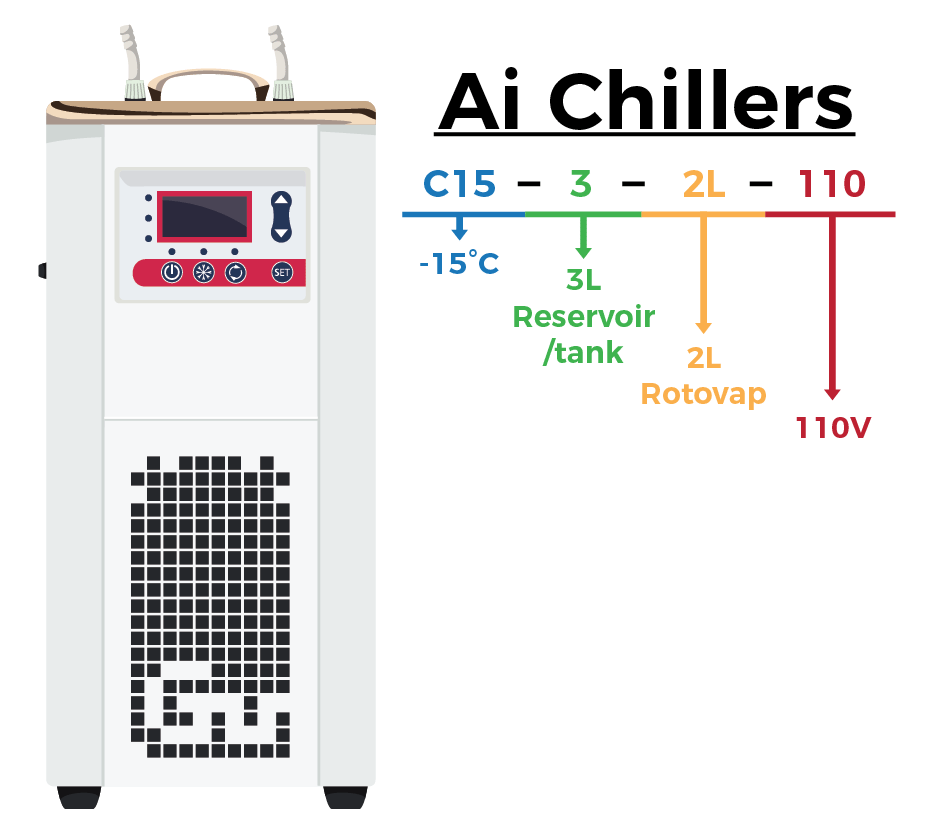

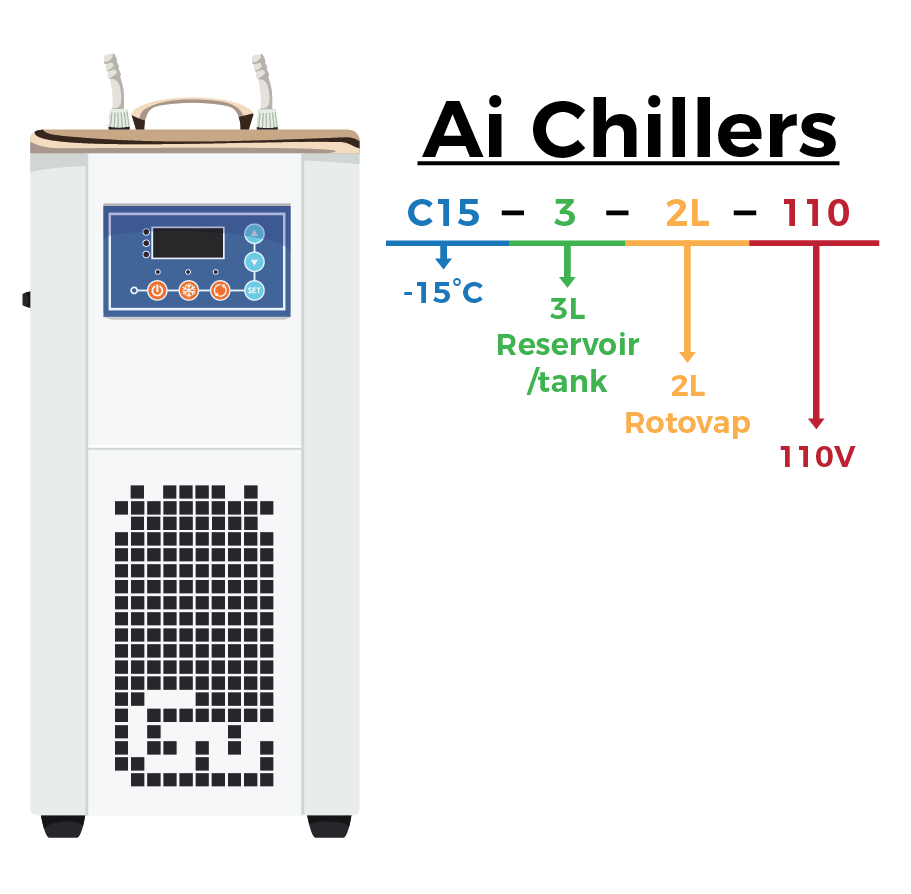

| Model | C15-3-2L |
| Temperature range | Ambient to -15°C (No load) |
| Electrical requirements | 110V 60Hz 1-PH, 500 watts |
| Compressor | Make: Embraco (Brazil) Power: 115V 60Hz 1 HP Number of compressor: one Refrigerant: R404A (Eco-friendly) |
| Cooling capacity | @0°C: 400W |

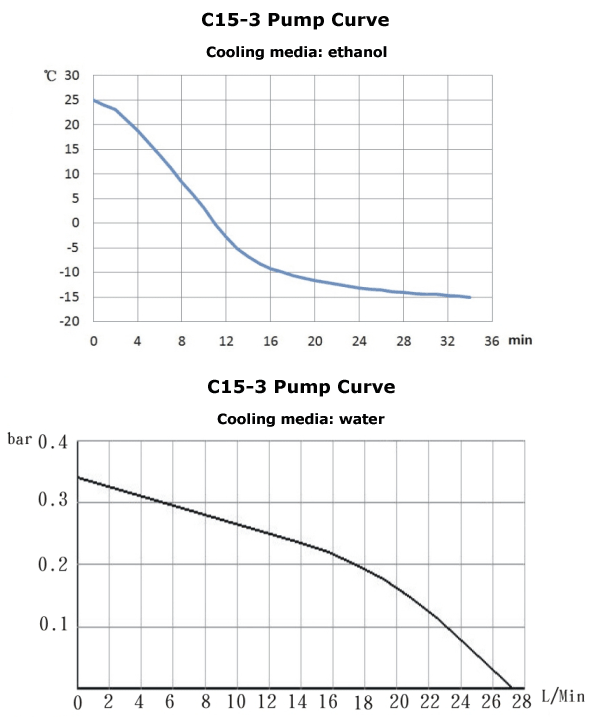

| Recirculating pump | Make: Shanghai XinXiShan MP-20R (China) Type: Centrifugal Output: 15 watts Power: 110V 50/60Hz 310mA 2650-3100 rpm Pumping speed: 17 L/min or 4.5 gallon/min Maximum head: 6.6 feet or 2 meter Maximum pressure: 2.9 psi |
| Reservoir | Dimensions: 5 x 11 x 5″ (WxDxH) Material: Type 304 stainless steel, polished Chilling fluid connection: 3/8″ hose barb x 2 Capacity: 3 liters or 0.8 gallons |

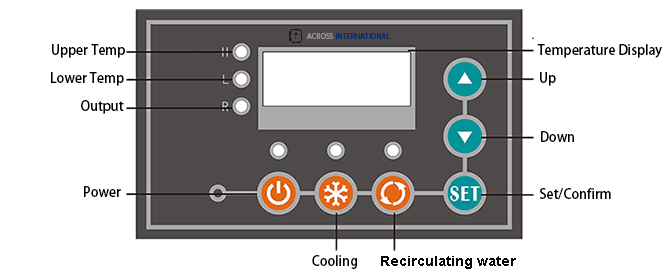

| Temperature controller | Type: Digital microprocessor PID controlled Display unit: Celsius °C Temperature accuracy: +/- 2°C Temperature range: Ambient to -15°C |
| Temperature sensor type | Pt100 |
| Housing | Powder coated type 42 stainless steel |
| Recommended coolant | For 50°F/10°C or higher: distilled water Between 50°F/10°C and 5°F/-15°C: 50% ethylene glycol + 50% distilled water |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/shipping dimensions | 16 x 9 x 22″ / 24 x 14 x 30″ (WxDxH) |
| Unit/shipping weight | 60 Lbs / 105 Lbs |
| Safety | Compressor over-temp protection Short circuit and ground protection Over-current protection Compressor delay start protection |
| Recommended for rotary evaporators | Ai 2L SolventVap rotary evaporators |
| Warranty | One year |

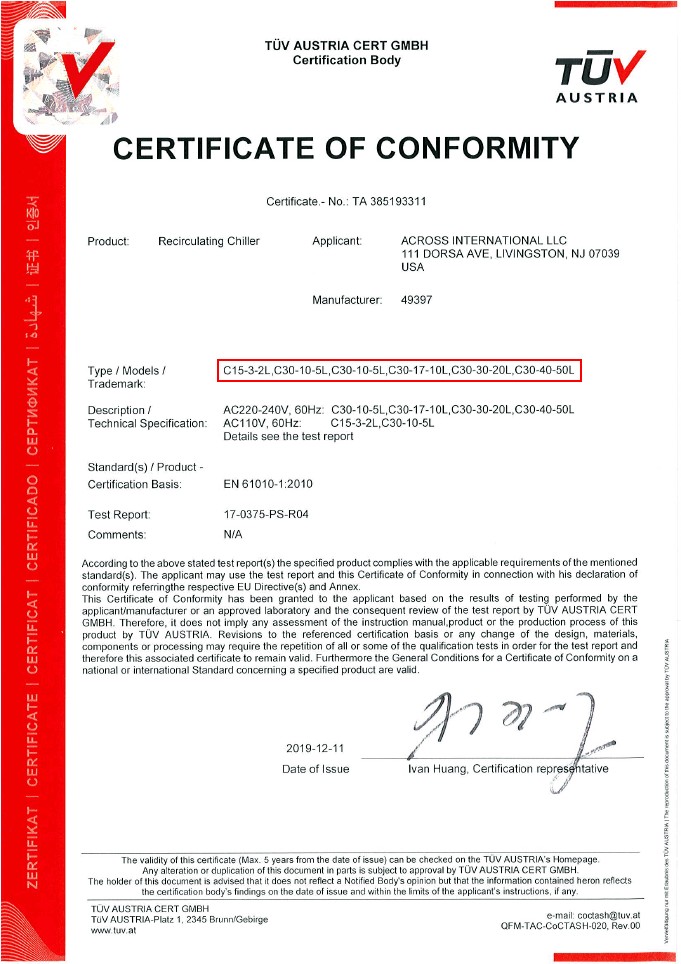

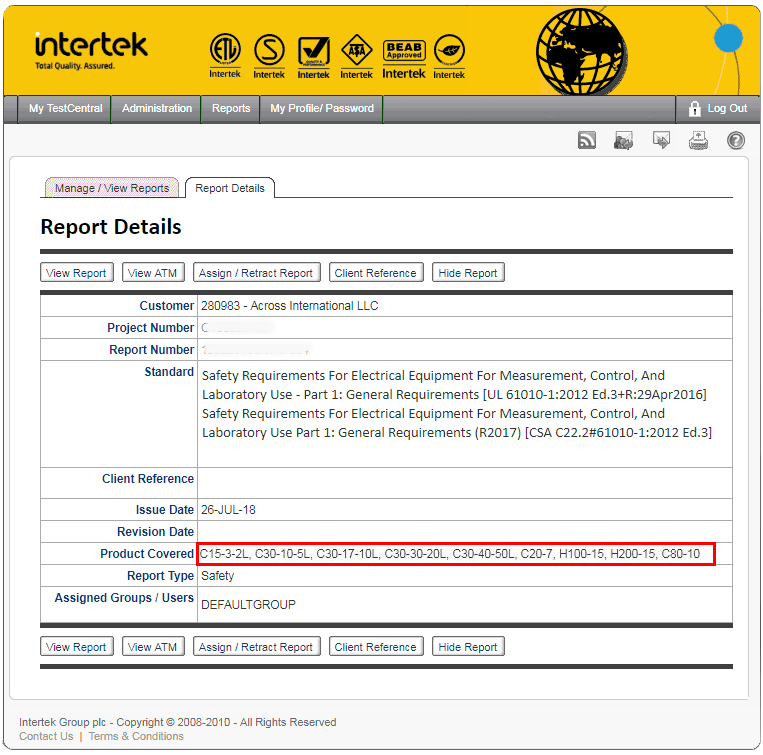

| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
| Download | Product brochure |
