Description
Model
H200-7
Temperature range
Ambient to 200°C
Electrical requirements
220V 60Hz 1-Phase 2,900 watts
Heating capacity
2,800 watts
Recirculating pump
Pumping speed: 21 liters per minute, adjustable Maximum head: 16 feet or 5 meters Power: 100 watts

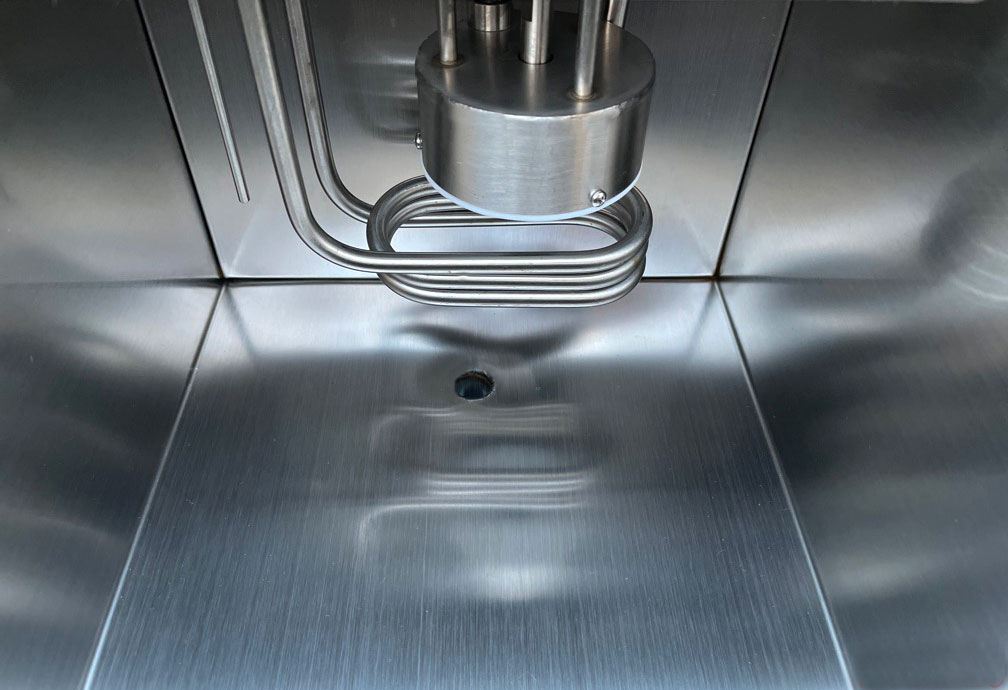

Reservoir

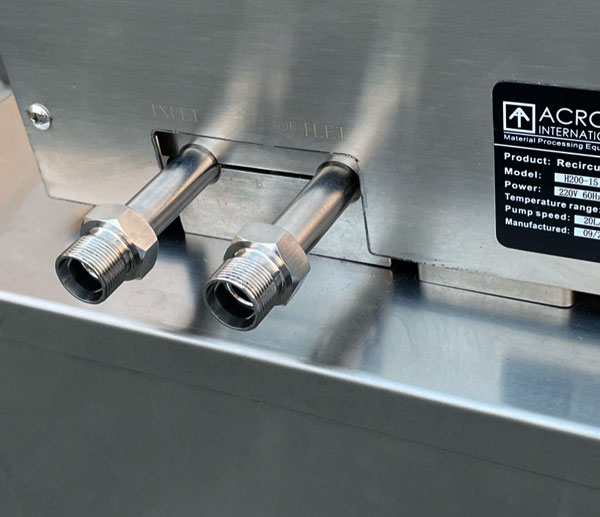

Material: Type 304 stainless steel Capacity: 7 liters or 1.8 gallons Thermo fluid connection: M16 x 2 Fluid drain port: 3/8″ hose barb with on/off valve

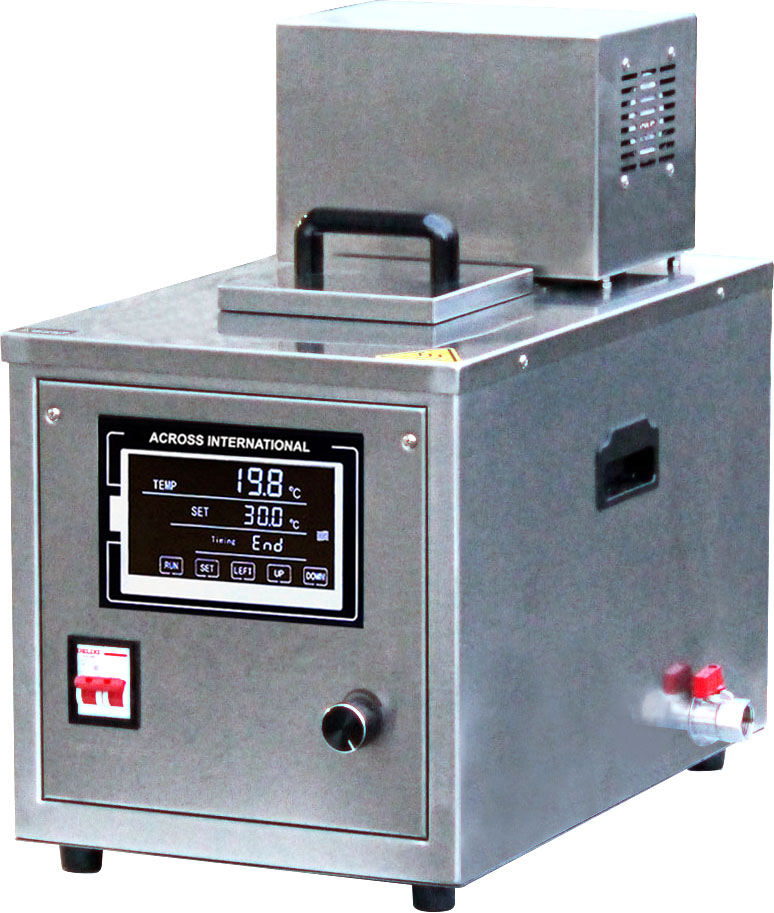

Temperature controller
Type: Digital microprocessor PID controlled Display: 7″ touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: /- 2°C Temperature range: Ambient to 200°C
Working environment
-15°C/5°F to 25°C/77°F, at <66% humidity
Unit/shipping dimensions
11.5 x 19 x 19" / 16 x 24 x 22" (WxDxH)
Unit/shipping weight
35 Lbs / 50 Lbs
Safety
Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection
Warranty
One year

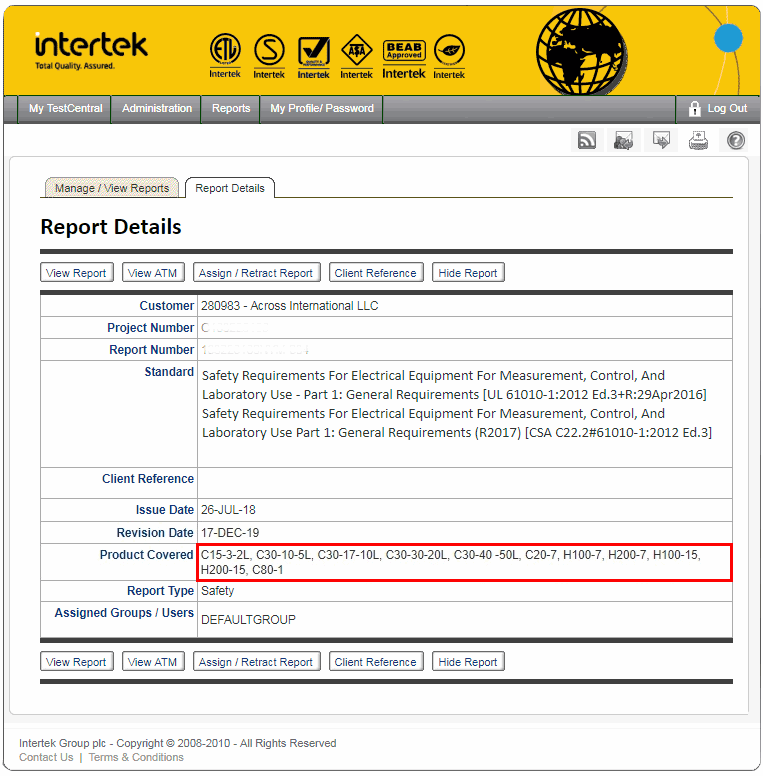

Compliance
UL 61010-1 :2012 Ed.3 R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
