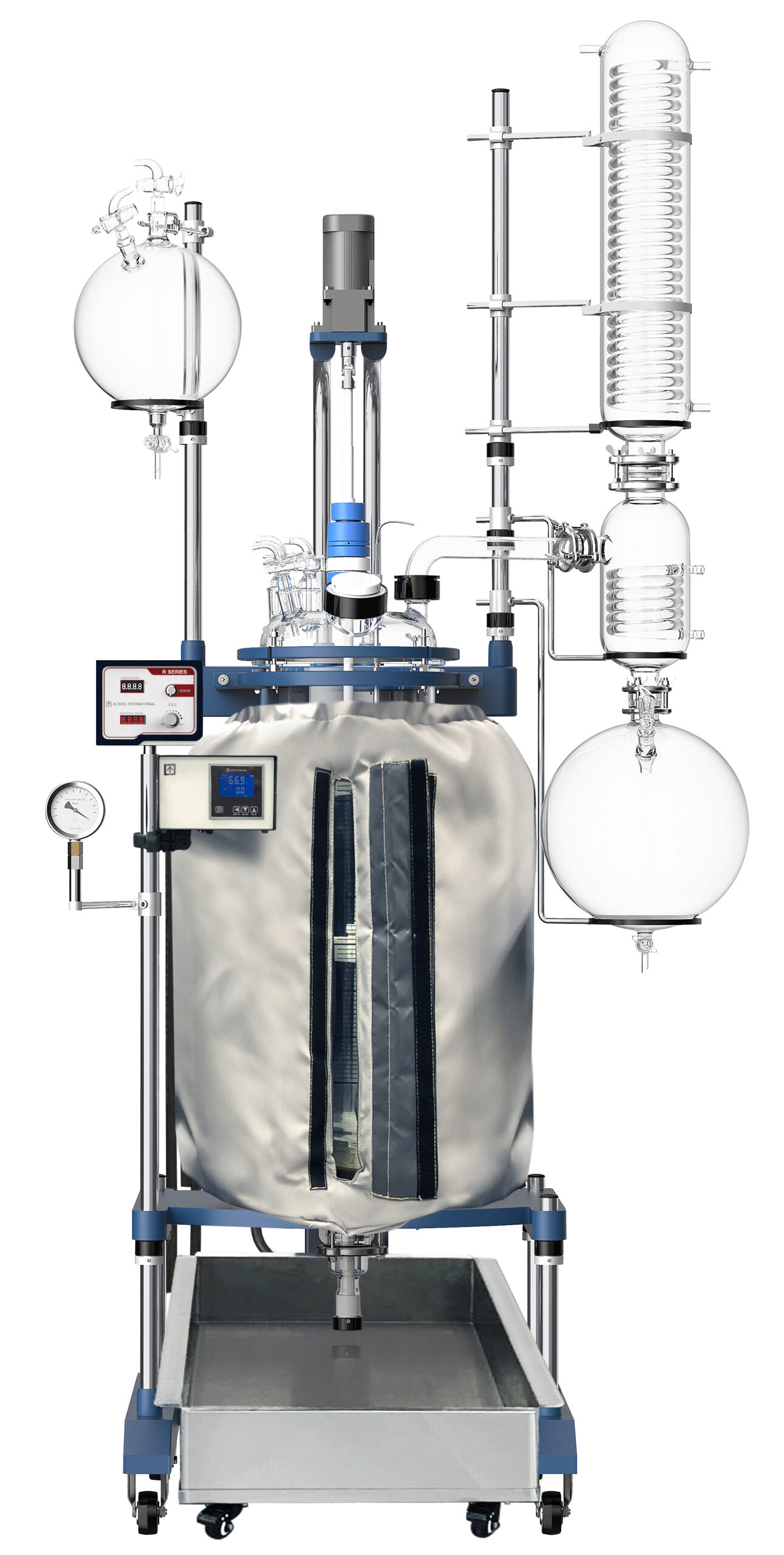

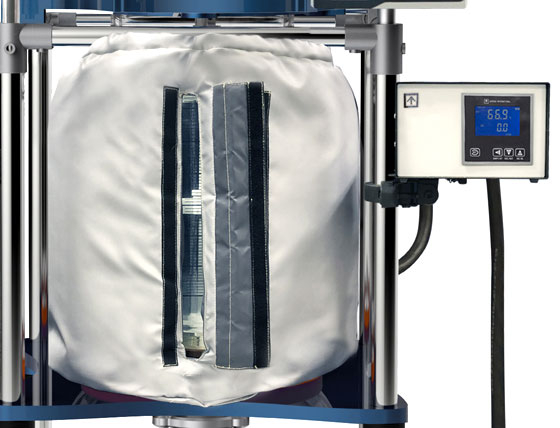

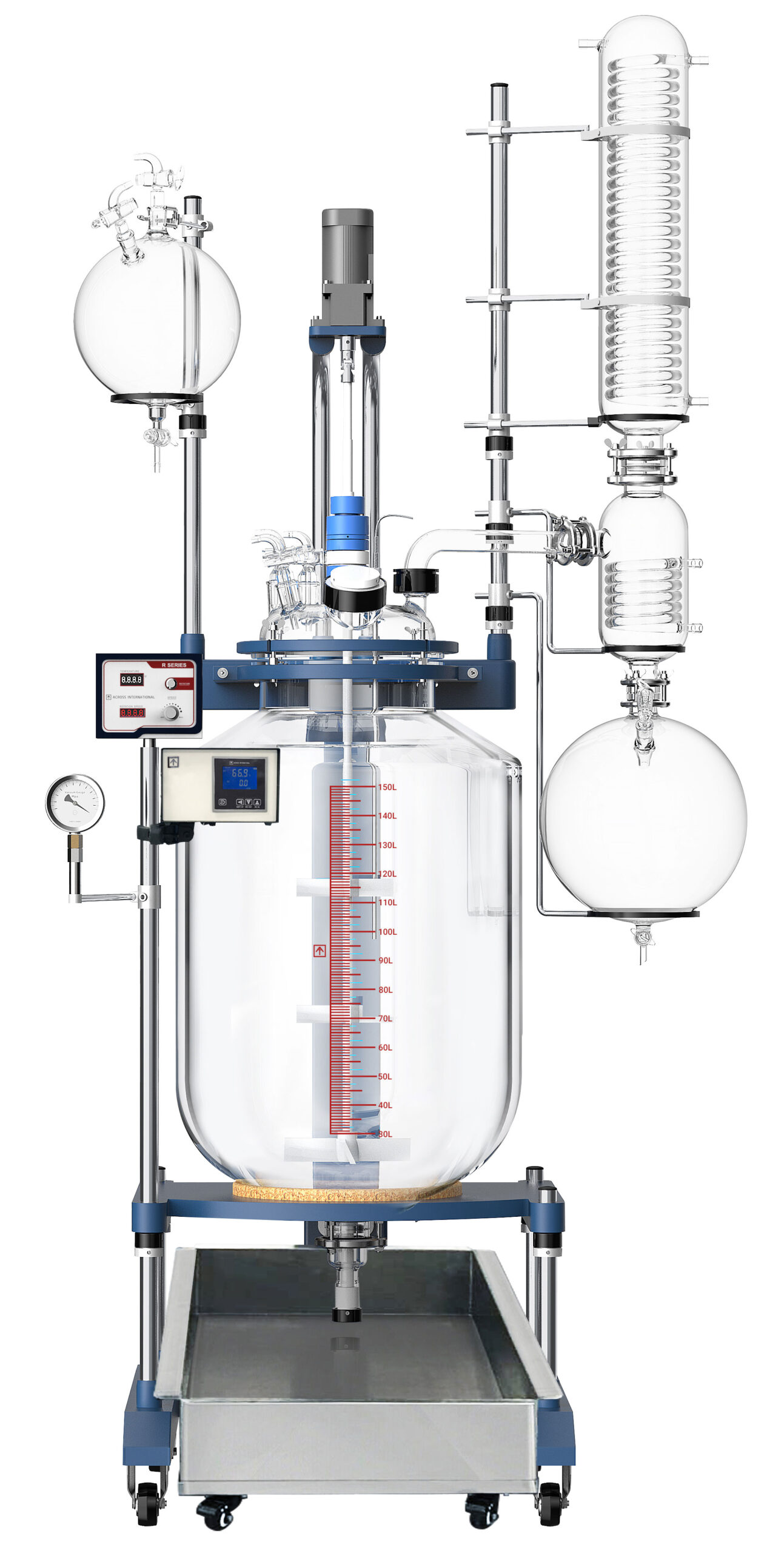

Ai 200L Non-Jacketed Glass Reactor with 200°C Heating Jacket ETL

$27,095.85

Ai R200 series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

SKU: 4200907 Category: Tag:

Description

 Model
 R200h

 Electrical requirements
 110V 60Hz or 220V 50/60Hz, 1-Phase, 750W

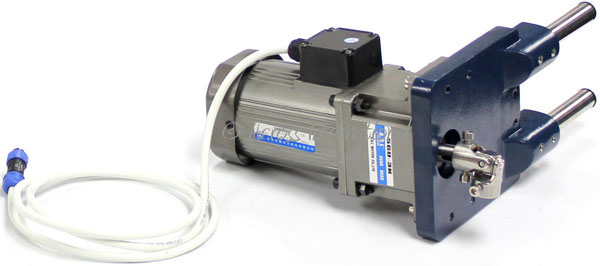

 Stirring motor
 Power: 750 watts Speed: 500 rpm max. Torque: 14.7 N.m max. Protection: IP44 Speed ratio: 1:3

 Reaction glass vessel capacity
 53 gallons (200L)

 Feeding flask capacity
 2.6 gallons (10L)

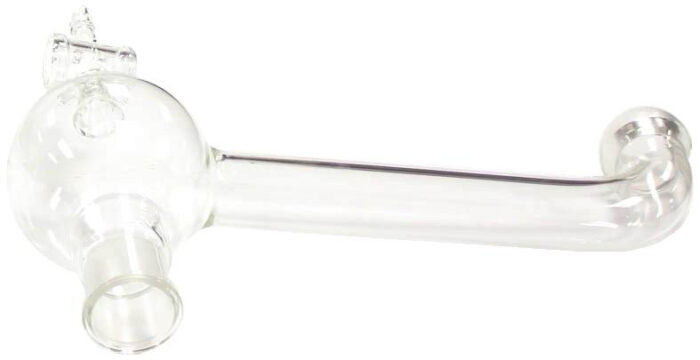

 Condenser receiving flask capacity
 5.3 gallons (20L)

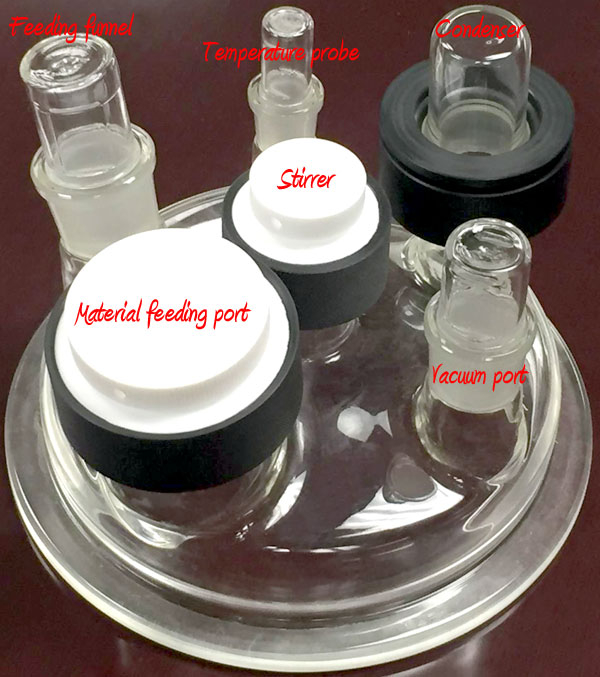

 Ports on vessel lid

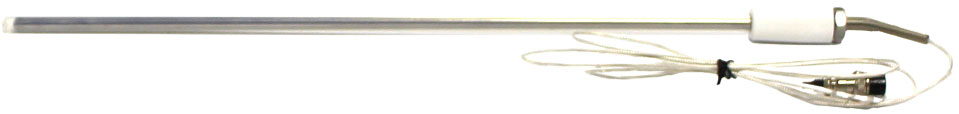

 Stirrer: #60 flange x 1 Temp sensor: #35 flange x 1 Condenser: #50 ball joint x 1 Liquid feeding: #34 joint x 2 Solid feeding: #95 flange x 1 Feeding funnel port: #40 joint x 1

 Glass material
 High borosilicate glass 3.3

 Maximum jacket pressure
 4.4 psi or 0.03 MPa

 Drain valve
 Flush seal design with large opening and flat flange clamp

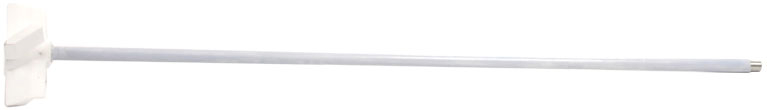

 Agitator
 Style: impeller Material: 304 stainless steel with PTFE liner

 Funnel
 Pressure equalizing

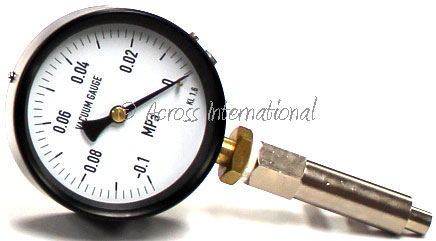

 Vacuum gauge
 Mechanical

 Swivel caster
 Four

 Glass vessel temperature range
 -110°F to 400°F

 Vacuum level

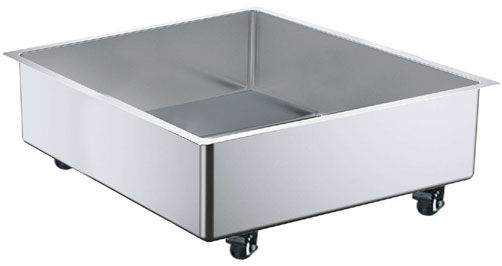

 < 700 torrs  Vacuum sealing  Glass or PTFE  Drain port ground clearance  17 inches  Mobile splash bin  Material: 316L stainless steel Dimensions: 20.5 x 27 x 7" (WxDxH)  Unit/shipping dimesions (WxDxH)  48 x 41 x 109" / 77 x 61 x 43"  Compliance  ETL certified to UL and CSA standards  Shipping weight  650 Lbs / 870 Lbs
