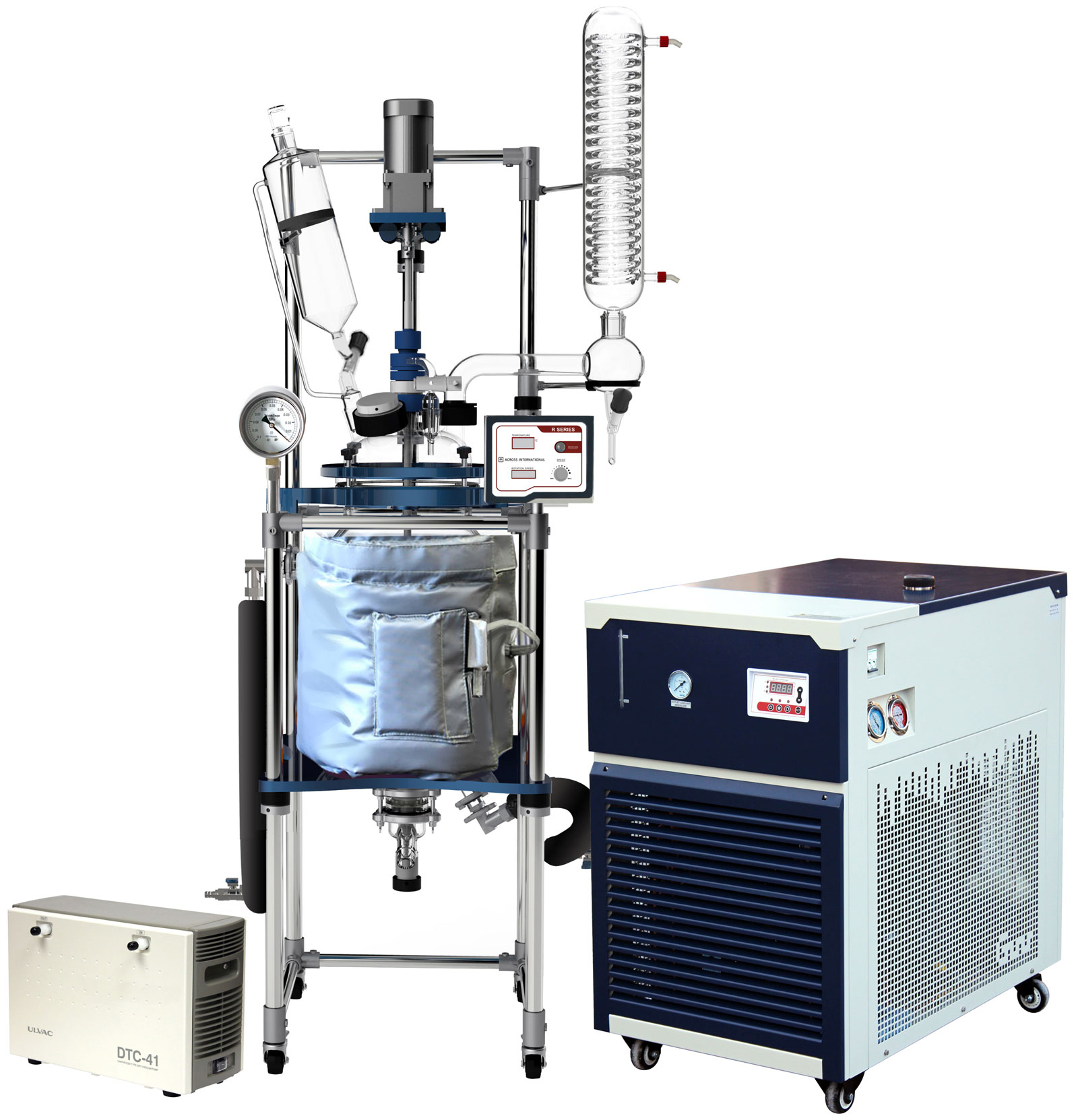

Ai 20L Single or Dual Jacketed Glass Reactor w/ Chiller & Pump


Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

SKU: 4200845 Category: Tag:



 Electrical requirements
 110V 60Hz or 220V 50/60Hz, 1-PH, 90W

 Reaction glass vessel capacity
 5.3 gallons (20L)

 Cooling/heating jacket capacity
 1.6 gallons (6L)

 Glass material
 High borosilicate glass 3.3

 Rotation controller
 Digital controller with variable frequency drive

 Maximum jacket pressure
 4.4 psi or 0.03 MPa

 Drain valve
 Flush seal design with large opening and flat flange clamp

 Style: impeller Material: 304 stainless steel with PTFE liner

 Dual-cooling coil design

 Pressure equalizing

 Vacuum gauge

 Swivel caster

 Glass vessel temperature range
 -110°F to 400°F

 Vacuum level

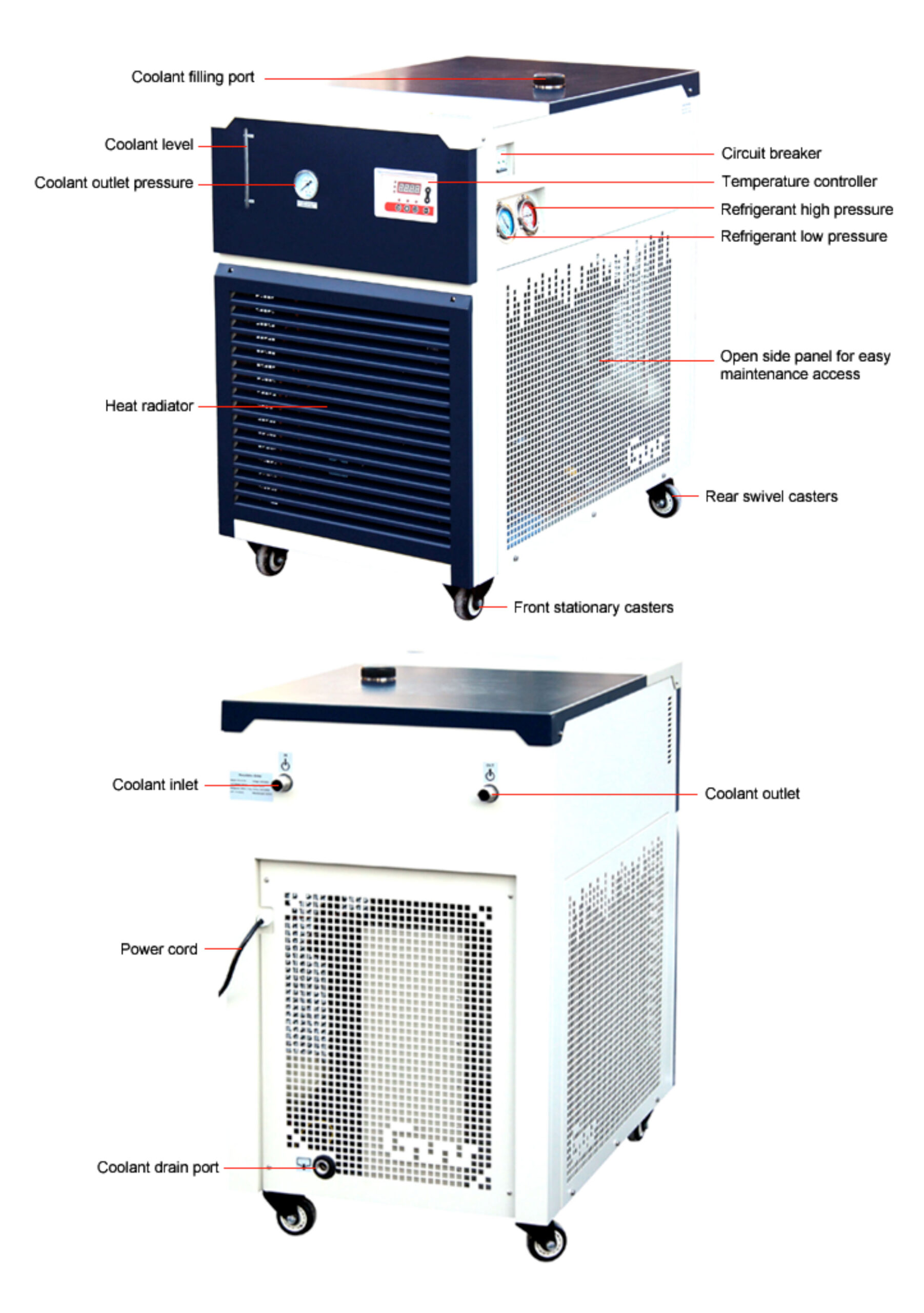

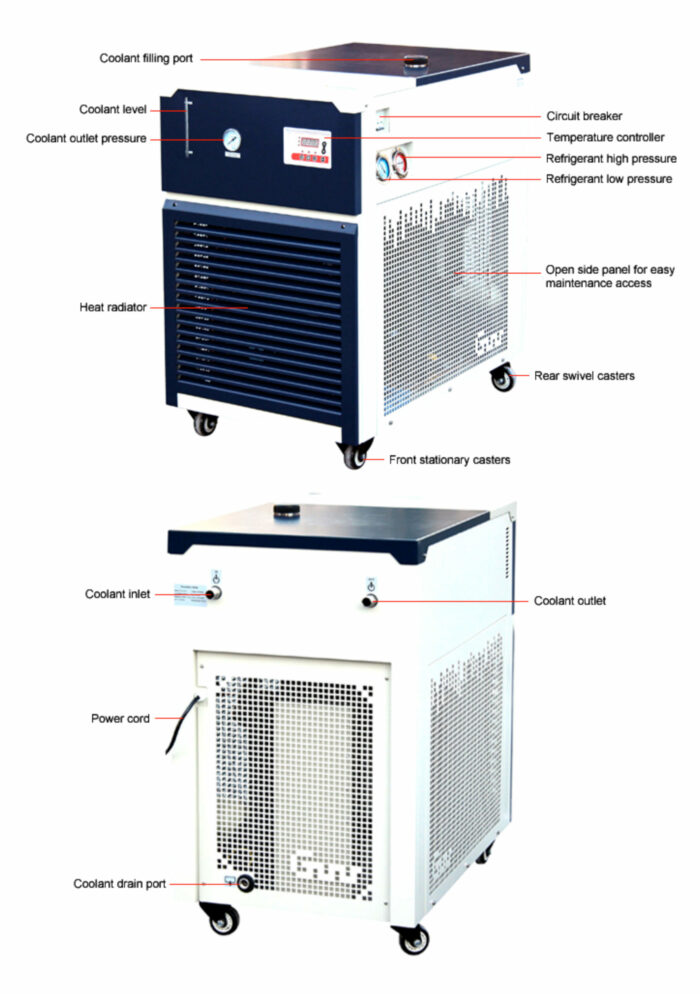

 < 700 torrs  Vacuum sealing  Glass or PTFE  Drain port ground clearance  13 inches  Reactor dimensions (WxDxH)  20 x 27 x 80"  Shipping dimensions  24 x 75 x 31"  Shipping weight  265 Lbs  Click here for specs for 220V C30-40 -30°C recirculating chiller  ULVAC 110V DTC-41 1.6 cfm 7.5 torr 2-head diaphragm pump and vacuum hose  Download  Ai jacketed reactor brochure
