Description
Electrical requirements
110V 60Hz 1~phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts)
Glass material
High borosilicate glass 3.3
Evaporating flask
Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L) Maximum load: Not to exceed 60% of the flask’s capacity Rotation speed: 10 to 280 rpm Evaporating speed: 20 ml per minute Lifting: weight balancing manual control with lock Max lifting distance: 4 inches (extendable to 10 inches)
Receiving flask
0.26 gallon (1L)
Condenser
Glassware: Vertical cold trap condenser with lid Vacuum connection: 3/8″ hose barb x 1
Working environment
5 to 95°F

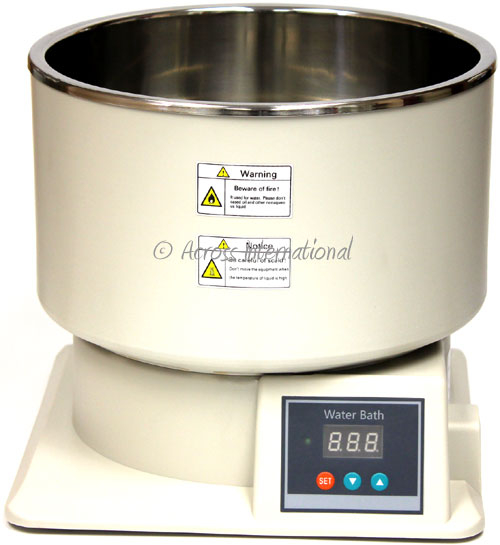

Water bath

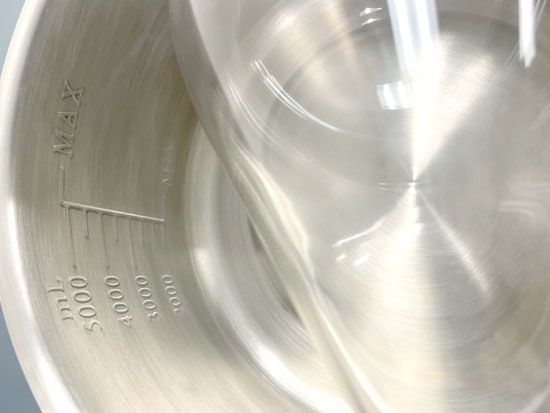

Temperature range: ambient to 95°C Temperature controller: digital Capacity: 6.5 L Material: stainless steel Dimensions: 10″ diameter x 5″ depth x 9.75″ height Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: one

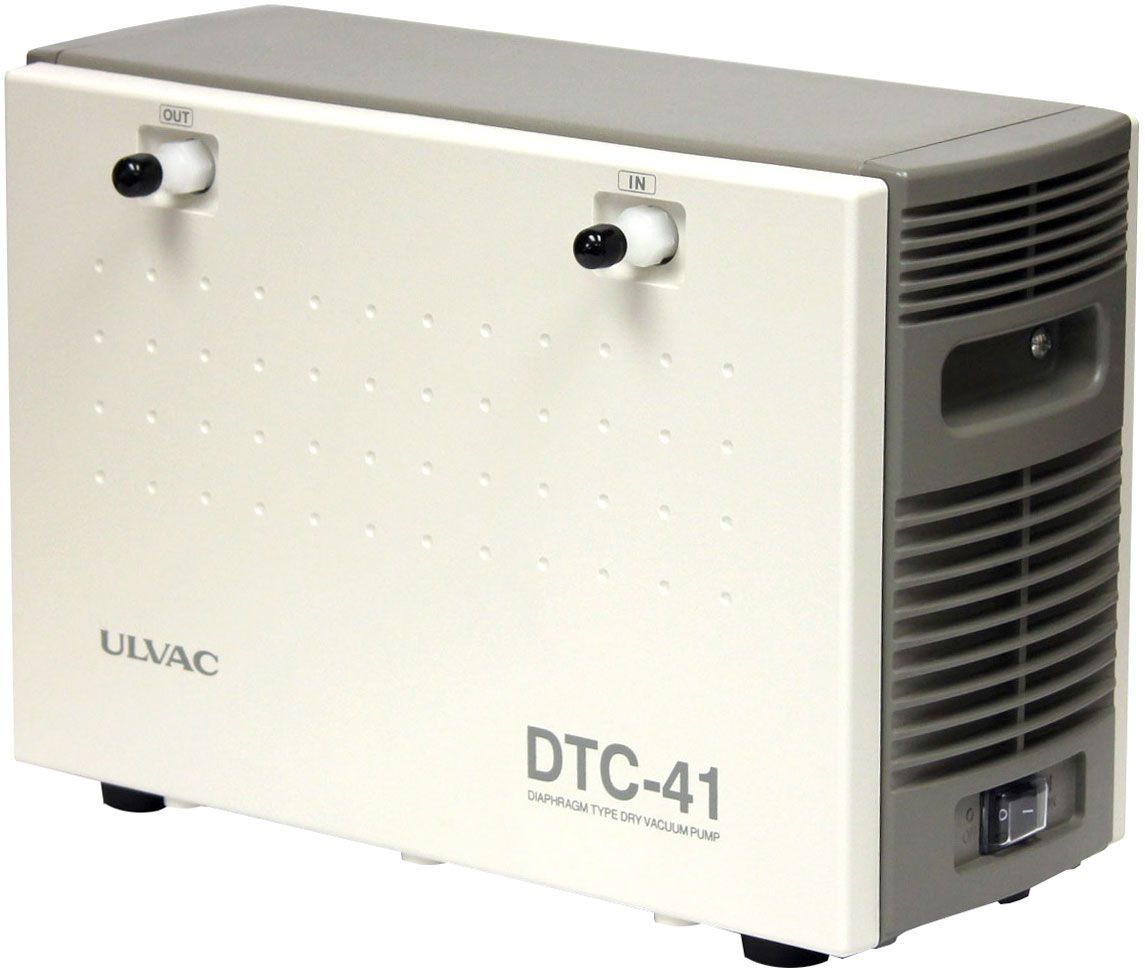

Vacuum
Connection: 3/8″ hose barb x 1 Sealing: PTFE Viton gaskets Ultimate vacuum: < 3 torrs
Safety
Dry-run, over-temp shut-off, fuse protections
Unit/shipping weight
21 / 40 Lb
Unit/shipping dimensions
22 x 12.5 x 26" / 26 x 21 x 29" (WxDxH)
Warranty
One year warranty on rotary evaporator except glassware and all sealing gaskets. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.
Download
Product brochure

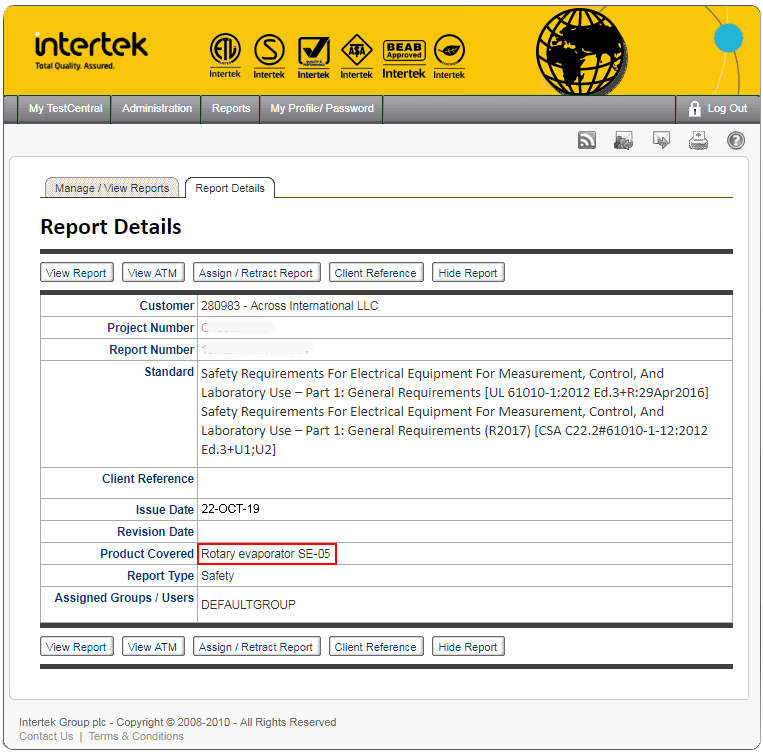

Compliance
ETL tested to UL and CSA standards
