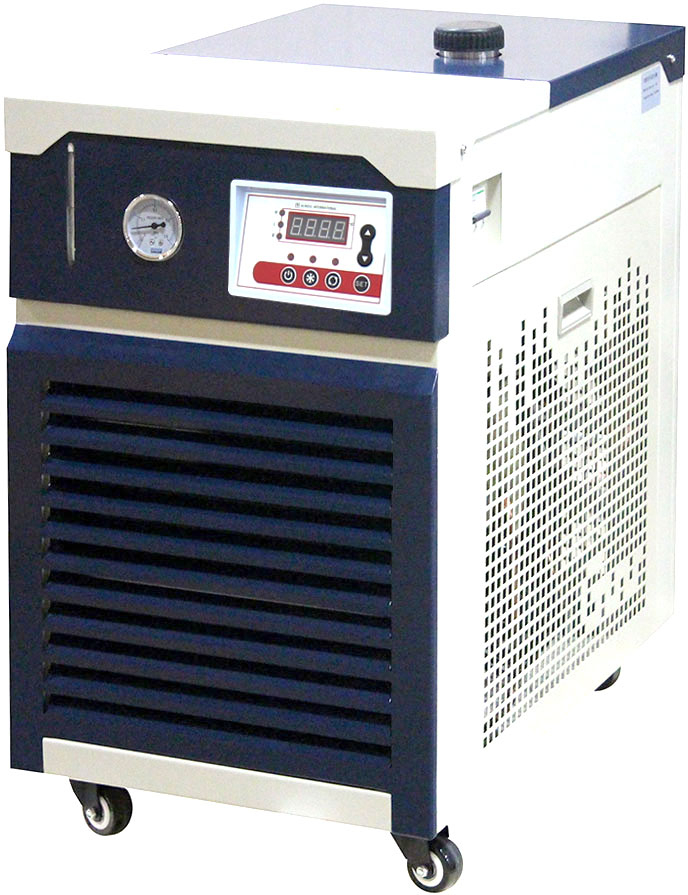

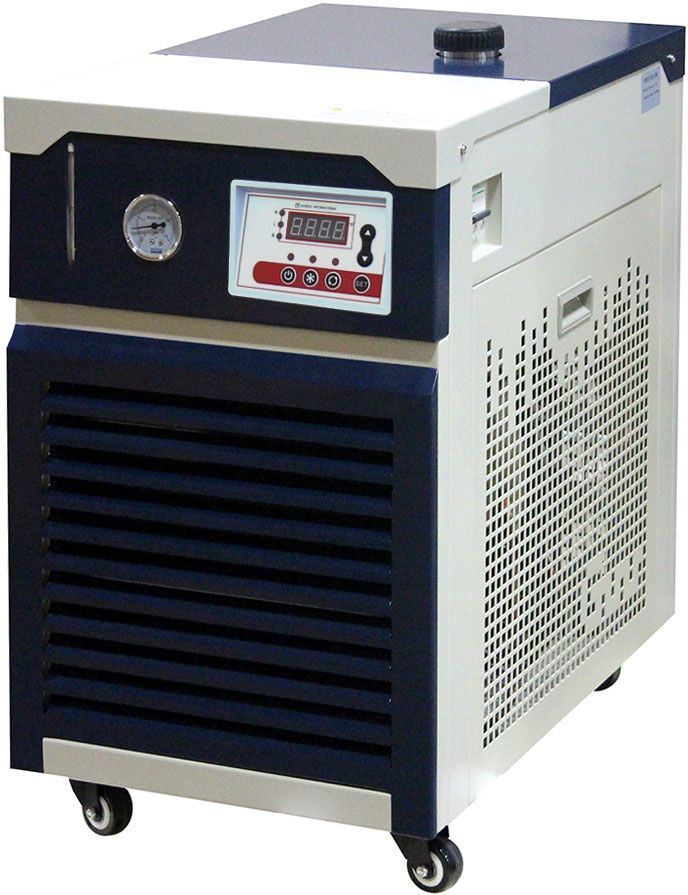

Ai -30°C 10L Recirculating Chiller with 20L/Min Centrifugal Pump

4,487.07$

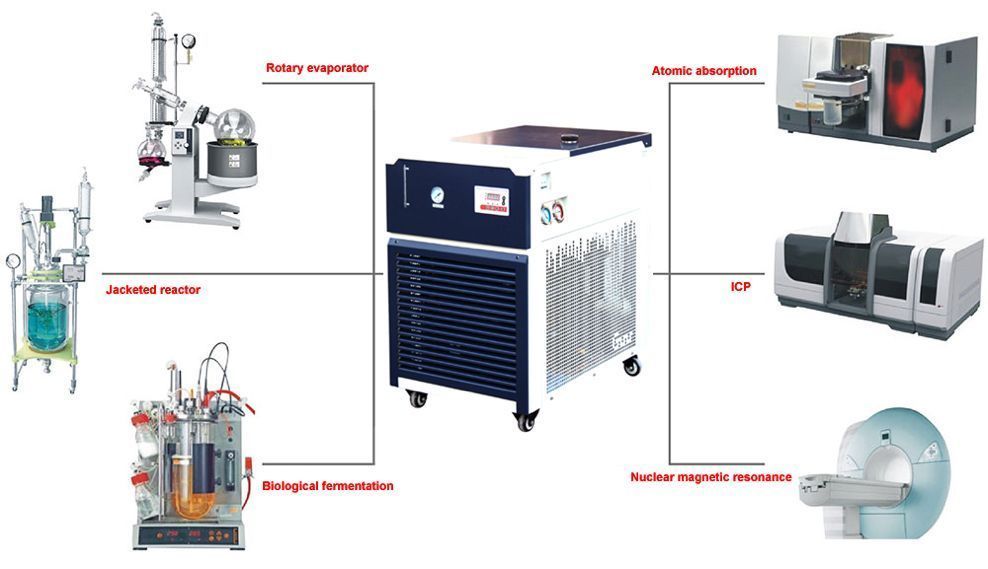

Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

IMPORTANT! -30°C/-22°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).

Categories: ,

Description

C30 circulating chiller features

  • UL 61010-1 and CSA C22.2 certified (optional)
  • No dry ice or liquid nitrogen needed
  • Advanced PID digital temp controller
  • Built-in chilling fluid filter protects the recirculating pump and prevent blockage
  • All steel construction for durability
  • Cost saving as the water consumption is completely eliminated
  • Built-in casters for mobility
  • Eco-friendly R410A refrigerant
  • Insulated tubing included
  • Recommended for 5L rotary evaporators

Specifications

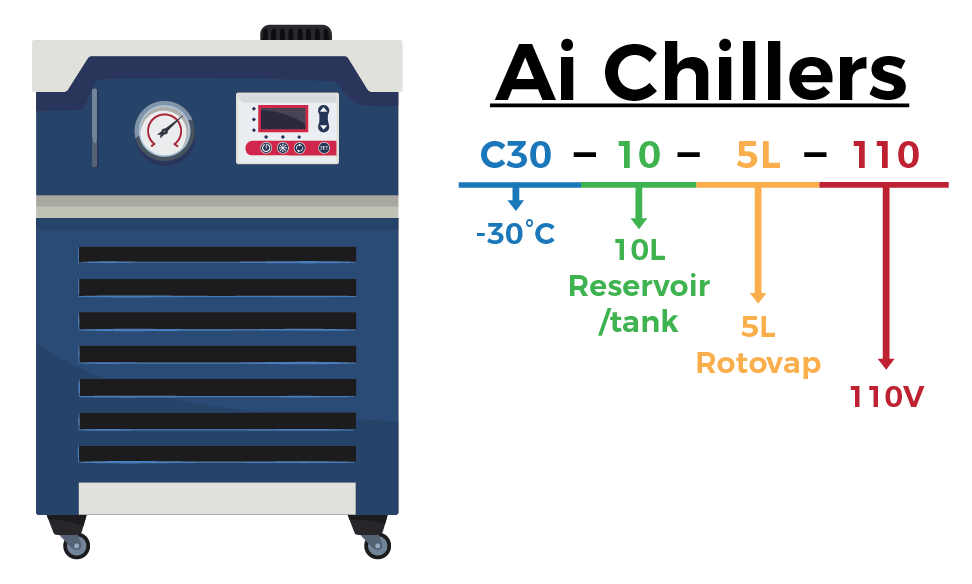

 Model  C30-10-5L
 Temperature range  Ambient to -30°C (No load)
 Electrical requirements  220V 60Hz 1-PH, 1,100 watts (Not compatible with 50Hz power)

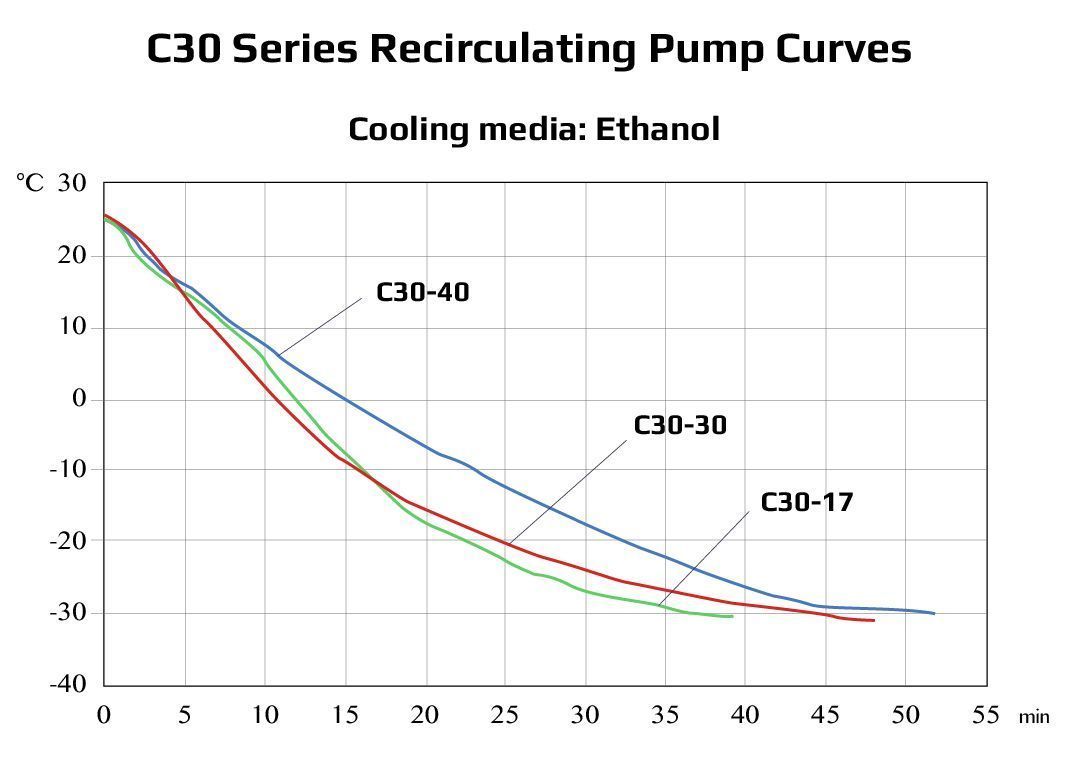

 Cooling capacity
(Assuming working environment
25°C/77°F)
 @ 32°F/0°C:          1,250W
@ 14°F/-10°C:         800W
@-4°F/-20°C:           300W
@-22°F/-30°C:         150W
 Compressor  Make: Panasonic
Power: 208-230V 60Hz 1-PH
Number of compressor: one
Refrigerant: R410A

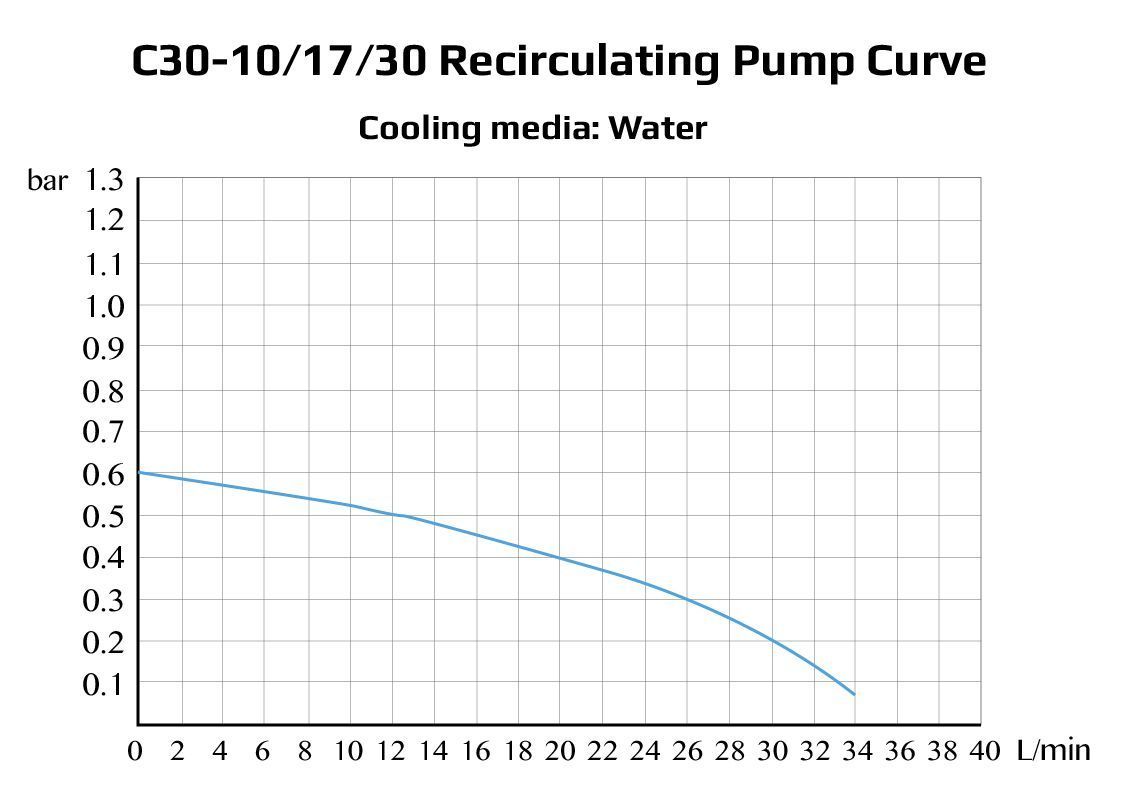

 Recirculating pump  Type: Centrifugal
Output: 100 watts
Pumping speed: 20 L/min or 5.3 gallon/min
Maximum head: 20 feet or 6 meter
Maximum pressure: 5.8 psi

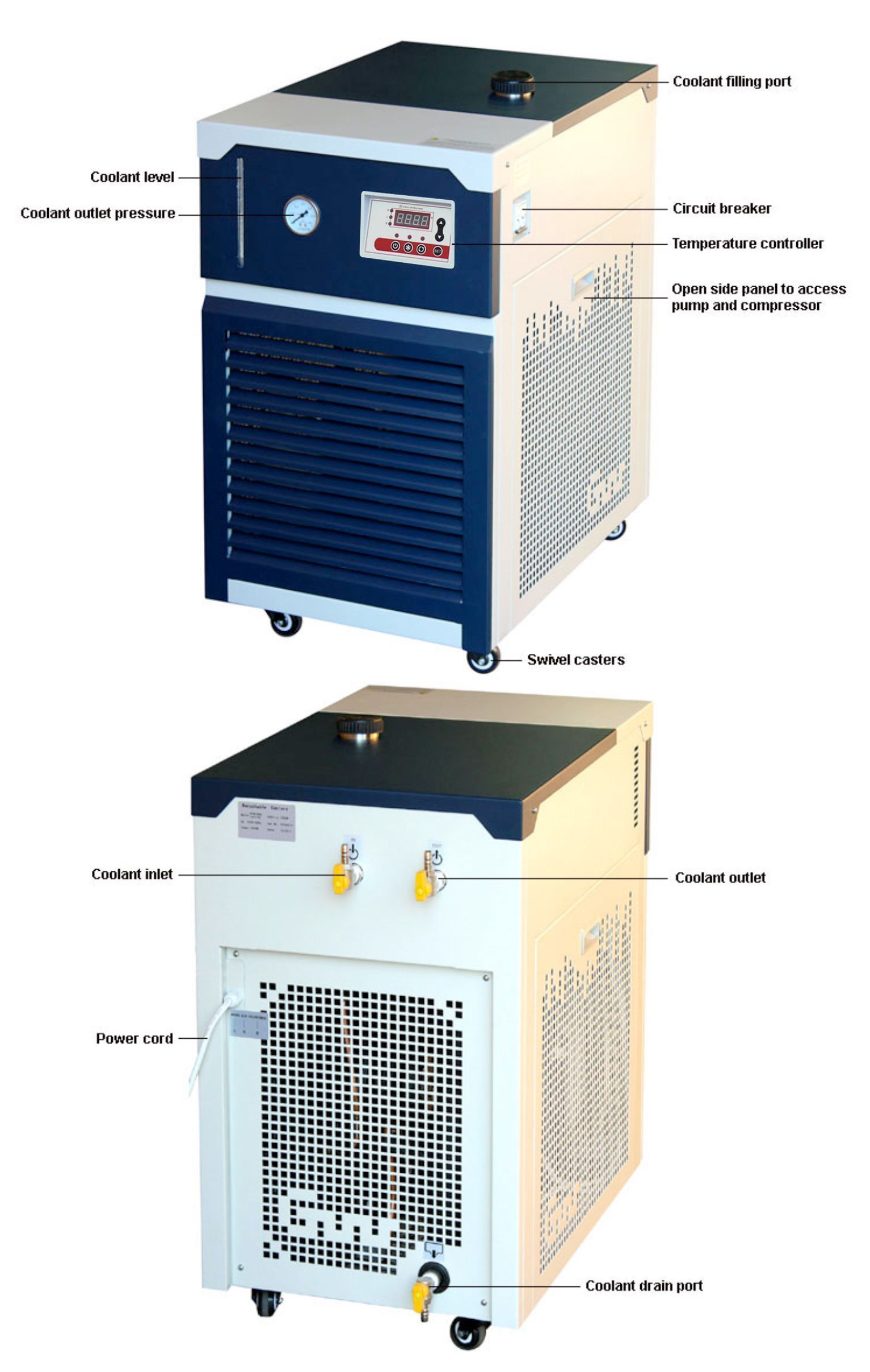

 Coolant outlet pressure  Displayed on the built-in mechanical pressure gauge
 Reservoir  Material: Type 304 stainless steel, polished

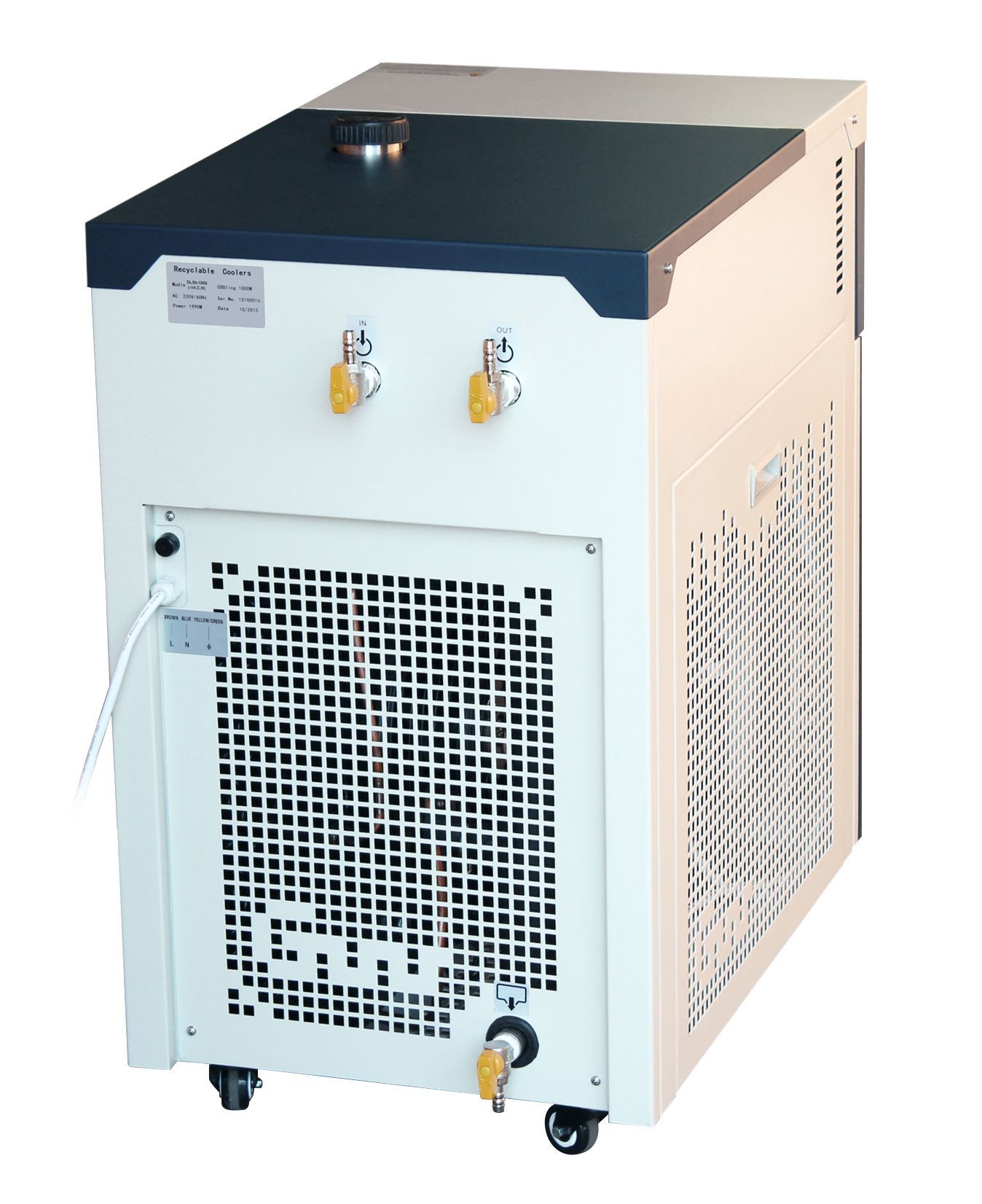

Chilling fluid connection: 3/8″ hose barb x 2
Capacity: 10 liters or 2.6 gallons

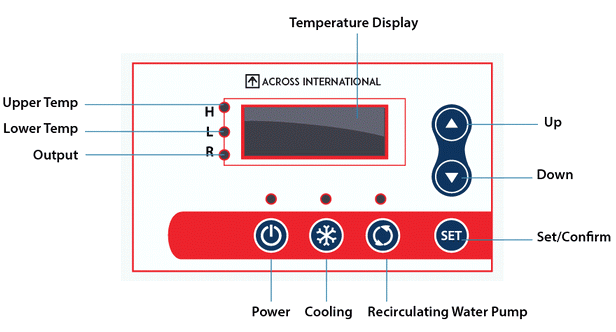

 Temperature controller  Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -30°C
 Temperature sensor type  Pt100
 Housing  Powder coated type 42 stainless steel
 Recommended coolant  For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and -22°F/-30°C:
50% ethylene glycol + 50% distilled water
 Working environment  -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters  Four
 Unit/shipping dimensions  26.5 x 17 x 27″ / 32 x 22 x 36″ (WxDxH)
 Unit/shipping weight  155 Lbs / 210 Lbs
 Safety  Compressor over-temp protection
Compressor delay start protection
Short circuit and ground protection
Over-current protection
 Recommended for rotary evaporators  Ai 5L SolventVap rotary evaporators
 Warranty  One year

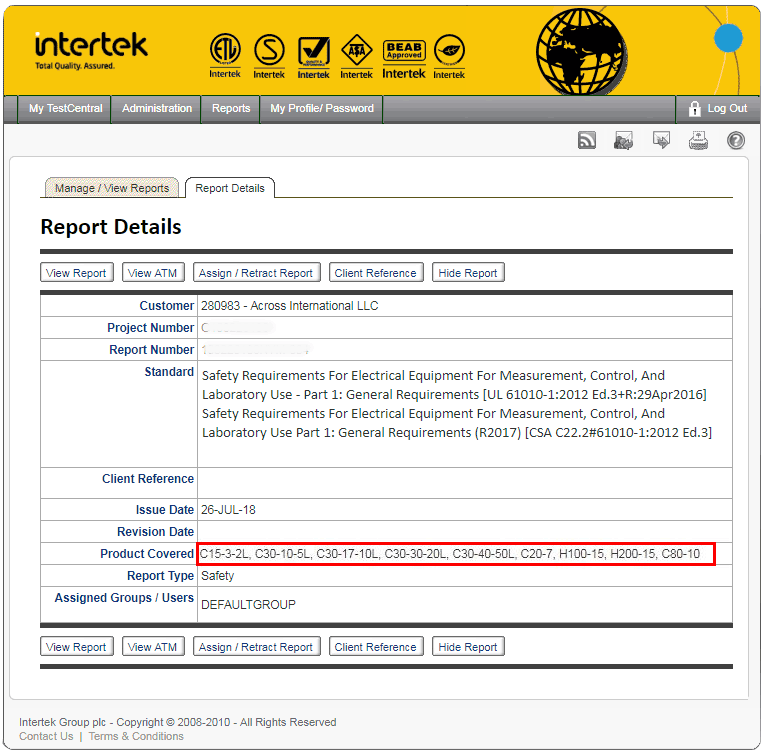

 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
 Download  Product brochure

Additional information

Weight 210 lbs
Dimensions 32 × 22 × 36 in
