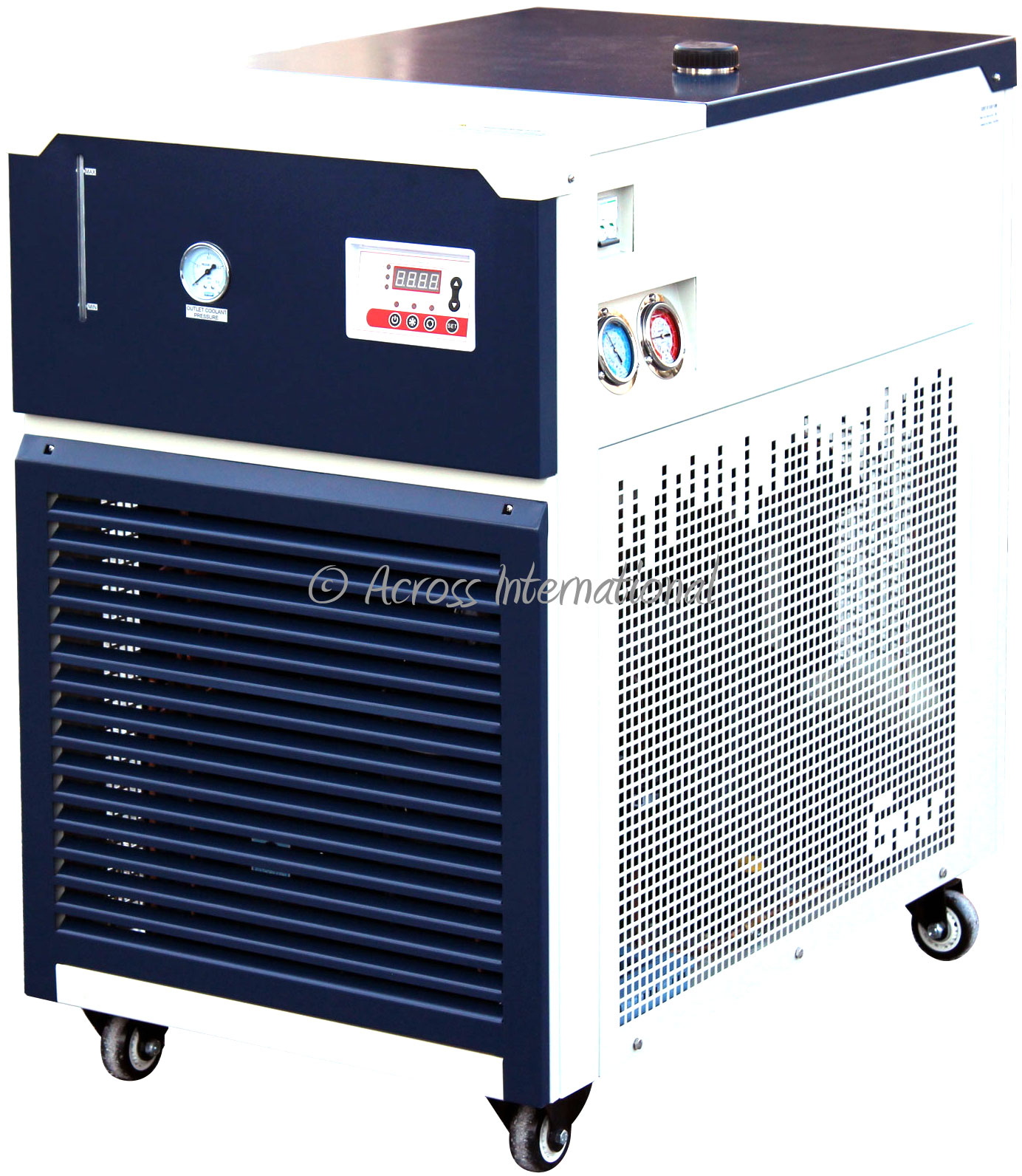

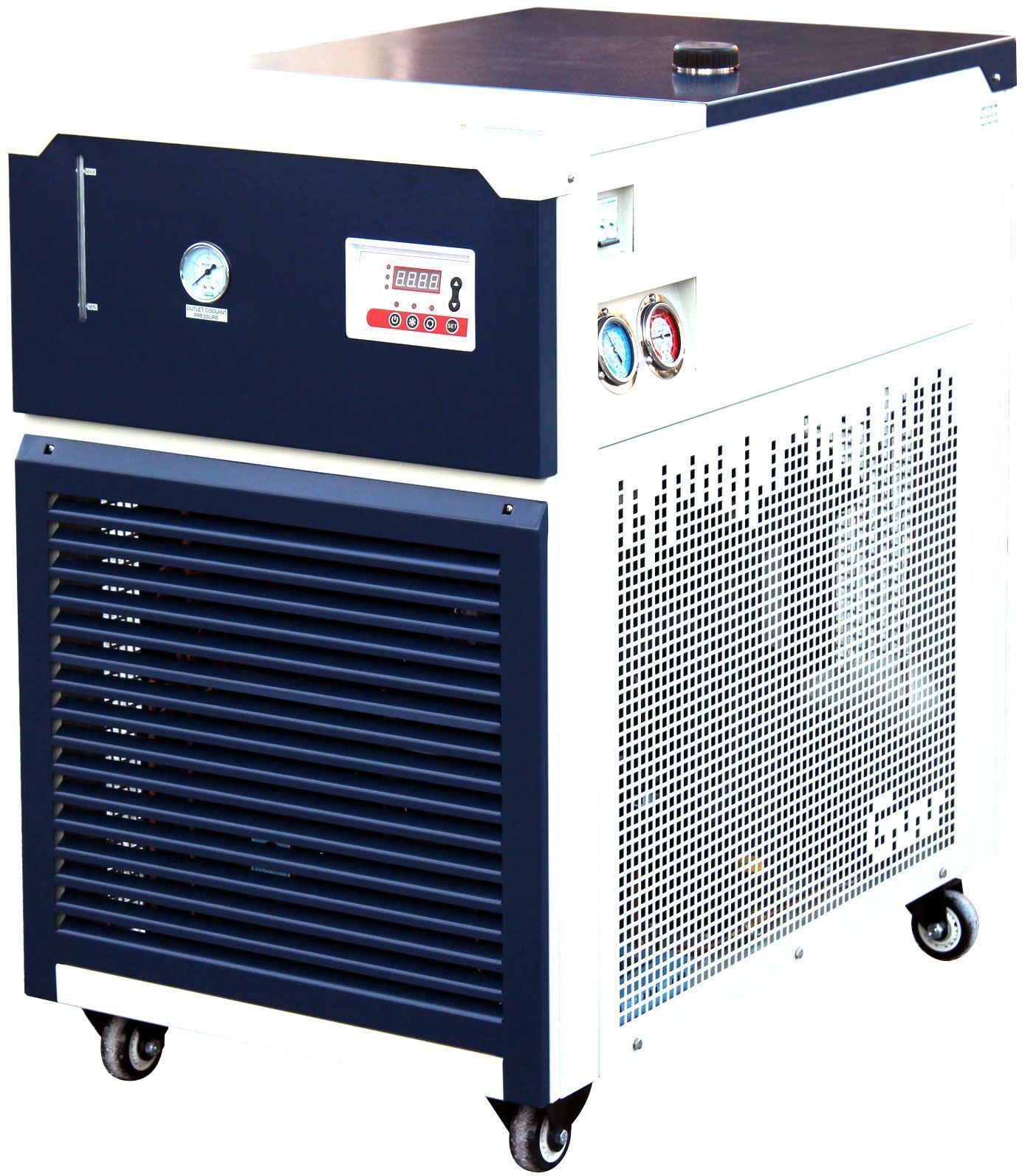

Ai -30°C 40L Recirculating Chiller with 30L/Min Centrifugal Pump

14,980.22$

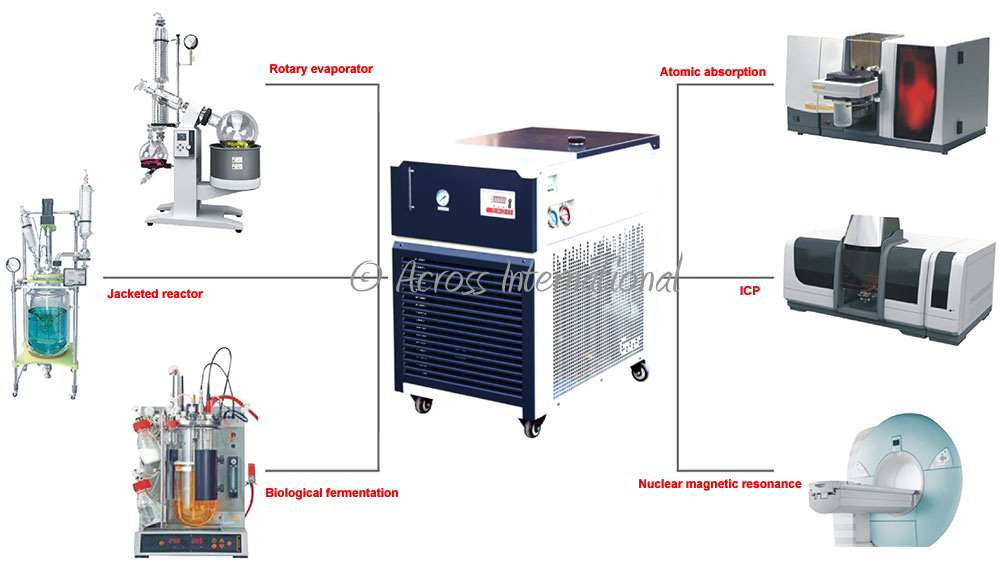

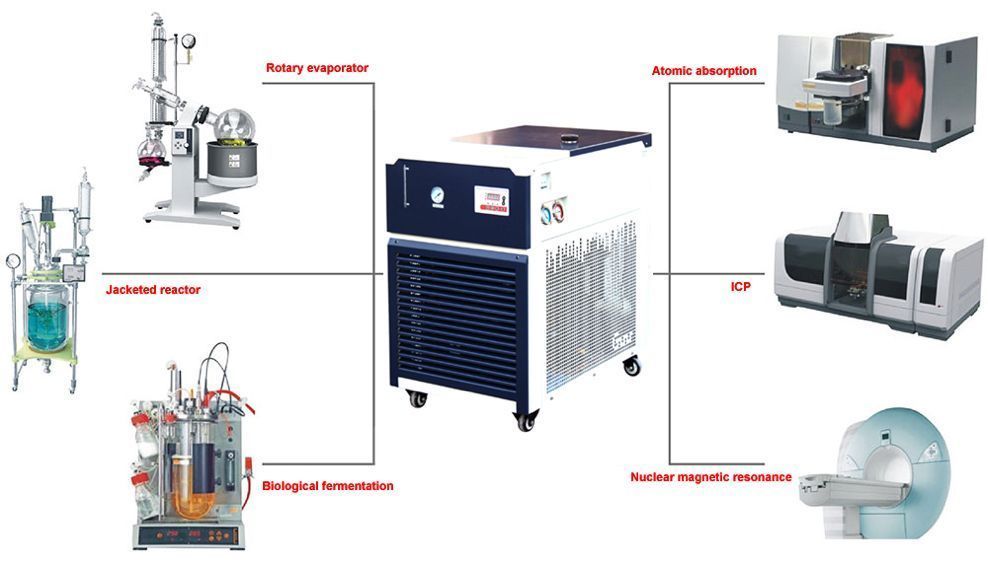

Ai C30-40 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Ai C30-40 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

IMPORTANT! -30°C/-22°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).

Categories: ,

Description

C30-40 circulating chiller features

  • UL 61010-1 and CSA C22.2 certified (optional)
  • No dry ice or liquid nitrogen needed
  • Advanced PID digital temp controller
  • Built-in chilling fluid filter protects the recirculating pump and prevent blockage
  • All steel construction for durability
  • Eco-friendly R404A refrigerant
  • Cost saving as the water consumption is completely eliminated
  • Built-in casters for mobility

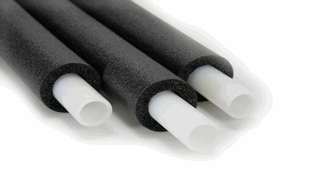

  • Insulated tubing included
  • Recommended for 50L rotary evaporators

Specifications

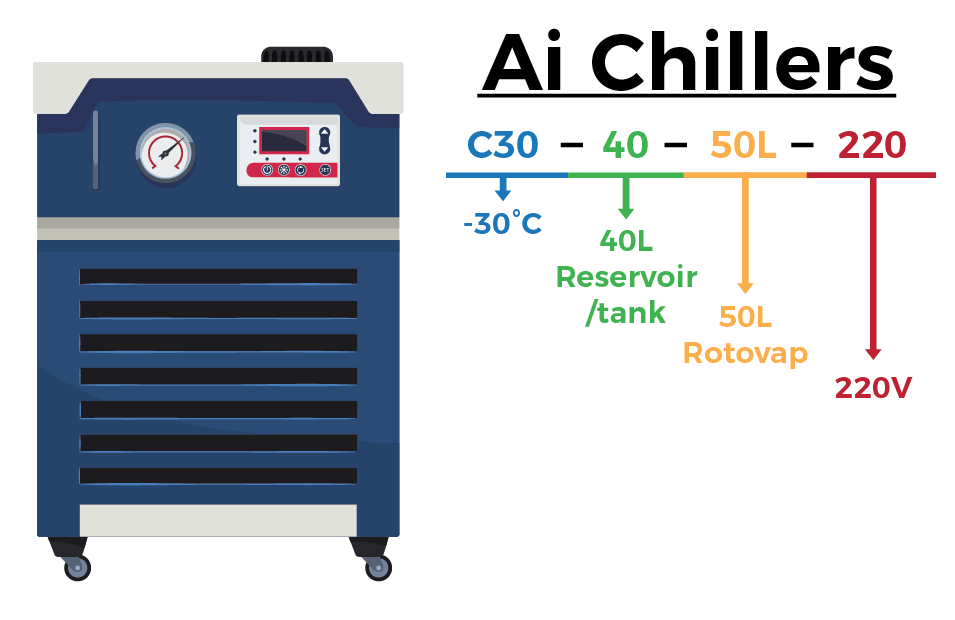

 Model  C30-40-50L
 Temperature range  Ambient to -30°C (No load)
 Electrical requirements  220V 60Hz 1-PH 18A, 3,960 watts (Not compatible with 50Hz power)
 Cooling capacity
(Assuming working environment
25°C/77°F)
 @ 32°F/0°C:          5,000W
@ 14°F/-10°C:       3,000W
@-4°F/-20°C:         1,800W
@-22°F/-30°C:       1,000W
 Compressor  Make: KK
Power: 208-230V 60Hz 1-PH
Number of compressor: one
Refrigerant: R404A (3.2 kgs)
 Recirculating pump  Model: 25PLBR30-10
Type: Centrifugal
Output: 280 watts
Pumping speed: 30 L/min or 8 gallon/min
Maximum pressure: 1 bar

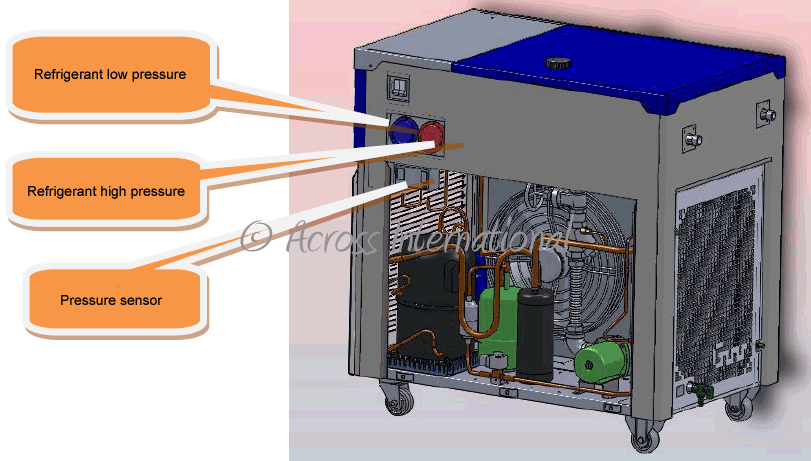

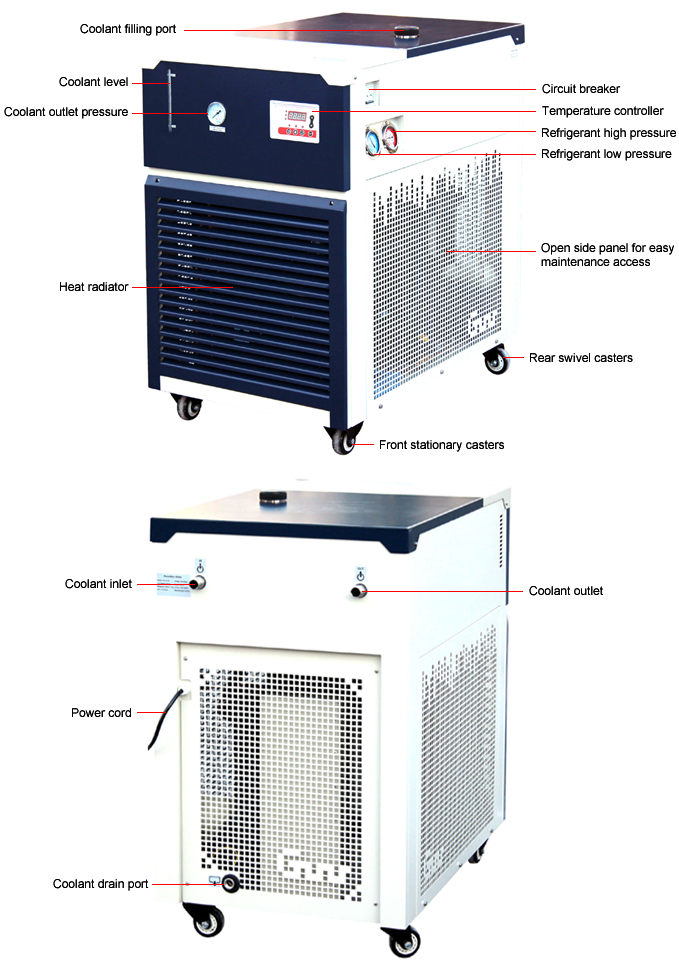

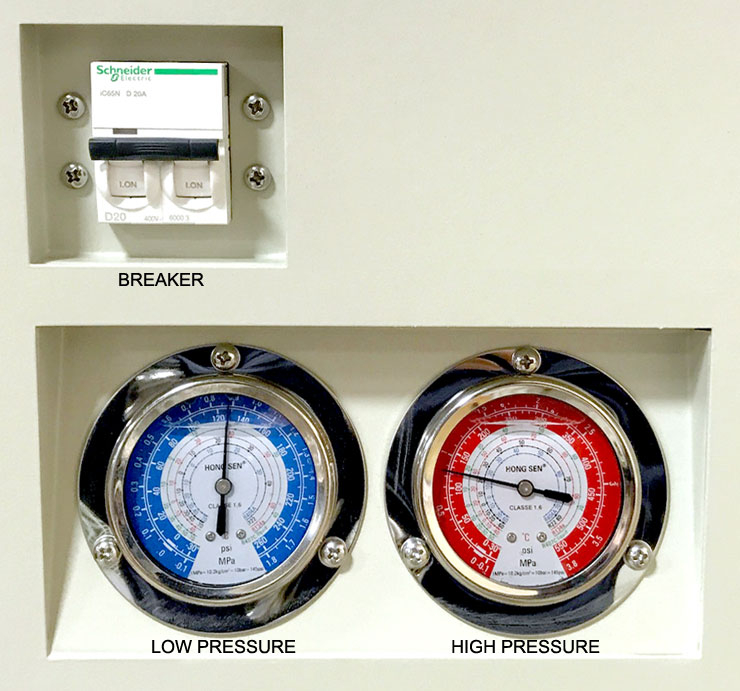

 Coolant outlet pressure  Displayed on the built-in mechanical pressure gauge
 Reservoir  Material: Type 304 stainless steel, polished
Chilling fluid connection: 3/4″ NPT

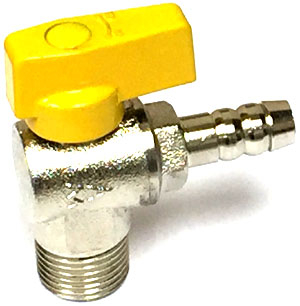

Drain port: 1/2″ NPT
Overflow port: 3/8″ hose barb
Capacity: 40 liters or 10.6 gallons
Dimensions: 17.5 x 17.5 x 9.5″ (WxDxH)
 Radiator  Fan motor
Make: Boyoung
Model: YWF4E-400
Power: 220V 60Hz 1.3A 300W
Rotation speed: 1550 rpm
Flow rate: 4240 m3/hour
Cleaning

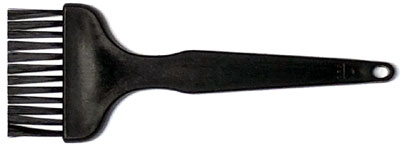

Clean radiator fins with a fin comb every three months

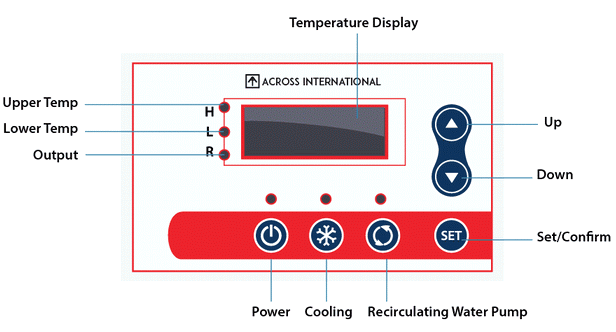

 Temperature controller  Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -30°C
 Temperature sensor type  Pt100
 Housing  Powder coated type 42 stainless steel
 Recommended coolant  For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and -22°F/-30°C:
50% ethylene glycol + 50% distilled water
 Working environment  -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters  Four
 Unit/shipping dimensions  40 x 25 x 41″ / 46 x 30 x 51″ (WxDxH)
 Unit/shipping weight  365 Lbs / 480 Lbs
 Safety  Compressor over-temp protection
Compressor delay start protection
Short circuit and ground protection
Over-current protection
Over-voltage protection
 Recommended for rotary evaporators  Ai 50L SolventVap rotary evaporators
 Warranty  One year

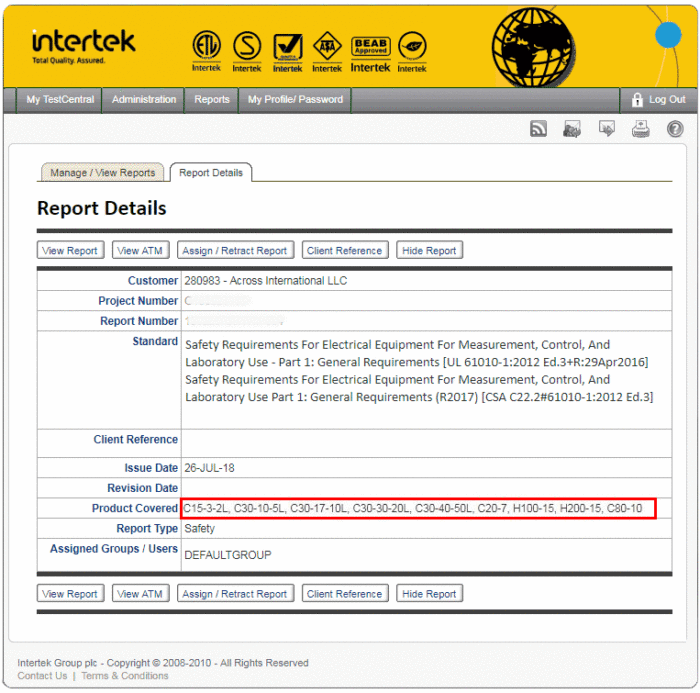

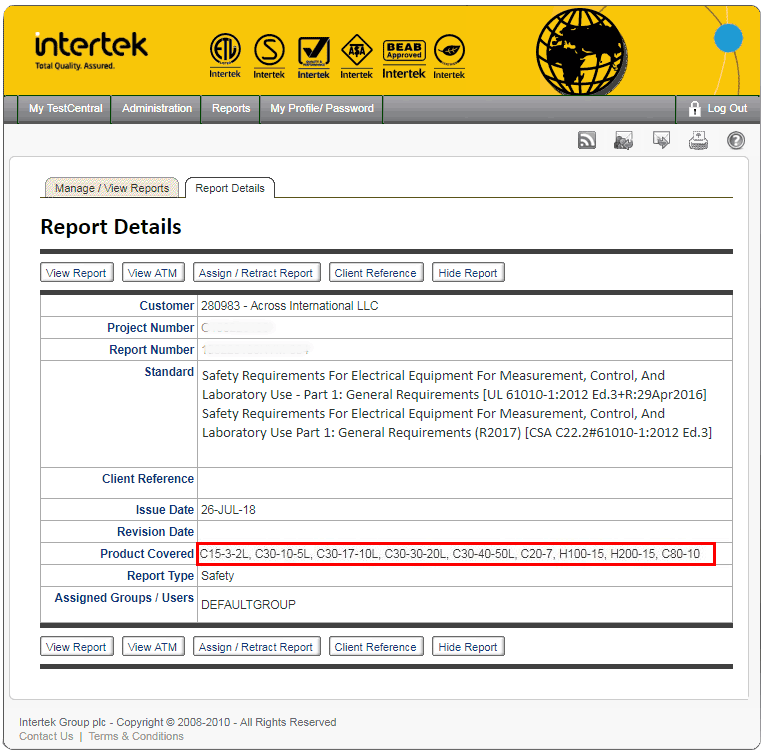

 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3
 Download  Product brochure

Additional information

Weight 480 lbs
Dimensions 46 × 30 × 51 in
