Description
Electrical requirements
110V 60Hz, 220V 50/60Hz, single phase, 1000 watts
Heated platen
Dimensions: 3 x 2 inches Number of heated platens: two Material: Solid aluminum
Maximum downward pressure
4,370 lbs or 728 psi (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in USA)

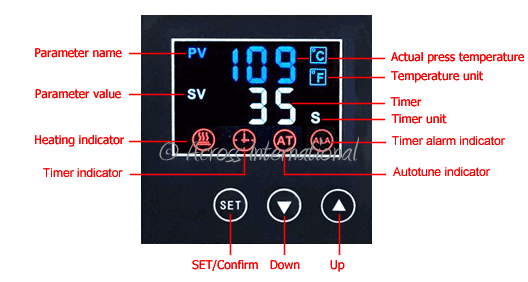

Temperature controller
Type: PID controlled digital controller with LCD panel Number of controller installed: two Display unit: Fahrenheit or Celsius Temperature range: ambient to 480°F (250°C) Timer range: 1 to 999 seconds
Body material
Powder coated steel
Safety
Dual-start buttons, timer alarm
Unit weight/shipping weight
50 Lb / 70 Lb
Unit dimensions (WxDxH)
10 x 14 x 19 inches
Shipping dimensions (WxDxH)
13.5 x 17 x 20 inches
Recommended heat settings for botanical extractions
Flowers: 180°F to 230°F Concentrates: 150°F to 200°F
Warranty
90 days
