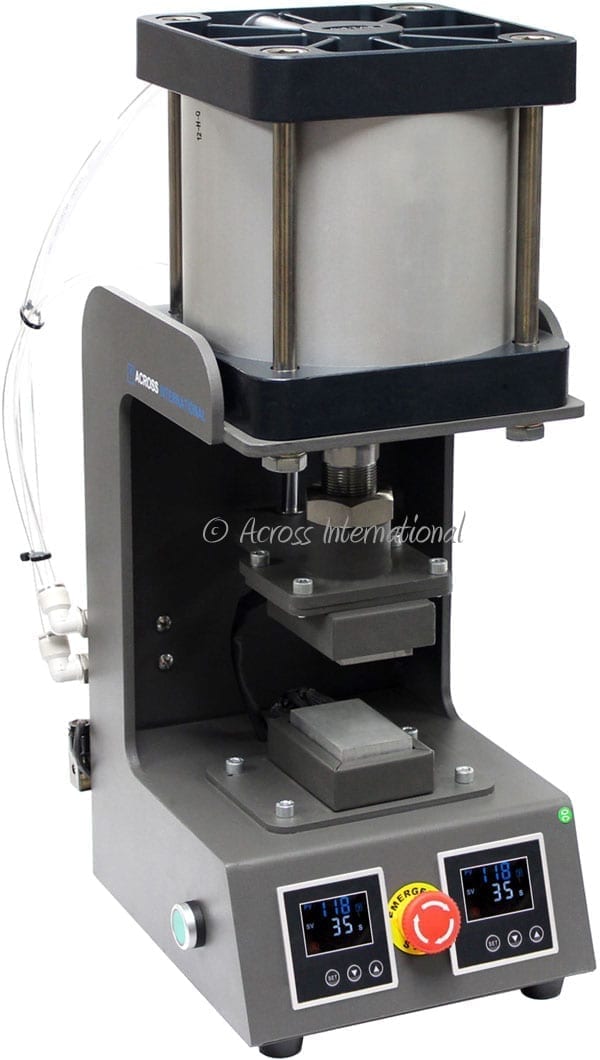

Ai 3×2″ Pneumatic Heat Press with Dual Heating Platens

909.11$

The new 2016 Ai AirPress 3 x 2″ compact pneumatic heat press features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the unit is pressed shut and provides an audible alarm once the predetermined amount of time has elapsed.

Category:

Description

Features

– Solid aluminum heating platens for easy maintenance and even heating
– Air regulator included for enhanced control
– Digital timer and alarm
– Compact, lightweight, with small footprint
– Dual heating platens for increased temperature stability
– Dual LCD temperature controllers display in Fahrenheit or Celsius
– Heavy duty pneumatic ram for optimal press force
– Adjustable pressure
–
Excellent for creating solventless botanical extractions

Recommended parts (not included)

– 1/2″ tube compression connection and 12mm tubing
– 33 gallon 1.7 HP oil-free vertical air compressor 165 max psi
– Surge protected outlet

Specifications



 Electrical requirements
 110V 60Hz single phase, 1100 watts 10A
 Heated platen
 Dimensions: 3 x 2 inches
Number of heated platens: two
Material: Solid aluminum
 Maximum downward pressure  4,110 lbs or 685 psi
(measured with an IEEE 1451.4 compliant, 20,000 lb
pressure sensor, made and calibrated in USA)
 Temperature controller
 Type: PID controlled digital controller with LCD panel
Number of controller installed: two
Display unit: Fahrenheit or Celsius
Temperature range: ambient to 480°F (250°C)
Timer range: 1 to 999 seconds
 Body material  Powder coated steel
 Safety  Dual-start button, timer alarm
 Unit weight/shipping weight
 80 Lbs / 100 Lbs
 Unit dimensions (WxDxH)  10 x 14 x 24.5 inches
 Shipping dimensions (WxDxH)  17 x 19 x 26 inches
 Recommended heat settings for botanical extractions  Flowers: 180°F to 230°F
Concentrates: 150°F to 200°F
 Warranty  90 days



Standard package



 Part description  Quantity
Part image
 Ai AirPress 3 x 2″ pneumatic heat press with dual heating platens 1 pc
 US 110V 3-prong power cord 1 pc
 User’s manual 1 pc



Additional information

Weight 100 lbs
Dimensions 17 × 19 × 26 in
