Description
Model
M04
Electrical requirements
115V (±10%) 60Hz 1-Phase 230 watts Door heater: 40W LED: 0.3W
Temperature range
2°C to 8°C, with ±2°C uniformity
Compressor
Number of compressor: one Make: Embraco Refrigerant: R600a
Noise level
35 dBA
Chamber
Dimensions: 20 x 16.5 x 25″ (WxDxH) Material: stainless steel Capacity: 4.2 Cu Ft Lighting: low heat emission LED, 0.3 watt
Shelf
Material: powder coated steel Quantity: 3 shelves 1 basket
Door
Glass, heated (40W heater)
Cooling
Forced air circulation
Controller backup battery
8 hours (for controller only)
Working environment
– Temperature: 16°C to 32°C (ideal temperature: 18°C to 25°C) – Humidity: <85% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep refrigerator at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

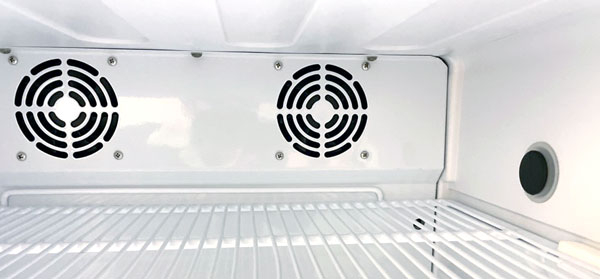

Access port
One, 1" diameter, upper right side of refrigerator
Unit weight & dimensions
101.5 Lbs 23.5 x 25 x 32" (WxDxH)
Safety
Power failure protection High/low temperature alarms Backup battery low alarm Door open alarm Lock-able door with keys
Warranty
One year

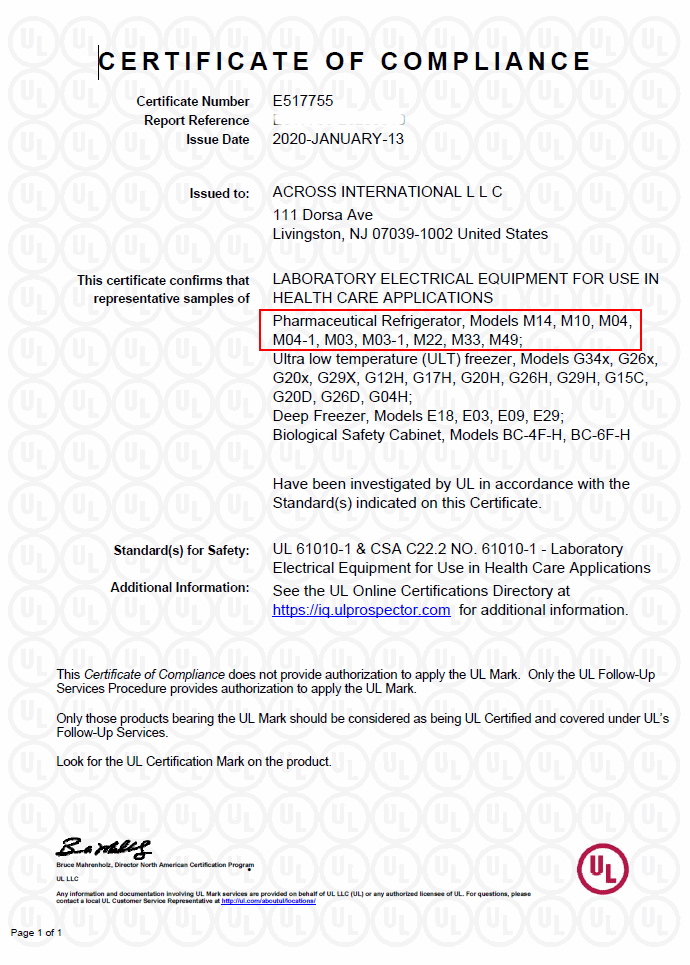

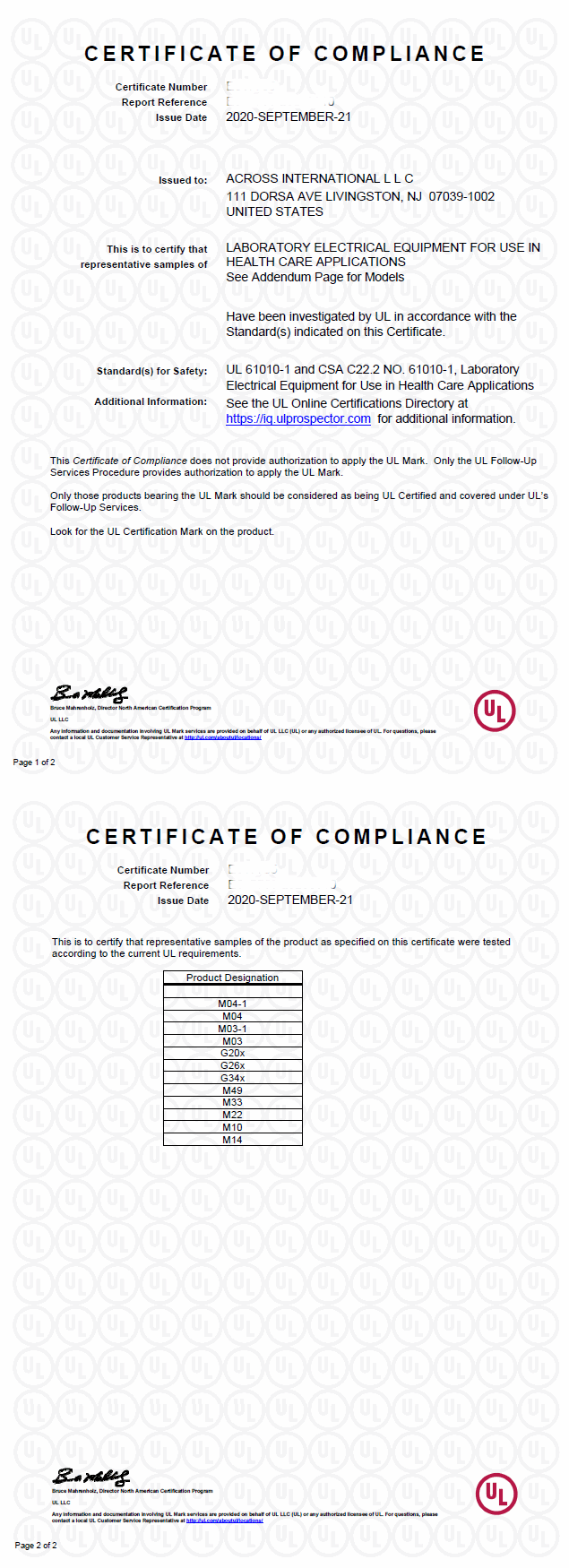

Compliance
UL 61010-1 CSA C22.2
