Description
Features
– Solid aluminum heating platens for easy maintenance and even heating
– Oil-filled pressure gauge gives you accurate pressure reading.
– Digital timer and alarm
– Dual heating platens for increased temperature stability
– Dual LCD temperature controllers display in Fahrenheit or Celsius
– Adjustable pressure with pressure release knob
– Excellent for creating solventless botanical extractions
Specifications
Electrical requirements |
220V 50/60Hz, single phase, 1100 watts |
Heated platen |
Dimensions: 4 x 3 inches Number of heated platens: two Material: soild aluminum |
Temperature controller |
Type: PID controlled digital controller with LCD panel Number of controller installed: two Display unit: Fahrenheit or Celsius Temperature range: ambient to 302°F (150°C) Timer range: 1 to 999 seconds |
Body material | Powder coated steel |
Safety | Timer alarm |
Unit weight/shipping weight |
60 Lb / 90 Lbs |
Unit dimensions (WxDxH) | 14.5 x 13.5 x 19 inches |
Shipping dimensions (WxDxH) | 19 x 18 x 22 inches |
Recommended heat settings for botanical extractions |
Flowers: 180°F to 230°F Concentrates: 150°F to 200°F |
Warranty | 90 days |
Standard package
Part description | Quantity |
Part image |

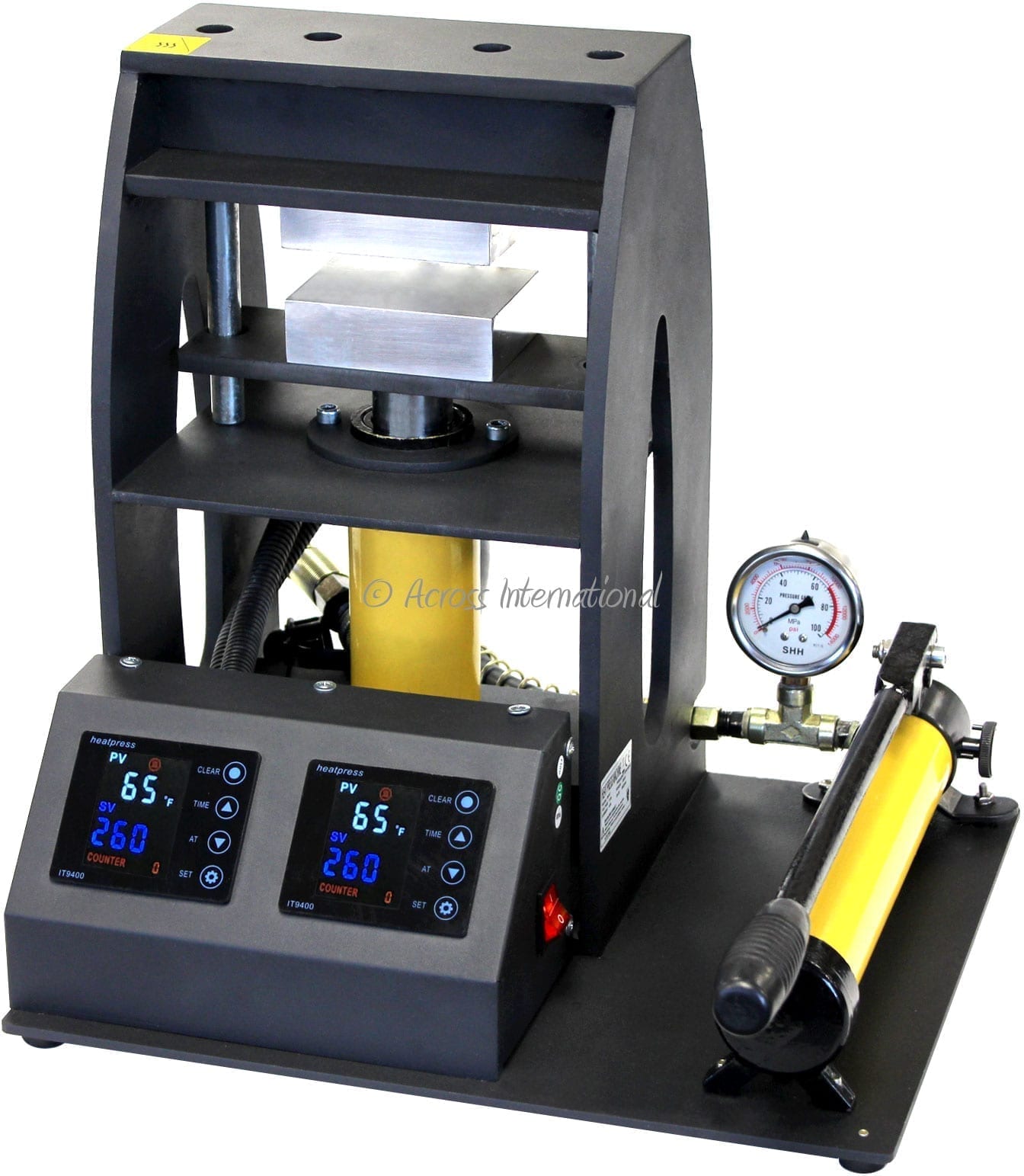

Ai 4×3″ manual heat press with dual heating platens | 1 pc | |
User’s manual | 1 pc |
