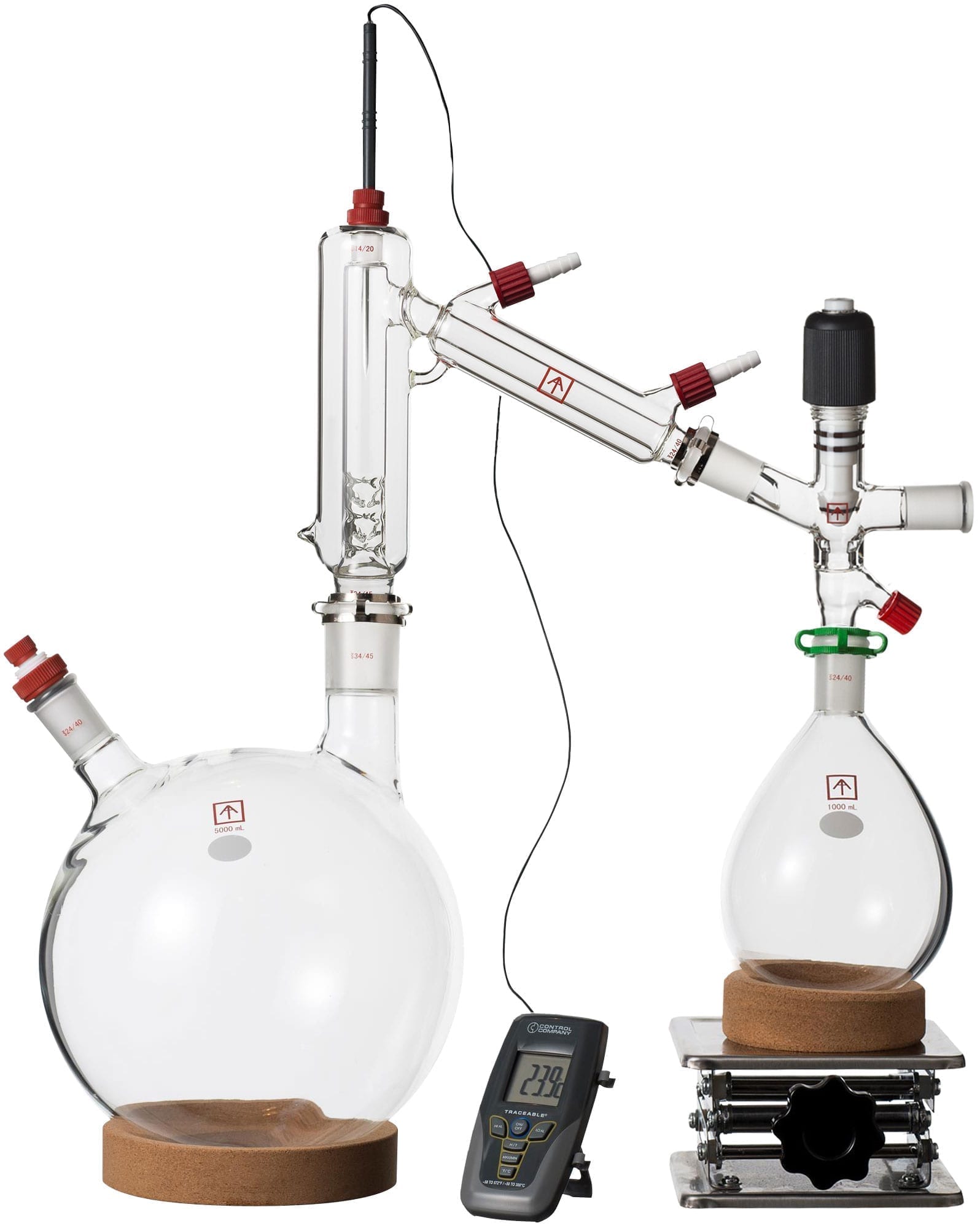

Ai 5 Liter Short Path Distillation Kit with Valved Adapter

$1,964.15

Ai Clear5 short path distillation kit features

  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8″ hose barb
  • Glass material: high borosilicate glass 3.3

Warranty: Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

Description

Clear5v Standard Package

 Part description  Quantity
Part image
 Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 1 pc
 Ai 24/40 & 34/45 joints, heavy wall round bottom 2-neck flask with one vertical center neck and one angled side neck 1 pc
 PTFE 24/40 joint thermometer inlet adapter with Viton gasket 2 pcs
 Ai 24/40 joint, pennyhead glass stopper 1 pc
 Ai 24/40 joint, round-top glass feeding funnel 1 pc

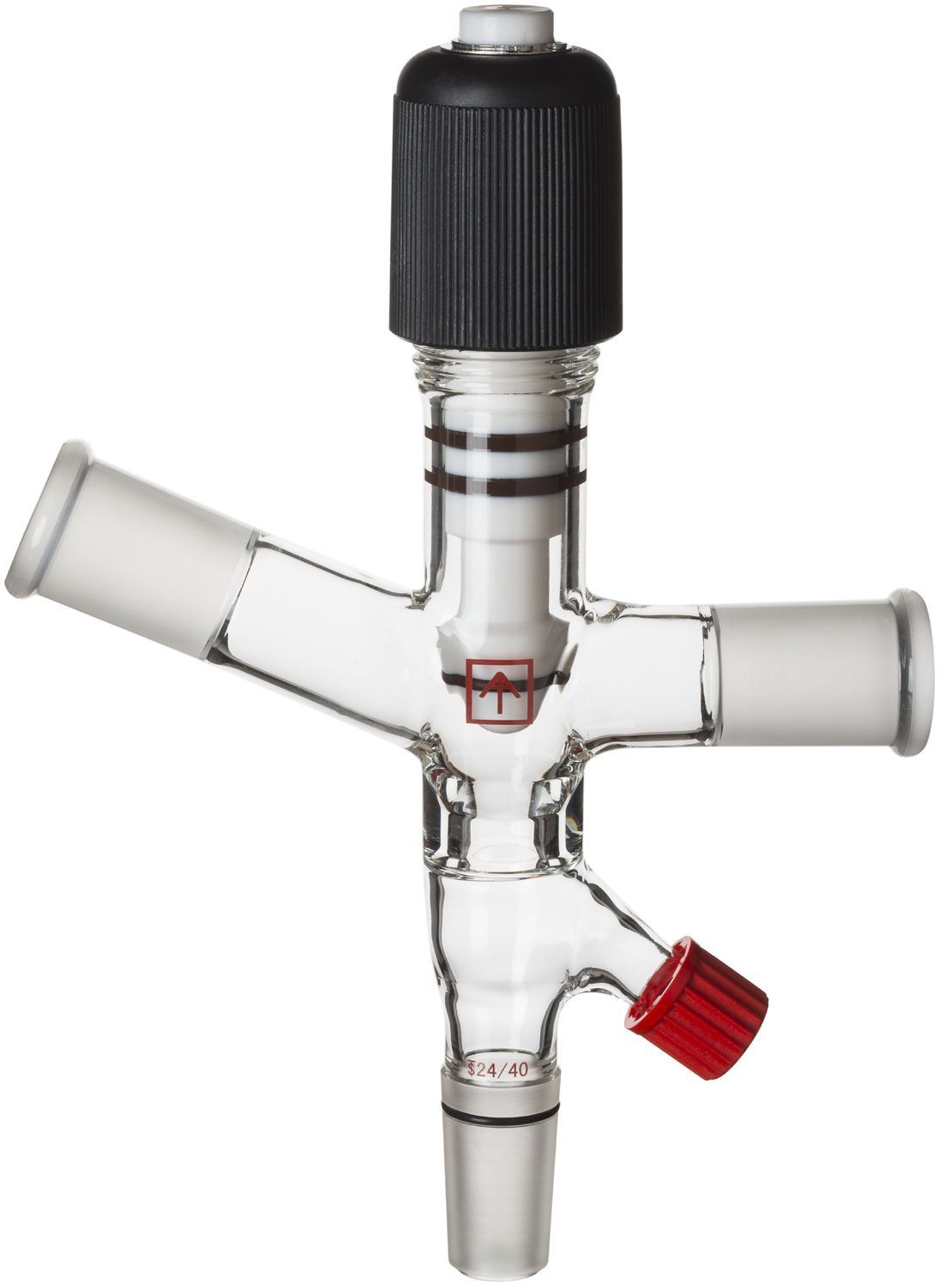

 Ai valved adapter with two 24/40 joints and one GL16 port 1 pc
 Ai 24/40 joint, heavy wall 1000mL pear-shaped receiving flask 2 pcs
 Ai glass 3/8″ hose barb tee adapter 1 pc
 34/45 joint, stainless steel keck clip 1 pc
 24/40 joint, stainless steel keck clip 1 pc
 24/40 joint, plastic keck clip 2 pcs
 Cork ring stand (5L x 1, 1L x 1) 2 pcs
 6 x 6″ stainless steel lab jack (min. height 3″, max height 9.5″) 1 pc
 Dow Corning high vacuum grease 5.3 oz 1 pc
 Traceable Kangaroo digital thermometer 1 pc

Additional information

Weight 100 lbs
Dimensions 48 × 48 × 24 in
