Description
Model
C80-10
Working temperature range
-60°C to -75°C (unit is not designed to run at temperature higher than -60°C)
Electrical requirements
220V 60Hz 1-PH 22A, 4750 watts
Compressor
Make: KK Power: 208-230V 60Hz 1-Phase Number of compressor: two Refrigerant: R404A (2680g) and R23 (710g)
Cooling capacity (assuming working environment is 25°C or 77°F)
@ -40°C: 2000W @ -50°C: 1500W @ -60°C: 1000W @ -75°C: 280W @ -78°C: 180W
Reservoir
Capacity: 10 liters or 2.6 gallons Dimensions: 17.5 x 7 x 8.5 inches (LxWxH) Material: Type 304 stainless steel Chilling fluid connection: 1/2″ NPT Drain port: 3/8″ barb
Recirculating pump
Pump type: Centrifugal Model: 25PLBR30-10 Pumping speed: 8 gallon/min or 30L/min Power: 280W Pressure: 1 bar

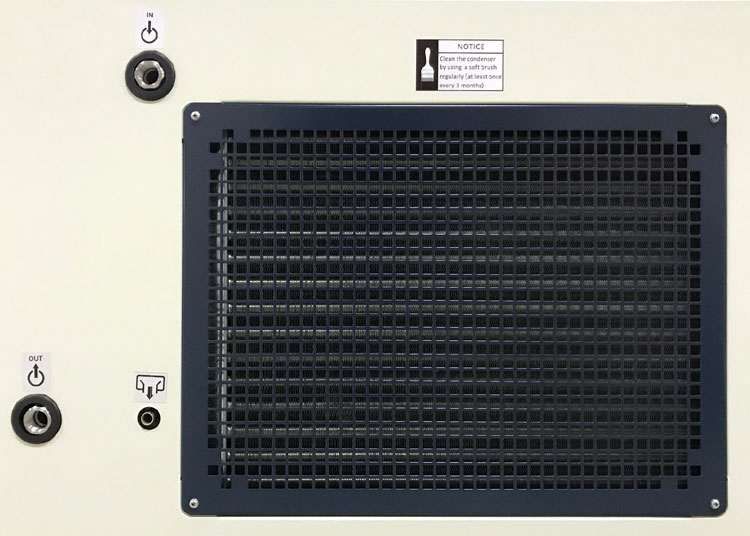

Radiator
Fan motor Make: Boyoung Model: YWF 4E-350 Power: 220V 60Hz 0.8A 180W Rotation speed: 1600rpm Flow rate: 2500 m2/hour Cleaning Clean radiator fins with a fin comb every three months
Working environment requirements
Temperature: between 5°C to 30°C Humidity: < 70%

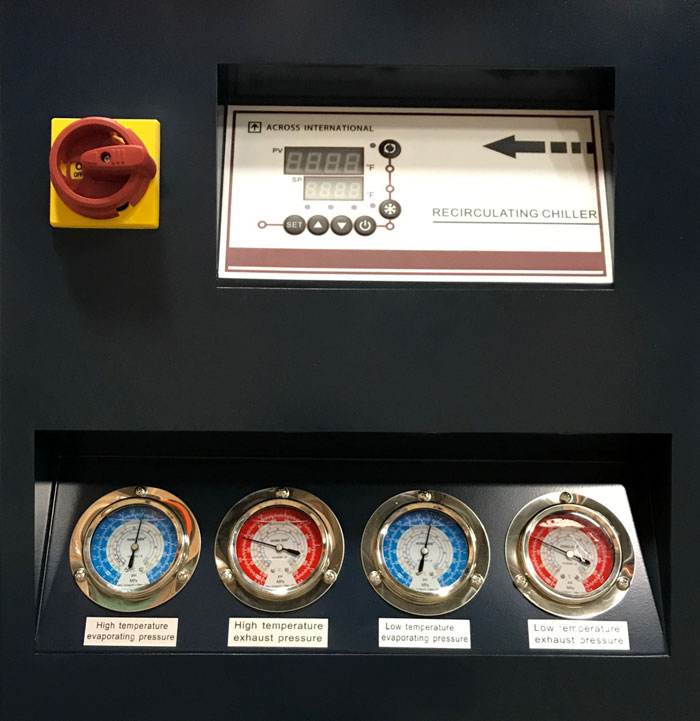

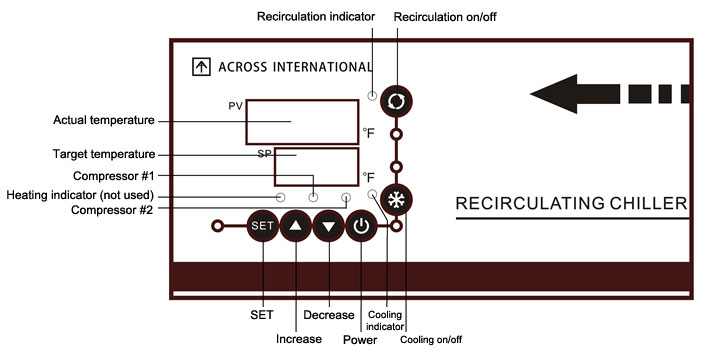

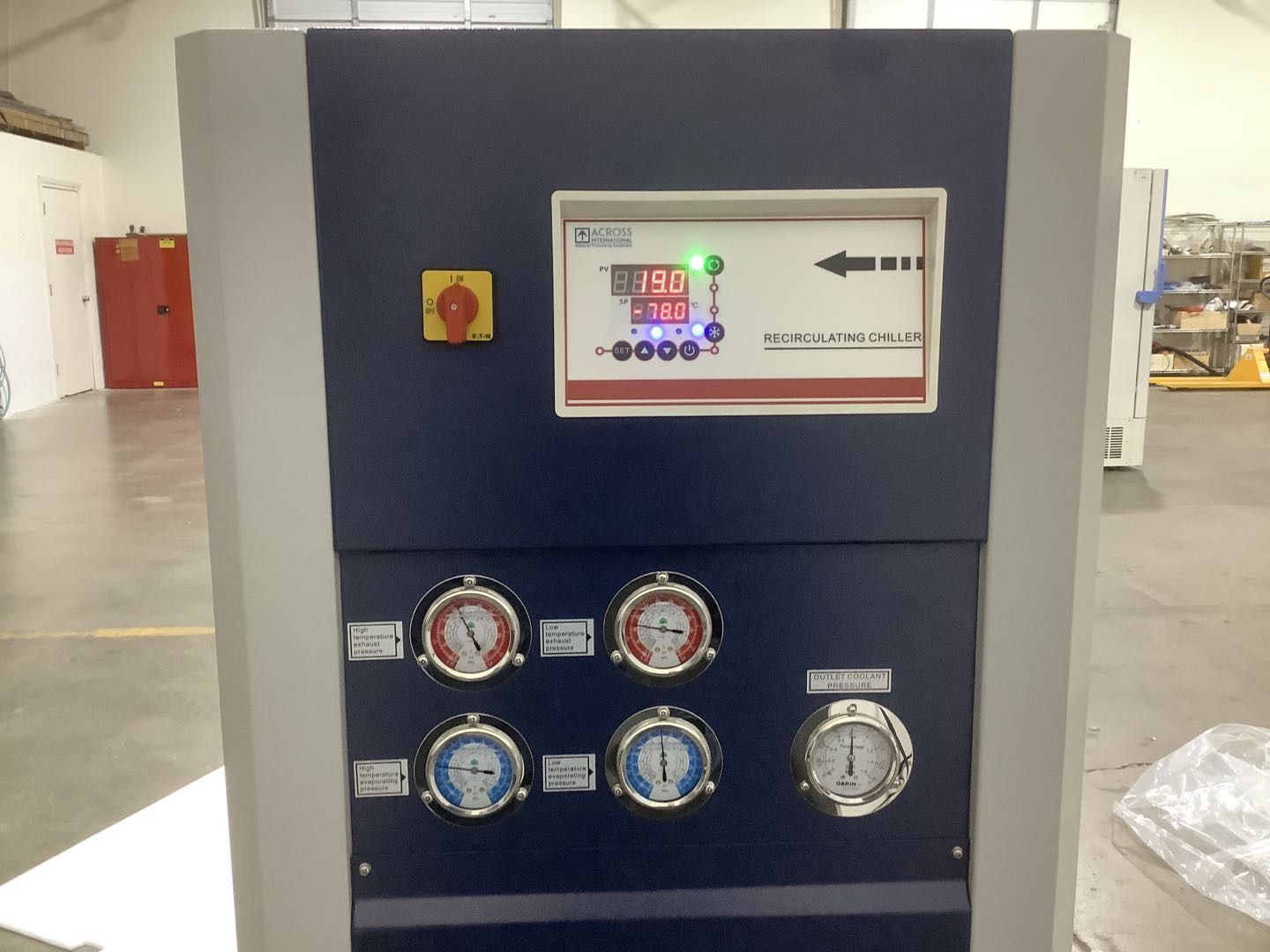

Temperature controller
Digital microprocessor PID controlled Accuracy: /- 2°C Display unit: Celsius °C
Tempeature sensor type
Pt100
Housing
Powder coated type 42 stainless steel
Built-in swivel casters
Four
Safety
Compressor over-heat protection Short circuit and ground protection Over-current protection Over-voltage protection Over-heat protection
Unit/shipping weight
515 lbs / 615 lbs
Unit/shipping dimensions
38.5 x 25 x 52 inches / 44 x 30 x 64 inches (DxWxH)
Compliance
UL 61010-1 :2012 Ed.3 R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
