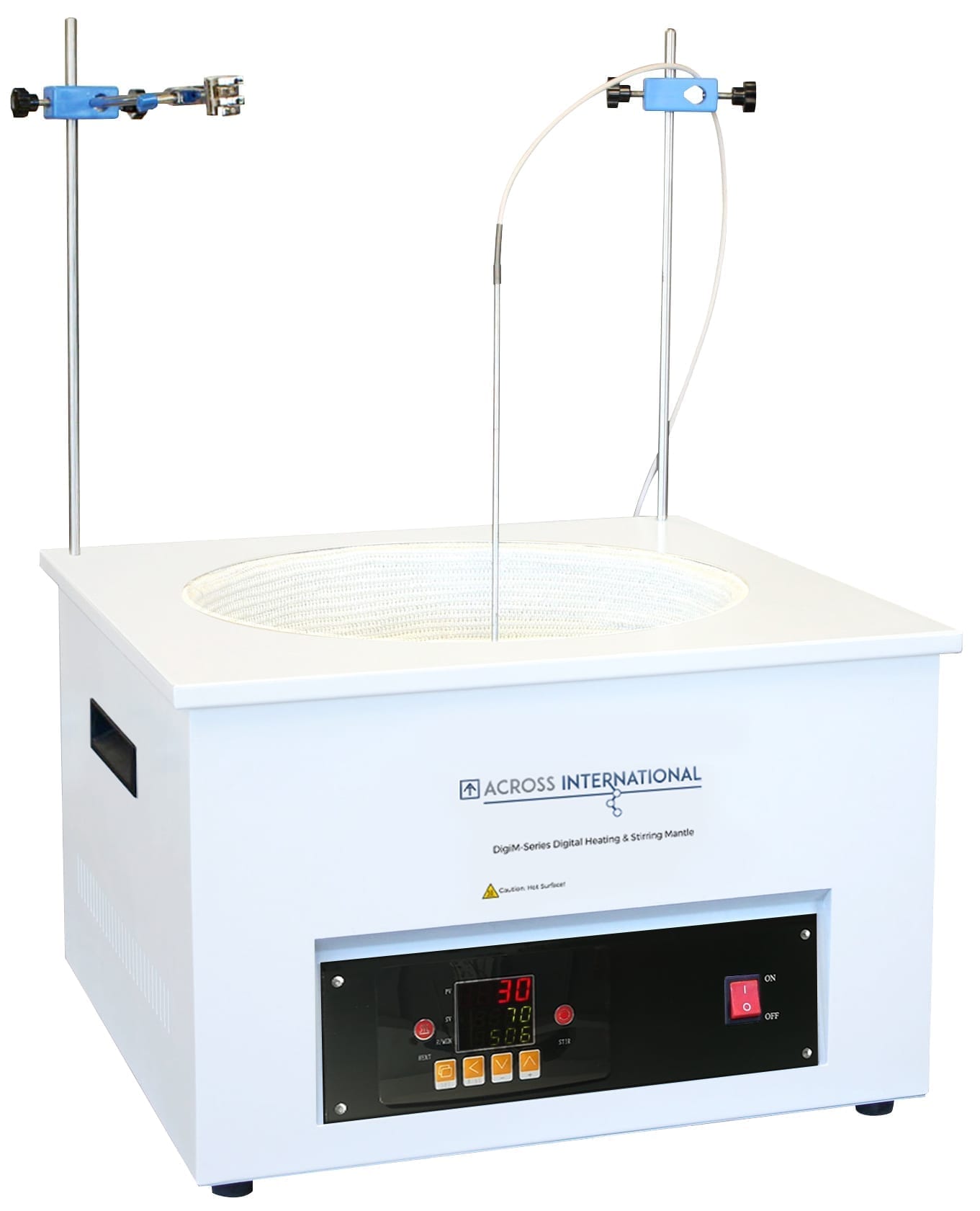

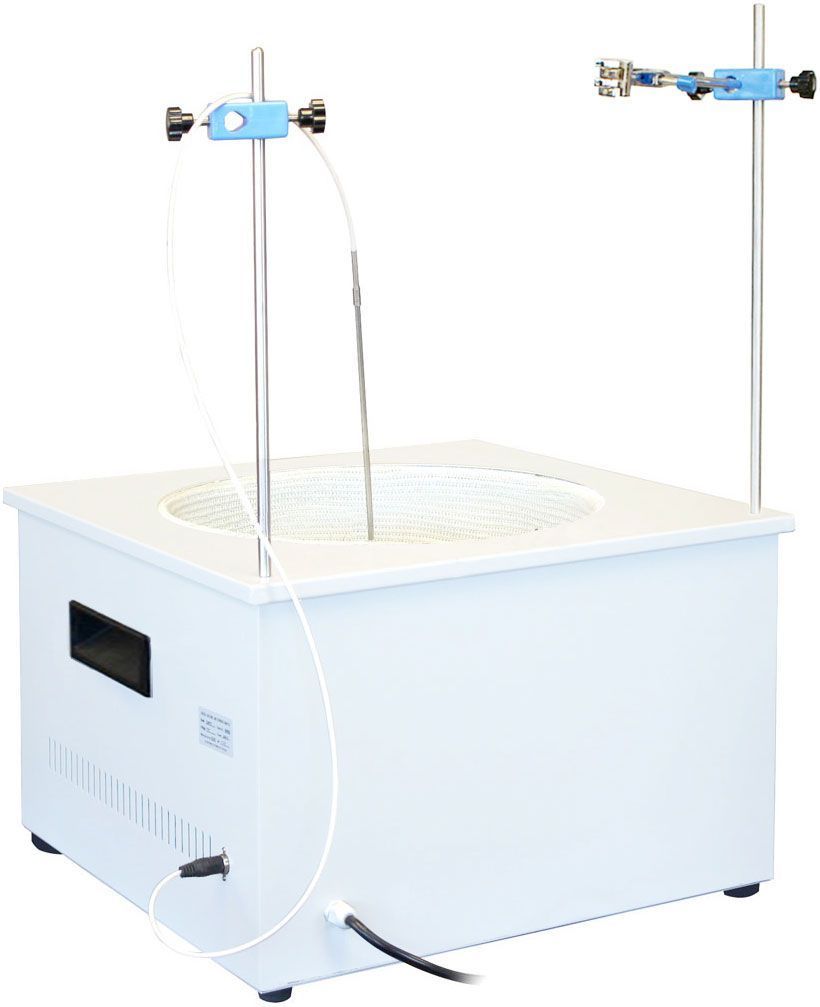

Ai DigiM 20L 300°C 1200 RPM Heating & Stirring Mantle – 220V


220V 50/60Hz. Low profile with built-in handles. UL/CSA certification available.

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.




 Electrical requirements  220V 60Hz 1-Phase, 2900 watts, 13.2 A
 Ambient to 300°C
 Stirring  Min. speed: 110 rpm, max. speed: 1200 rpm
Motor power: 40 watts
Motor type: brushless DC motor

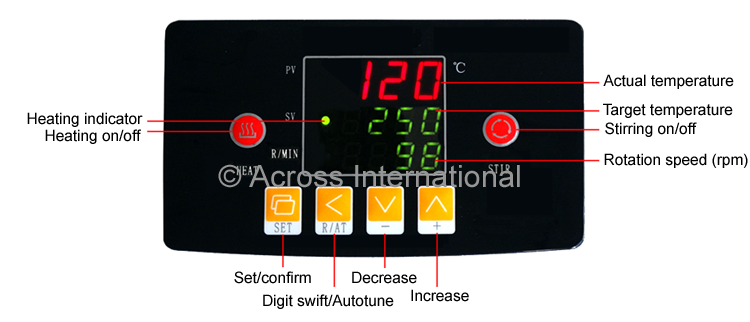

 Controller  PID control with digital temperature and rotation speed display
 External thermocouple  Type: PT100
Cable length: 43 inches
Stainless steel probe length: 15 inches
Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capacity: 20 liters
Top opening diameter: 14.5 inches
Depth: 7.5 inches
 Dimensions (WxDxH)  Unit: 20.5 x 20.5 x 13 inches, shipping: 24 x 24 x 18 inches
 Weight  Unit: 40 lbs, shipping: 50 lbs
 Safety  Thermocouple failure protection

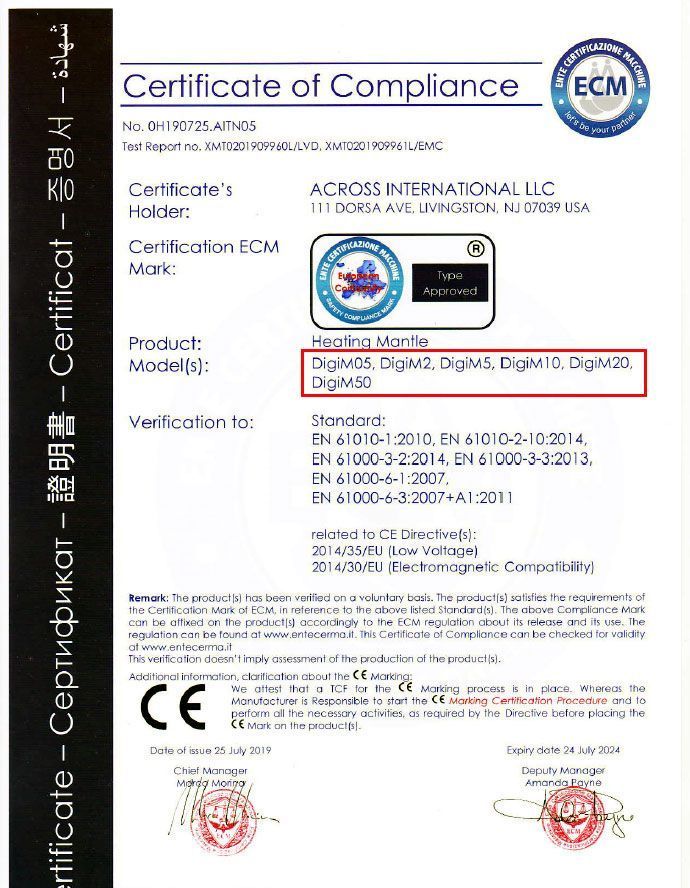

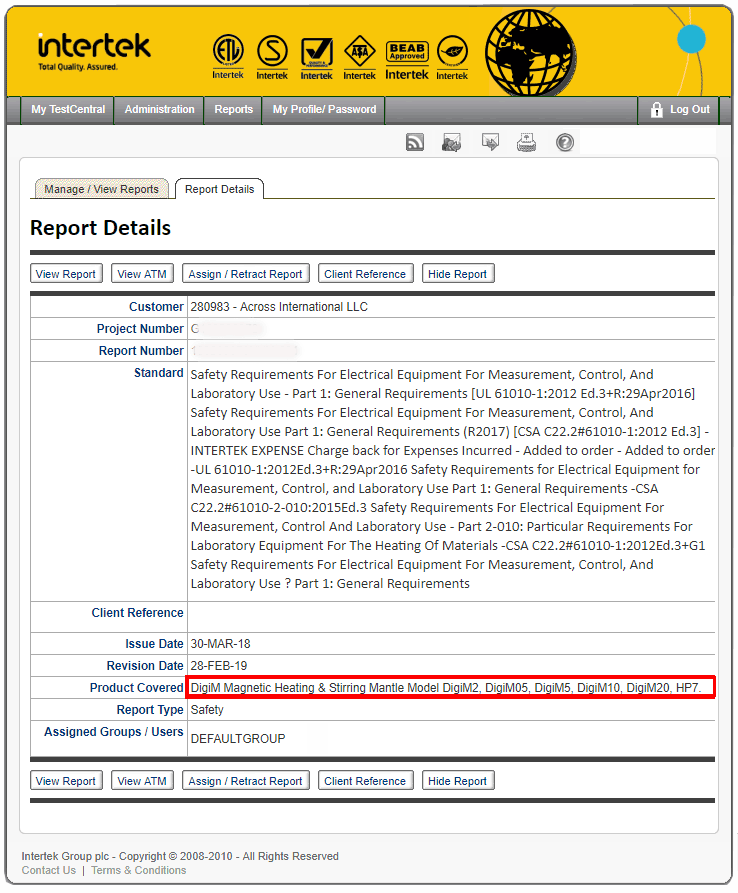

 Certification  UL/CSA (optional), CE (standard)
 Warranty  One year


Standard package


 Part description  Quantity
Part image
 Ai DigiM 20L digital heating & stirring mantle 1 pc
 External temperature probe 1 pc
 Internal temperature plug 1 pc
 Boss head 2 pcs
 Stainless steel support rod (15 inches) 2 pcs
 PTFE coated stir bar 2 pcs
 4 prong stainless steel clamp opens to 3 1/2″ 2 pcs


Additional information

Weight 50 lbs
