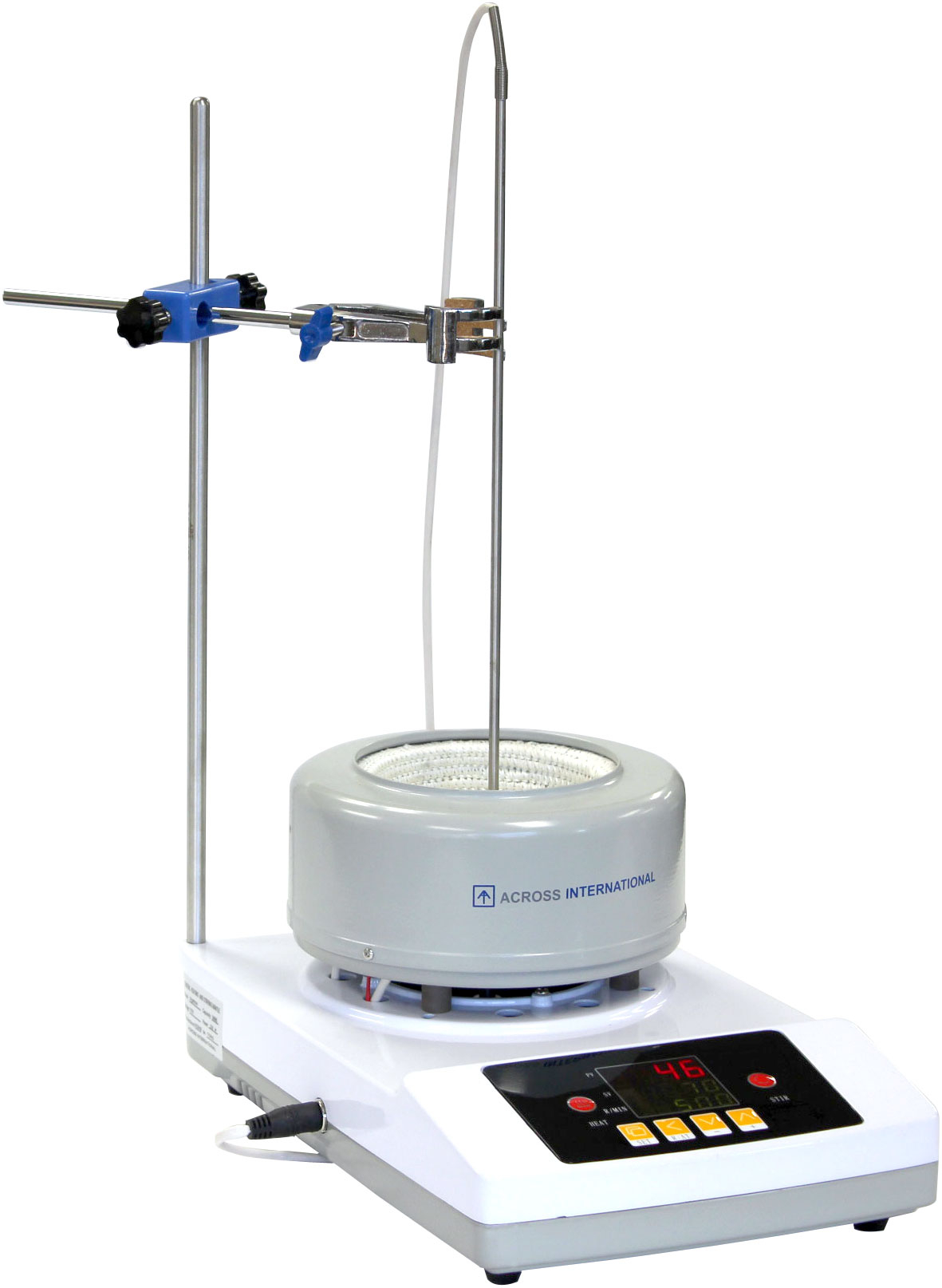

Ai DigiM 500mL 300°C 1500 RPM PID Heating Mantle – 110V


Two sets of thermocouples allows you to detect heater or material temperatures. UL/CSA certification available.

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.



 Electrical requirements 110V 60Hz 1-Phase, 220 watts, 3A
 Ambient to 300°C
 Stirring Min. speed: 110 rpm, max. speed: 1500 rpm
Motor power: 40 watts
Motor type: brushless DC motor
 Controller PID control with digital temperature and rotation speed display
 External thermocouple Type: PT100
Cable length: 40 inches
Stainless steel probe length: 9 inches
Stainless steel probe diameter: 5 mm
 Flask holder Maximum flask capacity: 500 mL
Top opening diameter: 4.25 inches
Depth: 2.75 inches
 Dimensions (WxDxH) Unit: 9 x 14 x 7 inches, shipping: 20 x 13 x 12 inches
 Weight Unit: 11 lbs, shipping: 15 lbs
 Safety Thermocouple failure protection
 Certification UL/CSA (optional), CE (standard)
 Warranty One year


Standard package

 Part description Quantity
Part image
 Ai DigiM 500mL heating mantle1 set
 External temperature probe1 pc
 Internal temperature plug1 pc
 Boss head1 pc
 Stainless steel support rod (15 inches)1 pc
 PTFE coated stir bar1 pc
 4 prong stainless steel clamp opens to 3 1/2″1 pc
 User’s manual1 pc

Additional information

Weight15 lbs
Dimensions20 × 13 × 12 in
