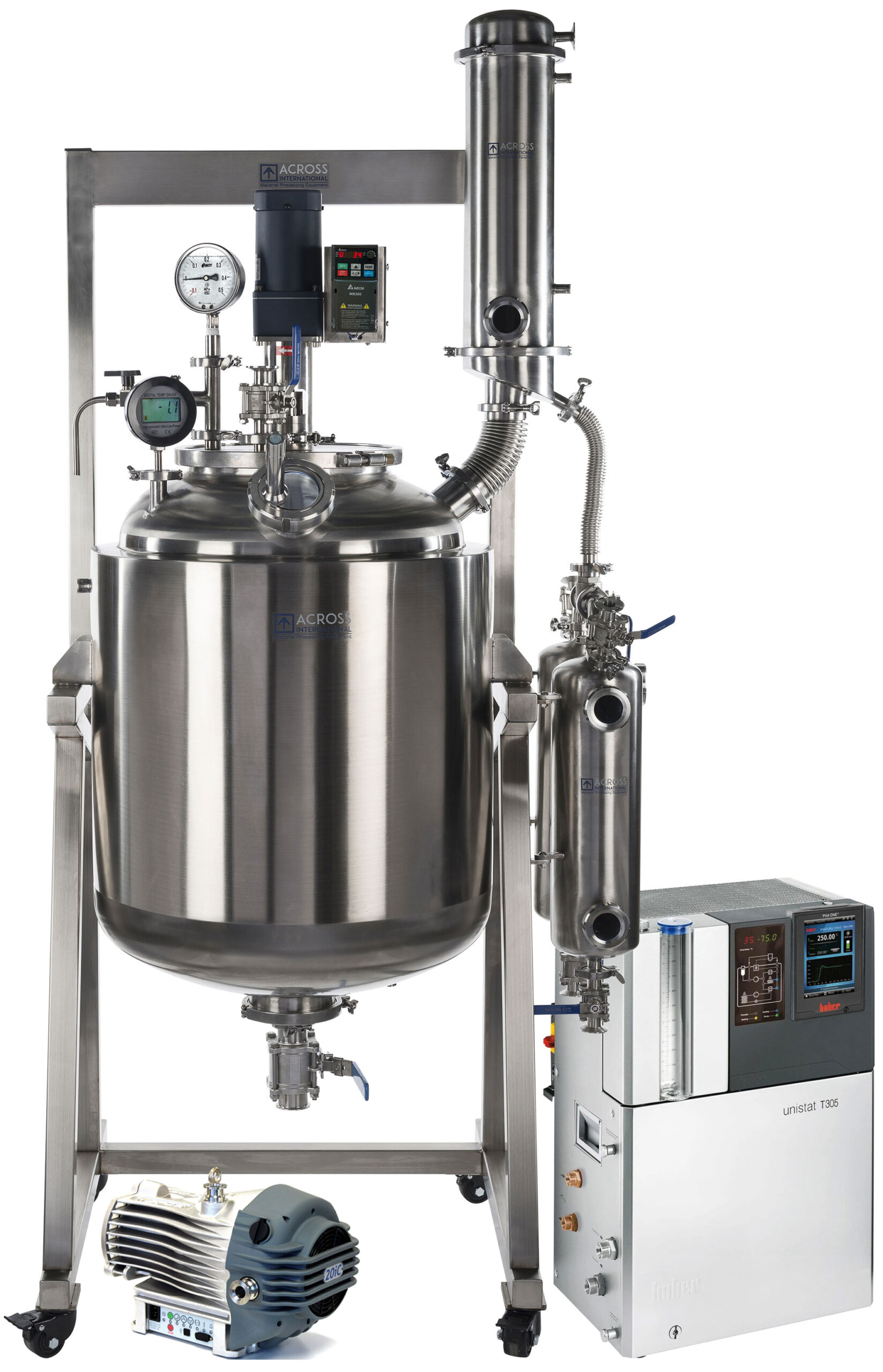

Ai Dual-Jacketed 200L 316L SST Reactor Decarboxylation Package

65,500.00$

Ai 316L Grade Stainless Steel Reactor Features

SKU: 4200802 Category: Tag:

Description

 Model
 SR200

 Electric stirring motor
 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated torque: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed

 Pneumatic stirring motor
 – Power: 1/4 HP – Rotation: 450 rpm max. (±8%) – Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) – Working temperature: -10C to 70C  – For constant use: set rpm to 80% of maximum rpm  – Motor lubricant

Daphne Eponex EP-No. 1
Check/replenish/replace every 500 hours

 – Air lubricant

Type: JIS K2213-1 (ISOVG32)
Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
Speed: 2-3 drops per minute

 – For safety purpose, detach compressed air supply when not in use, left un-attended or at night  – Do not run motor un-loaded  – Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM  – Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.  – Make sure exhaust port/hole is clear from any debris or blockage  – Check every 2-3 days: Air Lubricant, Air Filter water drain

 Port configuration
 Lid: 6″ triclamp Center motor port: 3″ triclamp Drain port: 6″ triclamp Drain port on/off valve: 2″ triclamp Vacuum port: 1.5″ triclamp Condenser recirculating fluid port: 1/2″ female NPT Vessel jacket recirculating fluid port: 1″ female NPT

 Main vessel
 Volume: 200L Minimum fill volume: 40L Material: 316L grade stainless steel Interior finish: ElectroPolished

 Agitator
 Structure: propeller, 3-blade, dual-layer (standard) Style: quick-change Material: 316L grade stainless steel Detachable length: 28 inches

 Center fluid jacket
 Volume: 35L Material: 304 grade stainless steel

 Outer insulation jacket
 Insulation material: perlite, 2″, sealed Housing material: 304 grade stainless steel

 Collection tank
 10L x 2

 Material
 All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel

 Main Condenser
 Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2

 Pressure

 Ultimate vacuum level: 1 Torr Maximum positive pressure (C1D1 peer reviewed to 15 psi)

Main vessel: 70 psi
Fluid jacket: 40 psi

 Temperature range

 -55°C to 250°C (-67°F to 482°F)

 Temperature sensor/display

 Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp

 Sealing gasket

 Food grade Viton

 Main Mounting Frame
 Heavy duty 2 x 2″ 304 grade stainless steel, mounted on four casters

 Drain port ground clearance
 Drain port: 19.5 inches Drain valve: 14 inches

 Unit/shipping weight
 570 Lbs / 890 Lbs

 Unit/shipping dimensions
 43 x 34 x 90″ (WxDxH)

 Compliance
 ETL tested to UL and CSA standards C1D1 peer review by PSI (optional)
