Description
Electrical requirements
110V/220V 50/60Hz switchable, 1-Phase 1/2 HP 370 watts

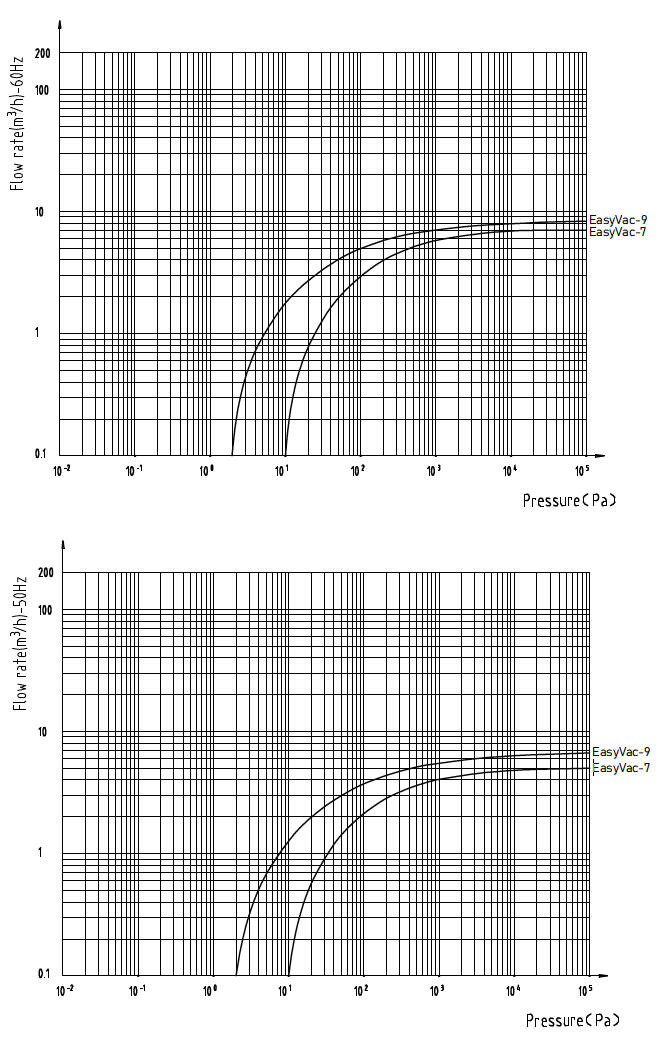

Pumping rate
7 cfm (110V 60Hz), 6 cfm (220V 50/60Hz)
Vacuum level
150 micron/millitorr
Vacuum connection
3/8″ hose barb
Exhaust filter connection
KF25/NW25 flange
Oil volume
415 ml / 0.44 quart
Motor rate
1720 rpm
Working temperature
-5 to 60°C
Pump dimensions (LxWxH)
13 x 5 x 10″
Shipping dimensions (pump) (LxWxH)
18 x 7 x 11.5″
Pump weight
22 Lb
Shiping weight
23 Lb
Recommended oil
Ultragrade 19

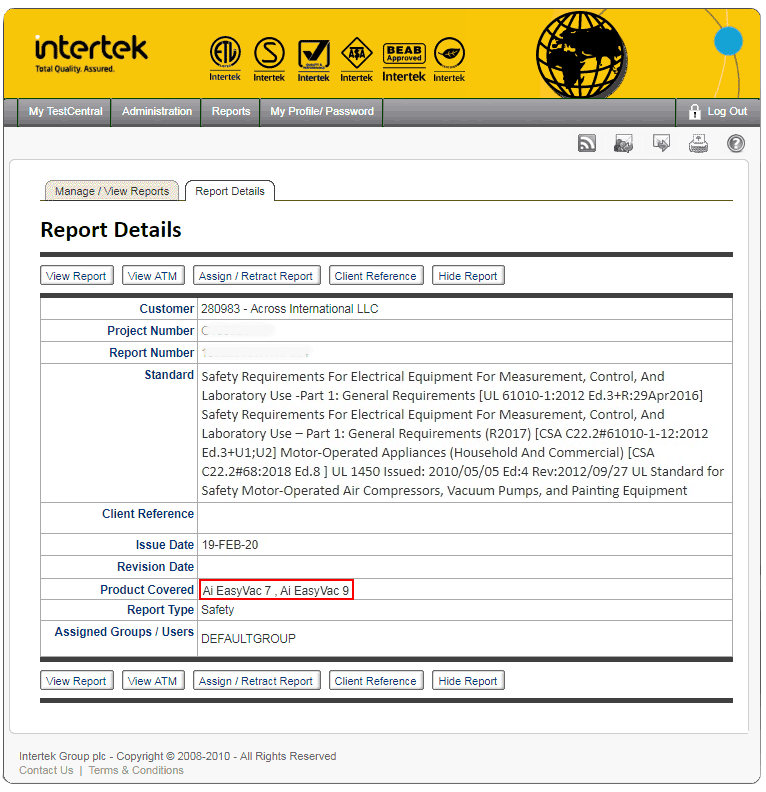

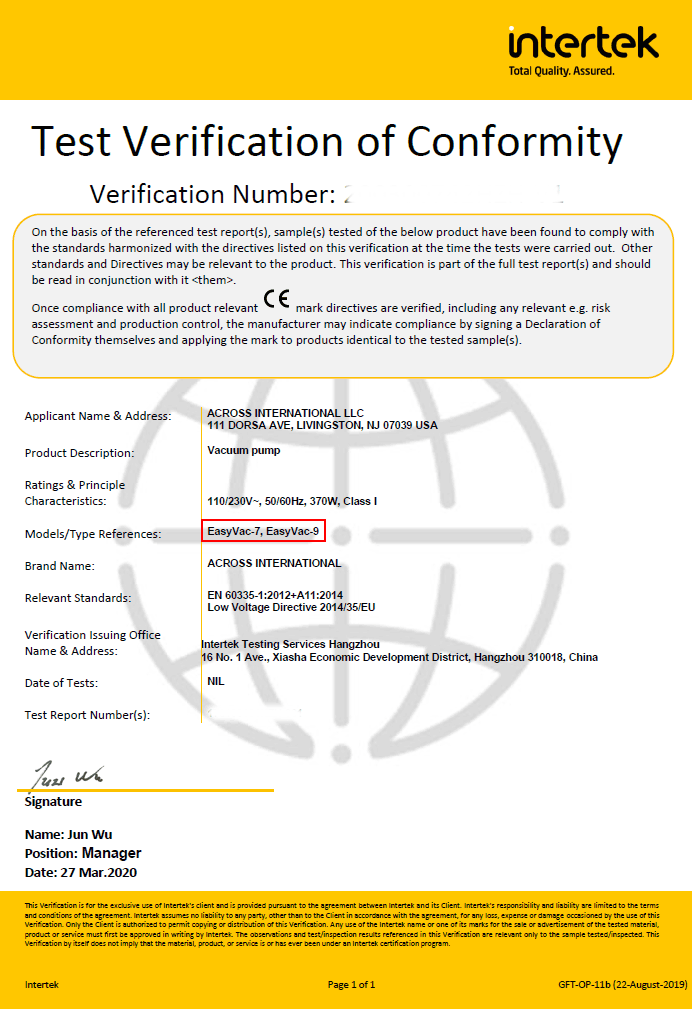

Compliance
ETL tested to UL and CSA standards, CE
Warranty
One year
Download
Product brochure
