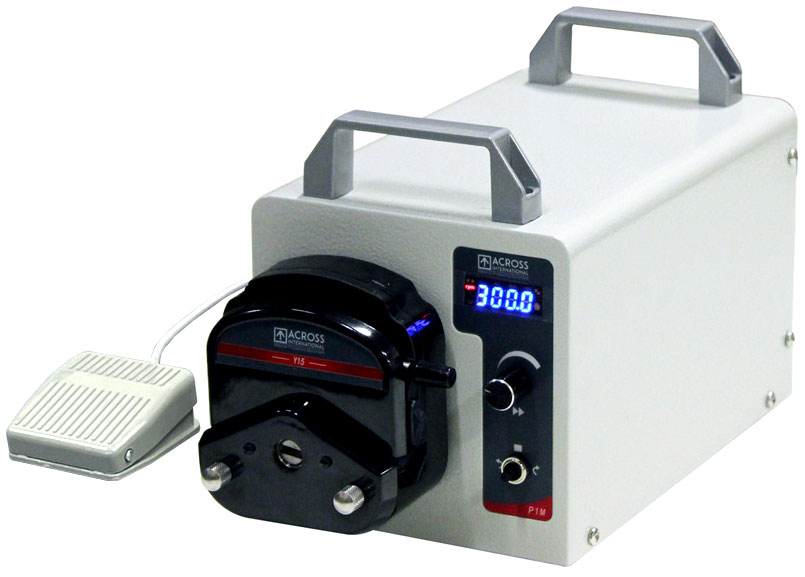

Ai P1M 1L/min Compact Peristaltic Pump ETL

$1,613.01

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible tube fitted inside a circular pump casing (though linear peristaltic pumps have been made). A rotor with a number of “rollers”, “shoes”, “wipers”, or “lobes” attached to the external circumference of the rotor compresses the flexible tube. As the rotor turns, the part of the tube under compression is pinched closed (or “occludes”) thus forcing the fluid to be pumped to move through the tube. Additionally, as the tube opens to its natural state after the passing of the cam (“restitution” or “resilience”) fluid flow is induced to the pump. This process is called peristalsis and is used in many biological systems such as the gastrointestinal tract. Typically, there will be two or more rollers, or wipers, occluding the tube, trapping between them a body of fluid. The body of fluid is then transported, at ambient pressure, toward the pump outlet. Peristaltic pumps may run continuously, or they may be indexed through partial revolutions to deliver smaller amounts of fluid.

SKU: 4200703 Category: Tag:

Description

 Model
 P1M

 Electrical requirements
 110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase 35 watts

 Power cord
 110V US 3-prong (comes with purchase) 230V cord (available upon request)

 Pumping rate
 1L/min

 Max. rotation speed
 300 rpm (at 0.1 rpm step)

 Pump head
 Y15

 Max. tubing size

 1/2″

 Controller

 Type: analog

 Working temperature
 0 to 40°C, < 80% humidity  IP rating  IP31  Communication port  Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input.      PLC control of pump's start, stop, speed and rotation directions.  Unit/shipping dimensions (WxDxH)  6 x 12 x 7.5" / 10 x 15 x 10"  Unit/shipping weight  10 Lbs  Compliance  ETL tested to UL and CSA standards  Warranty  One year
