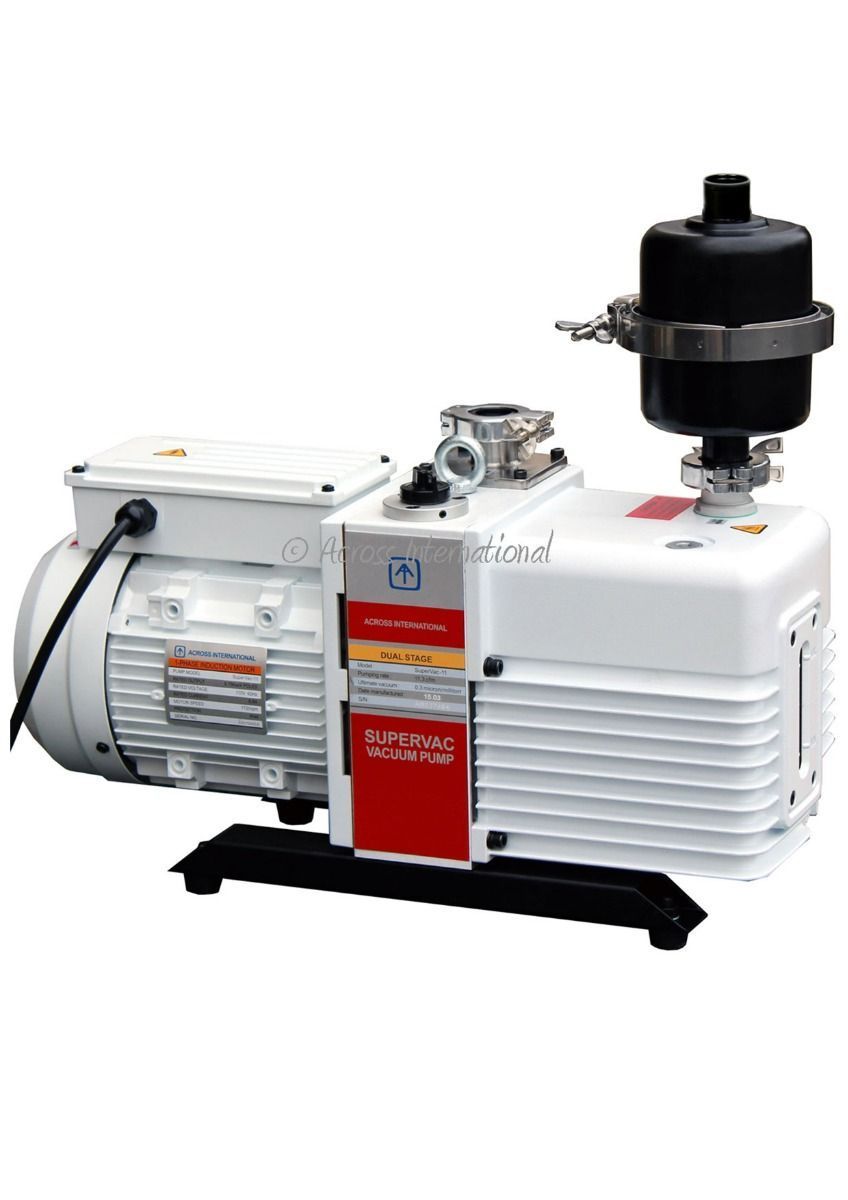

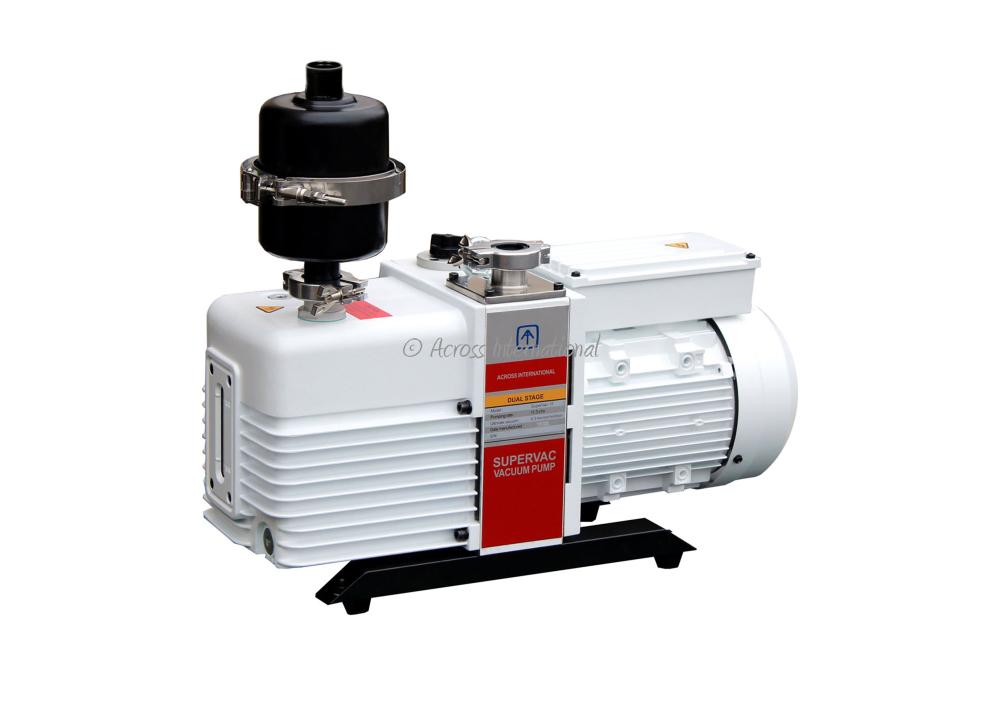

Description
Electrical requirements
115V 60Hz or 230V 50/60Hz, single phase, 1,100 watts

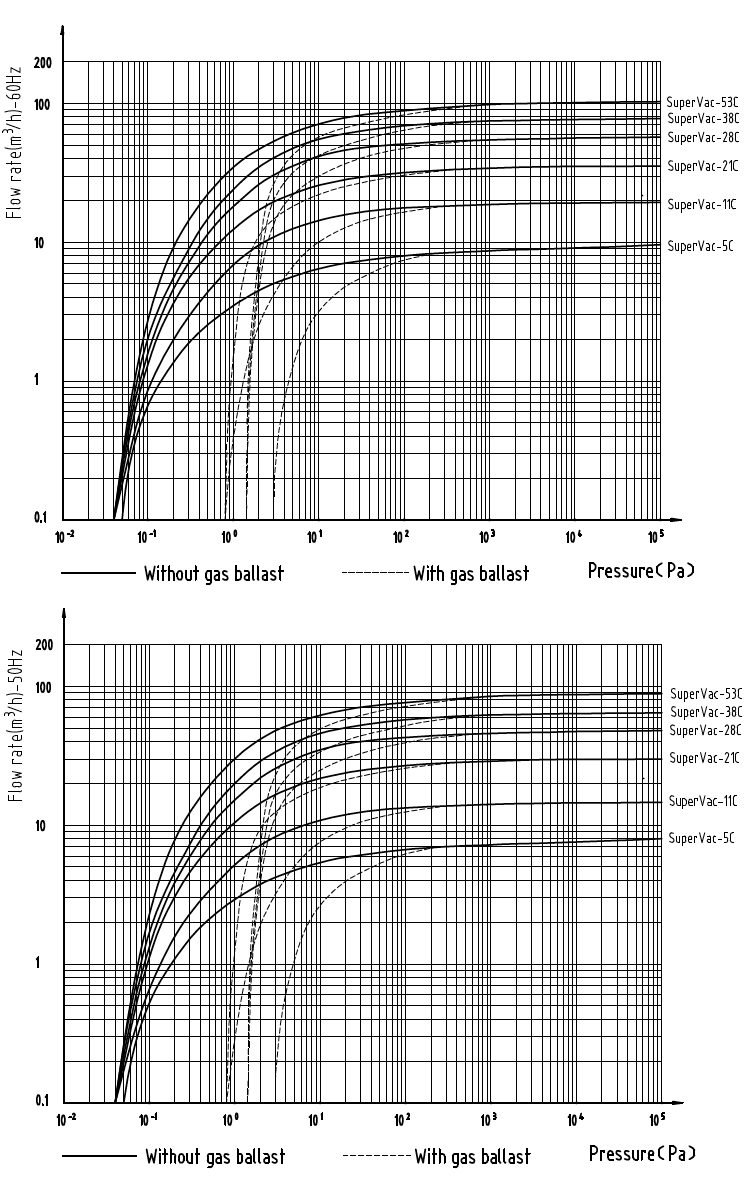

Pumping rate
11.3 cfm (115V 60Hz), 9.3 cfm (230V 50/60Hz)
Ultimate vacuum without gas ballast
0.3 micron/millitorr
Ultimate vacuum with gas ballast
6 micron/millitorr

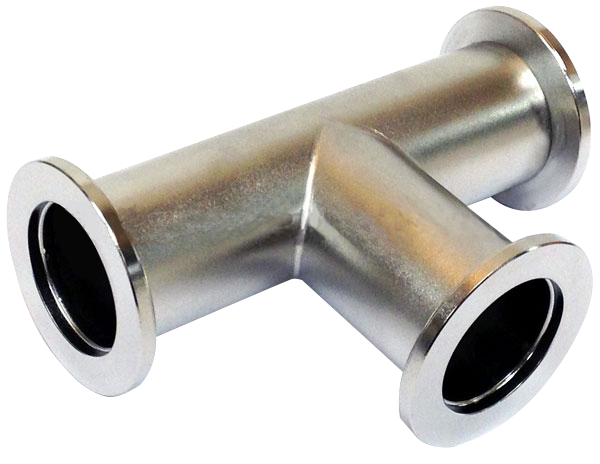

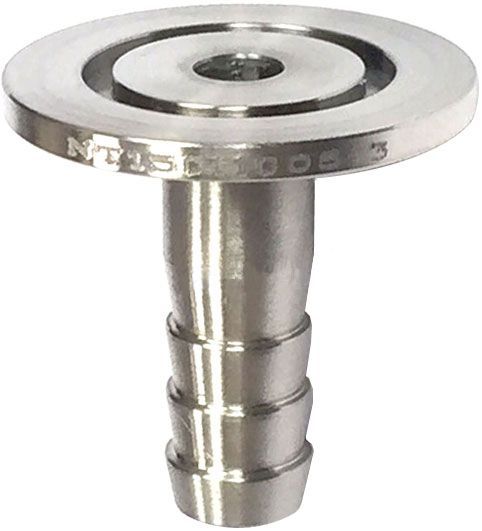

Inlet/outlet connection
KF25/NW25 flange
Oil volume
1.5 liter / 1.59 quart
Motor rate
1715 rpm (at 60Hz) or 1440 rpm (at 50Hz)
Working temperature
5 to 40°C

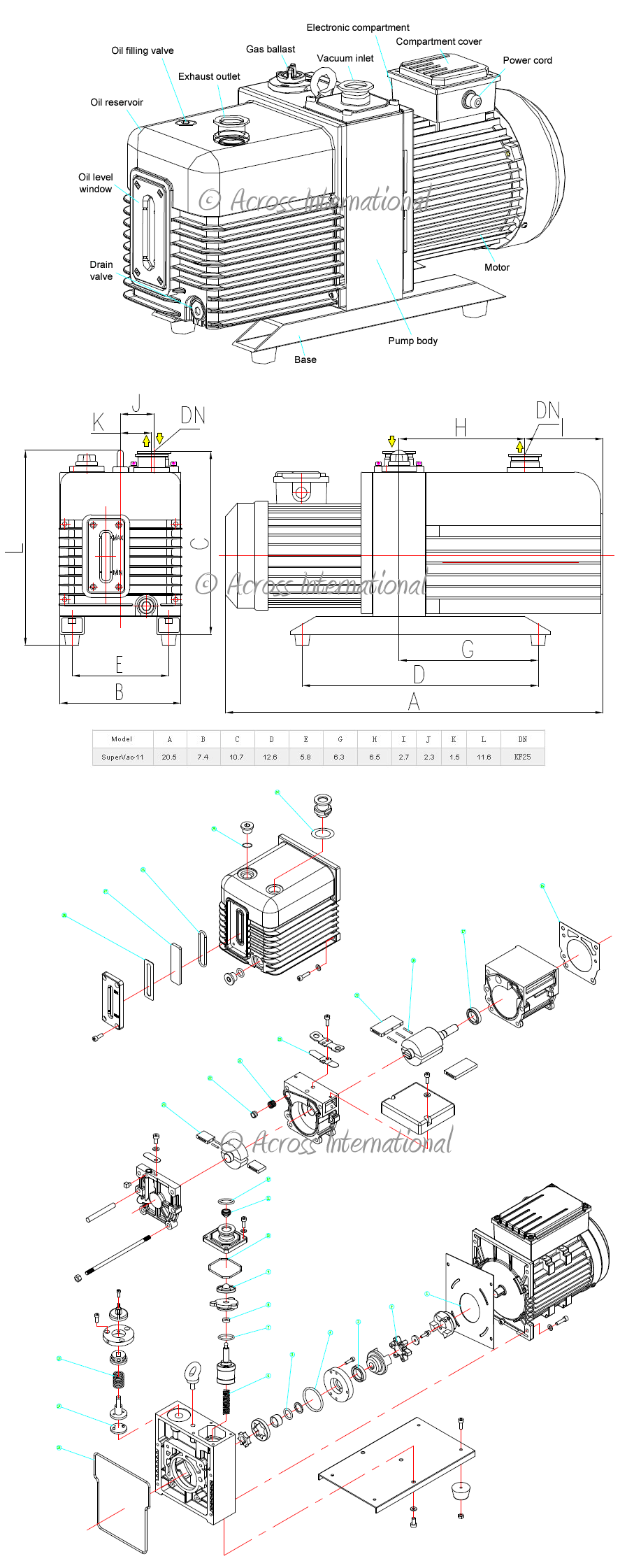

Unit/shipping dimensions (LxWxH)
21×7.5×12″ / 36x10x17″
Unit/shipping weight
72 Lb / 90 Lb
Recommended oil
Ultra-grade 19
Noise level
< 58 dB
Warranty
Two years
Download
Product brochure

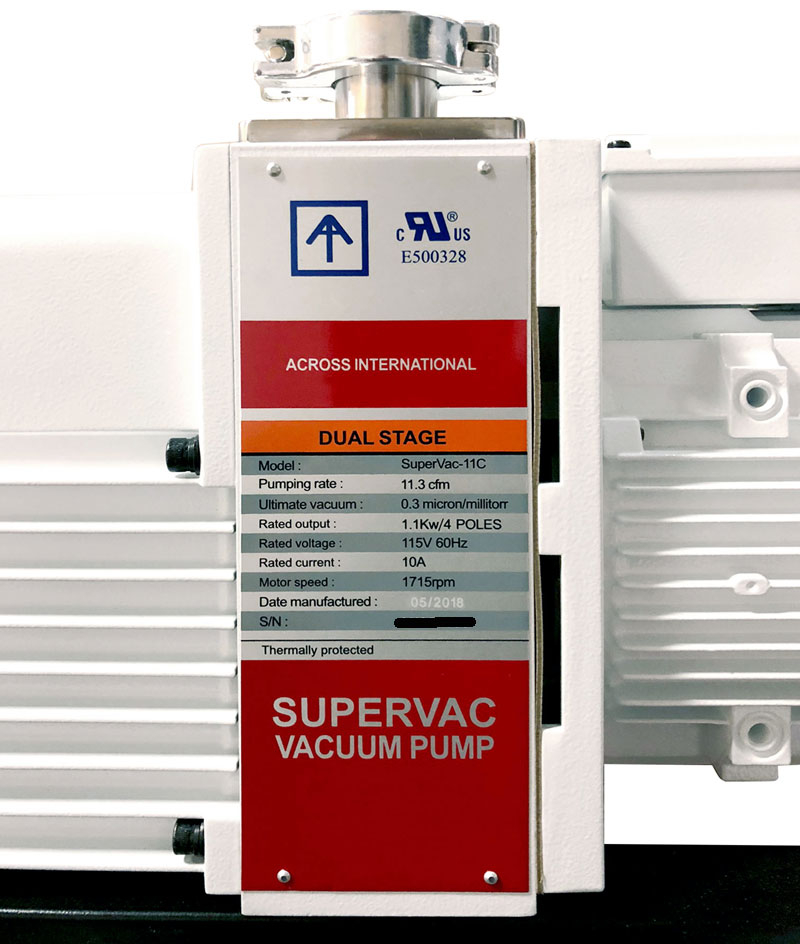

Compliance
UL (E500328), CE
