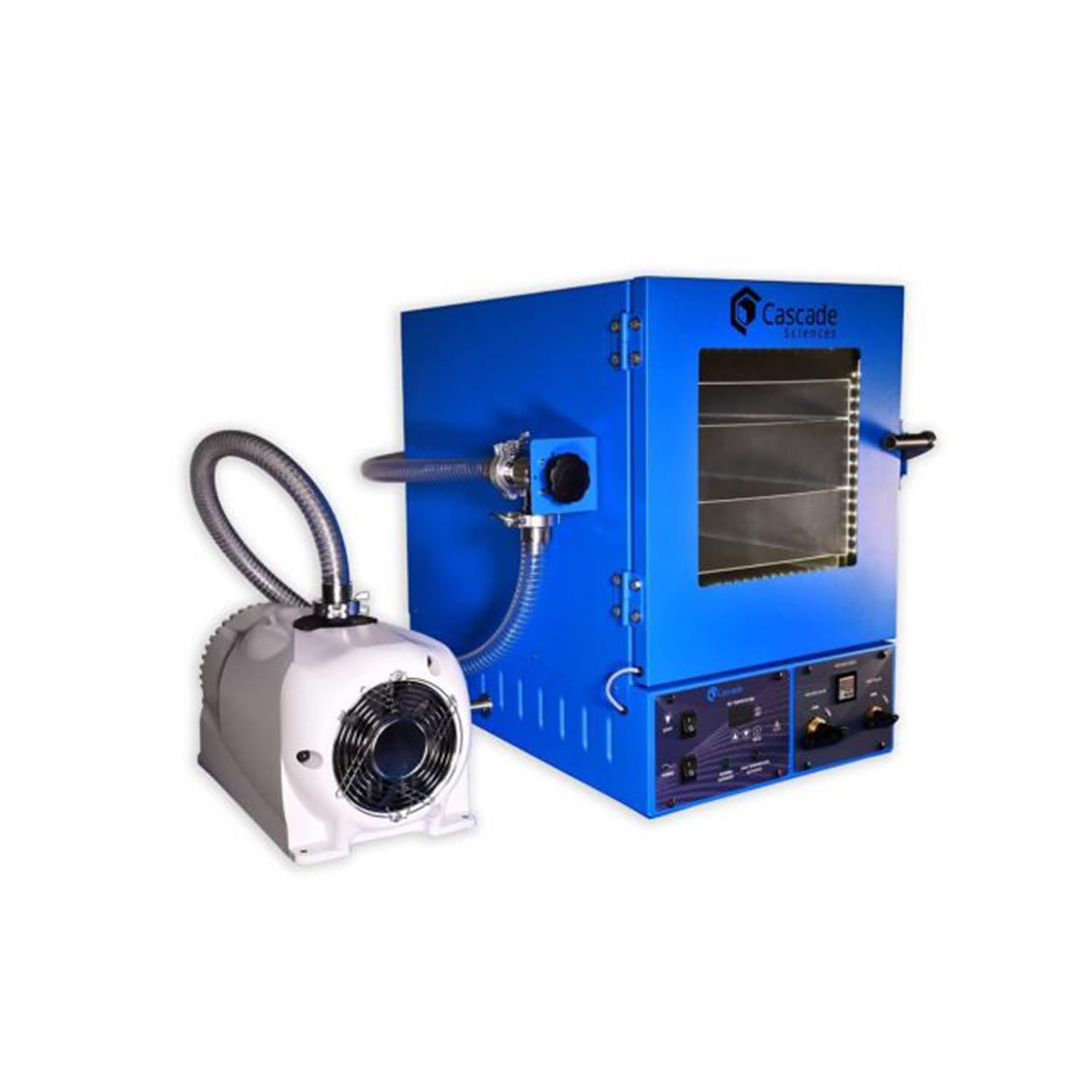

CVO-2 Pro Vacuum Oven Package

10,621.29$

Cascade Vacuum Purge Ovens are a high quality, scalable laboratory oven solution.
Vac purge ovens are excellent for outgassing, removing water or other residual solvents, drying products, baking out, and a host of other applications.

SKU: 4201240 Category: Tag:

Description

Power
110V, 1ph, 9 FLA, also available in 220V

Chamber size
1.7 cubic foot

Chamber material
Stainless Steel

Chamber dimensions
12″ W x 20″ D x 12″ H

Port
Rear KF-25 port 1″ diameter

Vacuum
3/8″ barb

Vent
1/4″ barb

Certified
NRTL

Shelves
5 Included in 1″,2″ and 3″ height

Agilent IDP7, 5.4CFM dry scroll pump
Included

MAX EVAP vacuum oven to pump connection kit
Included

KF-25 Hardware
Included

Filter Required
No

Ultimate Vacuum
2 x 10^-2 Torr

Controller
PID controller /Analog knobs

Display

Stability
/- 2 °F at 105 °F

Max temperature
240 °F

Unit weight
145 lbs

Shipping weight
180 lbs

Unit dimension
18.75″ W x 26.5″ D x 24.5″ H

Shipping dimensions
30 x 30 x 45″

Made in the USA
Perfect for removing water or residual solvents
PID controller included
Multiple sizes and types available
