Delta Falling Film Evaporator – 60 gal./hr. / 460V

Call for Pricing

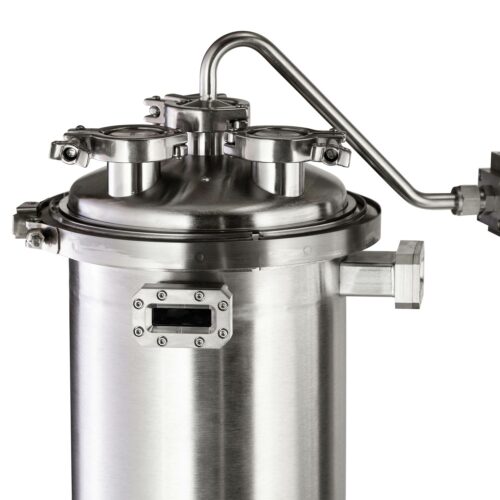

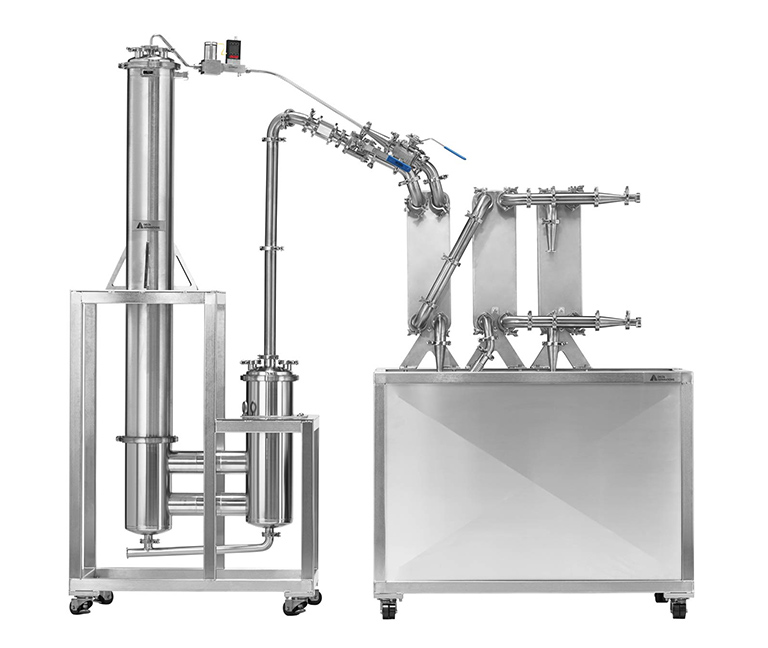

Designed to go hand-in-hand with CUP Extraction Systems, this Falling Film Evaporator from Delta Separations is an alcohol evaporation/recovery system. The systems are used for large-scale evaporation and recovering high volumes of alcohol from extract solutions.
The system maintains a high evaporation rate, which significantly increases the throughput of the extract being processed. This eliminates the need for multiple large rotary evaporator systems.

SKU: 4201601 Category:

Description

Footprint of pump cart & evaporator
15′ L x 7′ D x 9′ H

Evaporator dimensions
41”L x 32”W x 99”H

Pump cart dimensions
52”L x 32”W x 74”H

Evaporator weight
400 lbs

Pump car weight
600 lbs

Single Operator
Equivalent to 10x (50L rotary evaporators)
60 Gallons per hour of separated material
85-95% Separation Efficiency
316L Sanitary Stainless Steel Construction
212 maximum amp requirement
Short Residence Time
Continuous operation
System can be modified for specific applications or higher throughputs
12 month warranty – parts/labor
Made in the USA
