DigiVac Bullseye Precision Vacuum Gauge with Real-Time Analytics

Contact for Pricing

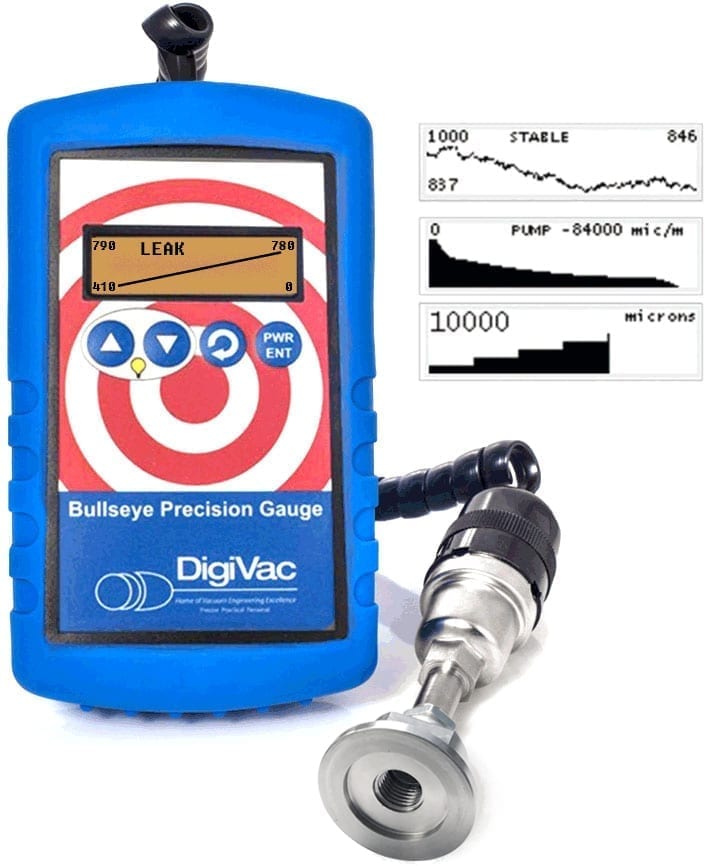

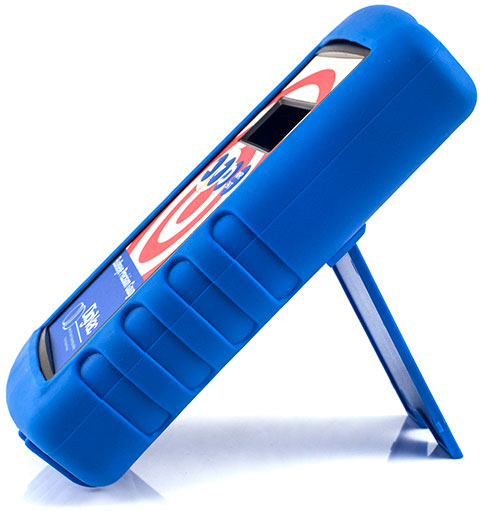

The DigiVac Bullseye precision vacuum gauge is rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.

Description

Features

  • Visual graphing feature right on the display
  • Vacuum analytics to quickly identify vacuum pressure trends
  • Graphical display for quick determination of vacuum level
  • Hands-Free with a “hang up your overalls” strong magnet
  • Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury
  • See detail specs on DigiVac’s website

Specifications

 Model  BPG
 Units  Torr, mbar, bar, kPa, Inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
 Range  1E-4 – 1000 Torr
 Accuracy  0.001 – 2.0 Torr
 Vacuum level  1 micron
 Vacuum reference  Absolute
 Sensor  531 Thermocouple Plus (PN: SEN-VGT500)
 Vacuum connector  FK25/NW25
 Panel mount  No
 Portable  Yes
 Shipping weight  2 Lb
 Shipping dimensions  11 x 10 x 4 inches
 Operator’s manual  Download
