DigiVac StrataVac Regulation Kit for 2-Head Distillation w/ WiFi


Deep vacuum and high throughput, one of the most accurate and powerful vacuum controllers on the market. Recommended for AI 10L distillation packages.


The StrataVac is one of DigiVac’s leading products for customers looking to both measure and maintain pressure. It is a more complex device that offers a number of different configurations, making it possible for every customer to get exactly what they need. The StrataVac 2018 is equipped with wifi to allow easy monitoring from anywhere in the world.

Vacuum Regulation

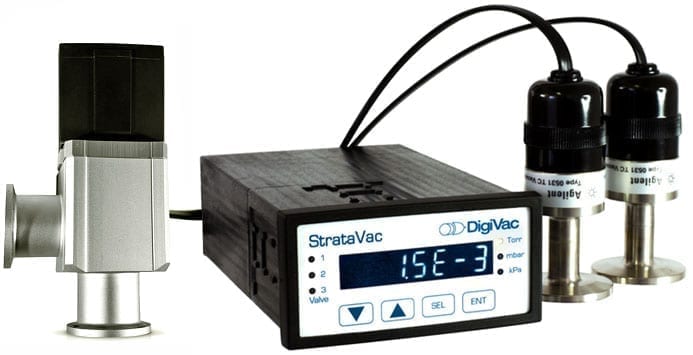

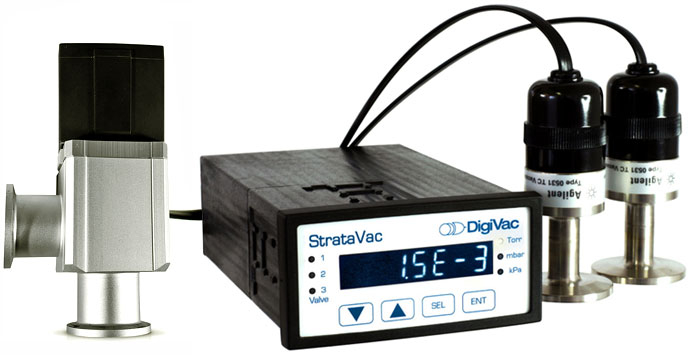

One of the unique features of the StrataVac is that in addition to having the ability to communicate the pressure that your system is maintaining, the gauge can be ordered with a regulator card and valve which opens and closes as needed in order to control your system at a specific pressure, for example, 2 Torr. This configuration of the gauge which gives you the ability to control, is useful for those conducting experiments that require consistent pressure readings. It is also a common request for those who work in industries where processes require stable pressure to ensure that the final product was held to a particular vacuum level during a process, an example being the StrataVac maintaining a predetermined pressure in a chamber that is vacuum drying products for the medical industry.

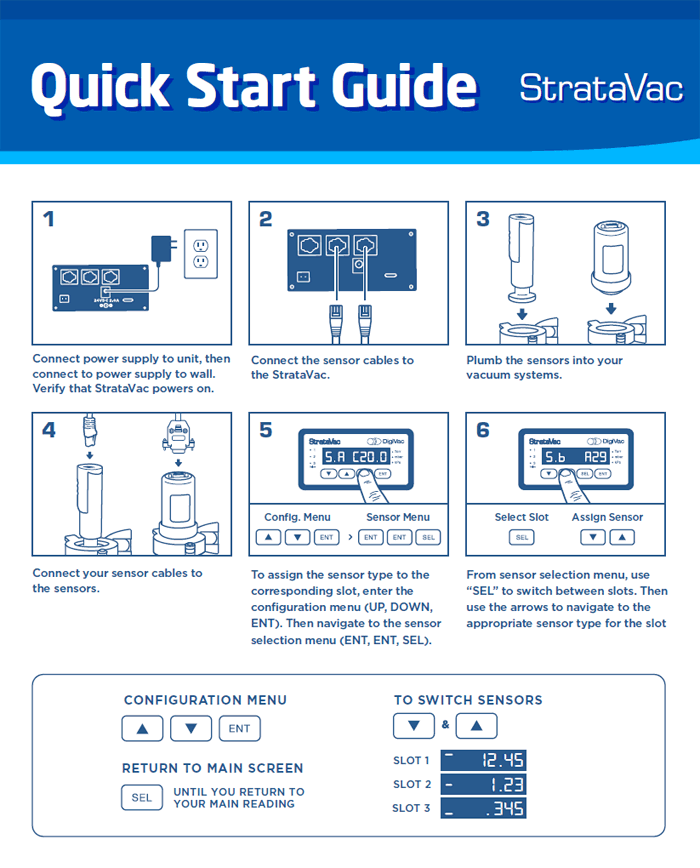

For those who are just looking for a higher end vacuum gauge to measure their vacuum systems at different set points, the StrataVac can be ordered with two thermocouple sensors. While every gauge controller requires one sensor to work, having two sensors allows you to monitor more than one system at a time. By simply switching between the sensors on the gauge, you can quickly view the pressure readouts for two different tests you are running. This configuration of the StrataVac can therefore save you the cost of having identical gauges next to each other, performing the same function. It also allows you to use one device to monitor two systems that require different pressure thresholds.

Wifi Connectivity

When a StrataVac is ordered with a wireless ethernet port, you are effectively able to transmit your vacuum readings to your computer. Rather than view your pressures on the small display screen, you can sync the gauge with the DigiVac ReAct software and view it on your desktop. Furthermore, this software allows you to control your StrataVac unit from your computer! If something within your testing parameters has changed and the system now needs to be controlled at a different pressure, simply set up communication with your computer and toggle the set points appropriately.

Capacitance Manometers

Having compatibility with capacitance manometers gives you another configuration to look for. With the use of a capacitance manometer that measures a specific pressure with more reliable accuracy than a thermal sensors, you can more easily control your system at a pressure that is suitable for your experiment. This pairing of the StrataVac and capacitance manometer is often utilized by those in labs doing research, as a calibration standard for other instruments, or as an in-house standard when performing tests. It seems that many in the vacuum field choose capacitance manometers whenever possible because it is isolated and particles cannot contaminate the sensor.


  • Vacuum Controller – Drive and combine up to 3 of your sensors | Save space, money, and avoid confusion by combining multiple tasks into one device. Can control vacuum with bleed or throttle valves from 10mT – 760T.

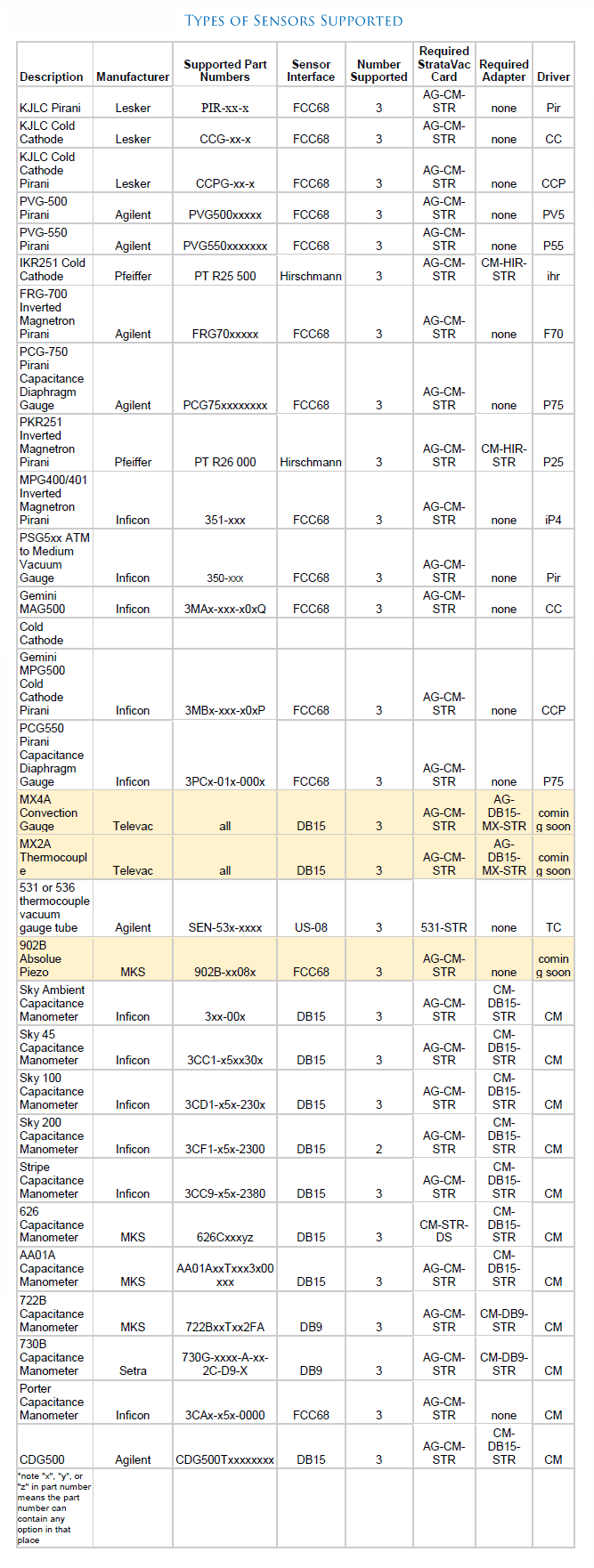

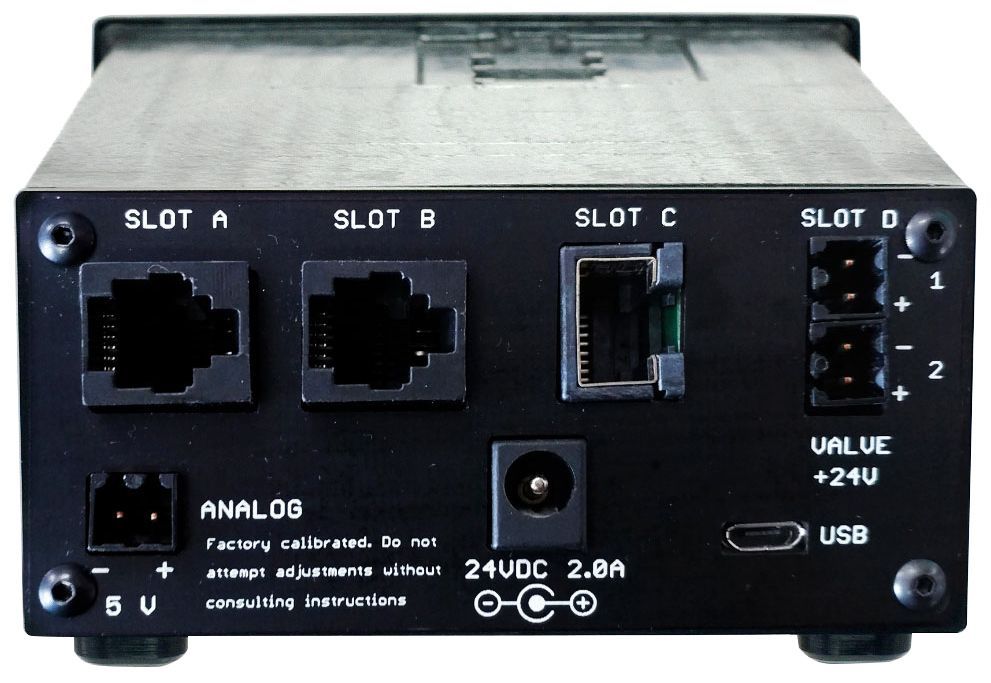

  • Modular – Can be configured with up to 4 expansion boards to control multiple gauges at one time | Accepts different inputs based on driver board and sensor election | Possible different outputs including: analog recorder, RS232, Ethernet, SPDT relays and VLC
  • Wide Range Accuracy – Configured with sensors based on the accuracy and range required to sense vacuum and display the pressure reading in user selectable units of Torr, mbar, or kilopascal
  • Calibrated – Every STRATAVAC is calibrated and pretested under actual vacuum against a NIST standard
  • Applications – Transfer Standard for calibrating other vacuum instruments, main reference gauge, research, and in-house standard

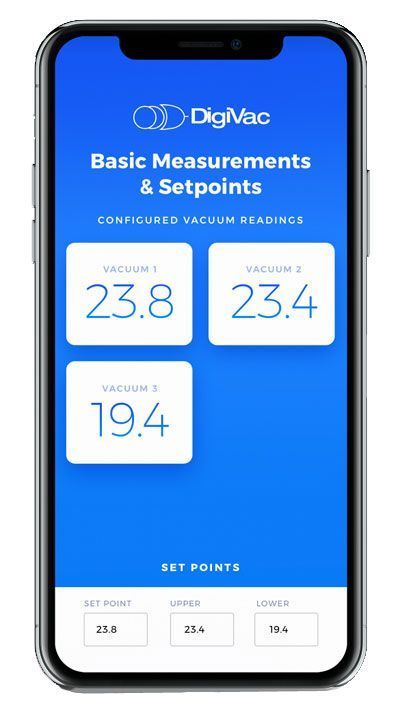

  • WiFi Access – Can be used to view graph and plot historical data with, and as a vacuum transmitter to cloud-based services.
  • Optional Bleed Type Vacuum Control – Controls vacuum level at a particular set-point between 30 milliTorr and 2000 milliTorr.
  • See detail specs on DigiVac’s website


 Model  StrataVac Two-Head Distillation Kit
 Units  Torr, mbar, kPa
 Power  100-240VAC 50/60Hz
 Output  5V
 Vacuum range  5E-9 – 1000 Torr
 Range with Accuracy  5E-4 – 1000 Torr
 Vacuum interface  1/8″ male NPT or KF/NW
 Vacuum reference  Absolute
 Display  .38 inch high 6 digit red LED
 Controls  7 amp, 250 Volt (If applicable)
 Telemetry options  RS232, ethernet
 Mount  1/8 DIN or bench top
 Panel mount  Yes
 Unit dimensions  1.7 x 3.52 x 5.35 inches (HxWxDeep)
 Shipping dimensions  11 x 10 x 4 inches
 Weight  2 lbs
 StrataVac 2018 WiFi addendum  Download
 Product brochure  Download
 Operator’s manual  Download

Additional information

Weight 5 lbs
Dimensions 12 × 12 × 12 in
