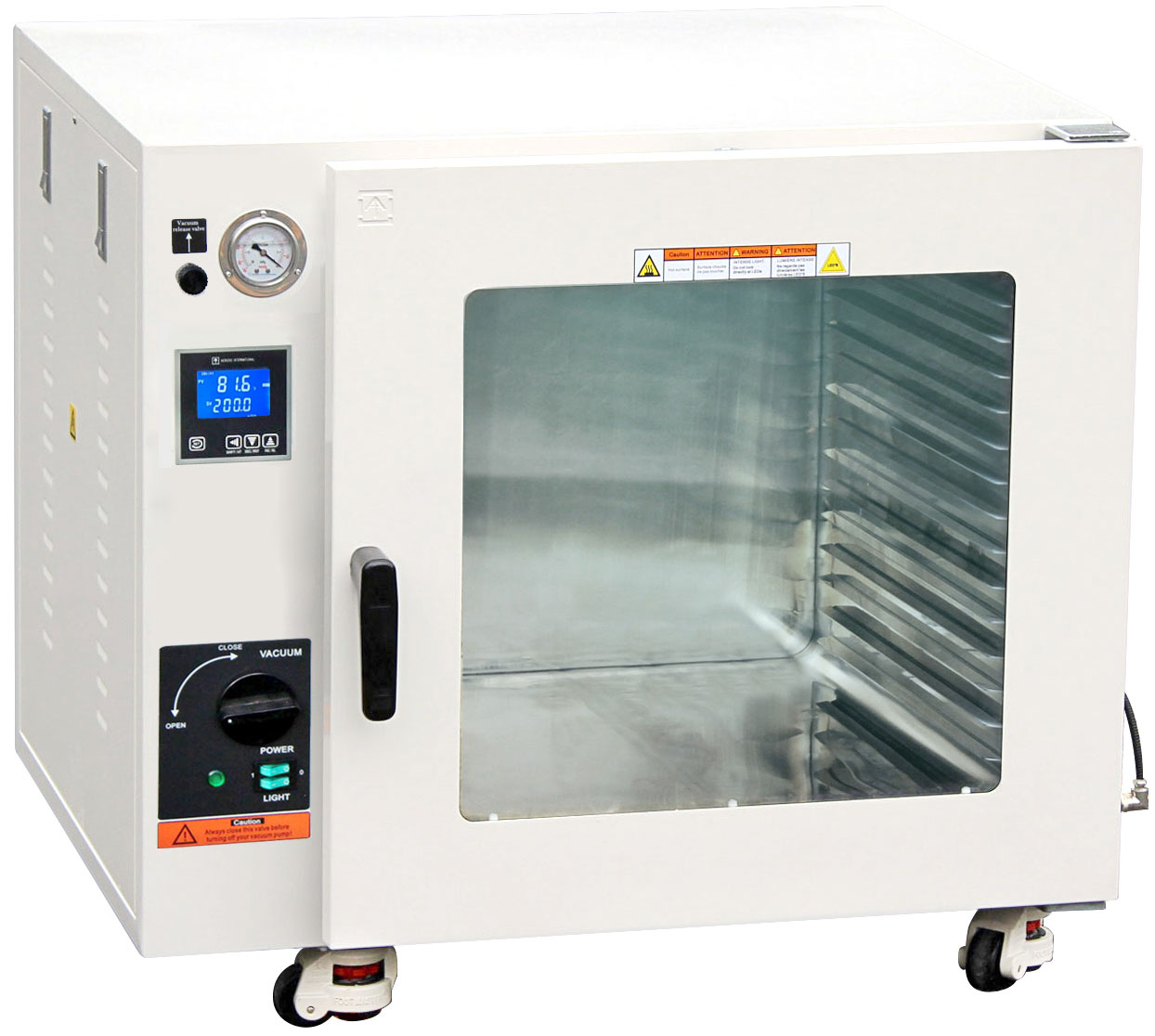

ECO UL 250C 14 Shelf Max 5 CF Vacuum Oven w/ LED Lights


Introducing the new Ai 14-shelf capacity 5.0 cu ft ECO vacuum ovens with LED lights. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

SKU: 4200641 Category: Tag:


 Electrical requirements
 110V or 220V /-10% 50/60Hz 1-PH, 3,000 watts

 Size: 19.75 x 21.5 x 19.75″ Material: Stainless steel Capacity: 5.0 cubic feet

 3-sided heating (left 800W, right 800W, bottom 1,400W)

 Temperature control
 Controller: low proportional gain, microcomputer PID controlled Range: ambient to 250° (or 480°F) Display units: Fahrenheit or Celsius Uniformity: /- 7% of setpoint Dwelling timer range: 1 to 9999 minutes

 Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 1/4″ ball valve Vacuum pump: Sold separately

 Unit: 390 Lbs, shipping: 600 Lbs

 Dimensions (WxDxH)
 Unit: 32.25 x 28 x 30″ Shipping: 38 x 37 x 38″

 Shelf size: 19.25 x 21 x 0.5″ (WxDxH) Material: aluminum Style: pan-shape Capacity: 14 shelves max. Comes standard with oven purchase: 7 shelves Total area with 14 shelves: 39.3 sq ft or 5660 sq inch Distance between the most adjacent shelves: 1.25″

 Door gasket material
 Silicone or Viton

 Observation window
 1/2″ tempered safety glass

 Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial

 In-door lights
 White LED (pre-installed)

 1 year
