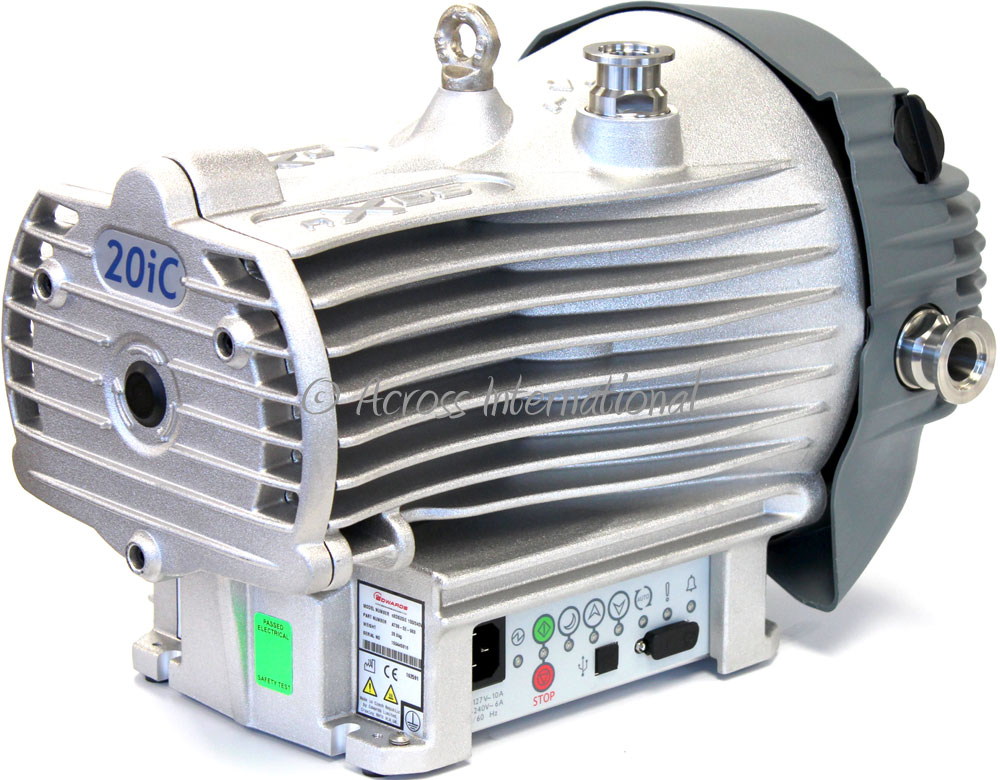

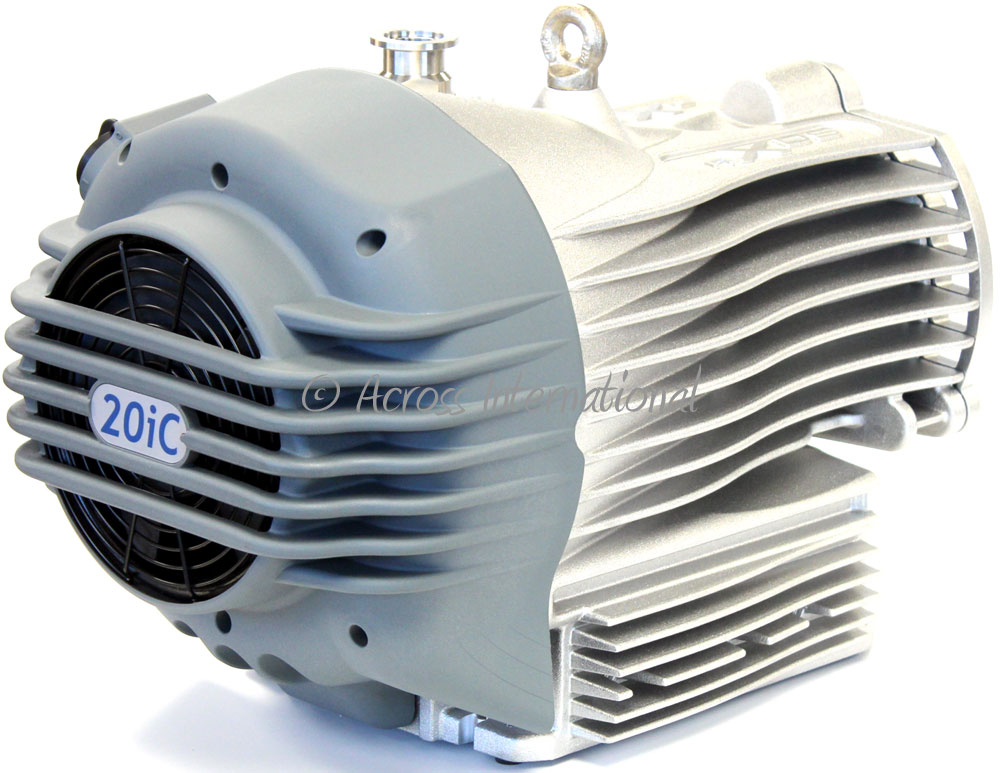

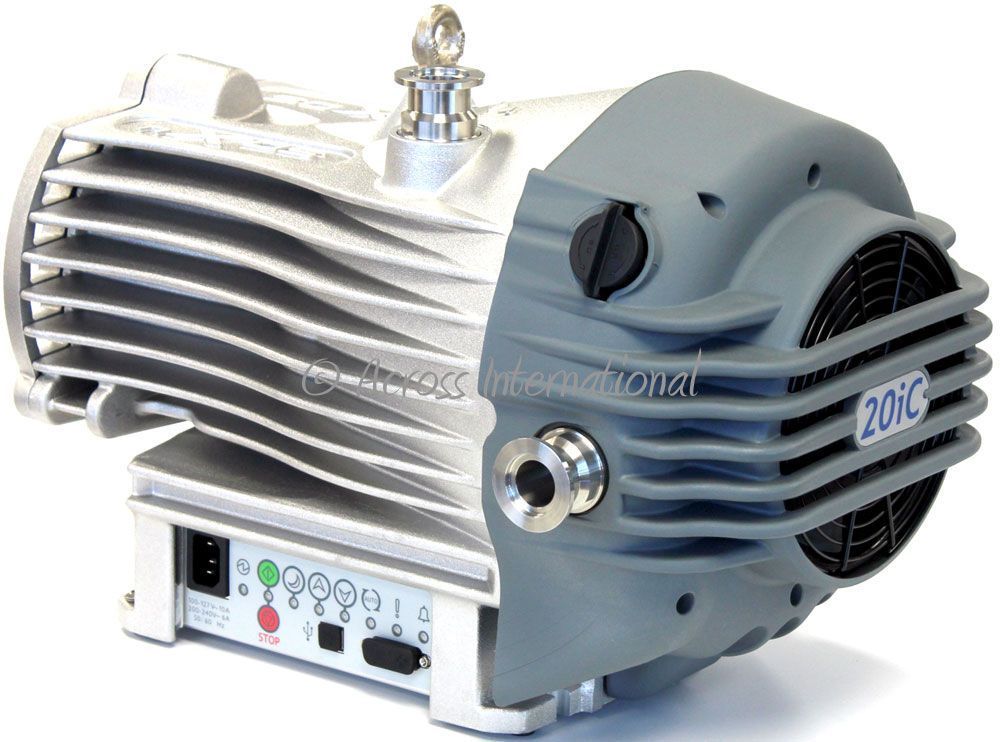

Edwards nXDS20iC 16.5 cfm Chemical-Resistant Dry Scroll Pump

$14,989.94

The new nXDS-C pump is a modified version of the nXDS that is suitable for use on vapor handling processes, and may be used for some pumping applications involving corrosive substances. The nXDS-C variants have Chemraz® internal valves and stainless steel fittings for extra protection from the pumped media. Together with exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, the nXDS-C dry scroll pump is the best performing pump in its class.

SKU: 4200751 Category: Tag:

Description

Power requirements
100-127V~10A or 200-240V~6A, 50/60 Hz, 260 watts

Nominal rotational speed
1800 rpm

Displacement
28.0 m3h-1  /  16.5 ft3min-1

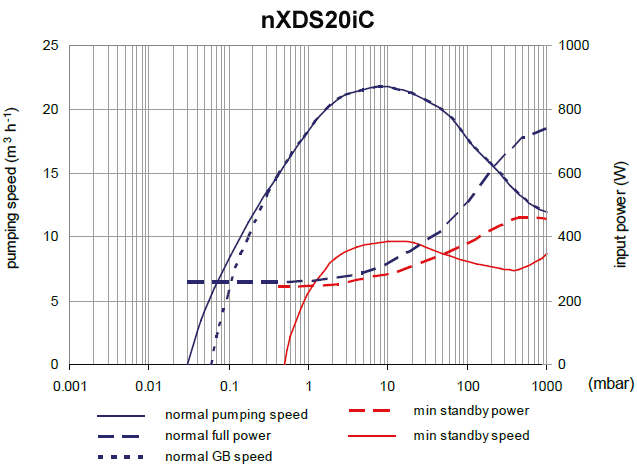

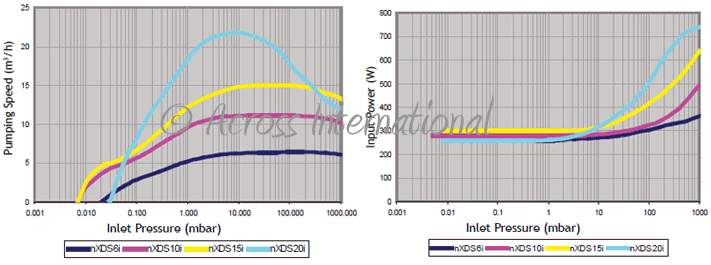

Peak pumping speed
22.0 m3h-1  /  13.0 ft3min-1

Ultimate vacuum (total pressure)
0.030 mbar  /  0.022 Torr / 22 micron

Minimum standby rotational speed
1200 rpm

Speed control resolution (% of full speed)
1%

Maximum inlet pressure for water vapour
20 mbar

Maximum water vapour pumping rate
220 gh-1

Maximum continuous inlet pressure
50 mbar

Power connector 1-ph
IEC EN60320 C13

Recommended fuse
10A, 250Vac rms

Unit/shipping weight
56 Lb / 60 Lb

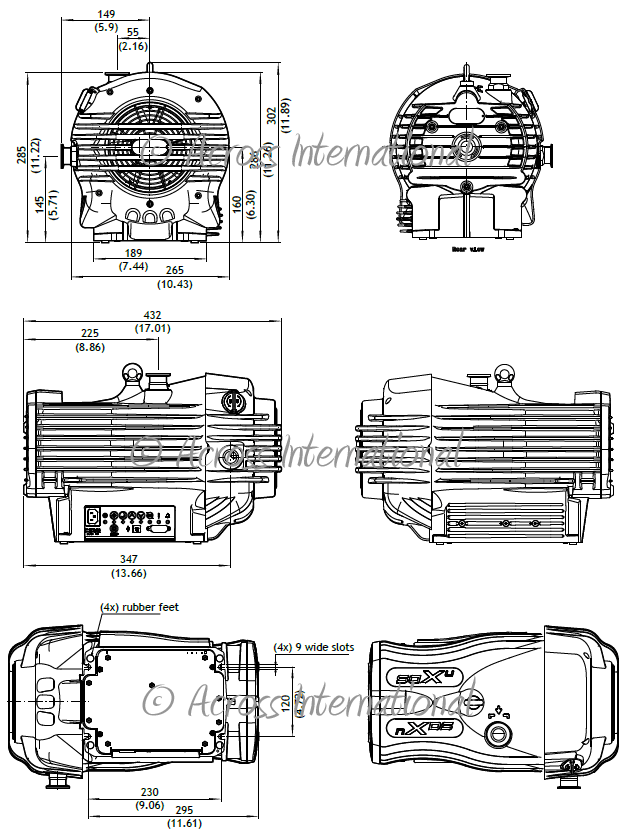

Unit/shipping dimensions
16.5x10x12″ / 20.5x13x14″ (DxWxH)

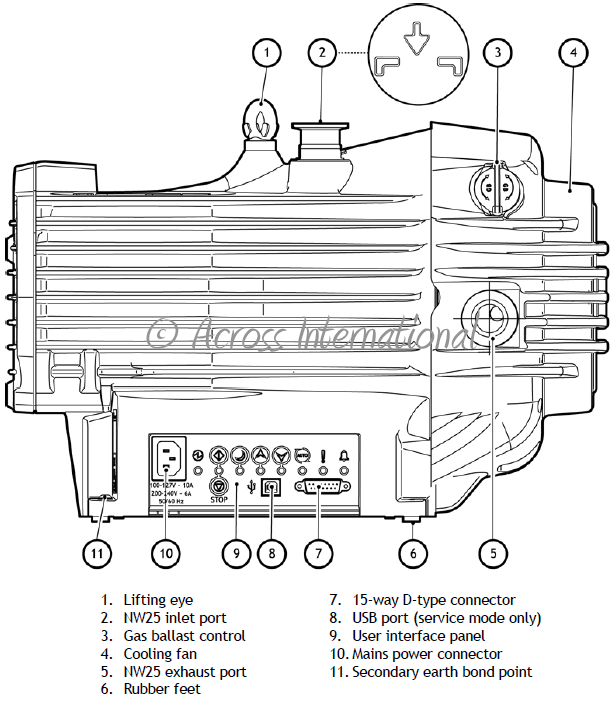

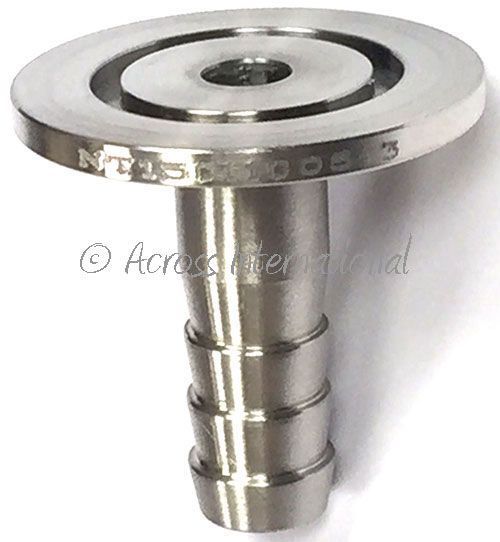

Inlet flange
NW25 (KF25)

Exhaust flange
NW25 (KF25)

Noise level
52 dB(A)

Vibration at inlet flange
< 4.5 mms-1   (rms) Leak tightness (static) < 1x10-6 mbar ls-1   Operating temperature range 10 to 40 °C  /  41 to 104 °F Edwards part number A73802983 Certification CE, UL, CSA
