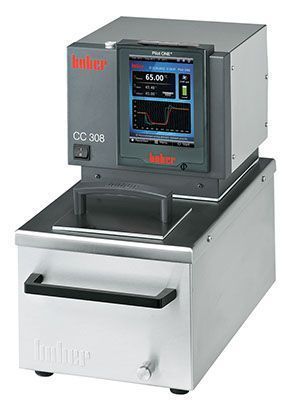

HUBER CC-308B 300°C 8.5L Heating Circulator with Pilot ONE

7,170.00$

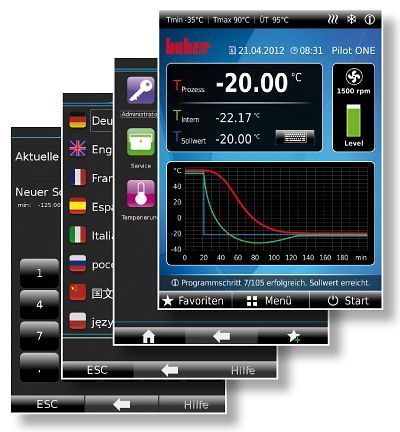

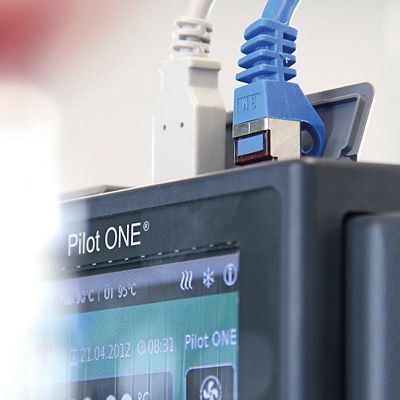

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

SKU: 4200019 Category: Tag:

Description

General information & temperature controller

Temperature range
(-20) 28…300 °C

Temperature stability
±0,02 °C

Temperature control
TAC, self-optimizing (True Adaptive Control)

Controller
Pilot ONE  (E-grade “Basic”)

Safety class
III / FL

Protection class
IP20

Dimensions (W x D x H)
242 x 404 x 392 mm

Weight
18 kg

Heating / cooling capacity

Heating capacity
3 kW

Circulation pump

Pressure pump max.
25  l/min ; 0,7  bar

Suction pump max.
18,5  l/min ; 0,4  bar

Pump connection
M16x1 AG male

Permissible viscosity
50 mm²/s

Connections

Pt100 connection
Pt100

Digital interface
RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.
5…40 °C

Bath opening WxD/BD
130 x 110 / 155 mm

Bath volume
8,5 Litres

Filling volume min.
6 Litres

Power supply
230V 1~ 50/60Hz

Current max.
14 A

Fusing
16 A
