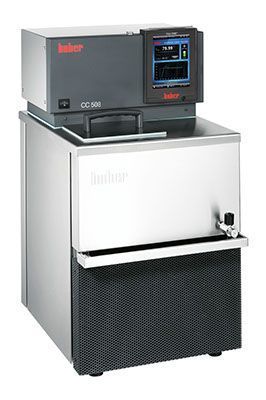

HUBER CC-508 -55°C to +300°C 5L with Pilot ONE

17,250.00$

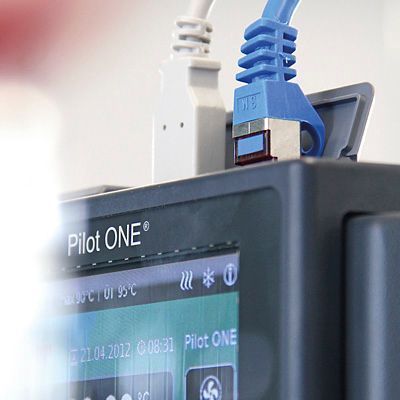

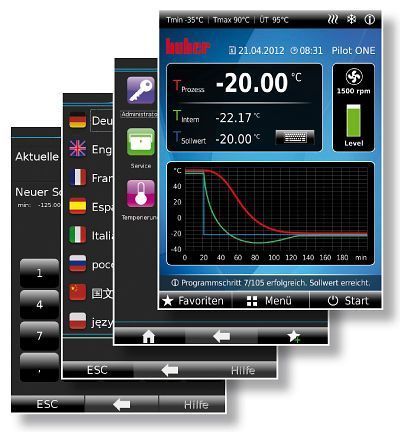

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

SKU: 4200020 Category: Tag:

Description

General information & temperature controller

Temperature range
-55…200 °C

Temperature stability
±0.02 °C

Temperature control
TAC, self-optimizing (True Adaptive Control)

Controller
Pilot ONE  (E-grade “Basic”)

Safety class
III / FL

Protection class
IP20

Dimensions (W x D x H)
410 x 480 x 764 mm  |  16.14 x 18.9 x 30.08 inches

Weight
66 kg  |  145.53 pounds

Heating / cooling capacity

Heating capacity
2,45 kW

Cooling capacity

100
20
0
-20
-40
 °C

1,5
1,5
1,5
1
0,3
 kW

Cooling machine
air-cooled

Refrigerant
R1270 (0,15 kg)

Circulation pump

Pressure pump max.
25  lpm ; 0.7  bar  |  6.6 gpm ; 101.5 psi

Suction pump max.
18.5  lpm ; 0.4  bar  |  48.88 gpm ; 58 psi

Pump connection
M16x1 AG male

Permissible viscosity
50 mm²/s

Connections

Pt100 connection
Pt100

Digital interface
RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.
5…40 °C

Bath opening W x D / BD
120 x 110 / 160 mm  |  4.72 x 4.33 / 6.3 inches

Bath volume
5 Liters  |  1.32 gal

Filling volume min.
4 Liters  |  1.06 gal

Power supply
208V 2~ 60Hz

Current max.
16,5 A
