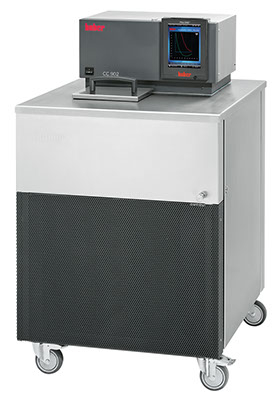

HUBER CC-902 -90°C to +200°C 5L with Pilot ONE

32,850.00$

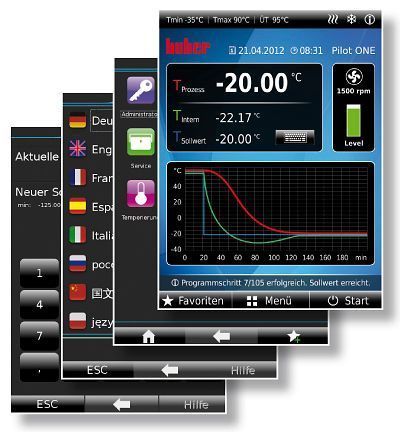

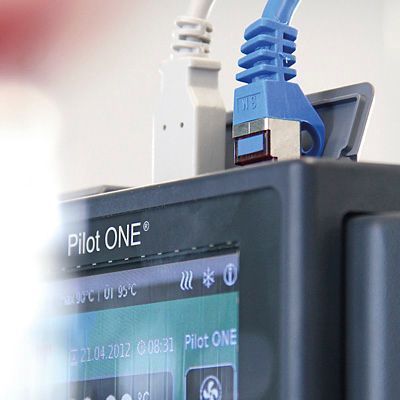

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

SKU: 4200021 Category: Tag:

Description

General information & temperature controller

Temperature range
-90…200 °C

Temperature stability
±0,02 °C

Temperature control
TAC, self-optimizing (True Adaptive Control)

Controller
Pilot ONE  (E-grade “Basic”)

Safety class
III / FL

Protection class
IP20

Dimensions (W x D x H)
550 x 600 x 911 mm

Weight
129 kg

Heating / cooling capacity

Heating capacity
1,5 kW

Cooling capacity

100
20
0
-20
-40
-60
-80
 °C

1,2
1,2
1,2
1,1
0,9
0,6
0,2
 kW

Cooling machine
air-cooled

Refrigerant 1. stage
R452A (0,75 kg)

Refrigerant 2. stage
R508B (0,46 kg)

Circulation pump

Pressure pump max.
25  l/min ; 0,7  bar

Suction pump max.
18,5  l/min ; 0,4  bar

Pump connection
M16x1 AG male

Permissible viscosity
50 mm²/s

Connections

Pt100 connection
Pt100

Digital interface
RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.
5…40 °C

Sound pressure level
63 dB(A)

Bath opening WxD/BD
120 x 110 / 150 mm

Bath volume
5 Litres

Power supply
208V 2~ 60Hz  or 460V 3~ 60Hz

Current max.
13,2 A

Fusing
16 A
