Description
General information & temperature controller
Temperature range
65…300 °C
Temperature stability
±0.02 °C
Temperature control
TAC, self-optimizing (True Adaptive Control)
Display resolution
0.01 °C
Alarm message
optical, acoustical
Controller

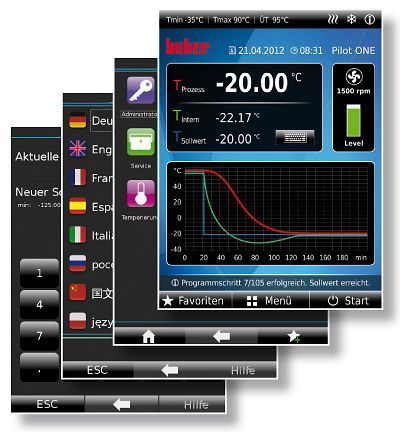

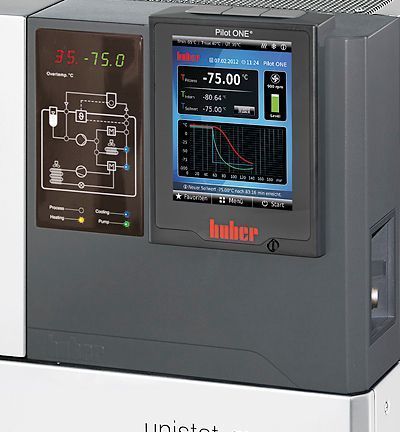

Pilot ONE (E-grade “Professional”)
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
425 x 250 x 631 mm | 16.73 x 9.84 x 24.84 inches
Weight
39 kg | 86 pounds
Heating / cooling capacity
Heating capacity
4,8 kW
Circulation pump
Pressure pump max.
45 lpm ; 0.9 bar | 11.89 gpm ; 13.05 psi
Pump connection
M24x1,5 AG male
Permissible viscosity
50 mm²/s
Connections
Pt100 connection
Pt100
Analogue input
via optional Com.G@te
Analogue output
via optional Com.G@te
Digital interface
RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5…40 °C
Filling volume min.
1.45 Liters | 0.38 gal

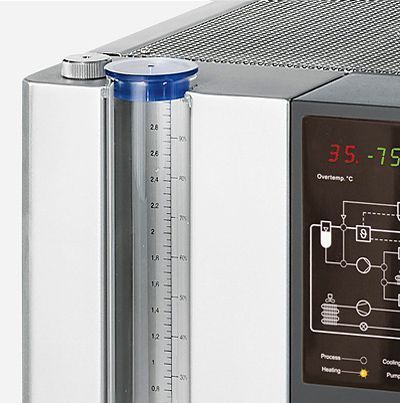

Volume of expansion
2.8 Liters | 0.74 gal
Power supply
208V 3~ 60Hz
