Description
Model

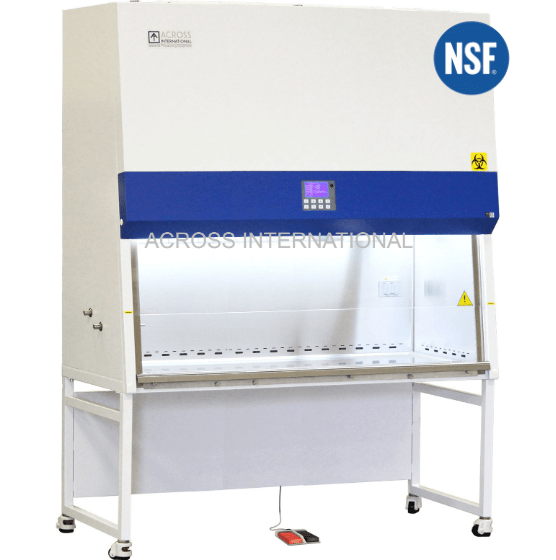

BC-6F
Electrical requirements
110V 60Hz 1-Phase 500 watts

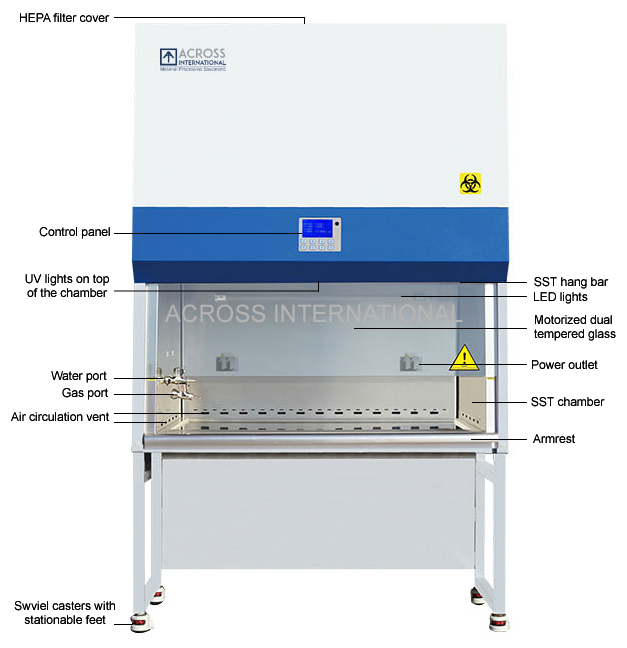

Chamber

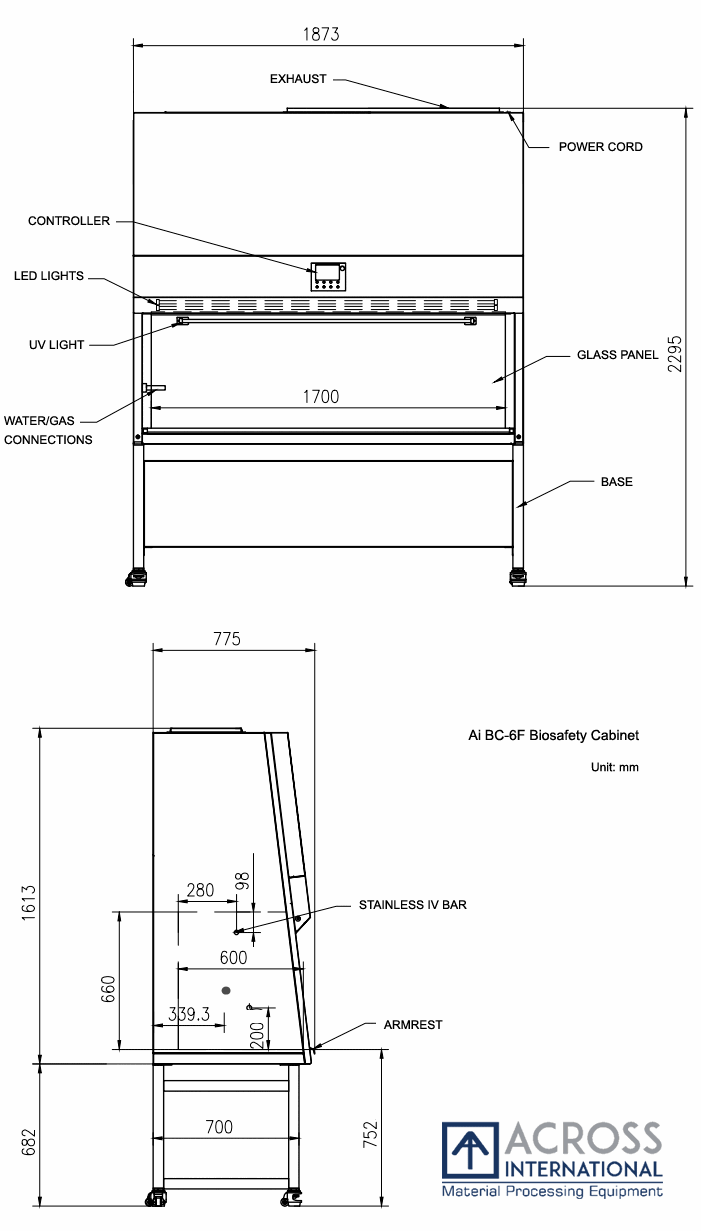

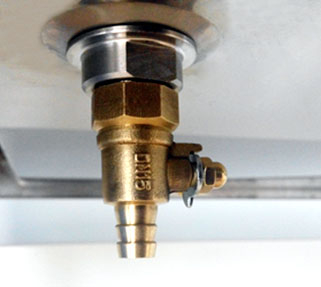

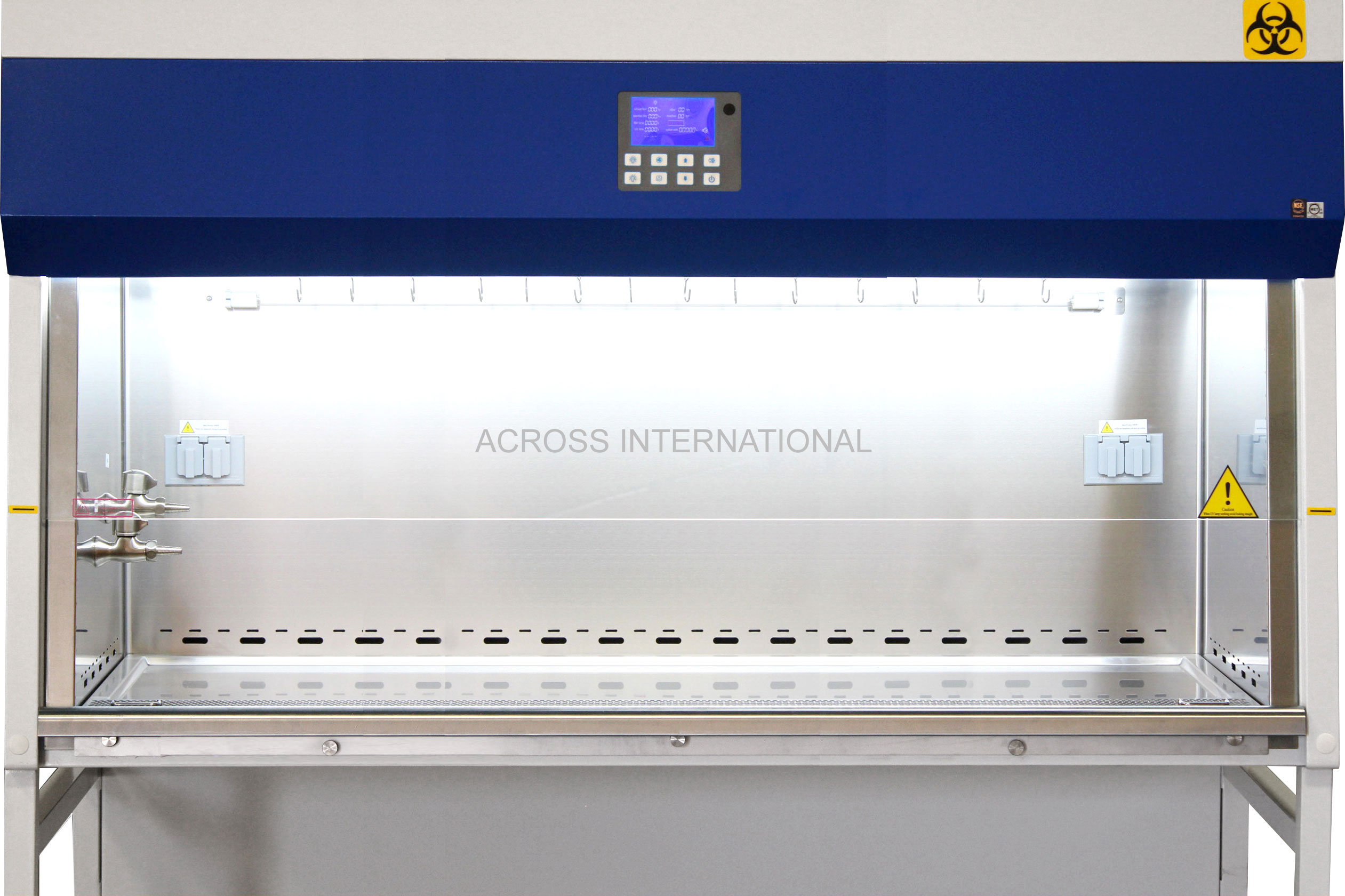

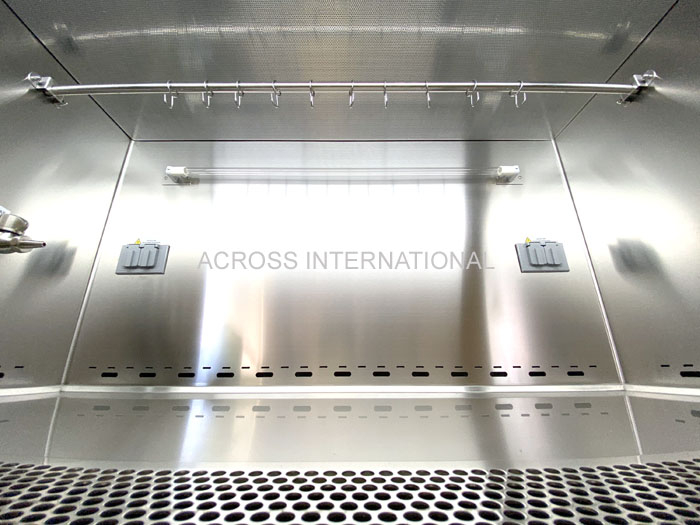

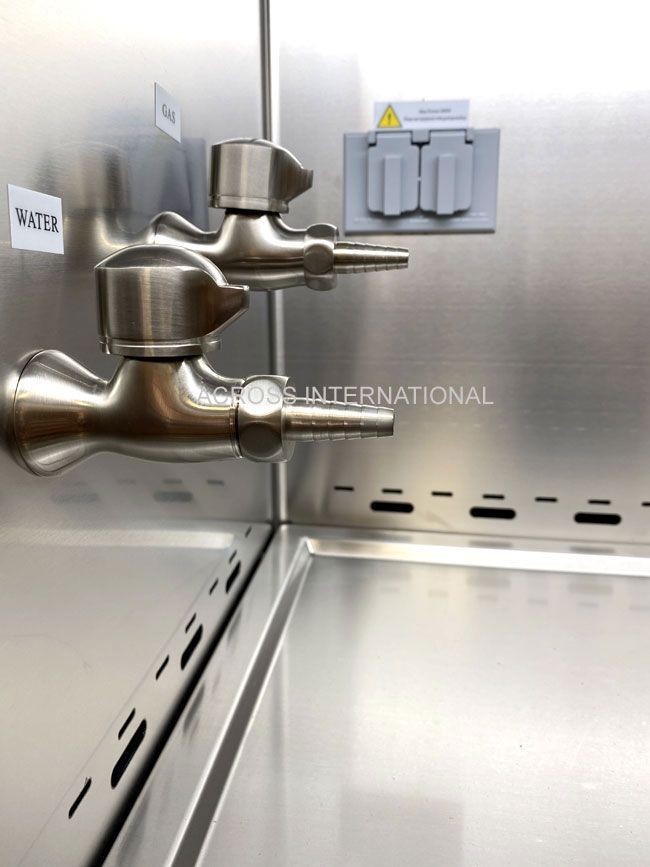

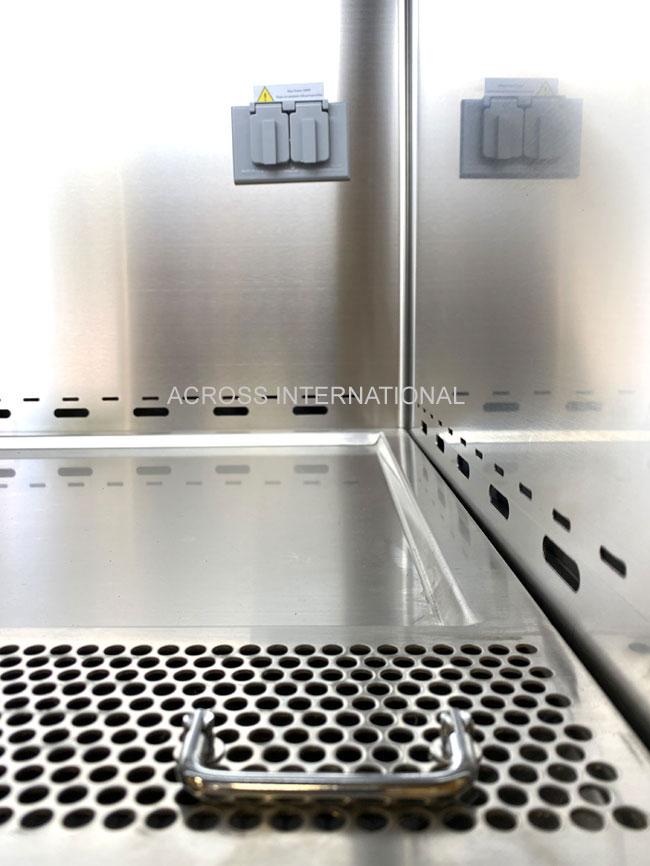

Dimensions: 67 x 23.5 x 26″ (WxDxH) Material: 304 stainless steel Power outlet with cover: four, < 500 watts Water port x 1, stainless steel Gas port x 1, stainless steel Surface height from ground: 29.5" Hanging bar: stainless steel, with 10 hooks
Lights
LED lights: 22W x 2, > 1000 Lux UV lights: 30W (Germicidal UV lamp, emission 253.7 nanometers) * UV lights available only when front glass panel is fully closed. * Recommended replacement interval: 600 hours
Air flow

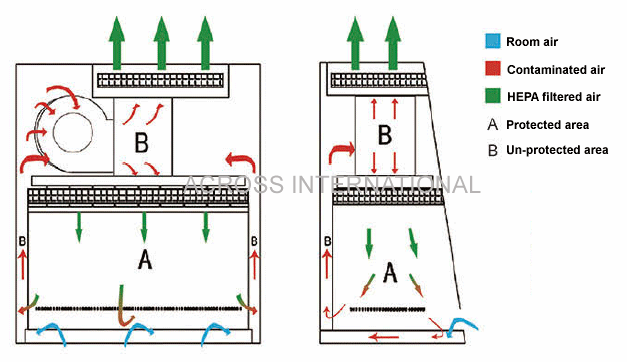

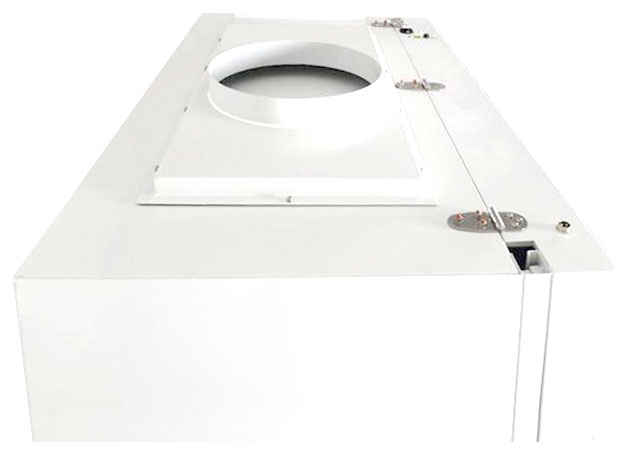

Volume Inflow: 825 CFM (Cubic Feet per Minute) Downflow: 710 CFM Exhaust: 485 CFM Speed Inflow: 100-110 FPM (Feet per Minute) Downflow: 60-70 FPM * 70% recirculated internally, 30% discharged from top vent * Air circulation available only when front glass panel is open

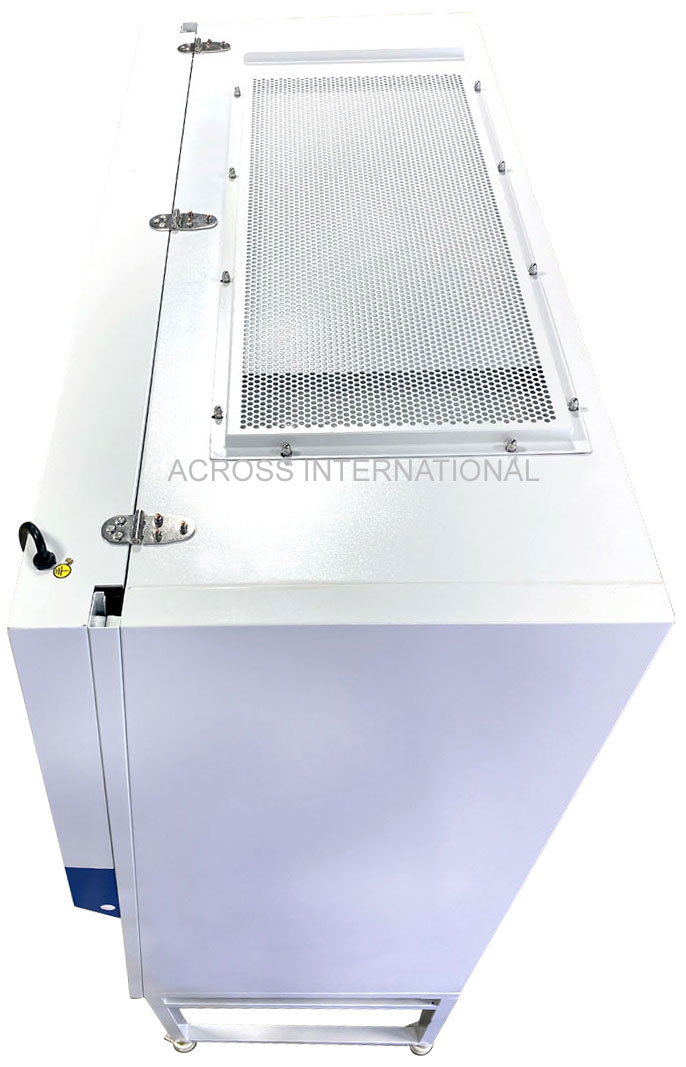

Top clearance
12″ (recommended)
HEPA (High-Efficiency Particulate Air) filter

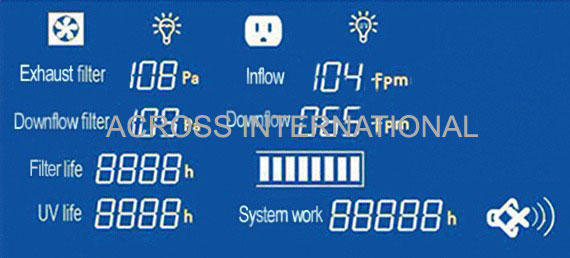

Two, with 99.999% efficiency at 0.3 μm diameter Filter hour indicator and life bar on controller * Recommended replacement interval: 4,000 hours

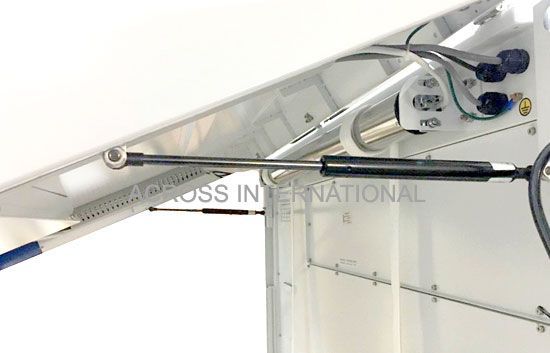

Front safety panel
Material: tempered safety glass (thickness > 5mm), dual-layer, laminated, UV blocking Recommended opening height: 10″ Maximum opening height: 20.5″
Material
Chamber: 304 stainless steel Main body: powder coated steel
Controller

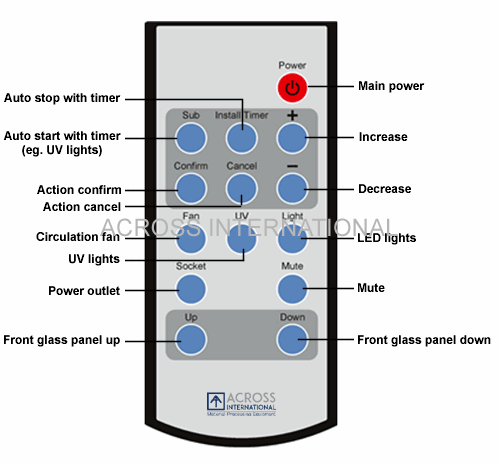

LCD screen with soft touch buttons and remote control
Noise
< 65 dB(A)
Casters
Four, with stationable feet
Unit/shipping dimensions
73.5 x 30.5 x 90.5" (fully assembled) / 79.5 x 42.5 x 75" (WxDxH)
Shipping weight
820 Lbs
Safety
Abnormal airflow alarm Filter replacement alarm Front glass panel unsafe height
Compliance

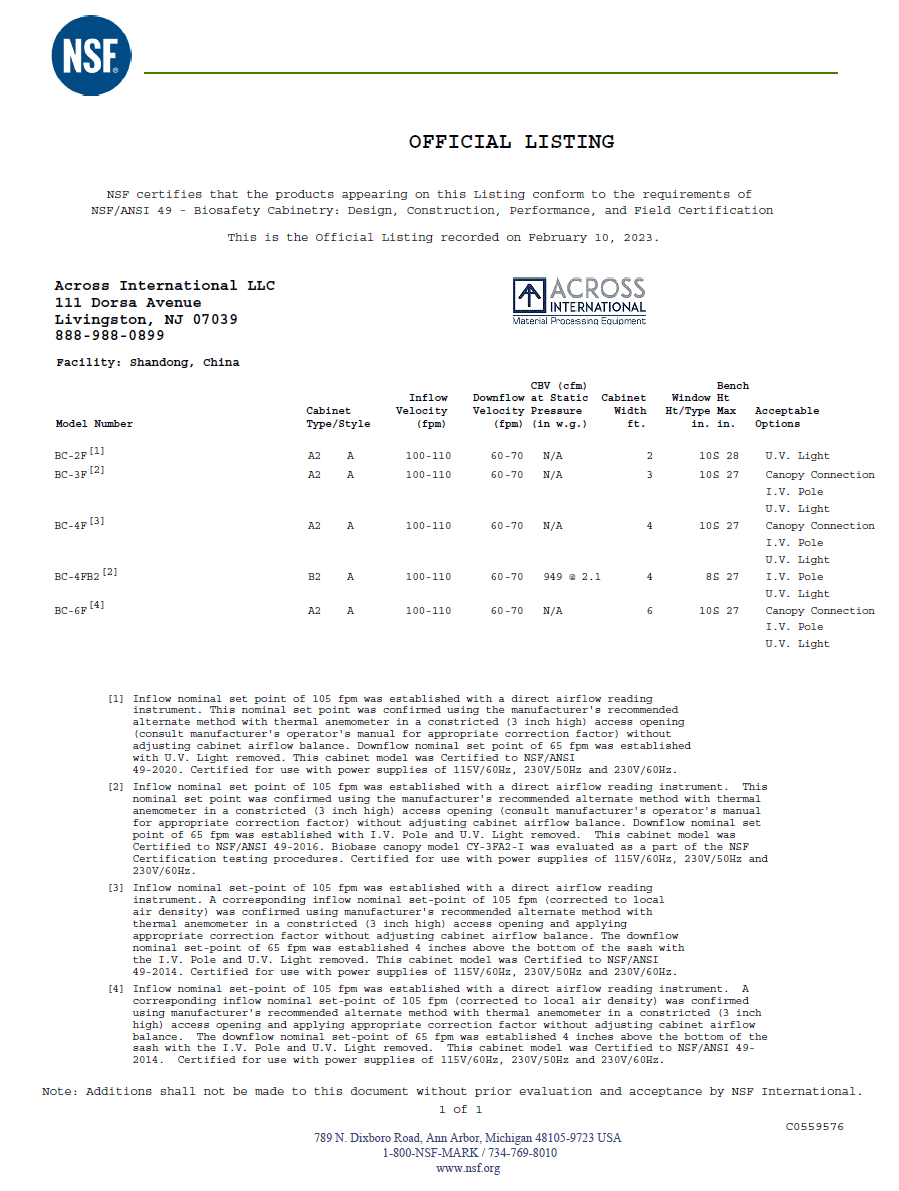

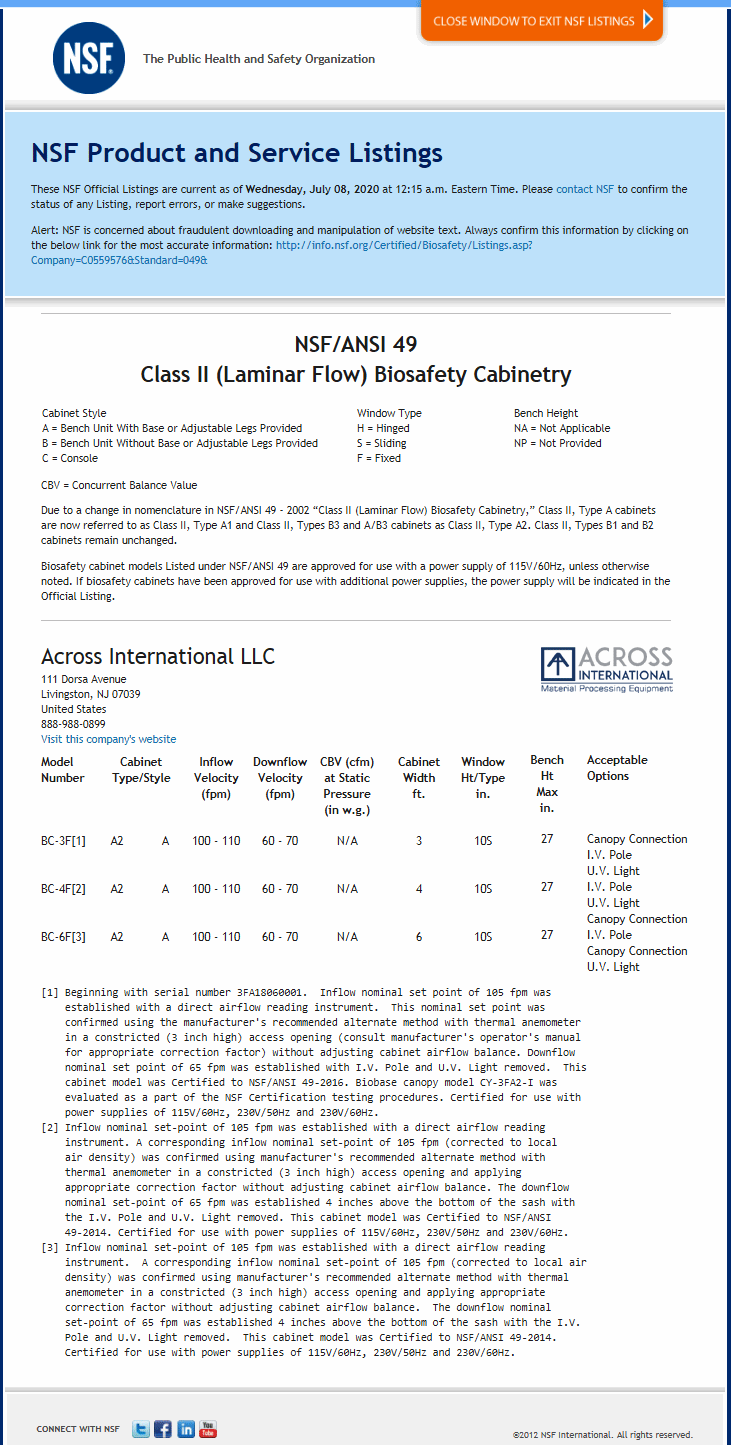

NSF/ANSI 49 (C0559576)
Warranty
One year
