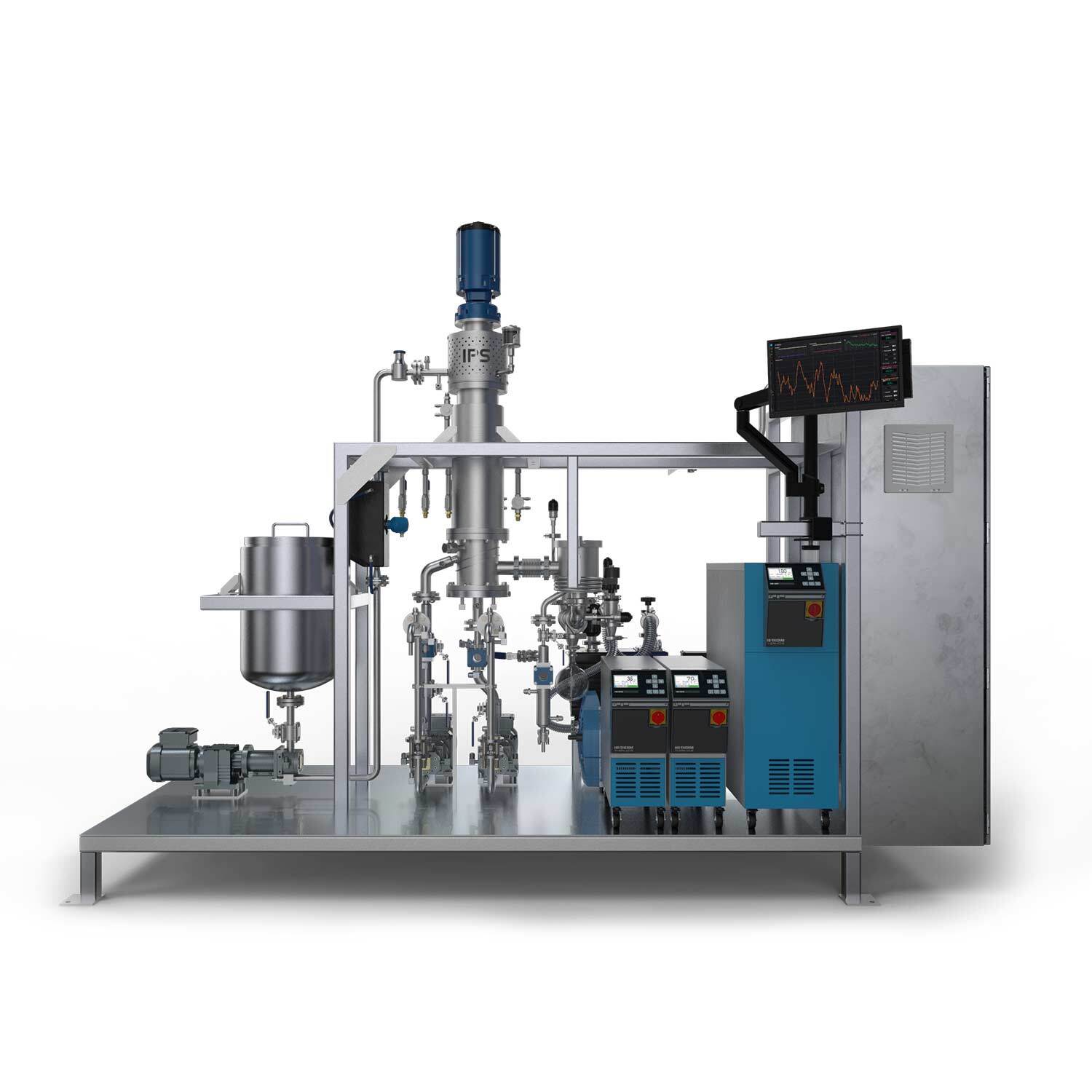

0.2m2 Evaporation Surface Area: High-efficiency short path thin film evaporator with exceptional evaporation surface area
Precise & Continuous Operation: Various HMI options give users precise control over all system parameters with the ability to save custom presets/recipes for repeatability and ease of use

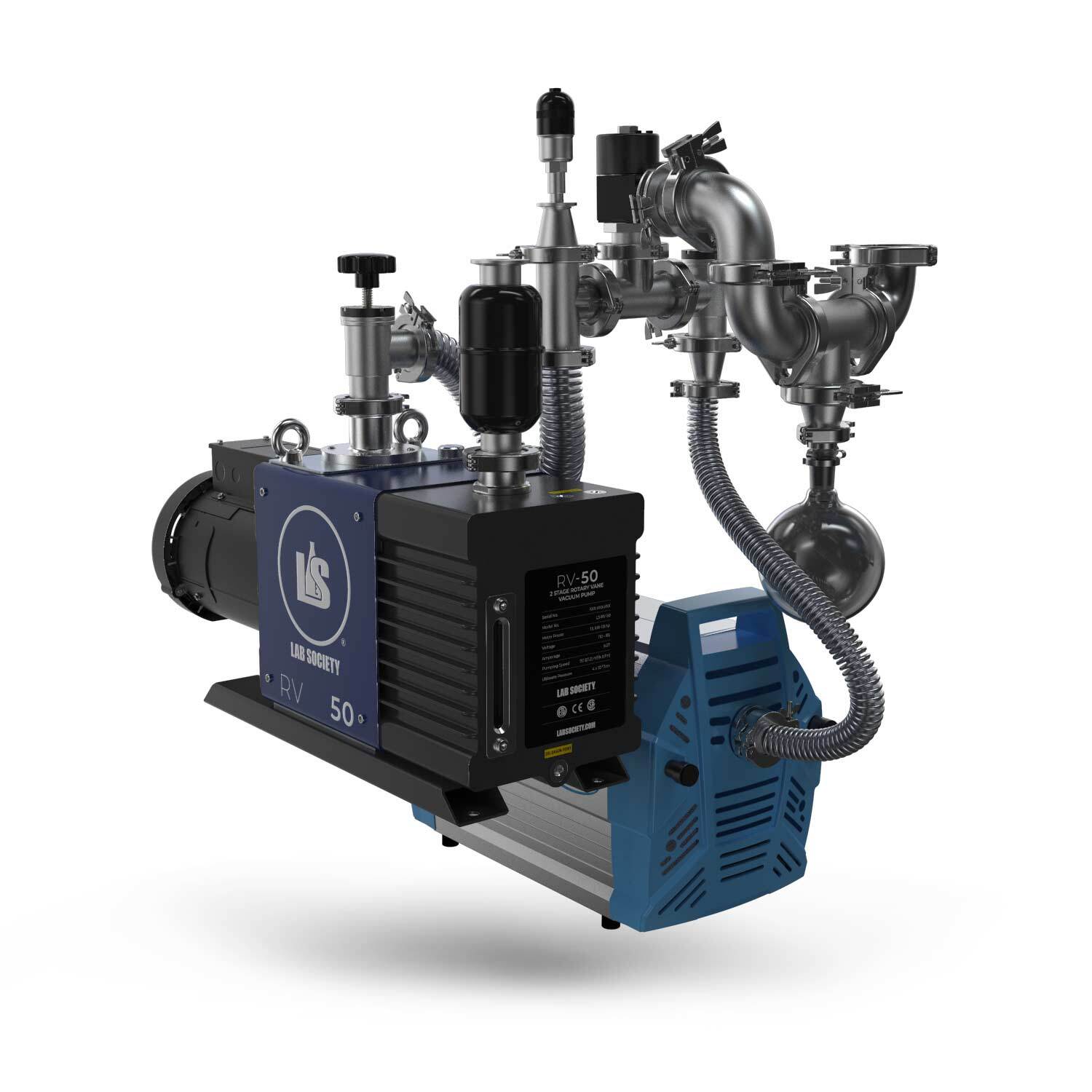

Dual-Pump Manifold Advantage: Single-stage units feature a dual-pump manifold with two (2) vacuum pumps: a dry diaphragm pump for volatile stripping, and a high-vacuum pump for heavy compound distillation

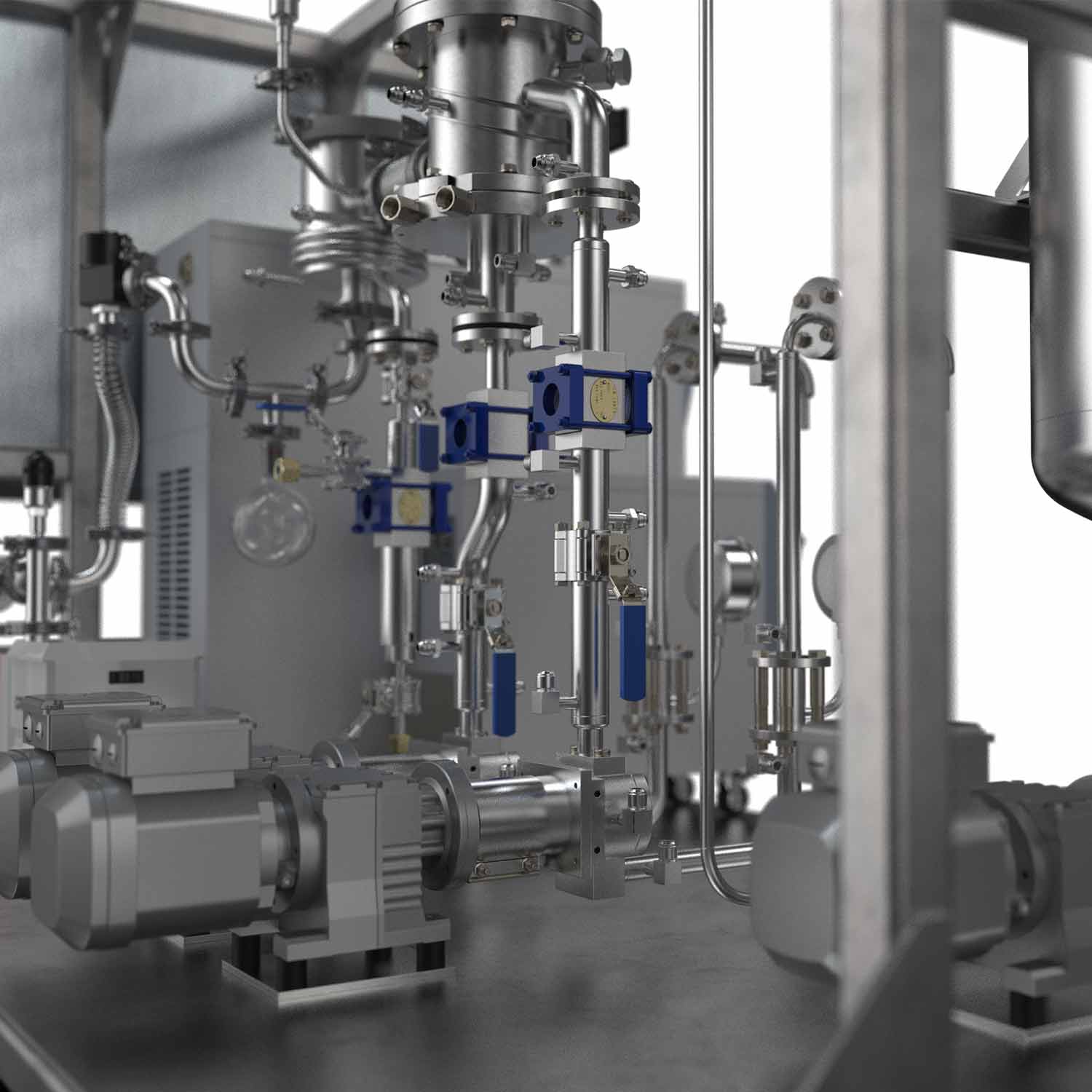

Completely jacketed stainless steel process piping
Good Manufacturing Practices (GMP) forward design
Inline sight glasses
Jacketed feed tank, 8-Gallon
Manual isolation valves
Material contact surfaces: 316L stainless steel
Coriolis Flow Meters for reliable, high-viscosity fluid flow monitoring (replacing geared flow meters) with custom cast thermal jackets.
Digital pressure transmitters for gear pumps (replacing analog gauges)
Standardized insulated cold trap jumper hoses and insulated external cold trap coils
Fully welded hot oil lines
Factory Acceptance Testing (FAT) standard
Various Feed Tank options (3-Stage only)
Various Human-Machine Interface (HMI) options
Various vacuum system options
5 – 20 LPH Feed Speed, 7.5 LPH Pass Speed
Short path evaporation technology optimized for thermally sensitive compounds

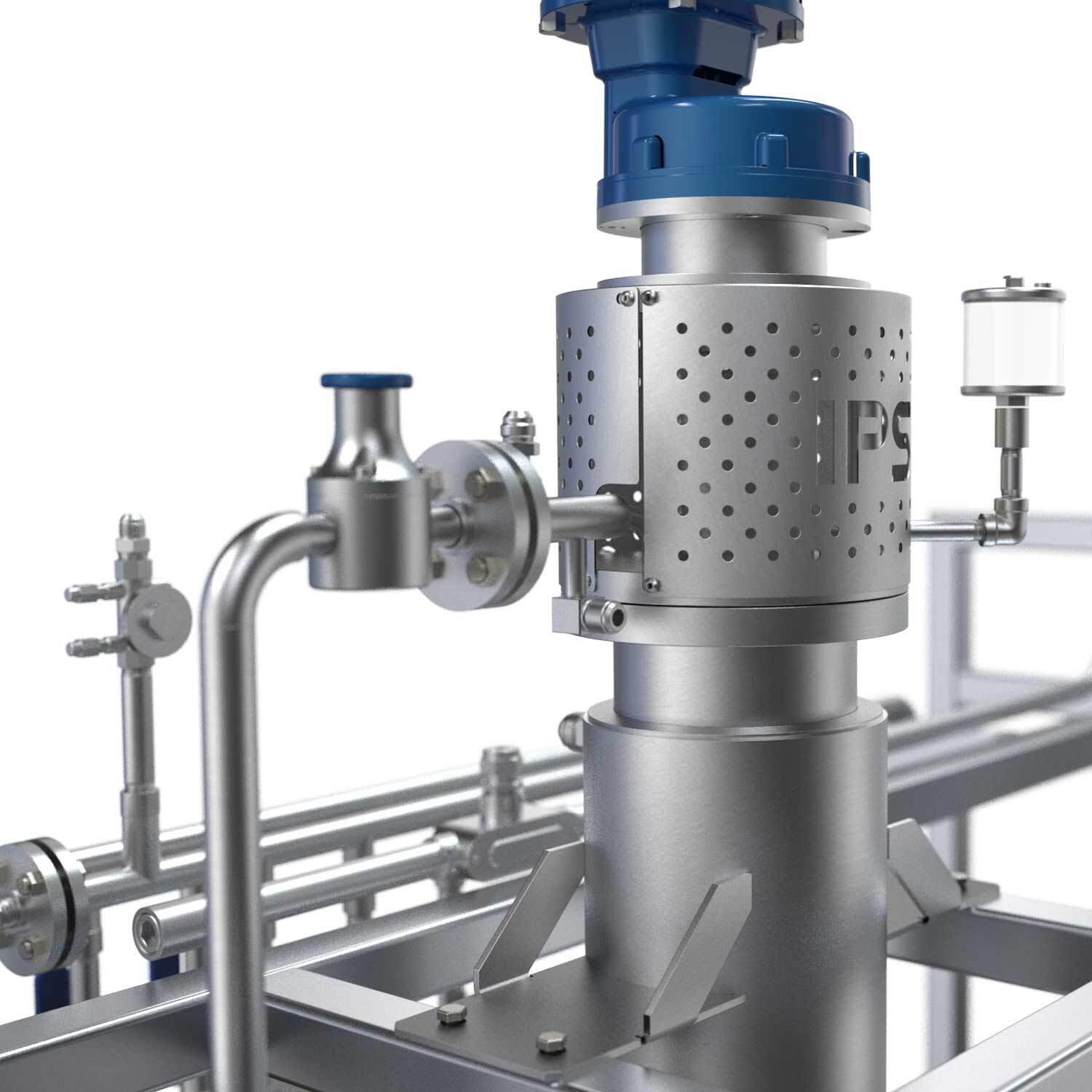

Short path evaporator with internal, high surface area coil condenser
Standard PTFE rollers with splash guards for maximum longevity
All chilling & heating fluids
Closed-loop hot oil circulator
Max. 250°C
For evaporator
Max. 250°C
For evaporator
Closed-loop tempered water units (2)
Max 100°C
For feed tank & system jacketing
For internal short path condenser
Max 100°C
For feed tank & system jacketing
For internal short path condenser
Cold trap chiller: -30°C to -50°C (Included)
Closed-loop cold trap chiller: -50°C to -80°C ( $15,000.00)
Max. 250°C
For evaporator
Max 100°C
For feed tank & system jacketing
For internal short path condenser
All Vacuum Clamps, Hoses, and Valves
Consistent Bore Size 40-50mm to Pump Inlets
Dual-point Vacuum Monitoring System with Valve Control
Vacuum Pre-Filter and Secondary Catch
Multiple Pump Options*:
High Capacity/High Vacuum Diaphragm Pump
Rotary Vane Pump Oil Mist Filter
Booster Pump Kits
Dry Screw Pumps (coming soon)
High Capacity/High Vacuum Diaphragm Pump
Rotary Vane Pump Oil Mist Filter
Booster Pump Kits
Dry Screw Pumps (coming soon)
High Capacity/High Vacuum Diaphragm Pump
Rotary Vane Pump Oil Mist Filter
Booster Pump Kits
Dry Screw Pumps (coming soon)
Included standard on all units: EliteLab Core Touchscreen Control Interface
Temperature Control Unit (TCU) & Pressure consolidated controls
Custom Presets and Automation Settings for “Recipes” and repeatability via multi-day data-logging of all parameters
Temperature Control Unit (TCU) & Pressure consolidated controls
Custom Presets and Automation Settings for “Recipes” and repeatability via multi-day data-logging of all parameters
Programmable Logic Controller (PLC) by Allen Bradley (additional fee*)
22” Touchscreen Control Interface integrates VFDs into a simple interface for system control, data-logging, and management
Preset and custom alarms for production stability with remote control options
22” Touchscreen Control Interface integrates VFDs into a simple interface for system control, data-logging, and management
Preset and custom alarms for production stability with remote control options
PLC with Automated Level Sensors (additional fee*)
Fluid level sensors added into process lines to sense the flow rates and control respective material pump speed
Set flow rate on feed pump and sensors will automatically adjust discharge pump speeds
Requires additional height*
Fluid level sensors added into process lines to sense the flow rates and control respective material pump speed
Set flow rate on feed pump and sensors will automatically adjust discharge pump speeds
Requires additional height*
Temperature Control Unit (TCU) & Pressure consolidated controls
Custom Presets and Automation Settings for “Recipes” and repeatability via multi-day data-logging of all parameters
22” Touchscreen Control Interface integrates VFDs into a simple interface for system control, data-logging, and management
Preset and custom alarms for production stability with remote control options
Fluid level sensors added into process lines to sense the flow rates and control respective material pump speed
Set flow rate on feed pump and sensors will automatically adjust discharge pump speeds
Requires additional height*
3-Day onsite utilities install & mechanical check and intensive training
Additional days billed at $3,000 per day
Additional days billed at $3,000 per day
Full Factory Acceptance Testing (FAT) pre-shipment
Standard Operating Procedures (SOPs)
Clean-in-place (CIP) Procedures
On-going Quarterly Over The Air (QOTA) checkups
Additional days billed at $3,000 per day
