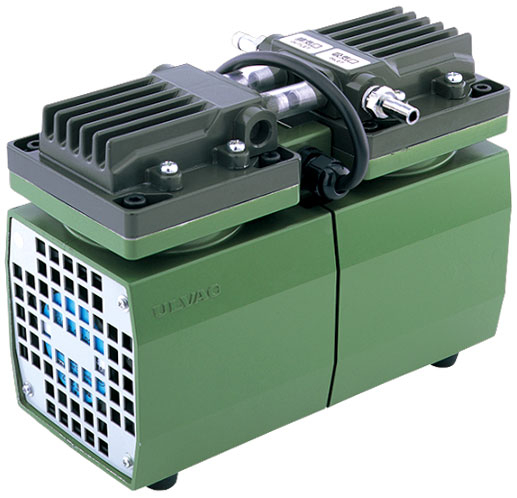

ULVAC DA-40S 1.6 cfm Oil-Free Diaphragm Pump


Manufactured and imported directly from Japan, ULVAC DA series diaphragm pumps creates vacuum by reciprocate movement of rubber diaphragms. Various pumping speed and two/single stages are selectable depends on your required pressure and pumping volume. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.

SKU: 4200762 Category: Tag:



 Electrical requirements
 110V 50/60Hz or 220V 50/60Hz single phase, 60 watts

 Full load current
 0.8 amps

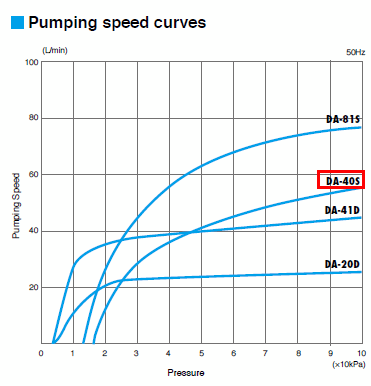

 Pumping rate
 1.62 cfm (60Hz), 1.41 cfm (50Hz)

 Ultimate vacuum level
 149 torr

 3/8″ hose barb

 Adjustable vac./gas ballast

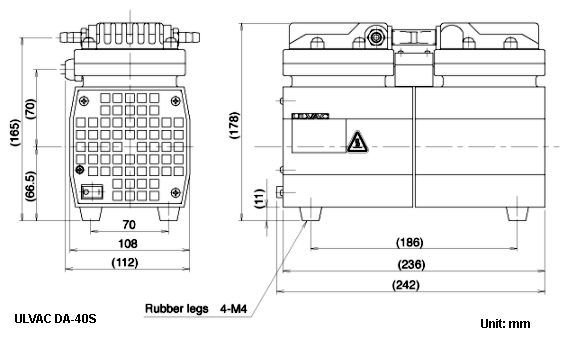

 Unit dimensions (LxWxH)
 13 x 5 x 7″

 Unit weight
 16 Lb

 Working environment
 44.6°F to 104°F (7°C to 40°C)
