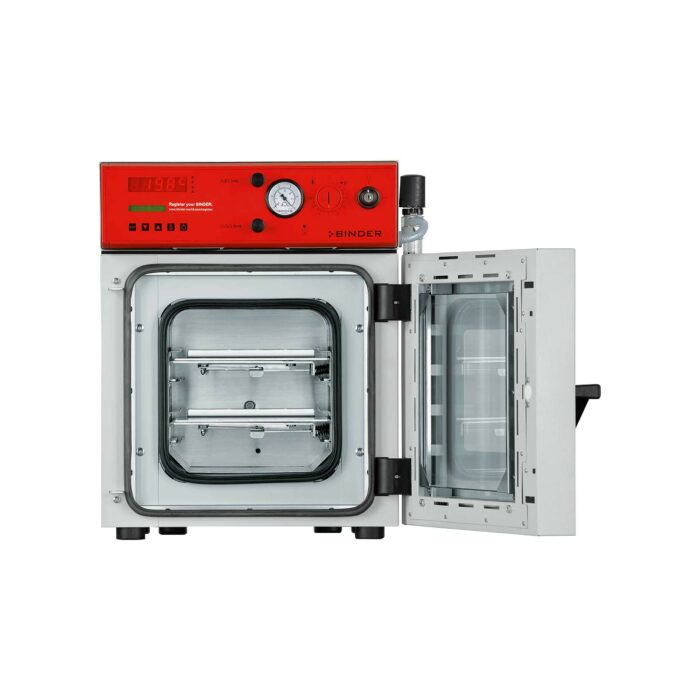

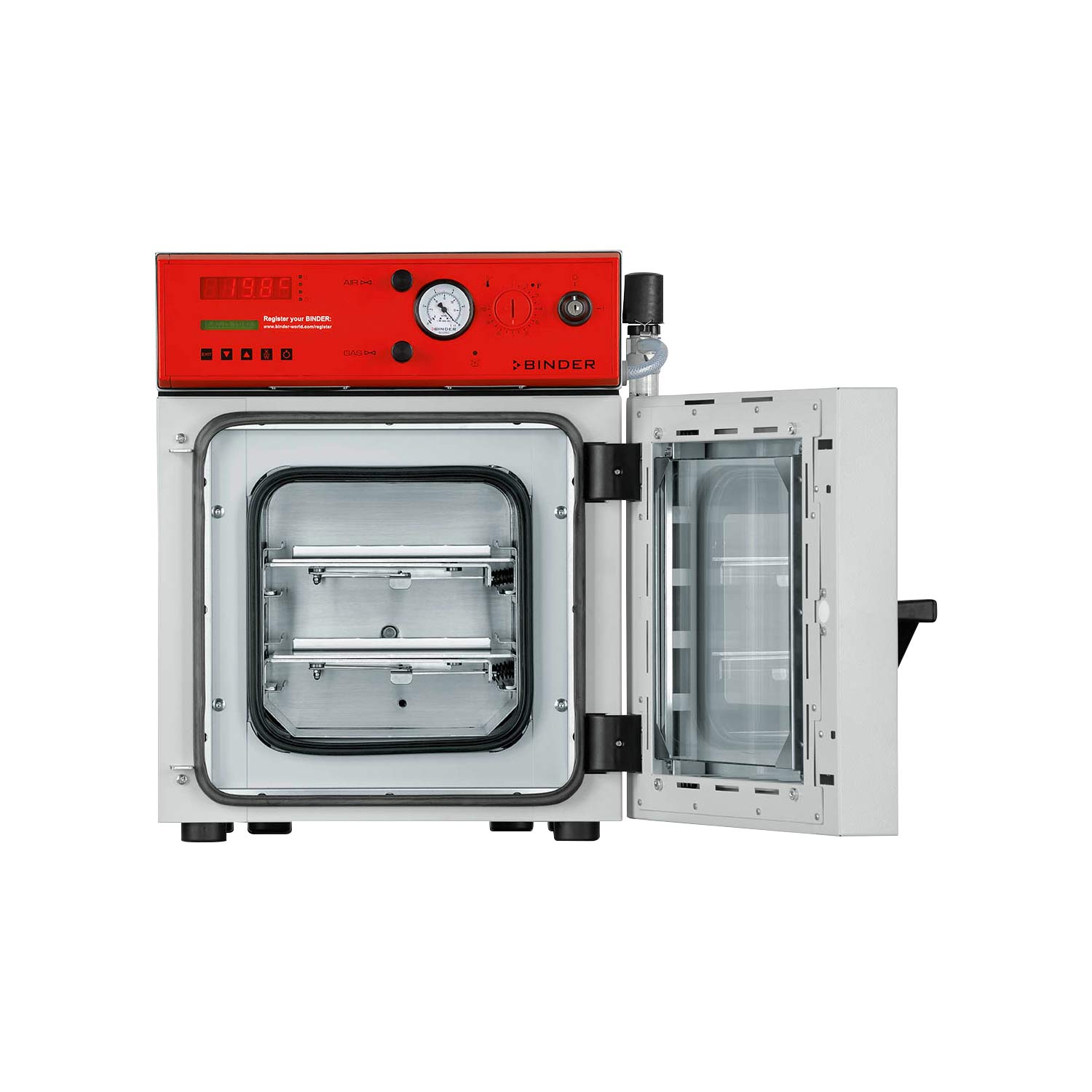

Vacuum Drying Chamber – 23L

$19,602.81

Binder VDL vacuum drying chambers (sometimes referred to as vacuum ovens or “vac purge ovens”) ensure maximum safety when drying organic solvents.
The inner chamber of the VDL series is designed according to ATEX guidelines meaning it is extremely safe and enables effective drying without damaging the material being dried.

SKU: 4201837 Category:

Description

Model:
VDL023-230V

Heat-up time to 100°C:
65 minutes

Temperature Fluctuation [± K]:
0.1

Temperature range 15 °C above ambient temperature to [°C]:
200

Temperature variation at 100 °C [± K]:
1.5

Leak rate [bar/h]:
0.01

Permitted end vacuum [mbar]:
0.01

Nominal power [kW]:
0.8

Phase (Nominal voltage):
1~

Power frequency [Hz]:
50/60

Rated Voltage [V]:
230

Unit fuse [A]:
10

Compressed air connection for pressure-encapsulation:
8 mm

Inert gas connection with flow limiter (RP”):
3/8

Measuring access port with small flange [DN mm]:
16

Vacuum connection with small flange [DN mm]:
16

Interior volume [cu.ft.]:
0.8

Load per rack [lbs]:
44

Net weight of the unit (empty) [lbs]:
139

Permitted load [lbs]:
77

Viewing window height [in]:
8.16

Viewing window width [in]:
9.85

Wall clearance back [in]:
3.94

Wall clearance sidewise [in]:
5.32

Number of shelves (std./max.):
2/4

Temperature Range: room temperature plus 15°C to 200°C
ATEX compliance for chamber interior: Ex II 3/-G Ex h IIB T1-T3 Gc X
APT.line™ preheating chamber technology
Controller with time-segment and real-time programming
2 aluminum expansion racks
Inert gas connection
Shatterproof, spring-mounted safety glass panel
Pressurized instrument panel with compressed air connection
Pressure control device for heating is activated < 125 mbar Flame protection gasket Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm RS 422 computer interface
