Description
Electrical requirements
115V, 50/60Hz, 1~phase, 1,500 watts
Tube
25mm OD x 700mm L, Quartz * 2″ diameter x 5″ L in the center with baffle
Maximum working temperature
1200°C (2 hours maximum continuous run time)
Constant working temperature
1100°C
Rotation speed
0 to 20 rpm
Constant working temperature under vacuum
1000°C
Rated vacuum pressure
0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure
0.02 MPa / 150 torr / 3 psi
Heating element type
Kanthal-A1 resistance coil wire
Thermo couple type
K
Refractory lining
Mitsubishi (Japan) 1500 grade fiber alumina
Temperature controller
Single PID, 30 segments
Maximum heating rate
< 30°C/min (recommended 15°C/min)
Heating zone length
8"
Temperature controller precision
/- 1°C

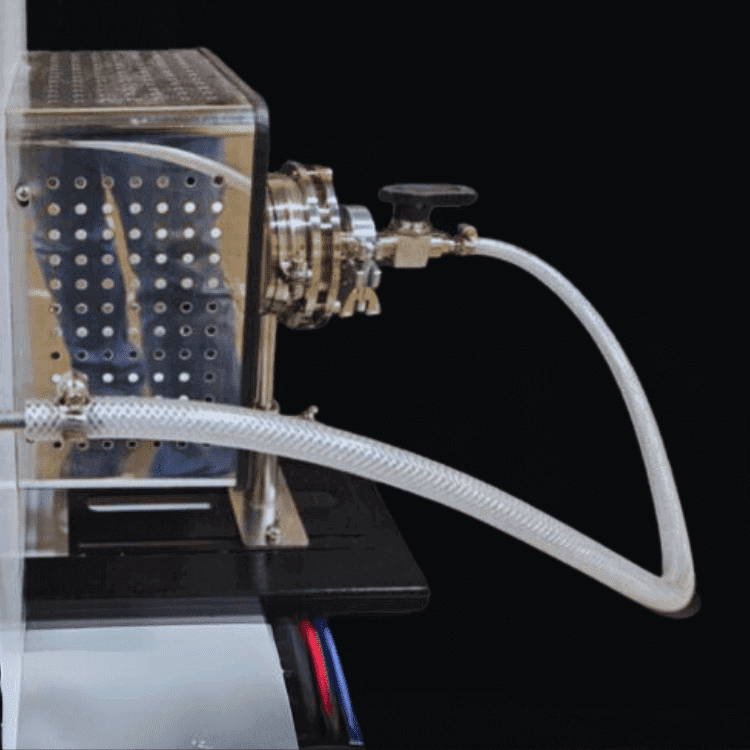

Vacuum sealing flange kit
Stainless steel vacuum sealing flanges with one vacuum gauge,two valves and four thermal ceramic blocks.
Gas inlet/outlet
1/4" hose barb with 1/4" BSPP (British standard parallel pipe)
Unit dimensions
23 x 14 x 17.5" (WxDxH) without tube
Unit weight
140 Lb
