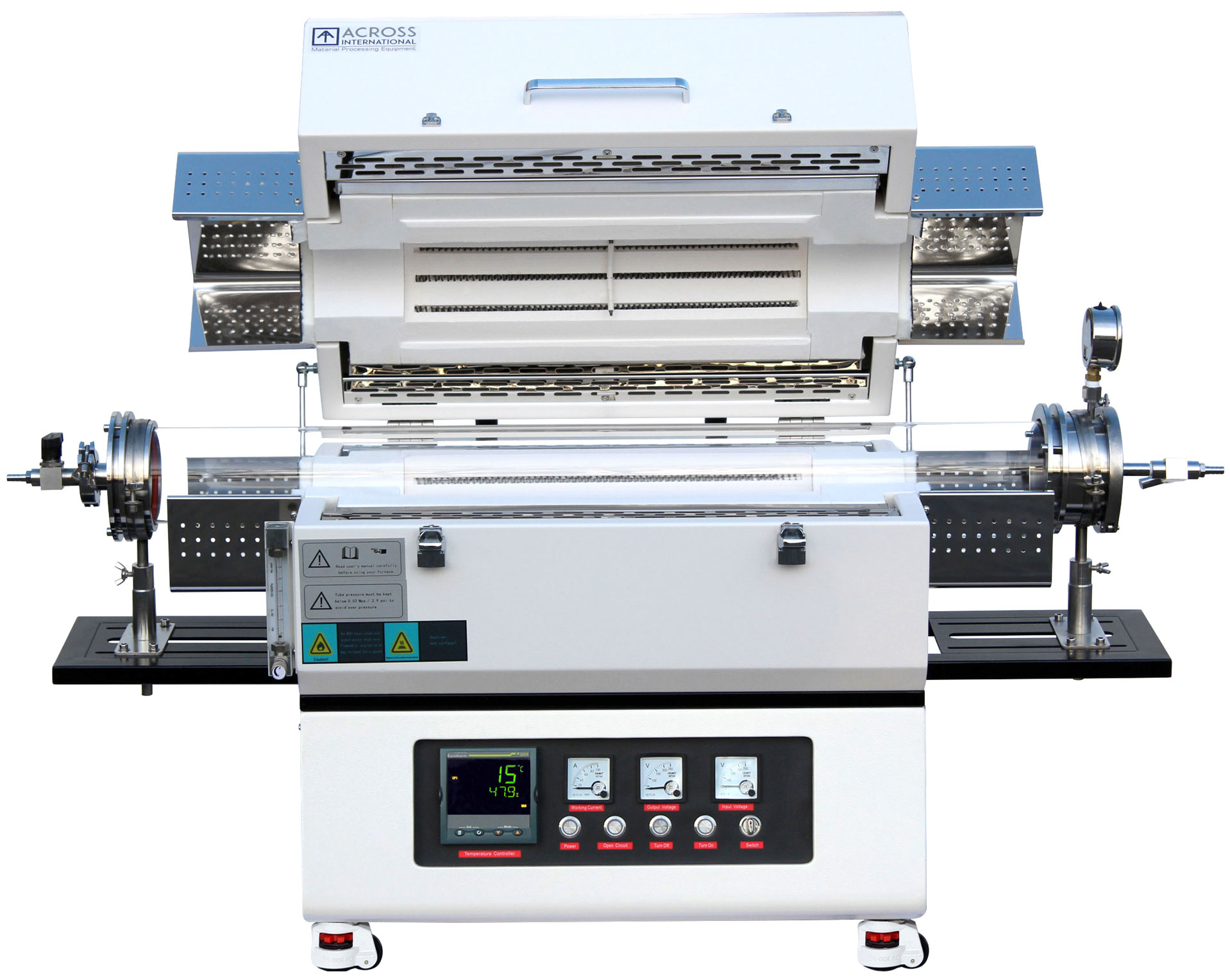

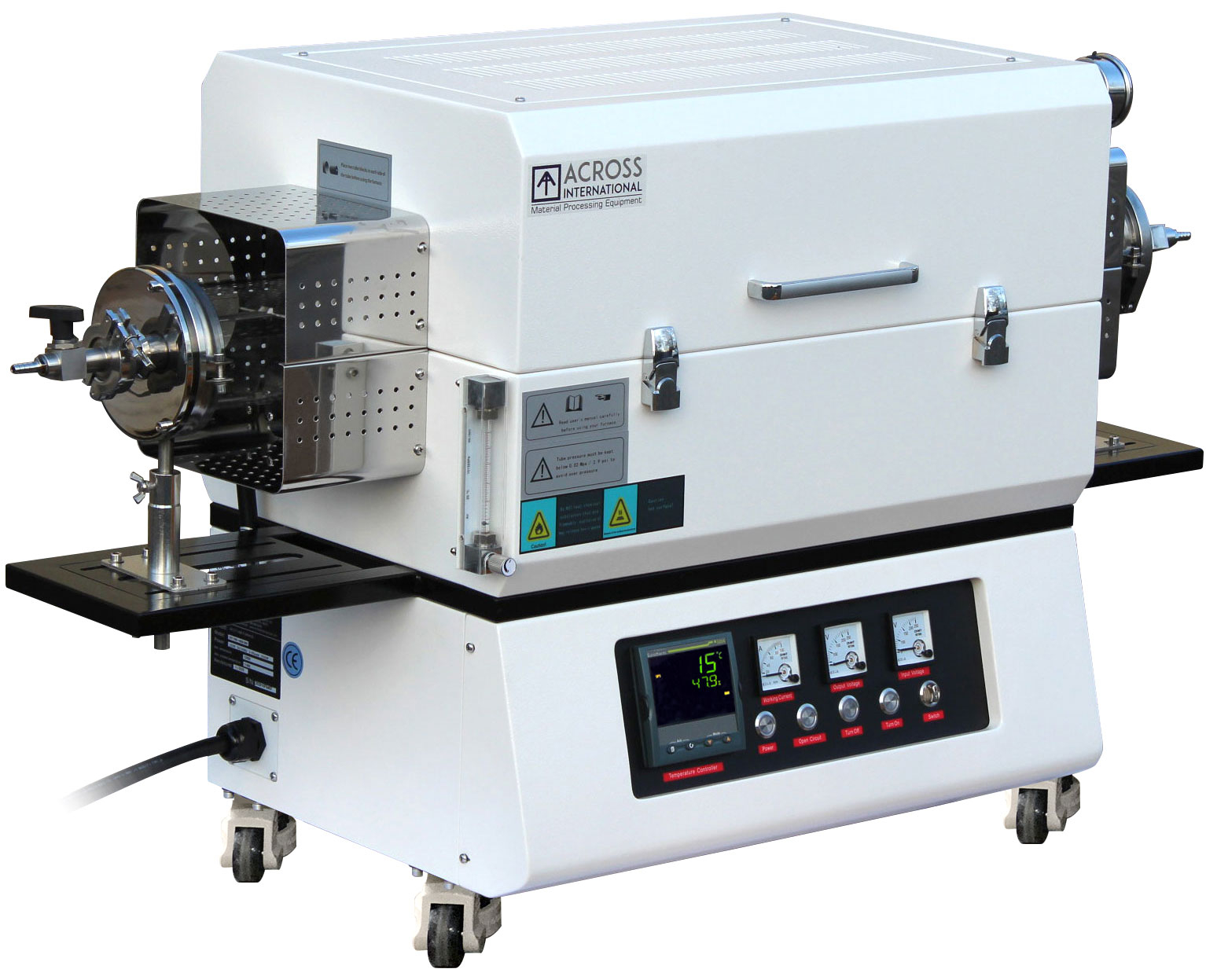

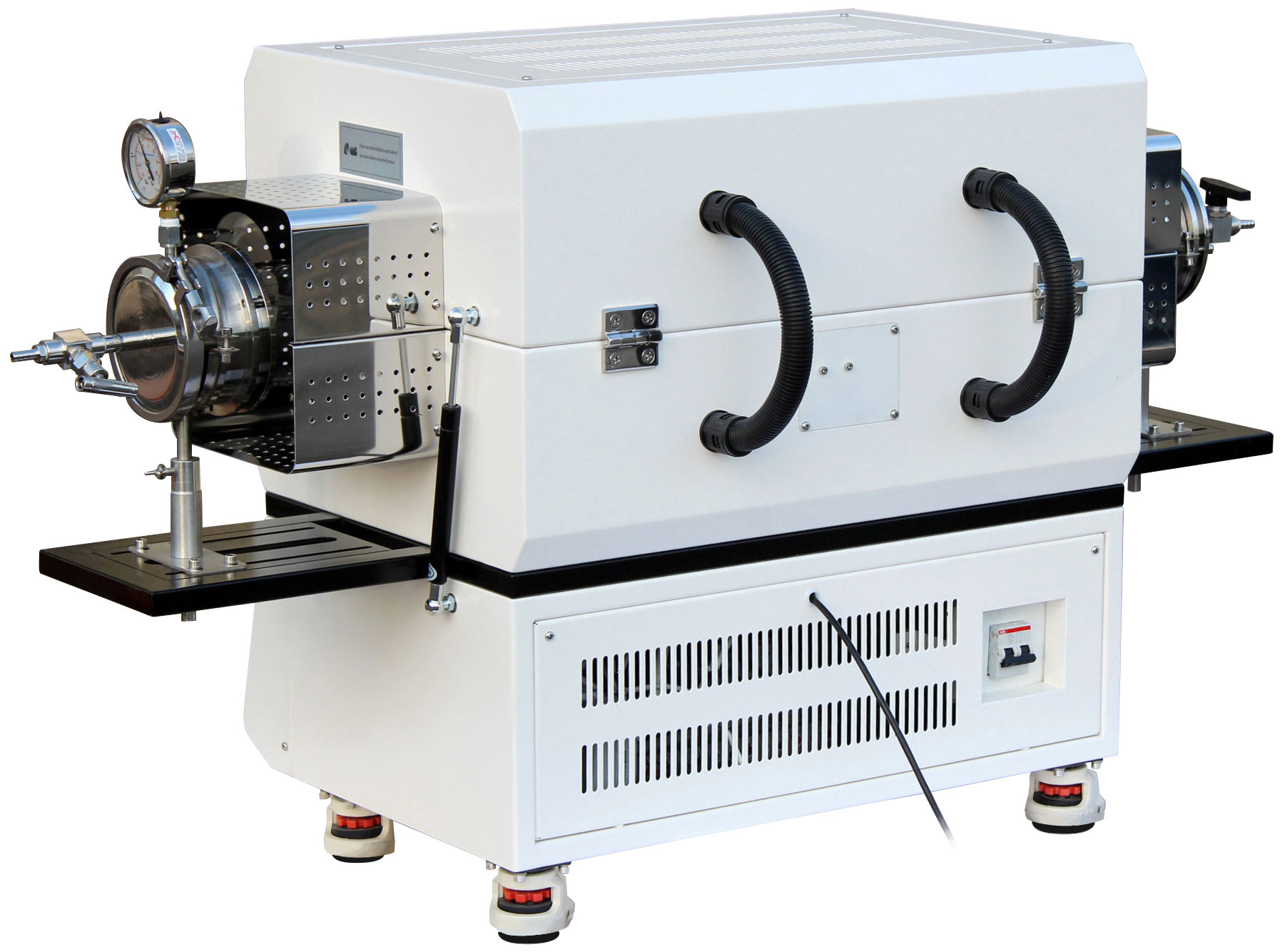

1200C 1-Zone Top-Open Tube Furnace w/ Kanthal Element

4,490.00$

Ai STF1200 series top-open tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

SKU: 4200420 Category: Tag:

Description

 Electrical requirements
 208-240VAC, 50/60 Hz, single phase

 Tube material
 Quartz

 Maximum working temperature
 1200°C (2 hours maximum continuous run time)

 Maximum constant working temperature
 1100°C

 Constant working temperature under vacuum
 1000°C

 Minimum working temperature
 Ambient

 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure
 0.02 MPa / 150 torr / 3 psi

 Heating element type
 Kanthal (Sweden) A1 2.0 resistance coil wire

 Thermocouple type
 K

 Refractory lining
 Mitsubishi (Japan) high quality 1500 grade fiber alumina

 Temperature controller
 Shimaden (Japan) fp93 (made in Japan) with 4 patterns and  40 segments (ie. 4 x 10 segments or 2 x 20 segments).

 Maximum heating rate
 < 30°C / min  Heating zone length  16 inches  Constant temperature zone length    10 inches  Temperature controller precision  ± 1°C  Vacuum sealing flange kit  Stainless steel vacuum sealing flanges with one vacuum gauge,two valves and four thermal ceramic blocks.        Gas inlet/outlet  1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)  Certification  ETL tested to UL and CSA standards, CE  Download  Product brochure
