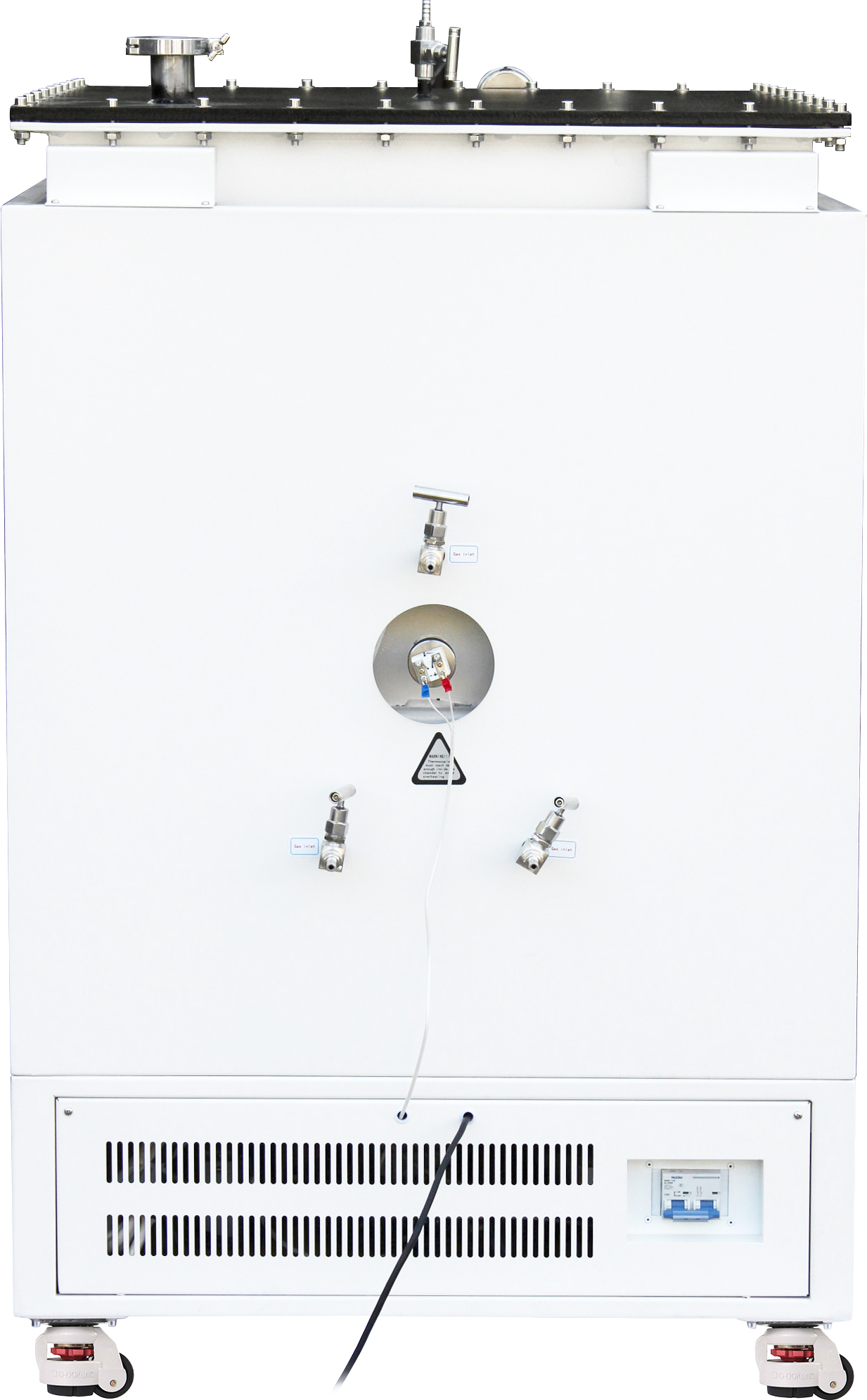

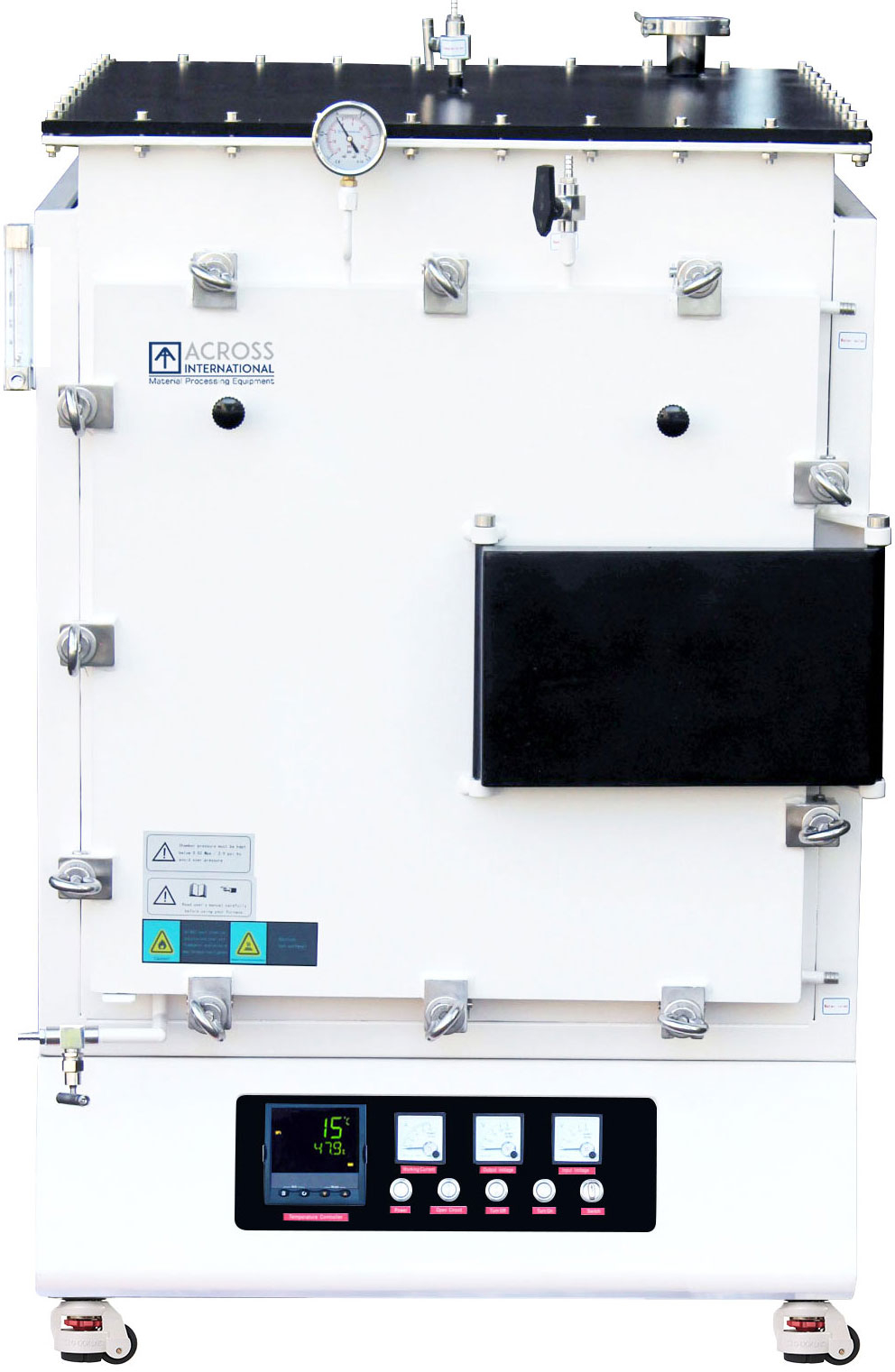

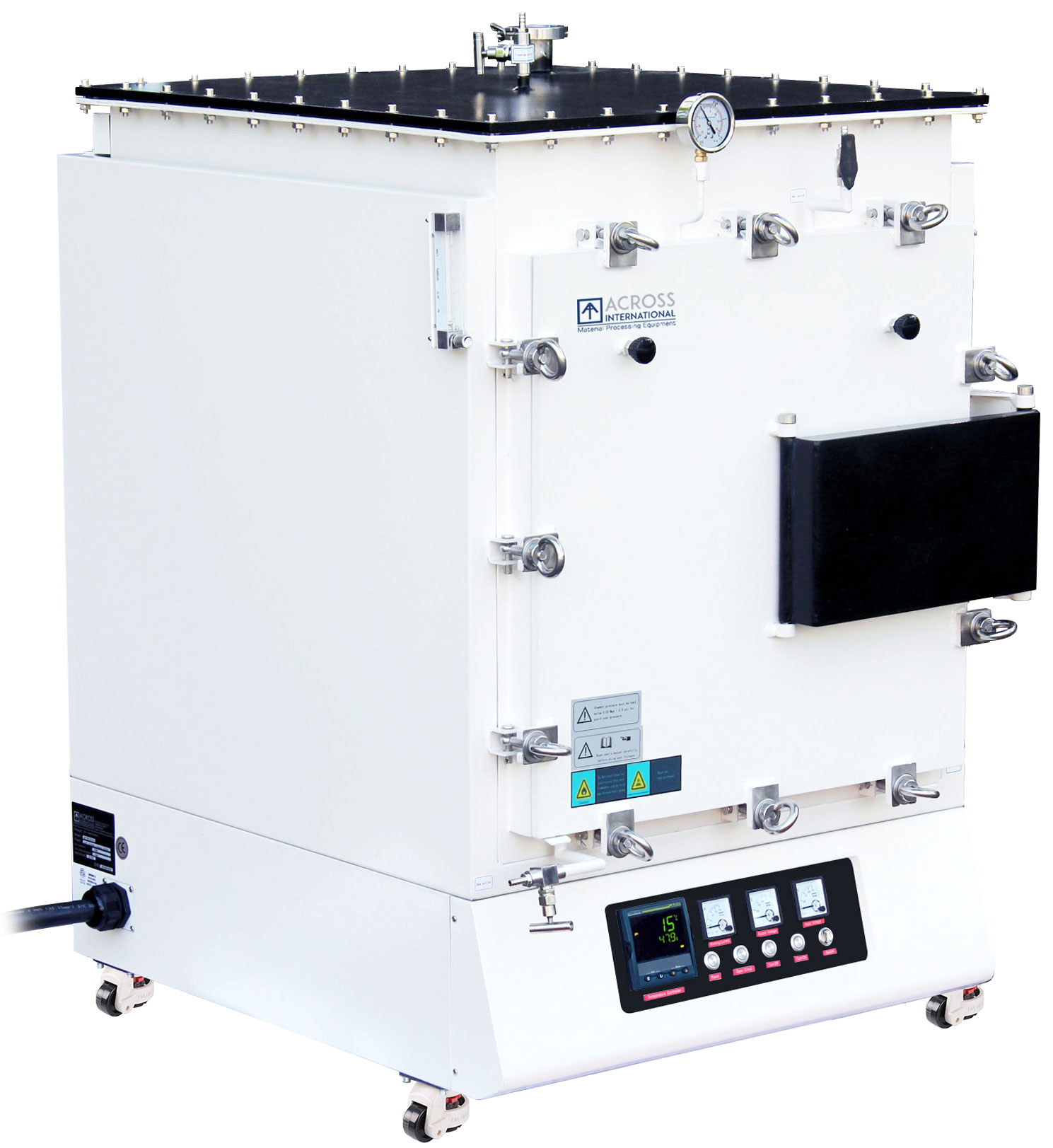

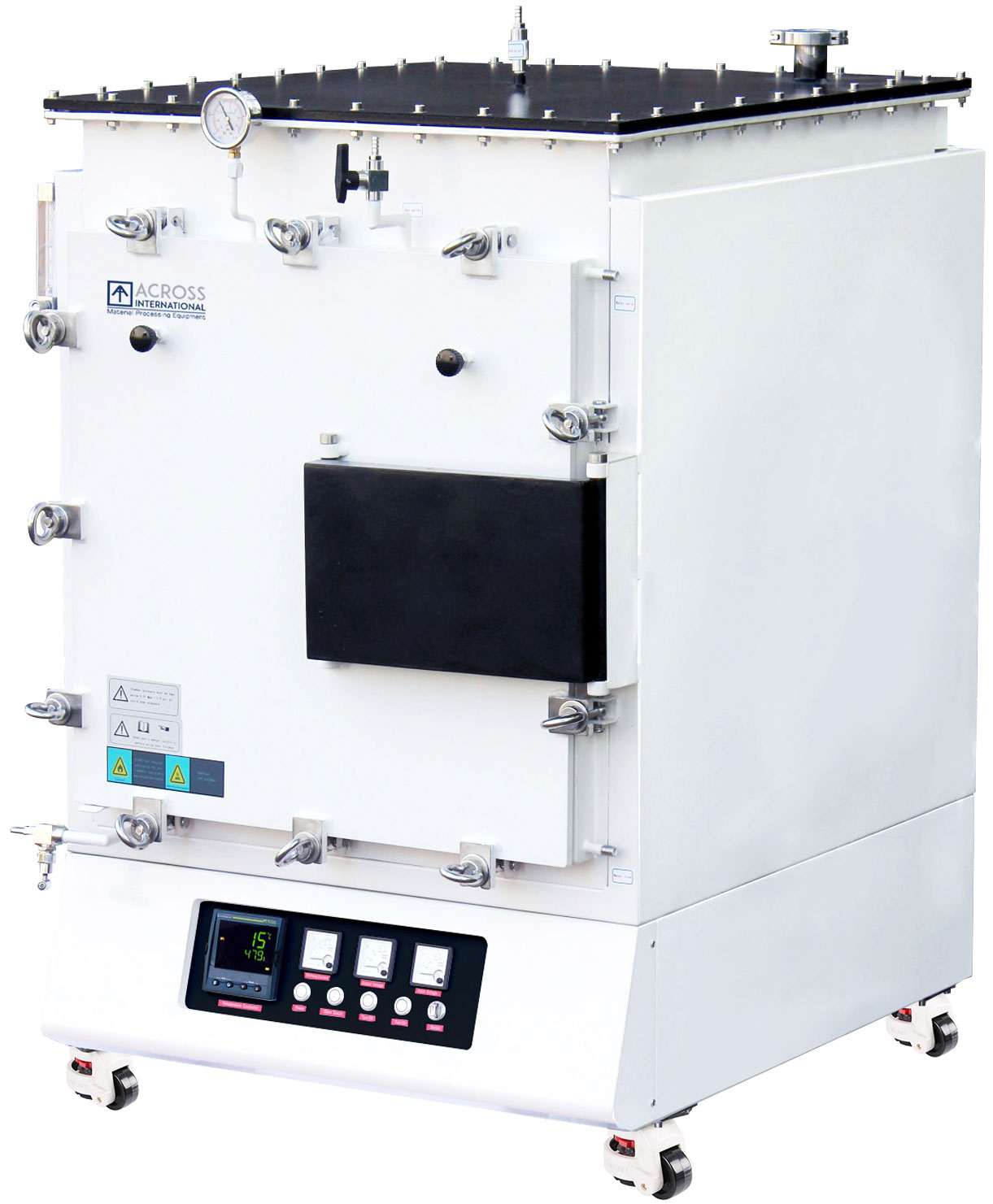

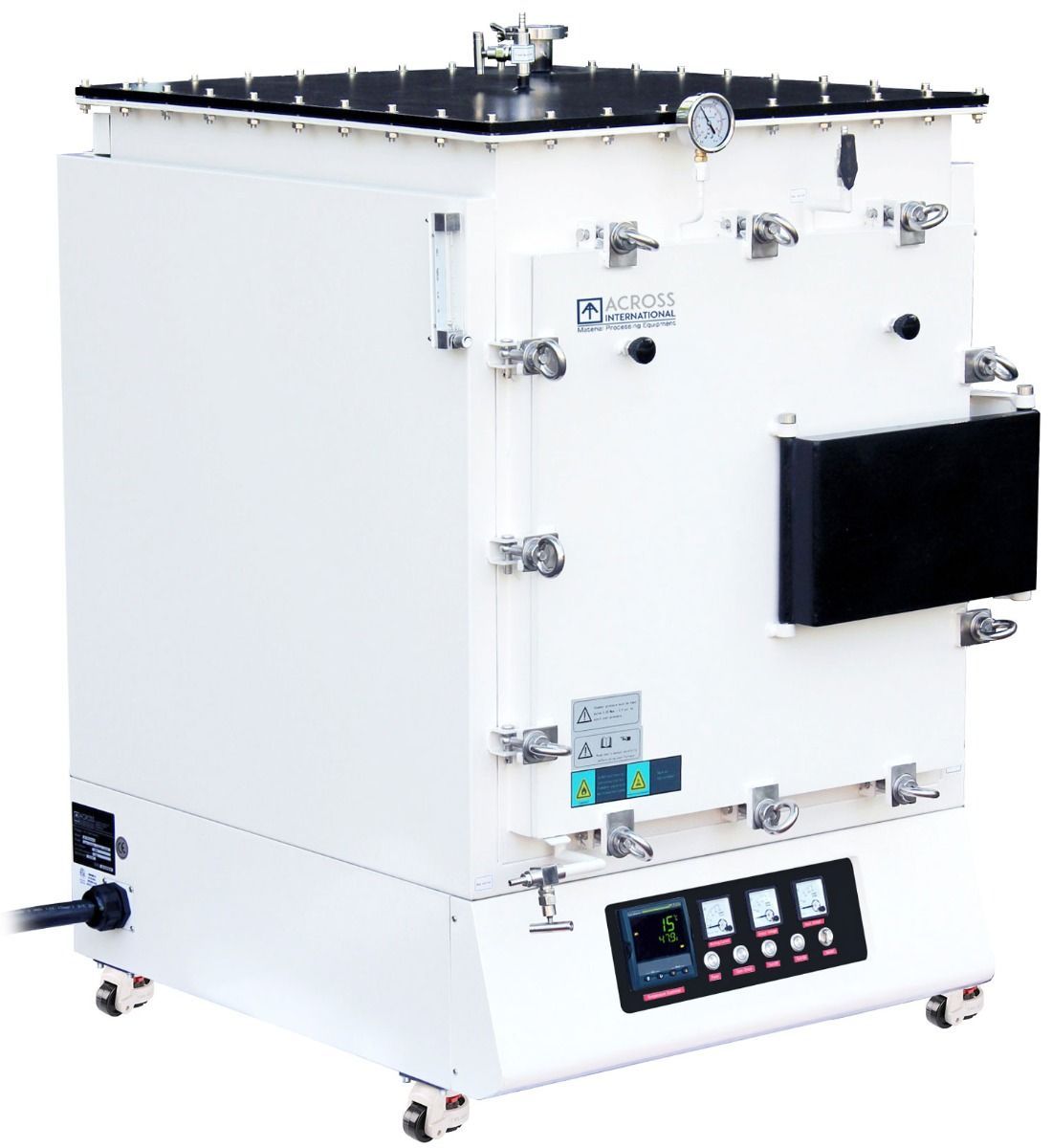

1400C Controlled Atmosphere Muffle Furnace ETL/CE Certified


GCF1400 series controlled atmosphere furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

SKU: 4200429 Category: Tag:


 Electrical requirements
 208-240V, 50/60Hz, single phase Product brochure

 Heating element & thermocouple type

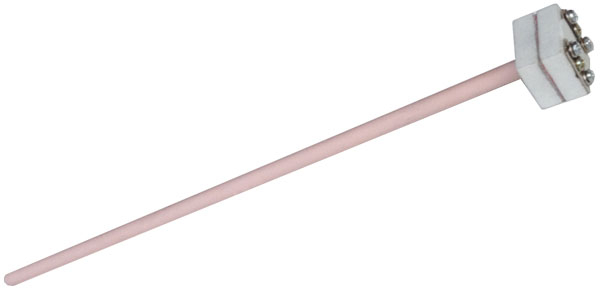

 Silicon carbide (SiC, diameter 12-14mm) / S-type

 Min/max/constant temperatures
 Ambient/1400°C/1300°C (depends on gas environment)

 Temperature controller

 Shimaden fp93 (Japan) with 4 patterns and  40 segments (ie. 4 x 10 segments or 2 x 20 segments) at /- 1°C Maximum heating rate: 15°C per minute

 Furnace cavity
 Mitsubishi (Japan) high quality 1600 grade polycrystalline alumina fiber

 Gas inlet/outlet
 1/4″ hose barb with 1/4″ BSPT (British Standard Pipe Thread)

 Working environments
 Air, N2, Ar, NO2, CO, CO2, He, Ne, etc. (Hydrogen, up to 5%)

 Positive pressure
 Not to exceed 0.02 MPa / 150 torr / 3 psi

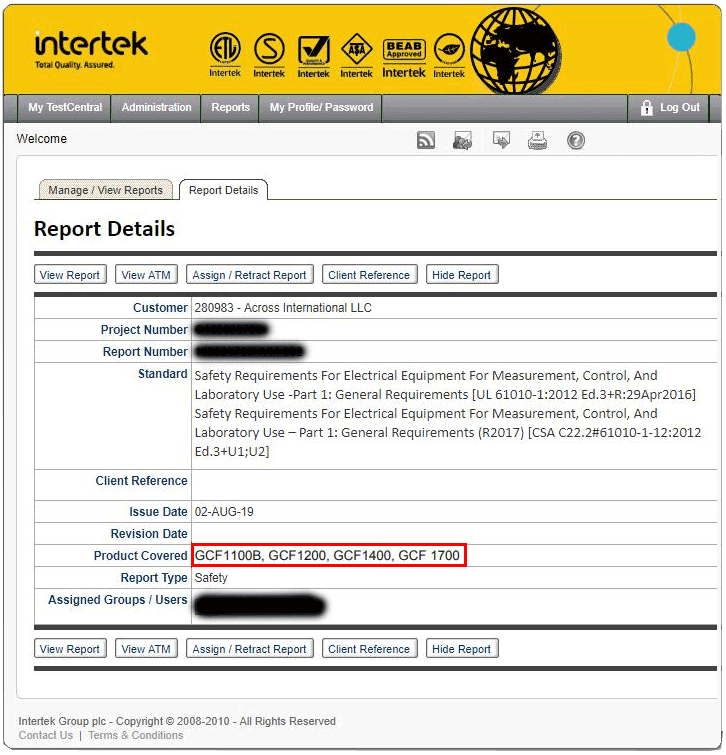

 ETL tested to UL and CSA standards, CE
