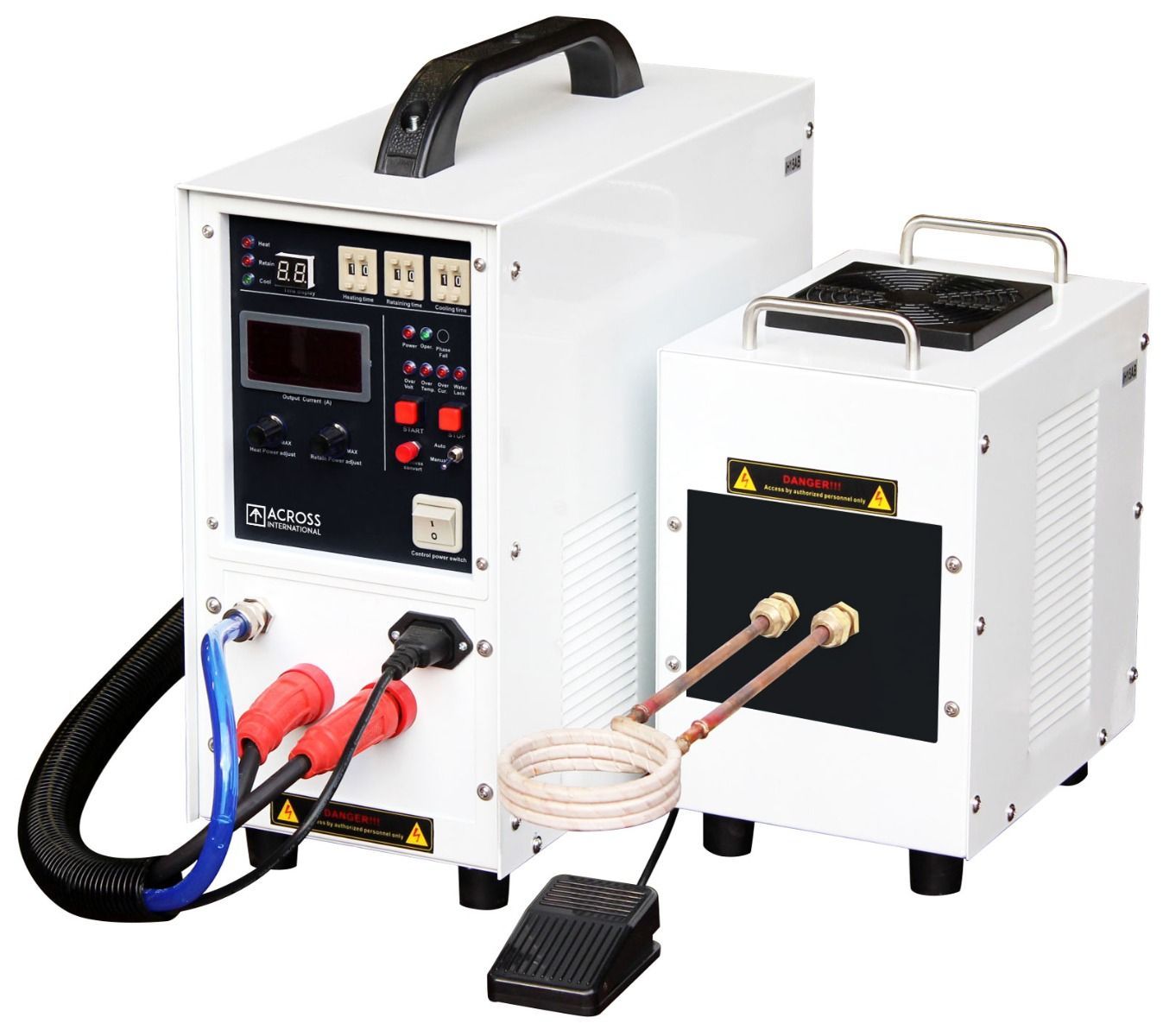

15KW Mid-Frequency Split Induction Heater w/ Timers 30-80KHz


Note: This model only available in 208-240 volt single phase.

SKU: 4200489 Category: Tag:


 Max. input current
 32 A (48A single-phase circuit breaker required)

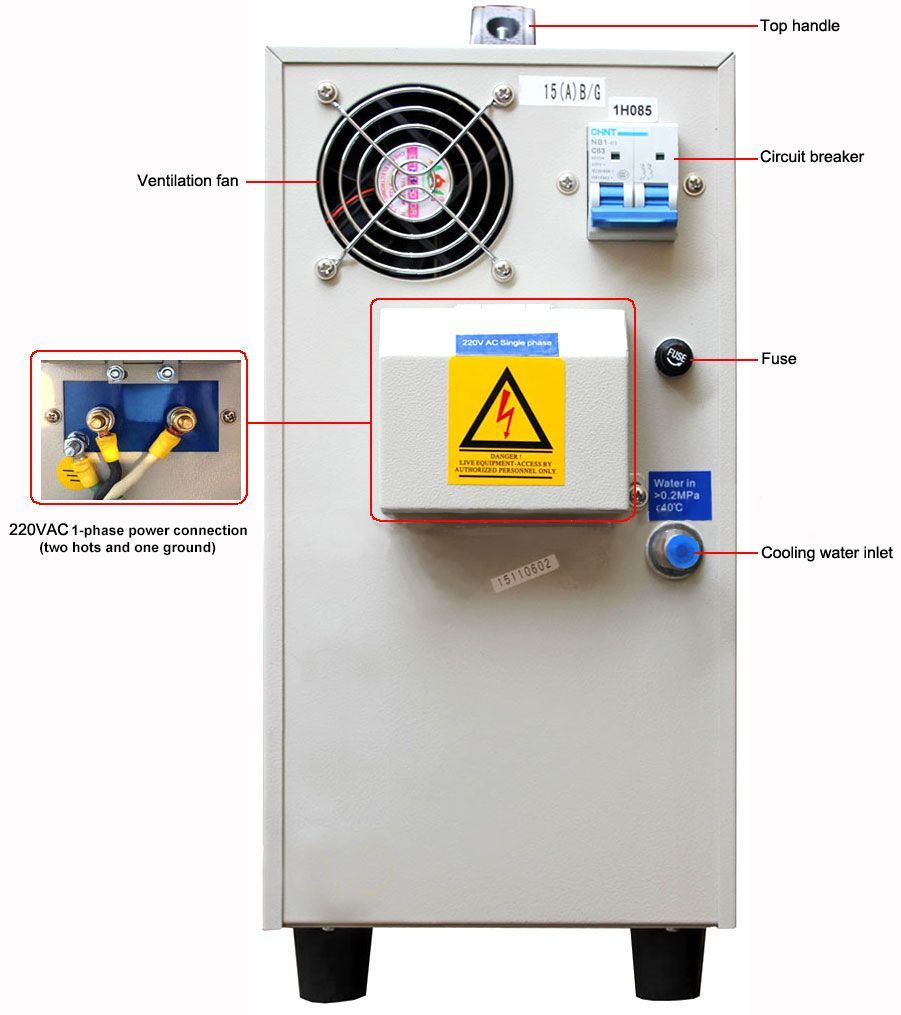

 208-240V, 50/60Hz, single-phase

 Power distribution cord
 8-gauge 3-conductor Max 40A (8/3 SOOW)

 Output frequency
 30-80 KHz

 Heating/retaining current
 200-600 A (displayed on control panel)

 Max. oscillating power
 15 KW

 Max input power
 7 KW

 Duty cycle


 Heating/dwelling/cooling timer
 1-99 seconds

 Water pressure
 ≥ 0.2 Mpa (29 PSI) you may use tap water  and water pump (>1/4HP & >240 Gph)

 Water temperature

 Water flow
 0.5-1.3 gallons (2-5 liters) per minute

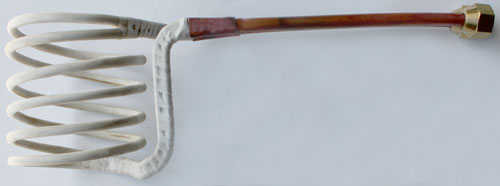

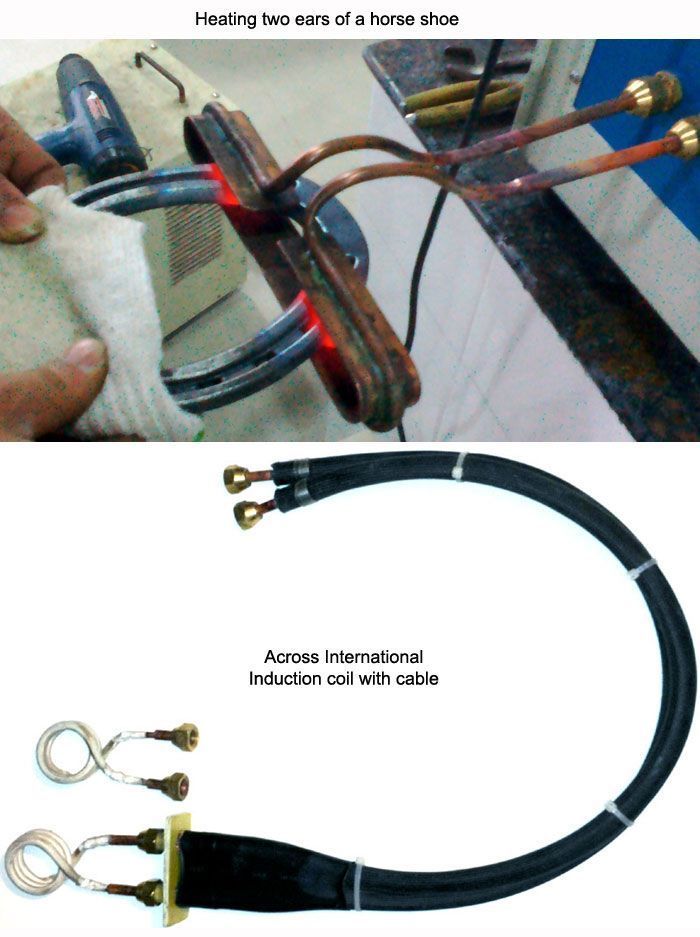

 Induction coil
 See detail specs below, we will make coils  according to your requirements

 Unit weight
 Power supply: 35 Lb, capacitor: 25 Lb

 Shipping weight
 93 Lb

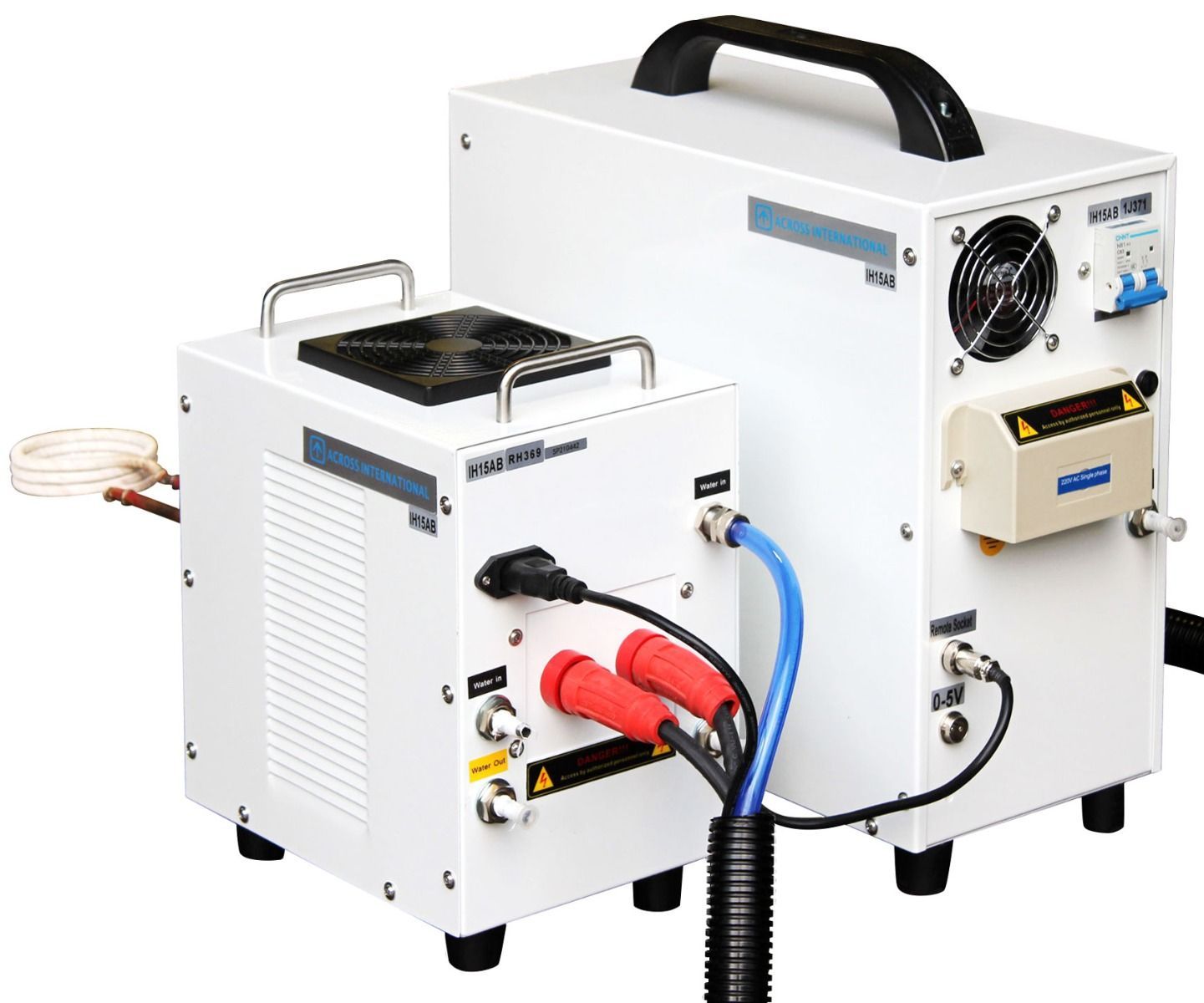

 Unit size
 Power supply: 18x8x17″, capacitor: 12×7.5×13″

 Shipping size

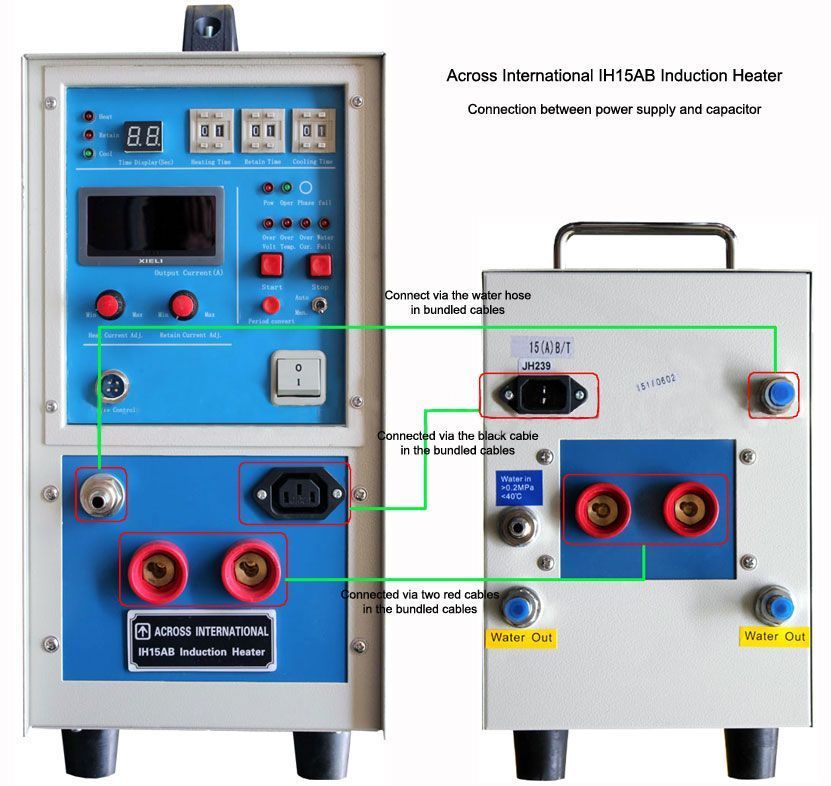

 Connection cables/foot switch
 7 feet

 Max. melting capacity
 4 Lb (gold, silver, copper), 1 Lb (steel, aluminum)
