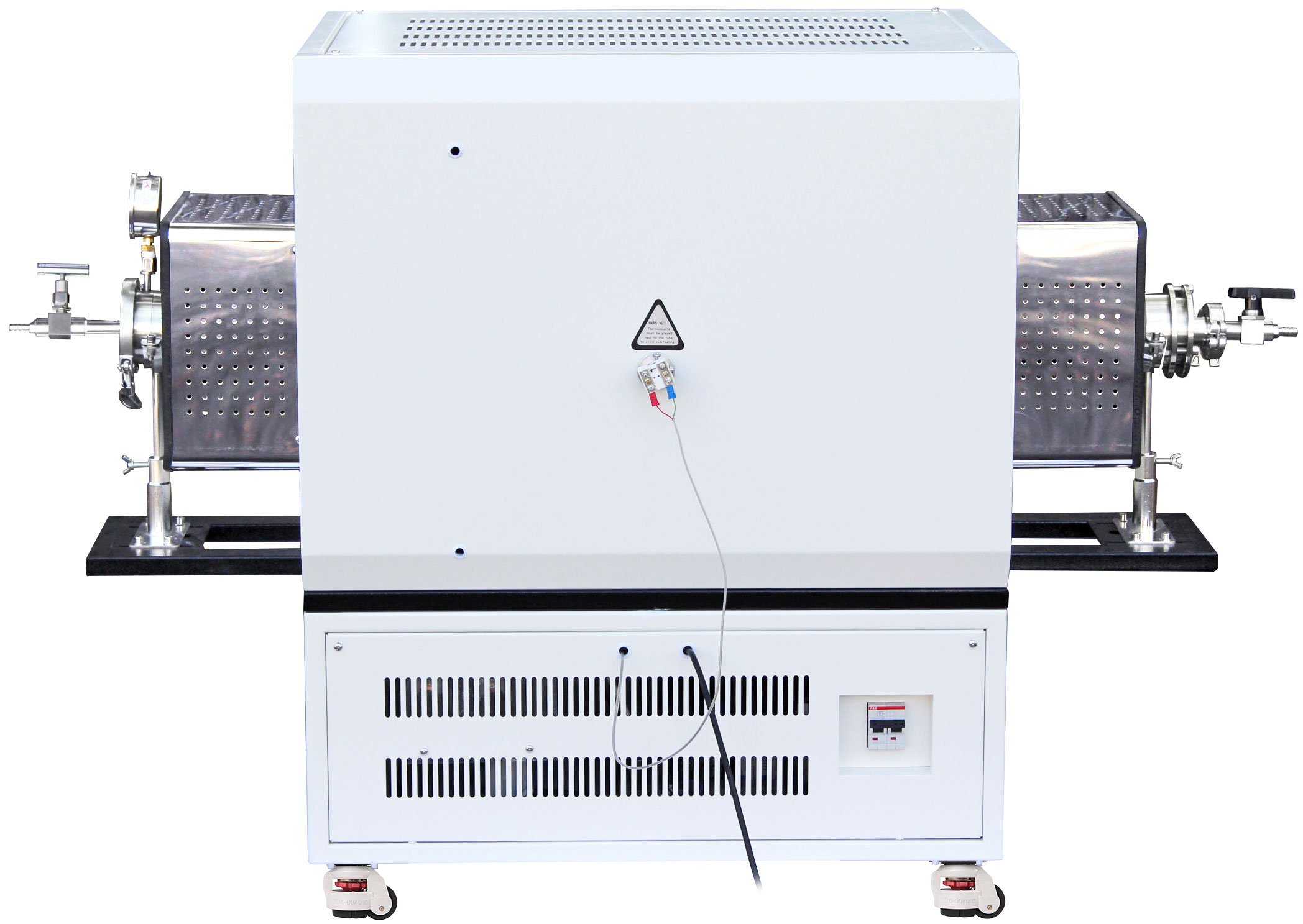

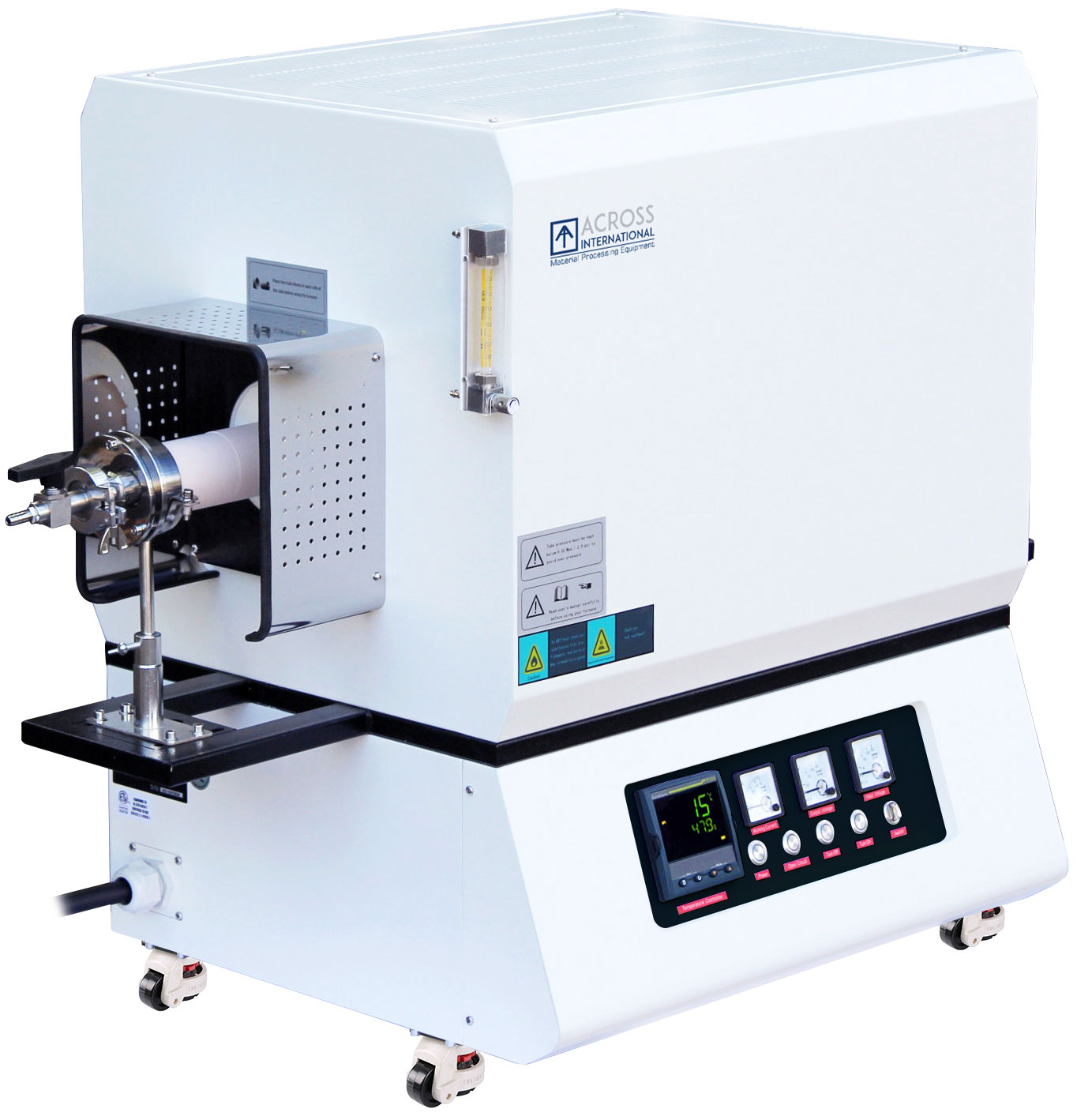

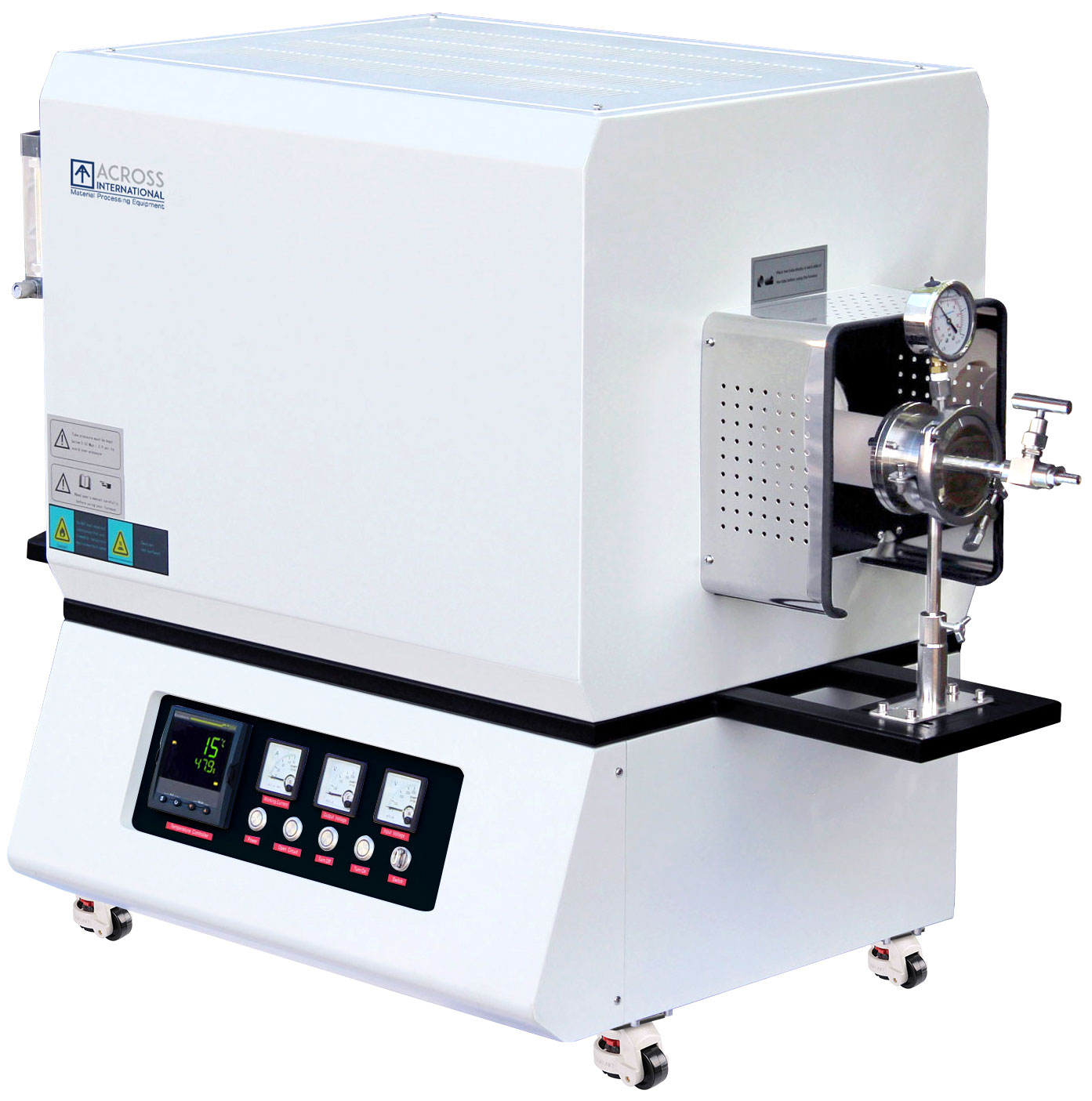

1700C 1-Zone Tube Furnace with Alumina Tube and Sealing Flanges

7,690.00$

TF1700 series tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.All our furnaces are CE compliant.

SKU: 4200424 Category: Tag:

Description

 Electrical requirements
 208-240VAC, 50/60 Hz, single phase

 Tube material
 High purity (99%) Al2O3 alumina

 Min working temperature
 300°C (572°F) Recommend at least 800°C for longer heating element life

 Max/constant working temperatures
 1700°C (3092°F) / 1600°C (2912°F) * 2 hours maximum continuous run time at maximum temperature

 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure
 0.02 MPa / 150 torr / 3 psi

 Refractory lining
 Mitsubishi (Japan) high quality 1800 grade fiber alumina

 Heating element / thermocouple type
 Molybdenum Silicide (MoSi2) / B-type

 Temperature controller
 Shimaden fp93 (Japan) with 4 programs and  40 segments (i.e. 4 x 10 segments or 2 x 20 segments).

 Max heating & cooling rate
 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)

 Heating vs constant zone length
 12″ / 6″

 Temperature controller precision
  /- 1°C

 Vacuum sealing flange kit
 Stainless steel vacuum sealing flanges with one     vacuum gauge, two valves and four thermal ceramic blocks.

 Compliance

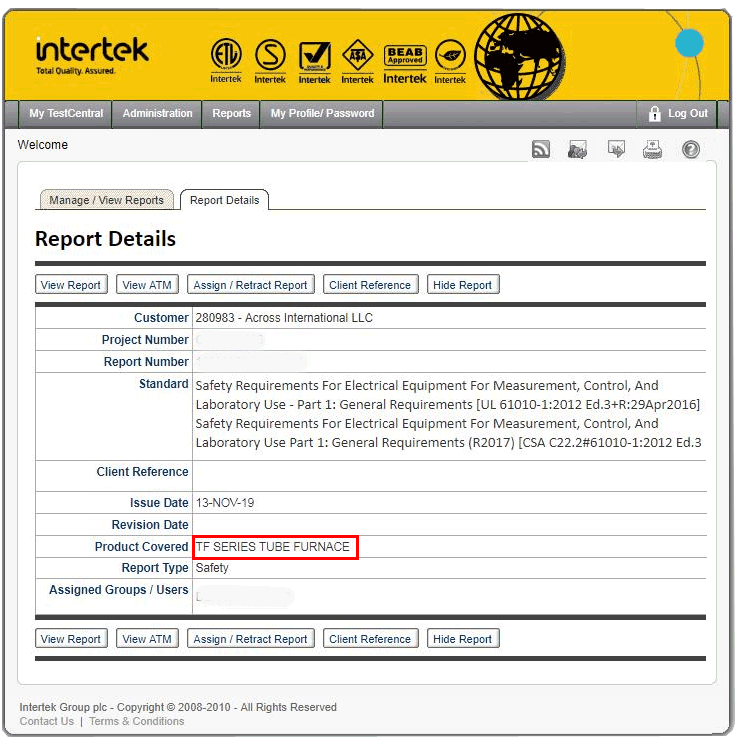

 ETL tested to UL and CSA standards (optional), CE

 Download
 Product brochure
